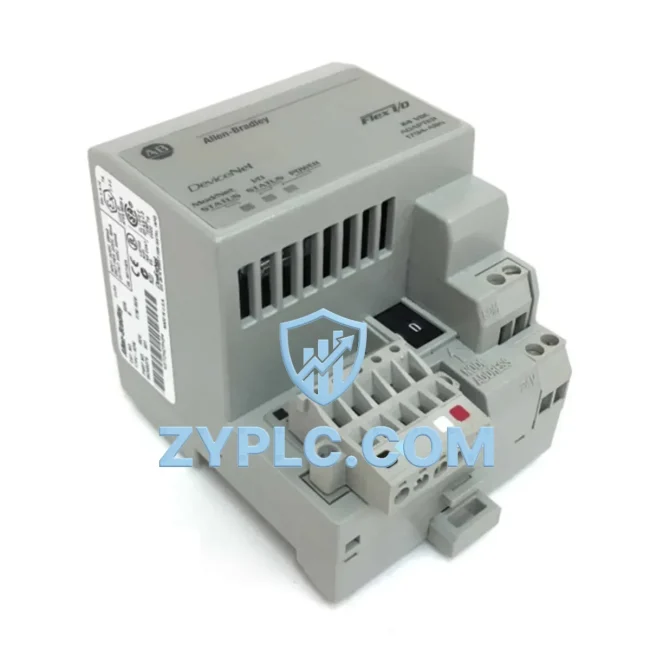

Allen-Bradley 1794-ADN Energy-Saving DeviceNet Adapter FLEX I/O

Allen-Bradley 1794-ADN Energy-Saving DeviceNet Adapter for Optimized FLEX I/O Automation

The Allen-Bradley 1794-ADN is a high-performance DeviceNet Adapter module designed for the FLEX I/O platform, engineered to deliver precise, low-latency communication between field-level devices and the control layer. In modern industrial environments where energy efficiency and equipment utilization are critical KPIs, the 1794-ADN plays a foundational role in reducing unnecessary power draw, minimizing idle-state losses, and enabling real-time feedback loops that keep production lines running at optimal throughput.

By integrating the 1794-ADN into a DeviceNet-based control architecture, plant engineers gain deterministic I/O scanning cycles that eliminate polling overhead and reduce CPU load on upstream controllers. This directly translates to lower energy consumption per production cycle, tighter synchronization between drive systems and sensor inputs, and a measurable reduction in unplanned downtime caused by communication faults.

Efficiency Performance Table

Energy-Aware Automation Architecture

The 1794-ADN operates as the communication gateway between the DeviceNet network and the FLEX I/O backplane, enabling a tightly integrated automation architecture that supports energy-aware control strategies. In a typical deployment, the adapter interfaces with a 1756-DNB DeviceNet Scanner module installed in a ControlLogix chassis, allowing the PLC to manage distributed I/O nodes across the plant floor without dedicated point-to-point wiring — significantly reducing cable losses and installation energy overhead.

On the drive side, the 1794-ADN frequently works alongside PowerFlex 40 and PowerFlex 70 variable frequency drives, where DeviceNet connectivity allows the controller to issue real-time speed reference commands and read back actual motor current and power factor data. This closed-loop visibility enables the control program to dynamically adjust motor speed based on actual load demand rather than running at fixed setpoints — a key lever for reducing motor energy consumption by 20–40% in variable-torque applications such as fans, pumps, and conveyors.

For analog signal acquisition, the 1794-IE8 8-channel analog input module mounted on the same FLEX I/O backplane captures process variables such as pressure, temperature, and flow rate. These values feed directly into the energy management logic running on the ControlLogix L7x processor, enabling the system to detect inefficient operating conditions — such as a pump running against a closed valve — and trigger corrective action before energy is wasted. Similarly, the 1794-OE4 analog output module provides precise 4–20 mA signals to control valve positioners and damper actuators, ensuring that final control elements respond proportionally to demand rather than operating in binary on/off states.

Digital I/O expansion is handled by modules such as the 1794-IB16 16-channel DC input module and the 1794-OB16 DC output module, which monitor machine states, safety interlocks, and actuator feedback. When integrated with a PanelView Plus 7 HMI terminal, operators gain real-time visibility into energy consumption trends, cycle counts, and fault histories — enabling informed decisions about shift scheduling and preventive maintenance intervals.

For power quality monitoring at the distribution level, the 1794-ADN architecture is often complemented by a PowerMonitor 5000 energy meter, which tracks kWh consumption, demand peaks, and power factor at the feeder level. This data, combined with the I/O-level feedback from the FLEX I/O system, creates a complete energy audit trail from the utility meter down to the individual motor drive — a capability increasingly required for ISO 50001 energy management compliance.

Communication redundancy and network health are maintained through the DeviceNet protocol’s built-in error detection, and the 1794-ADN supports configurable Electronic Data Sheet (EDS) parameters that allow the 1756-DNB scanner to monitor node health in real time. Faulted nodes are flagged immediately in the ControlLogix tag database, allowing maintenance teams to respond before a single node failure cascades into a line stoppage.

Power Optimization in Real Production Lines

In discrete manufacturing environments — automotive assembly, food and beverage packaging, electronics production — the 1794-ADN enables a control strategy known as demand-responsive I/O management. Rather than scanning all I/O points at a fixed rate regardless of machine state, the DeviceNet network can be configured to reduce scan rates during idle or low-throughput periods, cutting network traffic and associated controller overhead. When production demand ramps up, the scan rate returns to full speed within milliseconds, ensuring no loss of control fidelity.

Predictive maintenance is another area where the 1794-ADN delivers measurable energy savings. By continuously monitoring motor current signatures through connected PowerFlex drives and feeding that data back through the DeviceNet network to the ControlLogix processor, the system can detect early signs of bearing wear, rotor imbalance, or insulation degradation. Addressing these issues during planned maintenance windows — rather than after a catastrophic failure — eliminates the energy waste associated with emergency restarts, extended warm-up cycles, and running degraded equipment at reduced efficiency.

Line throughput optimization is achieved by using the 1794-ADN’s deterministic communication to synchronize conveyor speeds, robotic pick-and-place cycles, and inspection station timing. When each station in a production line receives its I/O updates at a consistent, predictable interval, the overall line takt time can be reduced without increasing the risk of collisions or quality escapes. Tighter takt times mean more parts per kilowatt-hour — a direct improvement in energy productivity.

Every 1794-ADN unit shipped by ZYPLC undergoes full functional testing prior to dispatch, including DeviceNet communication verification, backplane connectivity checks, and power consumption measurement. Units are supplied with a 12-month warranty covering manufacturing defects and functional failures, with in-stock availability ensuring rapid deployment to minimize production downtime.

Energy Optimization FAQ

Q1: How does the 1794-ADN contribute to reducing factory energy consumption?
The 1794-ADN enables demand-driven I/O scanning over DeviceNet, reducing unnecessary controller polling and network traffic during low-production periods. When paired with PowerFlex variable frequency drives, it supports real-time speed adjustment based on actual load — directly cutting motor energy consumption in variable-torque applications.

Q2: Is the 1794-ADN compatible with ControlLogix and CompactLogix systems?
Yes. The 1794-ADN connects to any DeviceNet scanner module, including the 1756-DNB for ControlLogix and the 1769-SDN for CompactLogix. It is also backward-compatible with SLC 500 and PLC-5 systems equipped with DeviceNet scanner cards, making it suitable for both new installations and legacy system upgrades.

Q3: Can the 1794-ADN replace an existing DeviceNet adapter without reconfiguring the entire network?
In most cases, yes. The 1794-ADN uses standard EDS-based configuration, and its node address and baud rate are set via rotary switches on the module face. As long as the replacement unit is configured to match the original node address and the EDS file is loaded into the scanner, the network will recognize it without requiring a full reconfiguration. Always verify the firmware revision of the scanner module for compatibility.

Q4: What does the 12-month warranty cover, and what is the testing process?
Every 1794-ADN unit is functionally tested before shipment, including DeviceNet communication handshake verification, backplane power integrity checks, and I/O channel validation. The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions. Units found to be defective within the warranty period are repaired or replaced at no additional cost. Contact our team at [email protected] for warranty claims and RMA processing.
