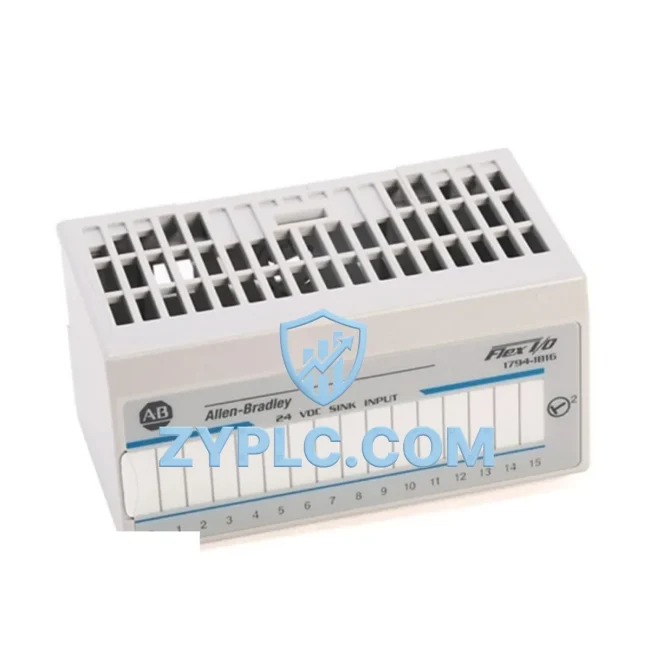

Allen-Bradley 1794-IB16D System-Ready Digital Input for FLEX I/O Architecture

Allen-Bradley 1794-IB16D System-Ready Digital Input for FLEX I/O Architecture: Control System Architecture and Upstream–Downstream Coordination

The Allen-Bradley 1794-IB16D is a 16-point 24VDC digital input module engineered for the FLEX I/O platform — a distributed I/O system widely deployed across manufacturing, power distribution, petrochemical processing, water treatment, mining, metallurgy, and packaging automation environments. Rather than functioning as a standalone component, the 1794-IB16D is designed to operate as an integral node within a layered control architecture, where signal acquisition, data transmission, processor coordination, and field-level execution must work in seamless synchrony.

In a complete FLEX I/O control system, the 1794-IB16D occupies the I/O layer — the critical interface between field instrumentation and the control layer. It captures discrete 24VDC signals from limit switches, proximity sensors, pushbuttons, and process interlocks, then transmits structured data upstream to the control processor via the FLEX I/O adapter. This architecture ensures that the control layer — typically a ControlLogix or CompactLogix CPU such as the 1756-L85E or 1769-L36ERM — receives clean, time-stamped digital input data for real-time logic execution. The 1794-IB16D’s role in this signal flow is foundational: without reliable input acquisition at the field level, no amount of processor capability or network bandwidth can compensate for data integrity loss.

Architecture Specification Table

Coordinated Control System Design

The 1794-IB16D achieves its full value when integrated within a coordinated FLEX I/O node. A typical node begins with a power supply — such as the 1794-PS13 or an external 24VDC rail supply — feeding both the adapter and the I/O modules. The 1794-AENT EtherNet/IP adapter serves as the network gateway, bridging the FLEX I/O backplane to the plant-level EtherNet/IP network and enabling the ControlLogix processor to address each input point via standard CIP messaging. Alongside the 1794-IB16D, a node may include the 1794-OB16 16-point digital output module for actuator control, the 1794-IE8 8-channel analog input module for process variable acquisition, and the 1794-OE4 analog output module for valve positioner or drive reference signals.

At the control layer, the 1756-L85E ControlLogix CPU processes the input data received from the 1794-IB16D and executes ladder logic, function block, or structured text programs that govern machine sequencing, safety interlocks, and process control loops. For applications requiring redundancy, the 1756-RM2 ControlLogix redundancy module can be paired with a secondary chassis to ensure continuous operation during primary controller failure — a configuration where the integrity of every I/O node, including the 1794-IB16D, is critical to seamless switchover. The 1794-IB16D’s deterministic input scanning ensures that redundancy switchover does not result in missed input transitions or false logic states.

At the human-machine interface layer, a PanelView Plus 7 terminal or a FactoryTalk View SE SCADA station visualizes the real-time status of all 16 input channels, enabling operators to monitor field device states, acknowledge alarms, and track process conditions without direct access to the control cabinet. The 1794-IB16D’s input data is mapped directly into the ControlLogix tag database, making it immediately available to both the HMI layer and any MES or historian system connected via OPC-UA or FactoryTalk Historian.

Application in Layered Automation Systems

In discrete manufacturing environments — automotive assembly, electronics production, and consumer goods packaging — the 1794-IB16D captures signals from conveyor position sensors, part-present detectors, door interlocks, and emergency stop circuits. Its 16-point density allows a single module to monitor an entire machine cell, reducing cabinet footprint and wiring complexity while maintaining full diagnostic visibility at the processor level.

In power distribution and substation automation, the 1794-IB16D monitors breaker status, relay contact states, and protection relay trip signals. Its compatibility with the 1794-AENT adapter and EtherNet/IP protocol allows integration into IEC 61850-compliant substation architectures via protocol gateways, supporting both local control and remote SCADA supervision.

In petrochemical and refinery process control, the module acquires discrete signals from high-level switches, pressure switch contacts, and valve position feedback. When deployed alongside the 1794-IE8 analog input module and a 1794-OE4 analog output module within the same FLEX I/O node, the 1794-IB16D contributes to a complete field I/O solution capable of handling both discrete and continuous process variables from a single distributed location.

In water and wastewater treatment facilities, the 1794-IB16D monitors pump run/fault status, float switch inputs, and flow switch contacts across geographically distributed pump stations. Its DIN rail mounting and compact form factor make it well-suited for installation in remote RTU panels where space is constrained and environmental conditions require robust, reliable hardware.

In mining and metallurgical processing, the module is deployed in conveyor control systems, crusher interlock circuits, and ore handling automation, where the ability to acquire multiple discrete signals from a single compact module reduces installation time and simplifies long-term maintenance. The 12-Month Warranty ensures that replacement modules are available and verified, minimizing unplanned downtime in high-criticality production environments.

Architecture Engineering FAQ

Q1: Which FLEX I/O adapters are compatible with the 1794-IB16D, and how does adapter selection affect system architecture?
The 1794-IB16D is compatible with all standard FLEX I/O adapters, including the 1794-AENT (EtherNet/IP), 1794-ACN15 (ControlNet), 1794-ADNX (DeviceNet), and 1794-APB (PROFIBUS DP). Adapter selection determines the network protocol used to connect the FLEX I/O node to the control layer. For new installations, the 1794-AENT is recommended for its support of CIP messaging, real-time I/O scanning, and seamless integration with ControlLogix and CompactLogix processors. The 1794-IB16D’s backplane interface is adapter-agnostic, ensuring Contextual Integration across all supported network topologies without hardware modification.

Q2: Can the 1794-IB16D be used in a redundant control architecture, and what are the configuration requirements?
Yes. When paired with a ControlLogix redundancy system using the 1756-RM2 redundancy module and a 1794-AENT adapter configured for produced/consumed tag communication, the 1794-IB16D participates fully in redundant I/O architectures. The module’s input data is continuously mirrored to the secondary controller chassis, ensuring that a primary-to-secondary switchover occurs without loss of input state data. Proper configuration requires that the FLEX I/O node be addressed consistently in both the primary and secondary controller programs, and that the 1794-AENT adapter firmware is current to support redundancy switchover timing requirements.

Q3: What does the 12-Month Warranty cover, and how does ZYPLC support long-term maintenance and spare parts availability?
The 12-Month Warranty covers the 1794-IB16D against manufacturing defects, functional failures, and performance deviations from published specifications under normal operating conditions. Each unit supplied by ZYPLC is tested and verified prior to shipment. For long-term maintenance planning, ZYPLC maintains stock of the 1794-IB16D and compatible components — including terminal bases, adapters, and power supplies — to support both planned maintenance cycles and emergency replacement requirements. Customers are encouraged to contact ZYPLC directly to discuss volume pricing, lead times, and system-level procurement strategies that align with their plant maintenance schedules.
