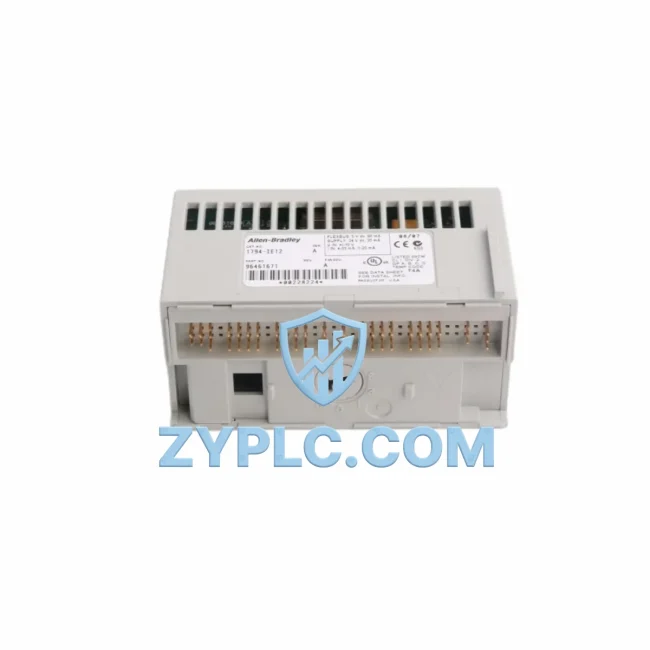

Allen-Bradley 1794-IE12 Energy-Saving Analog Input for FLEX I/O

Allen-Bradley 1794-IE12 Energy-Saving Analog Input for FLEX I/O Automation

The Allen-Bradley 1794-IE12 is a 12-channel analog input module engineered for the FLEX I/O platform, delivering precision signal acquisition that forms the backbone of energy-aware industrial automation. In modern manufacturing environments where every kilowatt-hour counts, the 1794-IE12 enables real-time monitoring of process variables — current loops, voltage signals, and sensor feedback — that directly inform energy consumption decisions across the production line. By feeding accurate analog data into the control loop, this module helps eliminate over-driving of motors, reduces idle energy waste, and supports tighter regulation of drive outputs.

Sourced, tested, and shipped by ZYPLC with a 12-month warranty, every 1794-IE12 unit undergoes functional verification before dispatch to ensure it meets OEM performance specifications. Our inventory is maintained to support fast fulfillment for MRO, line expansion, and emergency replacement scenarios.

Efficiency Performance Table

Energy-Aware Automation Architecture

The 1794-IE12 does not operate in isolation — it is a critical sensing node within a broader energy-optimized control architecture. In a typical FLEX I/O deployment, the module sits on a 1794-TB3 terminal base and communicates upstream through a 1794-AENT EtherNet/IP adapter, feeding live analog data to a ControlLogix L7x controller or a CompactLogix 5380 processor. These controllers execute energy management logic that dynamically adjusts output commands based on real-time load conditions.

On the drive side, the analog signals captured by the 1794-IE12 — such as motor current feedback or pressure transducer readings — are used to modulate PowerFlex 525 or PowerFlex 755 variable frequency drives. By providing accurate process feedback, the module enables the VFD to operate at optimal speed rather than fixed full-load, which can reduce motor energy consumption by 20–50% in variable-torque applications such as pumps, fans, and compressors.

For servo-driven axes, the 1794-IE12 works alongside 1794-OE4 analog output modules to form a complete analog I/O pair, enabling position and force feedback loops that reduce overshoot, minimize mechanical stress, and improve cycle time consistency. In multi-axis systems, this translates directly to better production line rhythm and lower peak demand charges.

Power quality monitoring is enhanced when the 1794-IE12 is paired with energy metering devices such as the PowerMonitor 5000, which feeds harmonic and power factor data back through the same EtherNet/IP network. The 1794-IE12 can simultaneously capture analog signals from current transformers or power transducers, giving the PLC a complete picture of energy flow at the machine level.

For distributed I/O architectures, the module integrates seamlessly with Point I/O 1734-IE4C analog input modules and FLEX 5000 1794-IE8 modules, allowing engineers to standardize analog signal handling across multiple control zones while maintaining a unified data model in Studio 5000 Logix Designer.

Power Optimization in Real Production Lines

In real-world production environments, uncontrolled analog signal drift or poor-resolution input data leads to control instability — motors hunting for setpoints, drives cycling unnecessarily, and actuators consuming energy without productive output. The 1794-IE12 addresses this at the source by delivering 12-bit resolution across all 12 channels simultaneously, ensuring that the control system always acts on accurate process data.

Consider a bottling line where fill-level sensors feed 4–20 mA signals into the 1794-IE12. With accurate analog acquisition, the ControlLogix PLC can precisely regulate the speed of the filling pump’s PowerFlex 525 drive, eliminating overfill corrections and reducing the pump’s average run speed — directly cutting energy consumption per unit produced. The same principle applies to HVAC systems in large manufacturing facilities, where temperature and pressure sensors connected to the 1794-IE12 allow the BAS controller to trim fan and chiller operation to actual demand rather than worst-case assumptions.

Predictive maintenance also benefits from the 1794-IE12’s continuous analog monitoring. By trending vibration sensor outputs or motor current signatures over time, maintenance teams can detect bearing wear or winding degradation before failure occurs. This reduces unplanned downtime, avoids the energy spike associated with emergency restarts, and extends the service life of connected drives and motors. Combined with ZYPLC’s 12-month warranty and pre-shipment functional testing, the 1794-IE12 represents a low-risk, high-return investment for any energy-conscious industrial operation.

Inventory availability is maintained at ZYPLC to support both planned MRO procurement and urgent line-down situations. Each unit is tested against OEM specifications, labeled with test date and technician ID, and shipped with documentation to support your incoming inspection process.

Energy Optimization FAQ

Q1: How does the 1794-IE12 contribute to energy savings in a VFD-controlled system?
The 1794-IE12 provides the high-resolution analog feedback that allows the PLC to send precise speed reference signals to variable frequency drives such as the PowerFlex 525 or PowerFlex 755. Without accurate process feedback, drives tend to run at conservative fixed speeds, wasting energy. With the 1794-IE12 in the loop, the drive speed tracks actual process demand, reducing average motor energy consumption significantly in variable-torque applications.

Q2: Is the 1794-IE12 compatible with both ControlLogix and CompactLogix systems?
Yes. The 1794-IE12 is part of the FLEX I/O 1794 series and is compatible with any Allen-Bradley controller that supports FLEX I/O adapters. Using a 1794-AENT adapter, it connects via EtherNet/IP to ControlLogix L7x, CompactLogix 5380, and legacy SLC 500 systems via appropriate adapter bridges. Configuration is handled through Studio 5000 Logix Designer or RSLogix 5000.

Q3: What is the recommended replacement or upgrade path for aging 1794-IE12 modules?
For direct replacement, ZYPLC stocks tested 1794-IE12 units ready to ship. For system upgrades, the FLEX 5000 platform offers the 5094-IE8 as a next-generation analog input module with enhanced diagnostics and higher channel density. However, for existing FLEX I/O backplane installations, the 1794-IE12 remains the correct form-factor replacement and is the most cost-effective option for maintaining system continuity.

Q4: What does ZYPLC’s 12-month warranty cover, and how is pre-shipment testing conducted?
Every 1794-IE12 sold by ZYPLC is functionally tested prior to shipment. Testing verifies channel-by-channel analog input accuracy, backplane communication integrity, and power consumption within OEM specification. The 12-month warranty covers functional failure under normal operating conditions. Units are shipped with test records, and ZYPLC’s technical team is available to support installation and commissioning queries.
