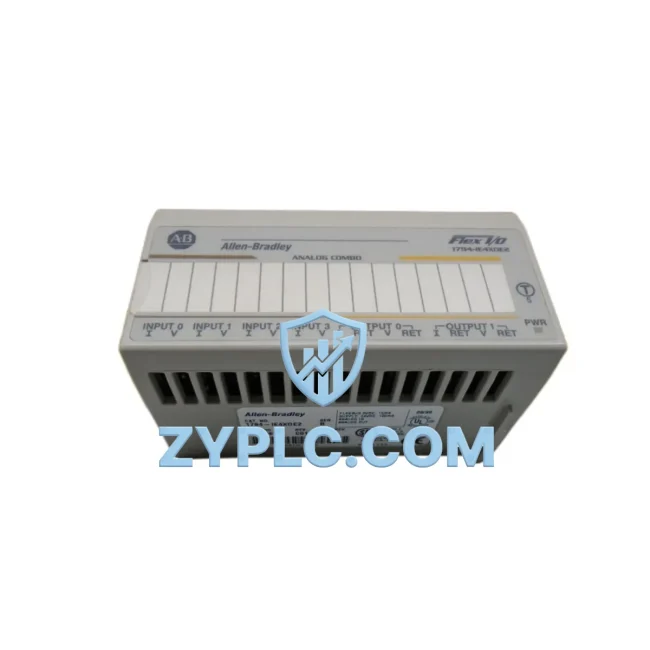

Allen-Bradley 1794-IE4XOE2 System-Ready Analog Combo for FLEX I/O Architecture

Allen-Bradley 1794-IE4XOE2 System-Ready Analog Combo for FLEX I/O Architecture

The Allen-Bradley 1794-IE4XOE2 is a high-performance analog combination I/O module engineered for seamless integration within the Rockwell Automation FLEX I/O platform. Designed to serve as a critical signal-conditioning node in layered industrial control architectures, this module delivers four analog input channels and two analog output channels within a single compact form factor. Its role extends far beyond simple signal conversion — the 1794-IE4XOE2 functions as a precision interface between field instrumentation and the control layer, enabling real-time process feedback loops that are essential for closed-loop automation in demanding industrial environments.

In modern distributed control architectures, the 1794-IE4XOE2 occupies the I/O layer, bridging field devices such as pressure transmitters, flow meters, temperature sensors, and control valves with the CPU layer managed by processors such as the Allen-Bradley 1756-L73 ControlLogix or the 1769-L33ER CompactLogix. The module mounts directly onto the 1794-TB3 terminal base, which provides the mechanical and electrical interface to the FLEX I/O backplane. This modular approach allows engineers to configure mixed analog and digital I/O assemblies within the same rack, reducing panel footprint and simplifying field wiring.

System architects integrating the 1794-IE4XOE2 into a ControlLogix or GuardLogix platform benefit from its compatibility with the 1794-ADN DeviceNet adapter or the 1794-AENT EtherNet/IP adapter, enabling the module to participate in high-speed, deterministic communication networks. This network-layer flexibility allows the module to be deployed in both legacy DeviceNet topologies and modern EtherNet/IP ring architectures, supporting media redundancy and minimizing unplanned downtime in continuous process environments.

From a power-layer perspective, the 1794-IE4XOE2 draws its operating power from the FLEX I/O power supply rail, typically supplied by the 1794-PS13 or 1794-PS1 power supply modules. Proper power budgeting across the backplane is essential when combining multiple analog modules, and the 1794-IE4XOE2’s low power consumption profile makes it well-suited for dense I/O configurations. Engineers designing redundant power architectures can pair the FLEX I/O power supply with an external 24 VDC UPS to ensure uninterrupted signal acquisition during power transients.

At the human-machine interface layer, process values acquired by the 1794-IE4XOE2 are typically visualized through PanelView Plus 7 terminals or FactoryTalk View SE SCADA systems, where trend displays, alarm thresholds, and PID loop tuning parameters are configured. The seamless data path from field sensor through the 1794-IE4XOE2 to the HMI layer ensures that operators have accurate, low-latency process visibility, which is critical for quality control in pharmaceutical, food and beverage, and chemical processing applications.

For execution-layer integration, the analog output channels of the 1794-IE4XOE2 drive final control elements such as pneumatic valve positioners, variable frequency drives, and electro-hydraulic actuators. The 4–20 mA current output range provides noise-immune signal transmission over long cable runs, making the module suitable for large-scale plant installations where field devices may be located hundreds of meters from the control panel. Combined with the 1794-IE4XOE2’s configurable input ranges — supporting both voltage and current signals — the module accommodates a wide variety of field instrumentation without requiring external signal conditioners.

Maintenance engineers benefit from the module’s diagnostic capabilities, which report channel-level fault status back to the controller via the network adapter. This allows FactoryTalk Diagnostics or Studio 5000 Logix Designer to flag open-circuit, over-range, or under-range conditions in real time, enabling predictive maintenance strategies that reduce mean time to repair. Spare module inventory management is simplified by the 1794-IE4XOE2’s hot-swap capability on the FLEX I/O platform, allowing module replacement without de-energizing the backplane or interrupting adjacent I/O channels.

ZYPLC maintains verified stock of the 1794-IE4XOE2 and its associated components, including the 1794-TB3 terminal base, 1794-AENT EtherNet/IP adapter, 1794-PS13 power supply, and 1756-L73 ControlLogix processor. All units are supplied with a 12-Month Warranty and undergo functional verification prior to shipment. Our engineering team provides pre-sales architecture consultation to ensure the 1794-IE4XOE2 is correctly specified within your control system design, including backplane power budgeting, network adapter selection, and Studio 5000 tag configuration guidance.

Architecture Specification Table

Coordinated Control System Design

The 1794-IE4XOE2 achieves its full potential when deployed as part of a coordinated FLEX I/O system architecture. A typical installation pairs this analog combo module with the 1794-IB16 16-channel digital input module and the 1794-OB16 digital output module on the same backplane, creating a mixed I/O assembly that handles both discrete and analog signals within a single rack. The 1794-AENT EtherNet/IP adapter serves as the network gateway, connecting the entire FLEX I/O assembly to the plant-wide EtherNet/IP network managed by the 1756-L73 ControlLogix processor.

For applications requiring redundant control, the 1794-IE4XOE2 can be deployed in a system alongside the 1756-RM2 ControlLogix redundancy module, ensuring that analog process values continue to be acquired and transmitted even during a primary controller failover event. The 1794-PS13 power supply module provides stable 24 VDC backplane power, and its current capacity supports dense module configurations including multiple 1794-IE4XOE2 units in the same rack.

At the field wiring level, the 1794-TB3S spring-clamp terminal base variant simplifies installation and reduces wiring errors in high-vibration environments such as mining conveyors and offshore platforms. Communication integrity across the EtherNet/IP network is maintained by managed switches supporting Device Level Ring (DLR) topology, ensuring that a single cable fault does not interrupt analog data acquisition from the 1794-IE4XOE2. For legacy installations, the 1794-ADN DeviceNet adapter provides backward compatibility with existing DeviceNet master controllers, including the 1756-DNB DeviceNet bridge module in the ControlLogix chassis.

Application in Layered Automation Systems

The 1794-IE4XOE2 is widely deployed across process-intensive industries where precise analog signal management is non-negotiable. In petrochemical and refinery applications, the module acquires 4–20 mA signals from pressure transmitters and flow meters installed on distillation columns and heat exchangers, feeding real-time process data to PID control loops executing in the ControlLogix processor. The module’s configurable input ranges accommodate both HART-compatible transmitters and standard analog field devices without additional signal conditioning hardware.

In water and wastewater treatment facilities, the 1794-IE4XOE2 monitors dissolved oxygen sensors, pH analyzers, and turbidity meters across multiple treatment stages. Its analog output channels drive variable frequency drives controlling aeration blower motors, enabling precise dissolved oxygen setpoint control that reduces energy consumption while maintaining regulatory compliance. The module’s diagnostic reporting capabilities allow SCADA operators to detect sensor drift or cable faults before they impact treatment quality.

For metallurgical and mining operations, the 1794-IE4XOE2 is integrated into conveyor speed control systems, crusher load monitoring circuits, and flotation cell level control loops. Its robust operating temperature range and vibration tolerance make it suitable for installation in field junction boxes located close to process equipment, reducing analog signal cable lengths and improving measurement accuracy. In pharmaceutical and food processing environments, the module supports temperature and pressure monitoring in clean-in-place (CIP) systems and autoclave sterilization cycles, where measurement accuracy and data integrity are subject to regulatory audit requirements.

Architecture Engineering FAQ

Q1: Is the 1794-IE4XOE2 compatible with both ControlLogix and CompactLogix platforms?
Yes. The 1794-IE4XOE2 communicates via the FLEX I/O network adapter — either the 1794-AENT for EtherNet/IP or the 1794-ADN for DeviceNet. Both ControlLogix (1756 series) and CompactLogix (1769 series) processors support EtherNet/IP and DeviceNet communication, making the 1794-IE4XOE2 fully compatible with both platforms. Studio 5000 Logix Designer is used to configure the module’s I/O tree, input scaling, and output fault states for either processor family.

Q2: Can multiple 1794-IE4XOE2 modules be installed on the same FLEX I/O backplane, and how is power budgeting managed?
Multiple 1794-IE4XOE2 modules can be installed on the same FLEX I/O backplane, subject to the power budget of the installed power supply module. The 1794-PS13 provides sufficient current capacity for mixed analog and digital module configurations. Engineers should calculate the total backplane current draw — including all I/O modules and the network adapter — and verify it does not exceed the power supply rating. ZYPLC’s engineering team can assist with backplane power budget calculations during the pre-sales consultation process.

Q3: What does the 12-Month Warranty cover, and what is the replacement process if a module fails in service?
All 1794-IE4XOE2 units supplied by ZYPLC are covered by a 12-Month Warranty against manufacturing defects and functional failures under normal operating conditions. If a module fails within the warranty period, ZYPLC will provide a replacement unit after receiving the defective module for inspection. The 1794-IE4XOE2’s hot-swap capability on the FLEX I/O platform means the replacement can be installed without shutting down adjacent I/O channels, minimizing production impact. Contact ZYPLC at plc.sales@zyplc.com or +86 19859288691 to initiate a warranty claim.
