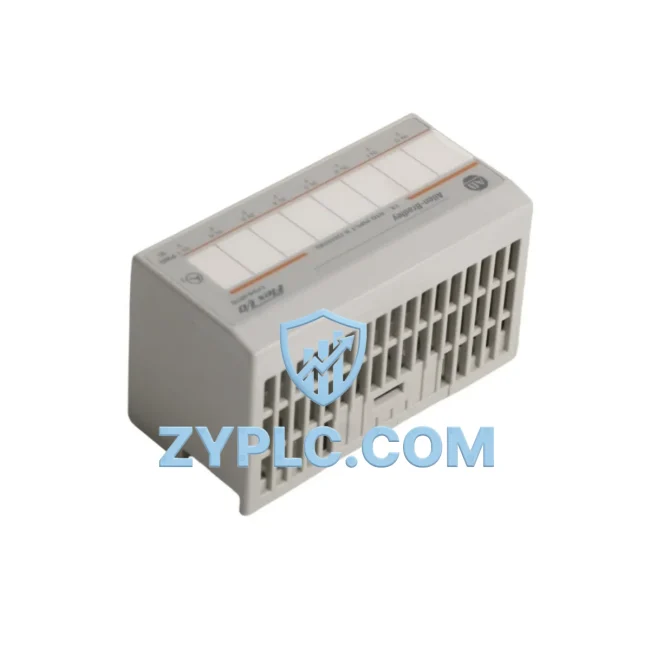

Allen-Bradley 1794-IRT8 Energy-Saving Thermocouple Input Module

Allen-Bradley 1794-IRT8 Energy-Saving Thermocouple Input Module for Optimized Flex I/O Automation

The Allen-Bradley 1794-IRT8 is an 8-channel thermocouple and RTD input module designed for the Flex I/O platform, delivering precision thermal measurement that is fundamental to energy-aware industrial automation. In modern manufacturing environments where energy costs represent a significant share of operational expenditure, accurate temperature sensing at the field level is not a peripheral function — it is the foundation of every efficiency gain. The 1794-IRT8 enables plant engineers to capture real-time thermal data from motors, drives, heat exchangers, and process equipment, feeding that data directly into control loops that govern energy consumption across the production line.

Deployed within a Flex I/O rack alongside modules such as the 1794-OB16 digital output module and the 1794-IE8 analog input module, the 1794-IRT8 forms part of a tightly integrated I/O subsystem that communicates with upstream controllers via the 1794-AENT EtherNet/IP adapter. This architecture allows a ControlLogix L7x or CompactLogix L3x processor to receive high-resolution temperature readings with minimal scan-cycle latency, enabling closed-loop energy management strategies that respond dynamically to thermal conditions rather than relying on fixed setpoints that waste energy through over-compensation.

Efficiency Performance Table

Energy-Aware Automation Architecture

The 1794-IRT8 does not operate in isolation. Its value is realized when it is integrated into a broader energy-aware automation architecture. Consider a typical motor-driven conveyor system: the 1794-IRT8 monitors winding temperatures on the drive motor, feeding data to a ControlLogix processor. When winding temperature trends upward beyond a defined threshold, the controller signals a PowerFlex 755 variable frequency drive to reduce output frequency, lowering motor speed and cutting energy draw proportionally — a relationship governed by the affinity laws where power scales with the cube of speed. This single feedback loop, enabled by the 1794-IRT8’s precision RTD input, can reduce motor energy consumption by 20–30% during partial-load operating periods.

In more complex architectures, the 1794-IRT8 works alongside the PowerFlex 523 compact drive for smaller motor applications, where thermal data informs speed reference adjustments through the drive’s EtherNet/IP port. The 1794-AENT adapter bridges the Flex I/O rack to the plant network, allowing energy management software running on a FactoryTalk View SE SCADA station to log thermal trends, generate efficiency reports, and flag anomalies before they escalate into failures. Complementary modules such as the 1794-IE8 handle process analog signals — pressure, flow, level — while the 1794-OB16 executes discrete control outputs, creating a unified I/O environment where thermal, process, and control data coexist on a single backplane.

For power quality monitoring at the panel level, the 1794-IRT8 is frequently deployed alongside the PowerMonitor 5000 energy meter, which captures voltage, current, power factor, and harmonic distortion data. Together, these two devices provide a complete picture of both electrical input quality and thermal output behavior — the two primary indicators of drive and motor efficiency. When the PowerMonitor 5000 detects rising harmonic distortion coinciding with elevated winding temperatures reported by the 1794-IRT8, the control system can initiate a load-shedding sequence or alert maintenance personnel before a thermal trip occurs.

Communication flexibility is a key strength of the Flex I/O platform. The 1794-IRT8 supports adapter modules for EtherNet/IP (1794-AENT), DeviceNet (1794-ADN), and ControlNet (1794-ACN15), making it compatible with legacy and modern network topologies alike. This means the module can be retrofitted into existing installations without requiring a full network overhaul, preserving capital investment while delivering modern energy monitoring capabilities. In multi-axis servo applications, the 1794-IRT8 monitors servo motor and amplifier temperatures, complementing the Kinetix 5700 servo drive system’s built-in thermal management by providing an independent verification channel that the control system can use for cross-validation.

Power Optimization in Real Production Lines

On the production floor, the 1794-IRT8 contributes to energy optimization through three primary mechanisms: early thermal fault detection, closed-loop speed regulation, and predictive maintenance scheduling.

Early Thermal Fault Detection: Motors and drives that run hot consume more energy and fail sooner. The 1794-IRT8’s 16-bit resolution allows the control system to detect temperature rise rates — not just absolute values — enabling predictive intervention. A motor whose winding temperature is rising at 2°C per minute under normal load conditions is behaving differently from one rising at 5°C per minute under the same load. The 1794-IRT8 captures this distinction, allowing the ControlLogix processor to trigger a maintenance alert or initiate a controlled speed reduction before a thermal trip forces an unplanned shutdown. Unplanned shutdowns are among the most energy-intensive events in manufacturing: restart sequences, purge cycles, and re-heating processes consume disproportionate energy compared to steady-state operation.

Closed-Loop Speed Regulation: When integrated with a PowerFlex 755 or PowerFlex 523 drive, thermal data from the 1794-IRT8 becomes a secondary feedback variable in the drive’s speed reference calculation. During periods of low production demand, the control system can allow motor temperatures to drop below their normal operating range, then use that thermal headroom to run the motor at higher efficiency points when demand increases — a strategy known as thermal load leveling. This approach reduces peak energy demand charges, which in many industrial tariff structures represent 30–40% of the total electricity bill.

Predictive Maintenance Scheduling: By logging thermal data over time through FactoryTalk Historian or a similar data historian, maintenance teams can identify motors and drives that are trending toward failure weeks or months in advance. Replacing a bearing or cleaning a cooling fan during a scheduled maintenance window costs a fraction of the energy and production loss associated with an unplanned failure. The 1794-IRT8’s consistent, high-resolution data stream is the raw material for this predictive capability. All units supplied by ZYPLC are ship-tested prior to dispatch and covered by a 12-month warranty, ensuring that the module performs to specification from day one of installation.

Energy Optimization FAQ

Q1: How much energy can the 1794-IRT8 help save in a typical motor control application?
The 1794-IRT8 itself consumes less than 150 mA at 5 VDC, making it an extremely low-overhead sensing device. Its energy-saving value lies in the control actions it enables: by providing accurate thermal feedback to a variable frequency drive such as the PowerFlex 755, the system can reduce motor speed during partial-load periods, cutting energy consumption by 20–30% compared to fixed-speed operation. In thermal process applications such as furnace or HVAC control, eliminating temperature overshoot through precise sensing can reduce heating energy by 12–18%.

Q2: Is the 1794-IRT8 compatible with my existing Flex I/O rack and ControlLogix system?
Yes. The 1794-IRT8 is a standard Flex I/O module that installs directly into any 1794 terminal base. It is compatible with all Flex I/O adapter modules including the 1794-AENT (EtherNet/IP), 1794-ADN (DeviceNet), and 1794-ACN15 (ControlNet). It is fully supported by RSLogix 5000 / Studio 5000 Logix Designer and can be added to an existing ControlLogix or CompactLogix project without firmware changes to the controller.

Q3: Can the 1794-IRT8 replace a faulty module in an existing installation without reconfiguration?
In most cases, yes. The 1794-IRT8 uses the same terminal base as other 1794-series modules, and its configuration is stored in the controller project file rather than on the module itself. Replacing a faulty unit requires only physical installation and a controller download — no field wiring changes are needed. ZYPLC recommends verifying the firmware revision of the replacement module against the project’s module definition to ensure compatibility. All replacement units supplied by ZYPLC are tested prior to shipment and carry a 12-month warranty.

Q4: What is the testing and warranty process for units purchased from ZYPLC?
Every 1794-IRT8 unit supplied by ZYPLC undergoes functional testing prior to shipment, including channel-by-channel input verification across the supported thermocouple and RTD types. Units are shipped with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. In the event of a warranty claim, ZYPLC provides direct technical support and replacement coordination. For procurement inquiries, contact ZYPLC at +86 19859288691 or plc.sales@zyplc.com.
