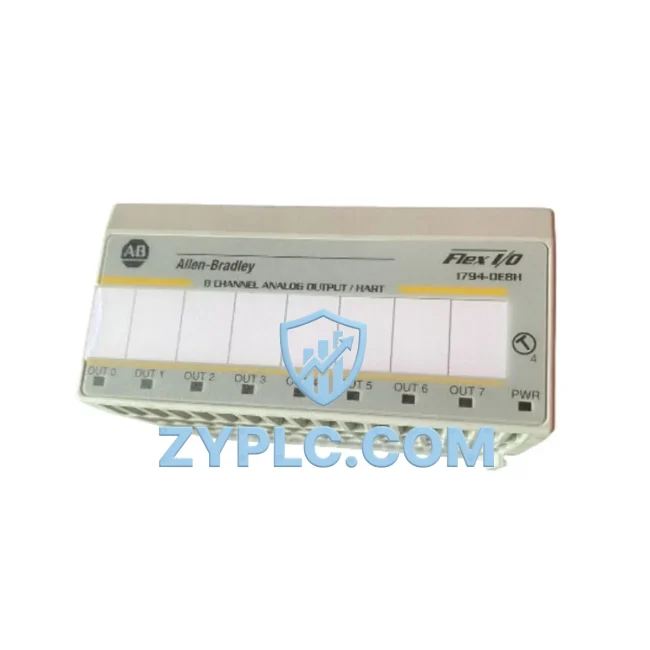

Allen-Bradley 1794-OE8H/B System-Ready HART Output for FLEX I/O Architecture

Allen-Bradley 1794-OE8H/B System-Ready HART Output for FLEX I/O Architecture: Control System Architecture and Upstream-Downstream Coordination

The Allen-Bradley 1794-OE8H/B is an 8-channel HART-capable analog output module engineered for deployment within the Rockwell Automation FLEX I/O platform. Rather than functioning as a standalone device, the 1794-OE8H/B is designed to operate as a precision signal-conditioning layer within a fully coordinated distributed control architecture — bridging the controller layer, the field instrument layer, and the process execution layer in a single, compact, DIN-rail-mountable form factor. Its role in a layered automation system is to translate digital command signals from the control processor into calibrated 4–20 mA analog outputs while simultaneously maintaining bidirectional HART communication with intelligent field devices such as control valves, positioners, and variable-speed drives.

In modern industrial automation environments — spanning petrochemical processing, power generation, water treatment, mining, metallurgy, and advanced manufacturing — the demand for tightly integrated, diagnostics-capable output modules has never been greater. The 1794-OE8H/B addresses this demand through its native HART protocol support, enabling asset management software such as Rockwell’s FactoryTalk AssetCentre or third-party HART multiplexers to interrogate field devices without interrupting the primary 4–20 mA control loop. This Contextual Integration capability ensures that the module does not merely transmit signals — it participates actively in the health monitoring and predictive maintenance ecosystem of the entire control system.

Architecture Specification Table

Coordinated Control System Design

The 1794-OE8H/B achieves its full performance potential when integrated within a coherent Rockwell Automation control architecture. At the controller layer, a 1756-L85E ControlLogix CPU or a 1769-L33ER CompactLogix processor issues analog setpoint commands via the EtherNet/IP network, which are routed through a 1794-AENT EtherNet/IP adapter mounted on the FLEX I/O backplane. The adapter serves as the communication gateway, translating network-layer packets into backplane I/O data that the 1794-OE8H/B consumes in real time.

On the power layer, the 1794-PS13 power supply provides stable 24V DC backplane power, ensuring that all modules on the FLEX I/O rack — including the 1794-OE8H/B — operate within their specified electrical tolerances. For applications requiring input signal acquisition alongside analog output, the 1794-IE8H HART analog input module is the natural companion module, enabling closed-loop PID control where the output command from the 1794-OE8H/B is continuously corrected based on process variable feedback received through the 1794-IE8H.

In distributed architectures where the FLEX I/O rack is located remotely from the main control panel, a 1794-ACN15 ControlNet adapter may replace the EtherNet/IP adapter to leverage ControlNet’s deterministic, scheduled communication for time-critical analog output updates. For installations requiring discrete I/O alongside analog channels, the 1794-OB16 digital output module and 1794-IB16 digital input module can be co-mounted on the same FLEX I/O terminal base, reducing panel footprint and wiring complexity.

At the human-machine interface layer, a 2711P-T10C21D8S PanelView Plus 7 terminal provides operators with real-time visualization of analog output values, HART device status, and loop diagnostics — all sourced from the same ControlLogix tag database that drives the 1794-OE8H/B outputs. For redundancy-critical applications such as power plant distributed control or offshore platform automation, the module can be deployed in parallel with a secondary FLEX I/O rack connected through a 1756-RM2 ControlLogix redundancy module, ensuring bumpless transfer of analog output control in the event of a primary controller fault.

Application in Layered Automation Systems

Petrochemical and Refinery Process Control: In continuous process plants, the 1794-OE8H/B drives HART-enabled control valve positioners and flow control loops where precise 4–20 mA output accuracy and real-time valve diagnostics are mandatory. Its HART capability allows maintenance engineers to perform valve signature tests and partial stroke testing without removing the device from service, dramatically reducing planned shutdown duration.

Power Generation and Utilities: In thermal power stations and hydroelectric facilities, analog output modules must maintain signal integrity across long cable runs and electrically noisy environments. The 1794-OE8H/B’s isolated output channels and HART diagnostics support integration with turbine governor systems, boiler feedwater control loops, and generator excitation systems — all within a unified ControlLogix architecture.

Water and Wastewater Treatment: Municipal water treatment facilities rely on precise chemical dosing, pump speed control, and flow regulation — all of which depend on accurate analog output signals. The 1794-OE8H/B integrates seamlessly with variable-frequency drives and chemical metering pump controllers, while HART communication enables remote calibration of field transmitters without physical access to remote pump stations.

Mining and Mineral Processing: In conveyor control, flotation cell management, and crusher automation, the 1794-OE8H/B provides the analog output backbone for speed reference signals to drives and setpoint commands to process controllers. Its robust operating temperature range and DIN-rail mounting make it suitable for installation in field junction boxes and remote I/O panels in harsh mining environments.

Packaging and Discrete Manufacturing Lines: High-speed packaging lines require synchronized analog output control of servo amplifiers, tension controllers, and web guide actuators. The 1794-OE8H/B’s 12-bit resolution and fast update rates support the tight loop timing required for label application, fill-level control, and seal temperature regulation in food and beverage packaging applications.

Architecture Engineering FAQ

Q1: Is the 1794-OE8H/B compatible with both EtherNet/IP and ControlNet FLEX I/O adapters?
Yes. The 1794-OE8H/B is a standard FLEX I/O module that operates independently of the adapter type. It is compatible with the 1794-AENT (EtherNet/IP), 1794-ACN15 (ControlNet), and 1794-ADN (DeviceNet) adapters. The adapter selection is determined by the network topology of your control system architecture, not by the module itself. This makes the 1794-OE8H/B a flexible choice for both greenfield installations and brownfield upgrades where the existing network infrastructure must be preserved.

Q2: Can the 1794-OE8H/B be used in a redundant control architecture, and how is HART data managed during controller switchover?
The 1794-OE8H/B can be deployed in redundant ControlLogix architectures using the 1756-RM2 redundancy module. During a switchover event, the secondary controller assumes control of the analog output values with bumpless transfer, provided that the redundancy configuration is correctly programmed in Studio 5000 Logix Designer. HART communication, however, is managed at the adapter level and may experience a brief interruption during switchover — this is a known behavior in FLEX I/O redundant architectures and should be accounted for in the system’s HART polling strategy and asset management software configuration.

Q3: What does the 12-Month Warranty cover for the 1794-OE8H/B, and what is the support process?
All 1794-OE8H/B units supplied by ZYPLC are covered by a 12-Month Warranty against manufacturing defects and functional failures under normal operating conditions. The warranty covers module replacement or repair at no additional cost. To initiate a warranty claim, contact ZYPLC at plc.sales@zyplc.com or +86 19859288691 with your order reference and a description of the fault. Our technical team will assess the issue and coordinate return logistics. Pre-sales compatibility verification and post-sales installation support are also available to ensure Contextual Integration with your existing control system architecture.
