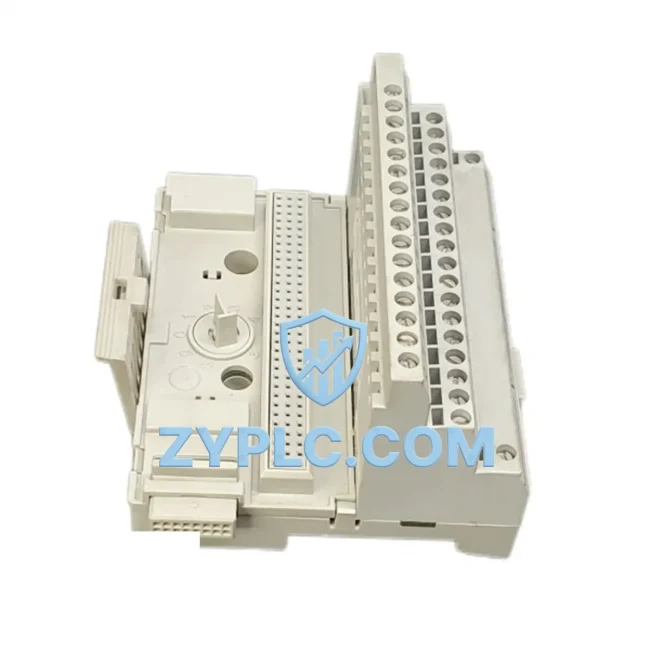

Allen-Bradley 1794-TB2 System-Ready Terminal Base for FLEX I/O Architecture

Allen-Bradley 1794-TB2: Enabling Industrial Data Links Across FLEX I/O Network Architecture

In modern smart factory environments, the integrity of the data link between field devices and the control layer is not a secondary concern — it is the foundation of operational continuity. The Allen-Bradley 1794-TB2 FLEX I/O Terminal Base Unit, Series A, is engineered to serve as the physical and electrical backbone of distributed I/O networks, providing a stable, protocol-ready mounting and wiring interface for FLEX I/O modules deployed across manufacturing, process control, and infrastructure automation systems.

The 1794-TB2 is not simply a passive wiring component. Within the FLEX I/O platform, it defines the signal path between field-level sensors, actuators, and the I/O module seated above it, while simultaneously maintaining the backplane communication link that connects each node to the network adapter and, ultimately, to the PLC or DCS controller. This layered connectivity role makes the terminal base unit a critical element in any architecture where data isolation, signal fidelity, and network stability are non-negotiable requirements.

Network Communication Table

Connected Automation Data Flow

The 1794-TB2 operates at the intersection of the field layer and the I/O communication layer. To understand its value, it is necessary to trace the data flow from the physical signal source through to the supervisory system.

At the field level, sensors — including proximity switches, pressure transmitters, and thermocouple inputs — terminate directly at the screw terminals of the 1794-TB2. These signals are passed upward to the FLEX I/O module mounted on the base, such as the 1794-IB16 (16-point 24VDC digital input module) or the 1794-OB16 (16-point digital output module), which converts the physical signal into a digital data word on the backplane bus.

The backplane bus runs horizontally across a series of 1794-TB2 bases, connecting each I/O module to the network adapter at the head of the rack. Adapters such as the 1794-AENT (EtherNet/IP adapter) or the 1794-ADN (DeviceNet adapter) translate the backplane data into the appropriate industrial protocol and transmit it across the plant network. This network may connect to a 1756-L85E ControlLogix controller via a managed industrial Ethernet switch, or to a 1769-L33ER CompactLogix in smaller distributed architectures.

At the supervisory level, SCADA platforms such as Rockwell’s FactoryTalk View SE or third-party HMI systems receive real-time I/O data from the controller, enabling operators to monitor process variables, acknowledge alarms, and issue control commands — all routed through the data path that originates at the 1794-TB2 terminal base. In process-intensive environments, the 1794-IF4I isolated analog input module paired with the 1794-TB2 provides high-accuracy signal acquisition for flow, level, and temperature loops feeding directly into the SCADA historian.

For drive integration, variable frequency drives such as the PowerFlex 525 or PowerFlex 755 may receive start/stop and speed reference commands via digital outputs routed through 1794-OB16 modules seated on 1794-TB2 bases, closing the loop between the controller logic and the mechanical execution layer. This architecture eliminates hardwired point-to-point control runs and replaces them with a structured, diagnostics-capable network topology.

Edge gateway devices and remote I/O concentrators can also be integrated into this architecture, allowing the 1794-TB2-based I/O nodes to feed data to cloud analytics platforms or MES systems without disrupting the real-time control loop. The result is a fully transparent production line where every signal — from a limit switch at a conveyor to a pressure sensor in a reactor — is visible, logged, and actionable from a central operations interface.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the fragmentation of data across incompatible systems, protocols, and legacy equipment. The 1794-TB2, as part of the FLEX I/O platform, directly addresses several of these structural problems.

Protocol Fragmentation: Many industrial sites operate a mix of DeviceNet, ControlNet, EtherNet/IP, and PROFIBUS devices. The FLEX I/O platform supports all four protocols through interchangeable network adapters, meaning the same 1794-TB2 terminal base and I/O module combination can be redeployed across different network segments without rewiring the field terminations. This dramatically reduces the cost of protocol migration and system upgrades.

Data Isolation at Remote Nodes: In large facilities — refineries, water treatment plants, mining operations — I/O nodes may be located hundreds of meters from the main control room. The 1794-TB2, combined with a fiber-capable EtherNet/IP adapter, enables long-distance, noise-immune data transmission without signal degradation. Remote diagnostics through the network adapter allow maintenance engineers to identify module faults, wiring errors, and communication timeouts from the engineering workstation without a site visit.

Production Line Transparency: In packaging, automotive, and food processing lines, real-time visibility into every I/O point is essential for OEE (Overall Equipment Effectiveness) tracking. The structured data model of the FLEX I/O system, anchored by the 1794-TB2 terminal base, ensures that every input and output is addressable, tagged, and available to the SCADA historian for trend analysis and downtime reporting.

System Expansion Without Disruption: The modular design of the 1794-TB2 allows new I/O points to be added to an existing node by inserting additional terminal bases and modules into the backplane chain. This non-disruptive expansion capability is critical in live production environments where scheduled downtime is limited and unplanned shutdowns are costly.

Industrial Connectivity FAQ

Q1: Does the 1794-TB2 introduce any communication latency in the I/O data path?
The 1794-TB2 itself is a passive wiring and backplane interface component and does not introduce processing latency. Communication latency in a FLEX I/O system is determined by the network adapter’s RPI (Requested Packet Interval) setting and the network load on the EtherNet/IP or DeviceNet segment. For time-critical applications, RPI values as low as 1ms are achievable with the 1794-AENT adapter on a properly segmented EtherNet/IP network.

Q2: Is the 1794-TB2 compatible with all FLEX I/O modules, and can it be mixed with other terminal base variants?
The 1794-TB2 is compatible with the full range of 1794 Series FLEX I/O modules, including digital input/output, analog input/output, and specialty modules. It can be mixed with other terminal base variants (such as 1794-TB3, 1794-TB3S, or 1794-TB32) within the same backplane, provided the module-to-base compatibility matrix is observed. Always verify the module’s installation instructions for terminal base compatibility before deployment.

Q3: What does the 12-Month Warranty cover, and how is a warranty claim processed?
The 12-Month Warranty provided by ZYPLC covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. If a unit fails within the warranty period, contact ZYPLC at [email protected] or +86 19859288691 to initiate a return and replacement process. All units supplied by ZYPLC undergo pre-shipment functional testing to verify backplane connectivity and terminal integrity before dispatch.

Q4: Can the 1794-TB2 be used in hazardous or high-vibration environments?
The standard 1794-TB2 is rated for industrial panel environments and requires installation within an IP54 or higher rated enclosure for protection against dust and moisture. For hazardous area applications (Zone 2 / Division 2), consult the FLEX I/O hazardous location documentation and verify that the complete system — including adapter, modules, and terminal bases — carries the appropriate Ex certification. High-vibration environments may require additional DIN rail locking mechanisms to prevent module unseating.
