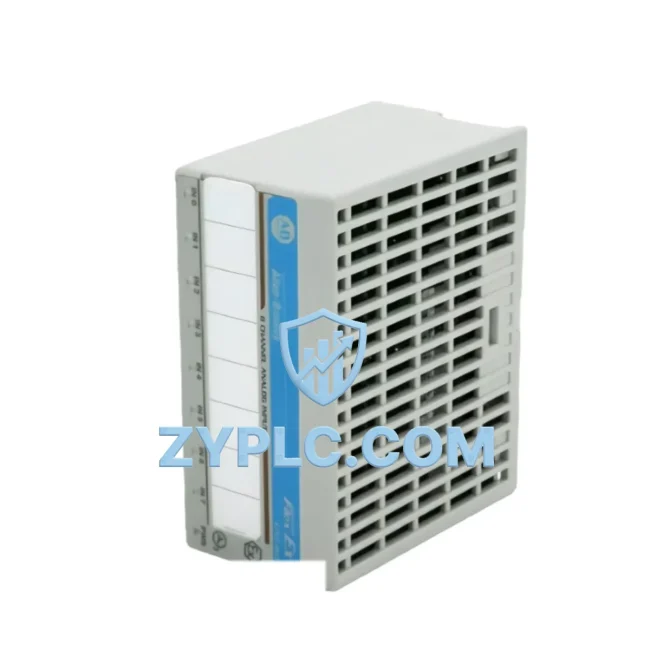

Allen-Bradley 1797-IE8 Energy-Saving Analog Input for FLEX

Allen-Bradley 1797-IE8 Energy-Saving Analog Input for Optimized FLEX Automation

The Allen-Bradley 1797-IE8 is an 8-channel analog input module designed for the FLEX I/O platform, engineered to deliver precise energy data acquisition and process signal monitoring in demanding industrial environments. By capturing real-time analog signals from field instruments — including current transmitters, pressure sensors, and flow meters — the 1797-IE8 enables control systems to make intelligent, energy-aware decisions that reduce unnecessary motor run time, eliminate idle-state energy waste, and optimize overall equipment effectiveness (OEE) across production lines.

In modern manufacturing facilities where energy costs represent a significant share of operational expenditure, the ability to accurately measure and respond to analog process variables is foundational to any energy optimization strategy. The 1797-IE8 supports 4–20 mA and 1–5 V input ranges, providing the resolution needed to detect subtle deviations in process conditions before they escalate into energy-intensive fault states or unplanned downtime events.

Efficiency Performance Table

Energy-Aware Automation Architecture

The 1797-IE8 operates as the sensing backbone of an energy-aware control architecture. When integrated with a 1756-L72S ControlLogix safety controller, the analog signals captured by the 1797-IE8 feed directly into ladder logic routines that govern drive speed references, pump staging sequences, and compressor load cycling — all critical levers for reducing peak energy demand.

On the drive side, the 1797-IE8 analog outputs pair naturally with PowerFlex 525 and PowerFlex 755 variable frequency drives. By delivering precise process feedback — such as flow rate or pressure differential — the module enables the drives to operate at the lowest speed necessary to meet process demand, rather than running at fixed full-speed setpoints. This alone can reduce motor energy consumption by 20–50% in variable-torque applications such as fans, pumps, and compressors.

For distributed I/O architectures, the 1797-IE8 mounts on a 1797-TB3 terminal base and communicates upstream via the 1797-ACNR15 ControlNet adapter or the 1797-ADN DeviceNet adapter, depending on the network topology. This flexibility allows the module to serve as a remote analog front-end in large-scale systems where the main 1756-EN2T EtherNet/IP adapter resides in a central rack, minimizing wiring runs and associated installation costs.

In process industries, the 1797-IE8 is frequently deployed alongside 1794-IE8 FLEX I/O analog input modules in hybrid architectures where both standard and Ex-rated zones must be addressed within the same control program. The 1794-AENT EtherNet/IP adapter bridges these distributed nodes back to the supervisory layer, where energy KPIs are aggregated and visualized on a PanelView Plus 7 HMI. Operators can monitor real-time energy consumption trends, set efficiency thresholds, and receive alerts when a process variable drifts outside its energy-optimal band.

For power quality monitoring at the panel level, the 1797-IE8 can be configured to accept signals from external power transducers, effectively turning the FLEX I/O rack into a distributed energy metering node. Combined with a PowerMonitor 5000 unit installed at the MCC, this creates a layered energy visibility architecture that spans from individual motor circuits up to the facility transformer level.

Power Optimization in Real Production Lines

Consider a bottling plant where eight filling stations each drive a variable-speed pump controlled by a PowerFlex 525 VFD. Without closed-loop analog feedback, each drive defaults to a fixed speed setpoint, resulting in over-pressurization during low-demand periods and excessive energy draw. By installing a 1797-IE8 at each FLEX I/O node to capture pressure transmitter signals, the control system — running on a 1756-L72S ControlLogix processor — can dynamically adjust each drive’s speed reference in real time, maintaining optimal line pressure while consuming only the energy actually required by the process.

In automotive body welding lines, the 1797-IE8 monitors coolant flow and weld transformer temperature via analog sensors. When the control system detects that a welding station has entered a scheduled idle period, it signals the associated PowerFlex 755 drive to ramp down the coolant pump to a minimum-flow maintenance speed, reducing energy consumption during non-productive intervals. This type of production-aware energy management — enabled by accurate analog input data — can reduce idle-state energy consumption by 15–30% across a multi-station welding line.

Predictive maintenance is another domain where the 1797-IE8 delivers measurable energy savings. By continuously monitoring vibration transmitter outputs or bearing temperature signals, the module provides the data needed to detect developing mechanical faults before they cause catastrophic failures. Early intervention — replacing a worn bearing before it seizes — prevents the energy spike associated with a motor struggling against increased mechanical resistance, and eliminates the production losses and emergency maintenance costs of an unplanned shutdown.

All units supplied by ZYPLC are sourced from verified supply channels, subjected to functional testing prior to shipment, and covered by a 12-month warranty. Inventory is maintained in-house to support rapid dispatch for both planned procurement and urgent replacement requirements.

Energy Optimization FAQ

Q1: How does the 1797-IE8 contribute to measurable energy savings on a production line?
The 1797-IE8 provides the high-resolution analog input data that closed-loop control algorithms require to operate drives, pumps, and compressors at demand-matched speeds rather than fixed setpoints. This eliminates the energy waste inherent in over-speed operation and enables the control system to respond dynamically to changing process conditions, reducing overall energy consumption in variable-load applications.

Q2: Is the 1797-IE8 compatible with both ControlNet and DeviceNet FLEX I/O systems?
Yes. The 1797-IE8 is a FLEX Ex module that mounts on a 1797-series terminal base and communicates via the network adapter installed in the same FLEX I/O bank. It is compatible with the 1797-ACNR15 ControlNet adapter and the 1797-ADN DeviceNet adapter, making it suitable for integration into existing FLEX I/O networks without requiring infrastructure changes.

Q3: Can the 1797-IE8 replace a 1794-IE8 in an existing FLEX I/O installation?
The 1797-IE8 and 1794-IE8 serve different platform tiers — the 1797 series is the FLEX Ex variant rated for hazardous locations, while the 1794 series is the standard FLEX I/O platform. Direct substitution requires verification of the terminal base, adapter, and software configuration. ZYPLC’s technical team can assist with compatibility assessment and provide the appropriate replacement recommendation based on your specific installation.

Q4: What is the testing and warranty process for units supplied by ZYPLC?
Every 1797-IE8 unit dispatched by ZYPLC undergoes functional testing to verify channel integrity, input range accuracy, and backplane communication prior to shipment. Units are covered by a 12-month warranty from the date of delivery. In the event of a warranty claim, ZYPLC provides replacement or repair support with priority handling to minimize production impact.
