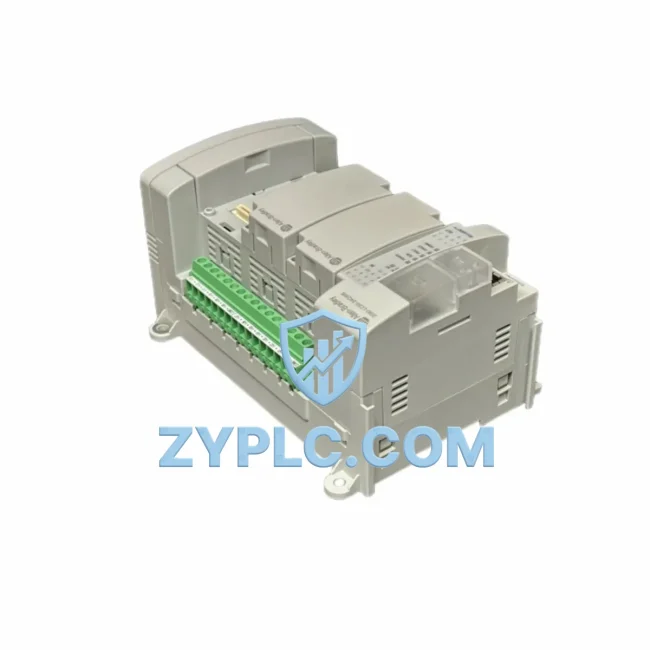

The Allen-Bradley 2080-LC50-24QWB is a high-performance compact programmable logic controller engineered for seamless integration within the Micro850 control system architecture. Designed by Rockwell Automation, this controller occupies a critical position in the control layer of layered automation systems, coordinating signal flow between field-level I/O devices, communication networks, power distribution modules, and human-machine interface (HMI) platforms. Its architecture-ready design ensures that engineers can deploy it as a standalone unit or as part of a broader, multi-tier control infrastructure without compromising system consistency, scalability, or long-term maintainability.

In modern industrial automation, the effectiveness of a control system is not determined by any single component but by the coherence of the entire architecture. The 2080-LC50-24QWB is built with this philosophy at its core. With 24 onboard I/O points — combining digital inputs, digital outputs, and analog capability through plug-in expansion — this controller provides the processing backbone for small-to-medium automation cells while maintaining full Contextual Integration with upstream supervisory systems and downstream field devices. Its embedded USB programming port and support for Ethernet/IP communication via optional plug-in modules allow it to participate in both legacy serial environments and modern Ethernet-based control networks, making it a versatile node in any system topology.

Architecture Specification Table

Coordinated Control System Design

The 2080-LC50-24QWB achieves its full potential when deployed within a coordinated Micro850 system architecture. At the power layer, the controller operates on a 24V DC supply, which can be sourced from dedicated DIN-rail power supply units such as the Allen-Bradley 1606-XLP series, ensuring stable, noise-filtered power delivery across the control cabinet. For applications requiring expanded digital or analog I/O, the 2080-IQ4OB4 and 2080-IF4 plug-in modules extend the controller’s native capability without requiring additional backplane hardware, preserving the compact footprint of the Micro850 platform.

At the network layer, the 2080-SERIALISOL isolated serial plug-in module enables RS-232 and RS-485 communication, allowing the 2080-LC50-24QWB to interface with variable frequency drives, smart sensors, and third-party field devices using Modbus RTU or ASCII protocols. For Ethernet-based architectures, the 2080-LC50-24QWB can be paired with an Ethernet/IP plug-in module to participate in EtherNet/IP device-level ring (DLR) topologies, enabling media redundancy and fault-tolerant communication paths that are essential in continuous process environments.

At the HMI layer, the controller integrates natively with Allen-Bradley PanelView 800 graphic terminals, enabling operators to monitor process variables, acknowledge alarms, and adjust setpoints through a unified interface. The Connected Components Workbench (CCW) software provides a single programming environment for both the 2080-LC50-24QWB and connected HMI panels, reducing engineering time and minimizing configuration errors during commissioning. For motion control applications, the controller can coordinate with Kinetix 3 servo drives via pulse-train output, enabling precise positioning in packaging, assembly, and material handling systems.

Redundancy and fault tolerance are addressed at the system level through careful architecture planning. While the Micro850 platform is optimized for standalone and distributed control rather than hot-standby redundancy, system resilience can be achieved by distributing control logic across multiple 2080-LC50-24QWB units connected via peer-to-peer messaging, ensuring that a fault in one control zone does not cascade across the entire production line. This distributed architecture also simplifies maintenance, as individual controllers can be replaced and reprogrammed without taking the entire system offline.

Application in Layered Automation Systems

The 2080-LC50-24QWB is deployed across a wide range of industrial sectors where compact, reliable, and cost-effective control is required. In manufacturing and assembly automation, the controller manages conveyor sequencing, pneumatic actuator control, and quality inspection triggers, integrating with vision systems and barcode readers through its serial communication ports. Its transistor output configuration makes it particularly well-suited for high-speed digital output applications where relay contact wear would otherwise reduce system reliability.

In water and wastewater treatment facilities, the 2080-LC50-24QWB controls pump stations, valve actuators, and level monitoring systems, communicating process data upstream to SCADA platforms via Modbus TCP or EtherNet/IP. Its wide operating temperature range and IP20 protection rating make it suitable for installation in climate-controlled control rooms adjacent to process areas. In the food and beverage industry, the controller’s compact form factor and DIN-rail mounting allow it to be integrated into hygienic stainless-steel control enclosures, where space is at a premium and washdown environments demand careful panel design.

In building automation and energy management applications, the 2080-LC50-24QWB manages HVAC sequencing, lighting control, and energy metering, providing a cost-effective alternative to larger PLC platforms for facilities with moderate I/O requirements. Its native compatibility with the broader Allen-Bradley ecosystem ensures that as facility requirements grow, the control architecture can be scaled by adding additional Micro850 units or migrating logic to higher-capacity platforms such as the CompactLogix L1 or L2 series, preserving the investment in engineering and programming assets.

Architecture Engineering FAQ

Q1: Is the 2080-LC50-24QWB compatible with existing Micro800 series expansion I/O modules and plug-in modules?
Yes. The 2080-LC50-24QWB is fully compatible with the Micro800 plug-in module family, including analog input modules (2080-IF4), analog output modules (2080-OF4), serial communication modules (2080-SERIALISOL), and thermocouple input modules (2080-TC2). It also supports Micro800 expansion I/O modules, allowing the total I/O count to be extended beyond the 24 onboard points. All modules are configured and programmed through Connected Components Workbench, ensuring a unified engineering workflow across the entire Micro850 system.

Q2: Can the 2080-LC50-24QWB be integrated into an EtherNet/IP network alongside CompactLogix or ControlLogix controllers?
Yes, with the appropriate Ethernet plug-in module installed, the 2080-LC50-24QWB can participate in an EtherNet/IP network as an adapter device, exchanging I/O data with higher-level controllers such as the CompactLogix 5370 or ControlLogix 5580 series. This enables hierarchical control architectures where the Micro850 handles local machine-level control while a CompactLogix or ControlLogix system manages plant-wide coordination and data aggregation. Proper network segmentation and IP address planning are recommended to ensure deterministic communication performance.

Q3: What does the 12-Month Warranty cover, and how does ZYPLC support long-term maintenance for this controller?
The 12-Month Warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. ZYPLC maintains stock of the 2080-LC50-24QWB and compatible Micro850 accessories to support rapid replacement in the event of a field failure, minimizing production downtime. Our technical team provides pre-sales architecture consultation, commissioning support, and post-sales troubleshooting assistance to ensure that the controller performs reliably throughout its operational lifecycle. For long-term maintenance planning, we recommend maintaining a spare unit on-site for critical applications, and our team can advise on appropriate spare parts strategies based on your system architecture and production criticality.
