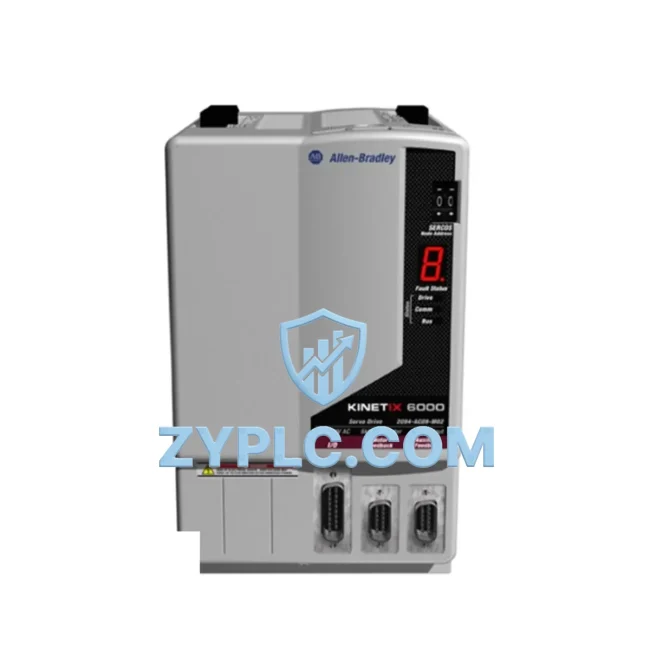

Allen-Bradley 2094-AC09-M02 System-Ready Integrated Axis Module for Kinetix 6000

Allen-Bradley 2094-AC09-M02: Integrated Axis Control Within the Kinetix 6000 Industrial Data Link

In modern multi-axis servo architectures, the ability to synchronize motion, share real-time feedback, and maintain deterministic communication across all drive axes is not optional — it is the foundation of productive automation. The Allen-Bradley 2094-AC09-M02 Integrated Axis Module, designed for the Kinetix 6000 multi-axis servo drive system, fulfills this role with precision. Rather than functioning as a standalone drive, the 2094-AC09-M02 operates as a coordinated node within a shared DC bus architecture, receiving power from a dedicated Kinetix 6000 power rail and exchanging real-time motion commands through the Integrated Motion on EtherNet/IP network — the same high-speed industrial Ethernet backbone that connects the broader automation system.

This module is engineered for demanding applications where axis-to-axis synchronization, low-latency feedback loops, and seamless integration with Logix-based controllers define system performance. Whether deployed in packaging lines, material handling conveyors, precision assembly stations, or web tension control systems, the 2094-AC09-M02 delivers the motion intelligence required to keep multi-axis systems operating in tight coordination.

Network Communication Table

Connected Automation Data Flow

The 2094-AC09-M02 does not operate in isolation. Its value is realized through the data flows it participates in across the full automation stack. At the controller level, a ControlLogix L7x or L8x CPU running Studio 5000 Logix Designer issues coordinated motion instructions via CIP Motion over EtherNet/IP. These commands travel through a Stratix 5700 or Stratix 5400 managed industrial Ethernet switch, which provides the deterministic, low-latency network fabric required for real-time servo coordination. The switch connects to the 2094-BC07-M05-S Kinetix 6000 IAM (Integrated Axis Module with line interface), which serves as the shared DC bus master and power distribution point for the axis group.

The 2094-AC09-M02 axis module receives its DC bus power from the IAM’s shared rail, eliminating the need for individual rectifier stages per axis and significantly reducing cabinet footprint. Feedback signals from MPL-series or MPM-series Allen-Bradley servo motors — equipped with high-resolution encoders — are routed directly into the axis module’s feedback port, closing the position and velocity loop at the drive level before reporting status back to the Logix controller.

At the I/O layer, a 1756-IB16 or 1756-OB16 ControlLogix digital I/O module handles discrete interlocks, safety signals, and auxiliary device status, while a 1734 POINT I/O adapter on EtherNet/IP may extend distributed I/O to remote junction boxes along the machine frame. For operator interaction, a PanelView Plus 7 HMI connected to the same EtherNet/IP network provides real-time axis status, fault diagnostics, and motion parameter visualization — giving operators immediate visibility into drive state without requiring engineering workstation access.

In applications where variable-speed auxiliary drives are also present — such as infeed conveyors or cooling fans — a PowerFlex 525 or PowerFlex 755 AC drive may share the same EtherNet/IP segment, with its speed reference and status integrated into the same Logix program that governs the Kinetix 6000 axes. This unified network architecture eliminates protocol translation overhead and ensures that all motion and process data flows through a single, coherent communication layer.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in multi-axis servo installations is the fragmentation of motion data across incompatible drive platforms, proprietary fieldbus networks, and siloed diagnostic tools. When servo drives communicate over different protocols — or when axis status is only accessible through vendor-specific software — maintenance teams lose the ability to correlate faults, predict failures, or optimize cycle times across the full machine.

The 2094-AC09-M02, operating within the Kinetix 6000 architecture on Integrated Motion over EtherNet/IP, directly addresses this problem. Because all axis modules share the same EtherNet/IP network as the ControlLogix controller, SCADA system, and HMI, every axis’s position, velocity, torque, fault code, and thermal status is available as a standard Logix tag — readable by any authorized node on the network without additional gateways or protocol converters.

For facilities integrating legacy equipment, a 1788-EN2DN DeviceNet-to-EtherNet/IP linking device or a 1203-USB or 1203-SSS communication adapter can bridge older drive networks into the same data fabric, ensuring that even non-Kinetix assets contribute to the plant-wide data picture. This approach supports production transparency, enables remote diagnostics from SCADA platforms such as FactoryTalk View SE, and provides the data foundation for predictive maintenance programs — all without replacing existing field devices prematurely.

From a supply and maintenance perspective, the 2094-AC09-M02 is stocked and available for immediate dispatch. Each unit undergoes functional testing prior to shipment, and all units are covered by a 12-Month Warranty, ensuring that replacement or expansion axis modules can be integrated into existing Kinetix 6000 systems with confidence in long-term reliability.

Industrial Connectivity FAQ

Q1: Does the 2094-AC09-M02 require a specific Kinetix 6000 IAM module to operate?
Yes. The 2094-AC09-M02 is an Axis Module (AM) that depends on a Kinetix 6000 Integrated Axis Module (IAM) — such as the 2094-BC07-M05-S or 2094-BM05-S — to provide the shared DC bus, line interface, and power rail. The AM cannot operate independently without an IAM in the same axis group. Ensure the IAM’s continuous and peak current ratings are sized to support all axis modules in the group.

Q2: What controller and software versions are compatible with the 2094-AC09-M02?
The 2094-AC09-M02 is compatible with ControlLogix and CompactLogix controllers running RSLogix 5000 version 17 or later, or Studio 5000 Logix Designer version 21 and above. The drive is configured and commissioned using the Motion Analyzer tool and the Logix Designer Axis Properties dialog. Firmware updates are managed through ControlFLASH or Studio 5000 integrated firmware management. Always verify the drive firmware revision matches the controller’s supported drive profile.

Q3: How is network latency managed in a multi-axis Kinetix 6000 system on EtherNet/IP?
Integrated Motion on EtherNet/IP uses CIP Sync (IEEE 1588 Precision Time Protocol) to synchronize all axis modules and the controller to a common time reference, typically within microseconds. The Requested Packet Interval (RPI) for motion axes is typically set between 1ms and 4ms, depending on the number of axes and network load. Using a dedicated motion network segment — separated from general plant traffic via VLANs on a Stratix managed switch — ensures deterministic performance and minimizes jitter across all coordinated axes.

Q4: What does the 12-Month Warranty cover, and what is the dispatch process?
All 2094-AC09-M02 units supplied by ZYPLC are covered by a 12-Month Warranty against manufacturing defects and functional failures under normal operating conditions. Each unit is tested for communication integrity, output stage functionality, and feedback interface operation before dispatch. Units are shipped with appropriate anti-static and moisture protection packaging. For warranty claims or technical support, contact our engineering team directly. Expedited dispatch is available for urgent production requirements.
