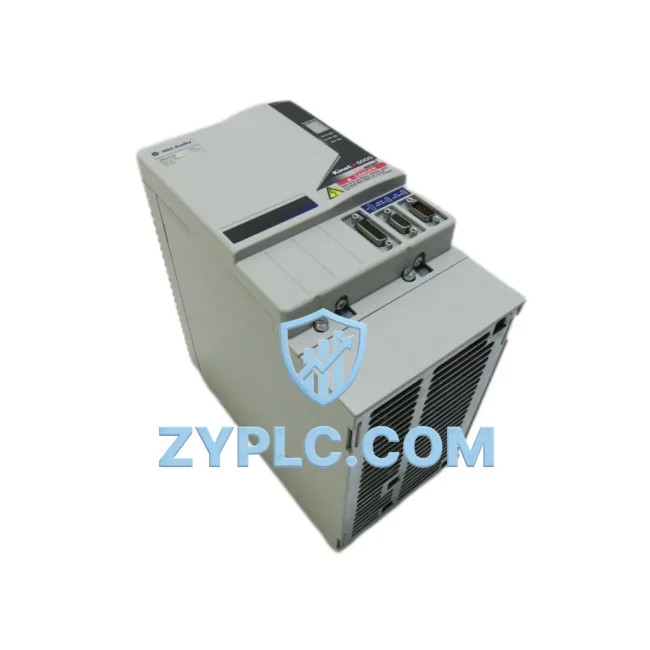

Allen-Bradley 2094-BM05 Energy-Saving Axis Module Kinetix 6000

Allen-Bradley 2094-BM05 Energy-Saving Axis Module Kinetix 6000: Precision Drive Efficiency for Optimized Production Lines

The Allen-Bradley 2094-BM05 is a high-performance servo drive axis module designed for the Kinetix 6000 multi-axis servo drive system. Built to meet the demanding requirements of modern industrial automation, this axis module delivers exceptional motor control accuracy while actively reducing energy consumption across the drive bus. For factories seeking to improve equipment utilization, minimize idle energy losses, and optimize production line throughput, the 2094-BM05 represents a proven, field-tested solution backed by a 12-month warranty and full pre-shipment functional testing.

At its core, the 2094-BM05 operates within the Kinetix 6000 shared DC bus architecture, enabling regenerative energy recovery during motor deceleration. Rather than dissipating braking energy as heat — a common source of inefficiency in traditional servo systems — the Kinetix 6000 bus module (such as the 2094-BC01-M01-S or 2094-BC02-M02-S) redistributes recovered energy to other active axes on the same bus. This regenerative capability can reduce overall drive system energy consumption by up to 30% in multi-axis applications, directly lowering electricity costs and reducing thermal load on control cabinet cooling systems.

The 2094-BM05 is rated for 5 kW continuous power output and is compatible with Allen-Bradley MPL, MPM, and MPS series servo motors. When paired with a Logix 5000-based controller — such as the ControlLogix 1756-L73 or CompactLogix 5370 — the axis module communicates over the Integrated Motion on EtherNet/IP (IMC) protocol, enabling real-time torque, velocity, and position loop closure at sub-millisecond cycle times. This tight integration between the PLC and drive eliminates the latency associated with analog command signals, resulting in more precise motion profiles, reduced mechanical wear, and improved production line cycle time consistency.

Efficiency Performance Table

Energy-Aware Automation Architecture

Deploying the 2094-BM05 within a well-designed automation architecture unlocks significant energy and operational efficiency gains. In a typical Kinetix 6000 installation, the axis module is mounted on a 2094-XL75S-C1 or 2094-XL75S-C3 power rail alongside other axis modules, all sharing a common DC bus supplied by a dedicated bus module. This shared bus topology means that when one axis decelerates — for example, a servo-driven conveyor slowing to accept a product — the recovered energy is immediately available to an adjacent axis accelerating to position a pick-and-place arm. The net effect is a measurable reduction in peak demand from the AC supply, which directly impacts energy billing in facilities with demand-charge tariffs.

For energy monitoring and reporting, the 2094-BM05 system integrates naturally with Allen-Bradley PowerMonitor 5000 or PowerMonitor 1000 energy meters installed at the panel feed. These devices communicate over EtherNet/IP or DeviceNet, feeding real-time kWh, power factor, and harmonic distortion data into the ControlLogix backplane via 1756-EN2T or 1756-EN3TR EtherNet/IP communication modules. Plant engineers can then use FactoryTalk View SE or FactoryTalk Energy Manager to visualize drive energy consumption trends, identify inefficient motion profiles, and schedule preventive maintenance before energy anomalies escalate into unplanned downtime.

On the I/O side, the 1756-IB16 digital input module and 1756-OB16E digital output module handle machine interlocks, safety signals, and auxiliary device control within the same ControlLogix chassis. For applications requiring analog feedback — such as load cell or pressure transducer signals used to optimize servo torque limits — the 1756-IF8 analog input module provides 16-bit resolution data directly to the Logix 5000 motion task. This closed-loop feedback architecture ensures that the 2094-BM05 axis module operates at the minimum torque and speed required for each production step, avoiding the energy waste associated with over-driven servo systems running at fixed maximum parameters.

In facilities using PROFIBUS DP or DeviceNet alongside EtherNet/IP, the 1756-DNB DeviceNet scanner or 1756-PDP PROFIBUS adapter can bridge legacy field devices into the same Logix 5000 control environment, allowing the 2094-BM05 to participate in a unified energy management strategy that spans both modern and legacy automation layers.

Power Optimization in Real Production Lines

Consider a high-speed packaging line running three servo axes — a film feed, a cross-seal jaw, and a product pusher — all driven by 2094-BM05 axis modules on a shared Kinetix 6000 bus. Without regenerative recovery, each deceleration event on the cross-seal jaw would require a braking resistor to dissipate kinetic energy as heat, adding thermal load to the enclosure and wasting energy that was already paid for. With the shared DC bus architecture, that same deceleration energy is captured and immediately reused by the film feed axis accelerating into its next pull cycle. Over a 16-hour production shift, this energy recycling can reduce total drive system power consumption by 15–30%, depending on the motion profile and duty cycle.

Beyond energy savings, the 2094-BM05’s tight integration with the Logix 5000 motion engine enables production line throughput optimization through electronic camming and gearing. Rather than relying on mechanical cams or gearboxes — which introduce backlash, wear, and fixed timing relationships — the motion controller can dynamically adjust axis phase relationships in response to upstream sensor data. If a vision system detects a product gap on the infeed conveyor, the Logix controller can temporarily slow the cross-seal jaw to avoid a seal-on-gap fault, then accelerate back to nominal speed without stopping the line. This adaptive motion control reduces product waste, eliminates unnecessary stop-start cycles, and keeps the line running at optimal throughput with minimal energy penalty.

Predictive maintenance is another key energy optimization lever enabled by the 2094-BM05 architecture. The Kinetix 6000 drive continuously monitors motor current, bus voltage, and thermal status, reporting fault and warning conditions to the ControlLogix controller via the IMC protocol. By logging these parameters over time using FactoryTalk Historian, maintenance teams can identify trends — such as gradually increasing motor current draw indicating bearing wear — and schedule maintenance during planned downtime rather than responding to unexpected failures. Eliminating unplanned stops not only protects production throughput but also avoids the energy-intensive restart cycles that occur when a cold machine must be brought back to operating temperature after an emergency shutdown.

All units supplied by ZYPLC are fully tested under load prior to shipment, with functional verification of encoder feedback, bus communication, and motion command response. In-stock inventory ensures rapid dispatch, and each 2094-BM05 is covered by a 12-month warranty from the date of shipment, providing confidence for both planned capital projects and urgent replacement requirements.

Energy Optimization FAQ

Q1: How much energy can the 2094-BM05 save compared to a non-regenerative servo drive?
In multi-axis Kinetix 6000 installations using a shared DC bus, the regenerative architecture of the 2094-BM05 system typically reduces total drive energy consumption by 15–30% compared to non-regenerative drives with braking resistors. Actual savings depend on the motion profile, duty cycle, and number of axes sharing the bus. Applications with frequent deceleration cycles — such as packaging, press feeding, and pick-and-place — tend to see the highest energy recovery rates.

Q2: Is the 2094-BM05 compatible with my existing ControlLogix or CompactLogix system?
Yes. The 2094-BM05 is designed for use with Logix 5000-based controllers including ControlLogix (1756 series) and CompactLogix (5370/5380 series) via Integrated Motion on EtherNet/IP. It requires a compatible Kinetix 6000 bus module and power rail. If you are upgrading from an older Kinetix 6000 installation, the 2094-BM05 is a direct form-fit-function replacement for same-rated axis modules, minimizing re-engineering effort.

Q3: Can the 2094-BM05 replace a failed axis module on an existing Kinetix 6000 system without reprogramming?
In most cases, yes. Because the Kinetix 6000 axis configuration is stored in the Logix 5000 project file rather than in the drive hardware, replacing a failed 2094-BM05 with a new unit of the same catalog number requires only physical installation and a download of the existing controller project. No axis re-tuning is typically required if the motor and feedback device are unchanged, significantly reducing mean time to repair (MTTR) and minimizing production downtime.

Q4: What does the 12-month warranty cover, and how is pre-shipment testing performed?
Every 2094-BM05 supplied by ZYPLC undergoes functional testing prior to shipment, including DC bus energization, encoder feedback verification, and motion command response validation. The 12-month warranty covers defects in materials and workmanship under normal operating conditions. Units that develop faults within the warranty period are repaired or replaced at no charge. Detailed test records are available upon request for quality assurance documentation purposes.
