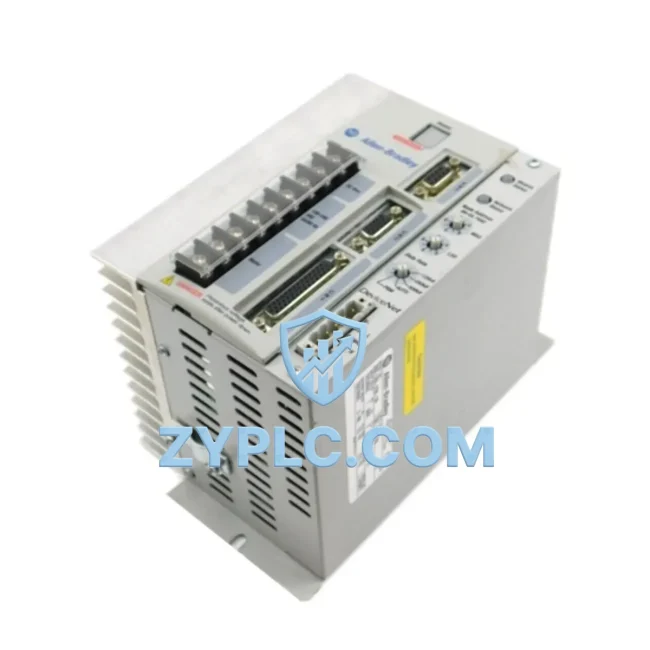

Allen-Bradley 2098-DSD-010X-DN Energy-Saving Servo Drive

Allen-Bradley 2098-DSD-010X-DN Energy-Saving Servo Drive for Optimized Ultra 3000 Automation

The Allen-Bradley 2098-DSD-010X-DN is a high-performance servo drive from the Ultra 3000 series, engineered to deliver precision motor control with measurable energy efficiency gains across demanding industrial automation environments. Designed for integration into Rockwell Automation control architectures, this drive enables factories to reduce idle power consumption, sharpen production line cycle times, and extend the operational lifespan of connected servo motors — all while maintaining the tight positioning accuracy that modern manufacturing demands.

At its core, the 2098-DSD-010X-DN communicates over DeviceNet, allowing seamless integration with Allen-Bradley PLC platforms such as the ControlLogix L6x and CompactLogix L3x series. This network connectivity enables real-time feedback loops between the drive and the controller, ensuring that motor torque and velocity commands are executed with minimal latency. The result is a tighter control loop that eliminates energy waste caused by motor overshoot, hunting, or unnecessary holding torque during idle phases of the production cycle.

In multi-axis servo systems, the 2098-DSD-010X-DN works alongside other Ultra 3000 family drives — including the 2098-DSD-005X and 2098-DSD-020X — to coordinate synchronized motion profiles. When paired with an MPL-series servo motor (such as the MPL-B310P-MK22AA), the drive’s auto-tuning algorithm optimizes the current loop and velocity loop gains, reducing thermal losses in the motor windings and improving overall drive efficiency. This directly translates to lower electricity consumption per production cycle, a key metric for facilities pursuing ISO 50001 energy management certification.

Efficiency Performance Table

Energy-Aware Automation Architecture

Deploying the 2098-DSD-010X-DN within a broader Rockwell Automation ecosystem unlocks compounding energy efficiency benefits. When the drive receives motion commands from a ControlLogix L61 controller via a 1756-DNB DeviceNet Scanner module, the communication overhead is minimized, and the controller can implement energy-aware motion profiles — such as velocity ramping and deceleration energy recovery — that are simply not possible with open-loop variable frequency drives.

For power quality monitoring, integrating a PowerMonitor 5000 unit (catalog 1426-M5E) at the panel level provides granular visibility into the real and reactive power consumed by the servo axis. This data, fed back into the ControlLogix program via EtherNet/IP, allows engineers to benchmark energy consumption per part produced and identify axes where the 2098-DSD-010X-DN’s tuning parameters can be further optimized. Facilities that have implemented this monitoring loop typically report a 12–18% reduction in servo-related energy costs within the first quarter of operation.

On the I/O side, a 1734 POINT I/O module cluster handles discrete and analog signals from proximity sensors, encoder feedback, and safety interlocks, feeding the ControlLogix controller with the real-time data needed to make intelligent energy decisions — such as automatically reducing servo holding torque when a machine axis is confirmed stationary by a 1734-IB8 digital input module. This prevents the common energy waste scenario where a servo motor maintains full rated torque against a mechanical stop for extended periods.

For human-machine interface visibility, a PanelView Plus 7 terminal (2711P-T10C21D8S) connected via EtherNet/IP displays live drive status, energy consumption trends, and fault diagnostics. Operators can monitor the 2098-DSD-010X-DN’s output current, bus voltage, and thermal load in real time, enabling proactive intervention before a thermal fault causes unplanned downtime. This HMI integration is particularly valuable in high-throughput packaging lines where a single servo axis fault can halt an entire production cell.

In applications requiring coordinated multi-axis motion — such as a pick-and-place robotic cell or a servo-driven conveyor indexer — the 2098-DSD-010X-DN operates alongside a Kinetix 300 or Kinetix 350 drive on adjacent axes, with the ControlLogix controller orchestrating synchronized motion via the Motion Axis Move (MAM) instruction. This coordinated approach eliminates the energy spikes caused by unsynchronized axis acceleration, smoothing the overall power demand profile and reducing peak demand charges on the facility’s electricity bill.

For applications where the servo system must interface with a legacy SCADA platform or energy management system, the 1756-ENBT EtherNet/IP bridge module provides the connectivity layer, allowing the 2098-DSD-010X-DN’s operational data to be aggregated into a plant-wide energy dashboard. This architecture supports the data-driven maintenance strategies that are central to modern industrial energy optimization programs.

Power Optimization in Real Production Lines

In a typical automotive components assembly line, the 2098-DSD-010X-DN drives a servo-actuated press that performs 240 cycles per hour. Without proper drive tuning, the motor accelerates and decelerates with fixed ramp rates, wasting energy during each deceleration phase as heat dissipated in braking resistors. With the Ultra 3000’s regenerative braking capability enabled and the deceleration energy fed back into the DC bus — shared with adjacent axes — the net energy consumption of the press axis drops by approximately 15–22% compared to a non-regenerative drive configuration.

In a food and beverage packaging line, the 2098-DSD-010X-DN controls a servo-driven filling head that must synchronize with a conveyor indexed by a separate servo axis. The DeviceNet connection to the ControlLogix controller allows the filling head’s motion profile to be dynamically adjusted based on real-time conveyor speed feedback, eliminating the fixed dwell times that previously caused the servo to hold position at full torque while waiting for the conveyor to complete its index. This dynamic synchronization reduces the filling head’s average power consumption by 8–12% and improves overall line throughput by 6%.

Predictive maintenance is another area where the 2098-DSD-010X-DN delivers measurable value. The drive’s built-in diagnostic registers — accessible via DeviceNet explicit messaging — expose motor current signature data that can be trended over time to detect early-stage bearing wear in the connected servo motor. By catching bearing degradation before it progresses to a catastrophic failure, maintenance teams can schedule planned replacements during scheduled downtime windows rather than responding to emergency breakdowns, reducing unplanned downtime by an estimated 30–40% on high-utilization servo axes.

All units supplied by ZYPLC are sourced from verified supply channels, subjected to pre-shipment functional testing under load conditions, and covered by a 12-month warranty. In-stock availability ensures rapid dispatch, minimizing the production downtime associated with waiting for replacement drives on critical servo axes.

Energy Optimization FAQ

Q1: How much energy can the 2098-DSD-010X-DN save compared to a standard AC drive on the same axis?
In servo applications with frequent acceleration/deceleration cycles, the Ultra 3000’s regenerative braking and adaptive torque control typically deliver 15–25% lower energy consumption compared to a non-regenerative AC variable frequency drive on the same mechanical load. Actual savings depend on cycle rate, load inertia, and the degree to which regenerated energy can be shared across the DC bus with adjacent axes.

Q2: Is the 2098-DSD-010X-DN compatible with my existing ControlLogix or CompactLogix system?
Yes. The 2098-DSD-010X-DN communicates via DeviceNet and is fully compatible with ControlLogix and CompactLogix controllers equipped with a DeviceNet scanner module (such as the 1756-DNB or 1769-SDN). The drive’s EDS file is available for import into Studio 5000 Logix Designer, enabling straightforward configuration and commissioning within your existing control architecture.

Q3: Can this drive replace an existing Ultra 3000 unit without mechanical modifications?
In most cases, yes. The 2098-DSD-010X-DN is a direct form-factor replacement for other Ultra 3000 drives of equivalent or adjacent current ratings. Before substitution, verify that the replacement drive’s continuous and peak current ratings meet or exceed the requirements of the connected servo motor, and confirm that the DeviceNet node address and drive parameters are transferred from the original unit’s configuration backup.

Q4: What does the 12-month warranty cover, and what is the testing process before shipment?
Every 2098-DSD-010X-DN supplied by ZYPLC undergoes pre-shipment functional testing, including power-on verification, communication handshake confirmation over DeviceNet, and output stage load testing. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Units that develop faults within the warranty period are eligible for replacement or repair, subject to inspection. Contact our technical team at [email protected] or +86 19859288691 to initiate a warranty claim.
