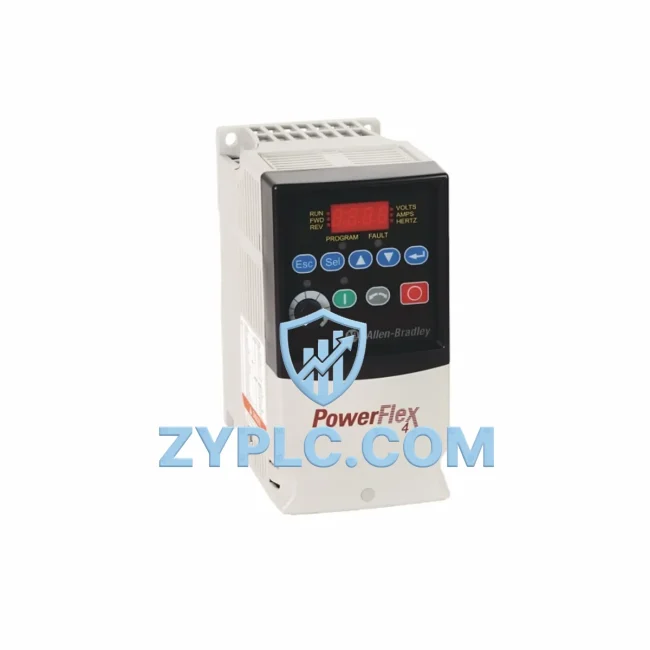

Allen-Bradley 22A-B8P0N104 System-Ready AC Drive for PowerFlex 4 Architecture

Allen-Bradley 22A-B8P0N104 System-Ready AC Drive for PowerFlex 4 Architecture

The Allen-Bradley 22A-B8P0N104 is a compact, high-performance AC variable frequency drive belonging to the PowerFlex 4 series — one of Rockwell Automation’s most widely deployed drive platforms in global industrial automation. Designed for seamless integration into layered control architectures, this drive delivers precise motor speed regulation, energy efficiency, and robust communication capability across a broad range of industrial environments. Whether deployed in a standalone machine application or embedded within a multi-tier distributed control system, the 22A-B8P0N104 serves as a critical execution-layer component that bridges the gap between the control layer and the physical process.

In modern industrial automation, no component operates in isolation. The 22A-B8P0N104 is engineered to function as part of a coherent system architecture — one that spans the control layer (PLCs and PACs), the I/O layer (digital and analog modules), the network layer (EtherNet/IP and DeviceNet), the power layer (power supplies and circuit protection), the HMI layer (operator panels and SCADA), and the execution layer (drives, actuators, and motors). Understanding this drive’s role within that full architecture is essential to maximizing system performance, uptime, and long-term maintainability.

At ZYPLC, every 22A-B8P0N104 unit is sourced, inspected, and dispatched with a 12-Month Warranty, ensuring your procurement and engineering teams can plan with confidence. Our inventory is maintained to support both urgent replacement scenarios and long-cycle project builds.

Architecture Specification Table

Coordinated Control System Design

The 22A-B8P0N104 achieves its full potential when integrated within a coordinated Rockwell Automation control architecture. At the control layer, it is typically commanded by a MicroLogix 1100 or CompactLogix L-series PLC via analog reference signals or DSI serial communication, enabling closed-loop speed regulation with deterministic scan-cycle performance. For larger system architectures, a ControlLogix 1756-L73 processor with a 1756-EN2T EtherNet/IP communication module can serve as the supervisory controller, coordinating multiple drives across a production line.

On the I/O layer, 1769 CompactLogix I/O modules — including digital input modules such as the 1769-IQ16 and analog output modules such as the 1769-OF4 — provide the signal conditioning and reference generation required to command the drive with precision. These modules interface directly with the PLC backplane, ensuring low-latency signal delivery to the drive’s analog input terminals.

Network integration is achieved through the drive’s DSI port, which supports optional communication adapters including the 22-COMM-E EtherNet/IP adapter and the 22-COMM-D DeviceNet adapter. These adapters allow the 22A-B8P0N104 to participate in a plant-wide network topology alongside other PowerFlex drives, enabling centralized parameter management, real-time diagnostics, and coordinated multi-drive sequencing from a single SCADA or DCS platform.

Power layer integrity is maintained through coordinated use of 1606-XLP power supplies for control circuit power and appropriately rated 140M motor protection circuit breakers for upstream fault isolation. On the HMI layer, a PanelView Plus 7 operator terminal provides local drive status visualization, fault acknowledgment, and speed reference adjustment — all communicating over EtherNet/IP to the supervisory PLC. For applications requiring local drive parameter access without a full HMI, the 22-HIM-A3 remote keypad mounts directly to the drive enclosure door.

In redundant architecture designs, the 22A-B8P0N104 can be paired with a standby drive unit and a bypass contactor assembly, ensuring continuous motor operation during drive maintenance or fault conditions. This redundancy strategy is particularly valuable in critical process applications such as pump stations, HVAC systems, and conveyor lines where unplanned downtime carries significant operational cost.

Application in Layered Automation Systems

The Allen-Bradley 22A-B8P0N104 is deployed across a wide spectrum of industrial sectors, each with distinct system architecture requirements:

Manufacturing & Assembly Lines: In automotive and electronics manufacturing, the drive controls conveyor belt speeds, rotary indexing tables, and material handling systems. Its sensorless vector control mode delivers consistent torque at low speeds, critical for precise part positioning and synchronized multi-axis motion sequences.

Water & Wastewater Treatment: Municipal pump stations rely on the PowerFlex 4 series for variable-speed pump control, reducing energy consumption and water hammer effects. The drive’s built-in PID control loop enables direct pressure or flow regulation without requiring an external controller for simple single-loop applications.

Power Generation & Utilities: In auxiliary systems of power plants — including cooling water pumps, forced draft fans, and fuel feed conveyors — the 22A-B8P0N104 provides reliable speed control with the communication transparency required for integration into plant DCS platforms via EtherNet/IP gateways.

Oil, Gas & Petrochemical: Process pump and compressor applications in hazardous-area-adjacent control rooms utilize the drive’s panel-mount IP20 enclosure within purged and pressurized control cabinets, maintaining compliance with area classification requirements while delivering precise flow control.

Mining & Metallurgy: Ore conveyor systems, crusher feed belts, and ventilation fan drives in underground and surface mining operations benefit from the drive’s robust motor protection features, including electronic overload, phase loss detection, and overcurrent fault management — reducing mechanical stress and extending motor service life.

Packaging & Food Processing: High-cycle-rate packaging lines require drives that respond rapidly to speed reference changes. The 22A-B8P0N104’s configurable acceleration and deceleration ramp profiles allow engineers to optimize throughput while protecting mechanical components from shock loading during start-stop cycles.

Architecture Engineering FAQ

Q1: Is the 22A-B8P0N104 compatible with existing PowerFlex 4 system architectures using DSI communication?
Yes. The 22A-B8P0N104 is fully compatible with the DSI (Drive Serial Interface) protocol used across the PowerFlex 4 series. It supports daisy-chain DSI networks connecting multiple drives to a single PLC serial port, and it accepts all standard 22-COMM-x communication adapter modules (EtherNet/IP, DeviceNet, PROFIBUS, RS-485 Modbus) for integration into broader network architectures. Parameter sets from existing PowerFlex 4 installations can be transferred directly using the DriveExplorer or Studio 5000 Logix Designer software tools.

Q2: What installation and commissioning considerations apply when integrating this drive into a multi-drive control cabinet?
When installing the 22A-B8P0N104 in a shared control cabinet alongside other drives and control equipment, engineers should observe minimum clearance requirements (50 mm top/bottom, 25 mm sides) for adequate convective cooling. Input line reactors are recommended when the drive is connected to a supply transformer of less than 120 kVA to limit harmonic distortion. For multi-drive installations, individual input fusing per drive is required, and all drive grounds should be bonded to a common cabinet ground bus to minimize EMI interference with adjacent signal wiring and communication cables.

Q3: What does the 12-Month Warranty cover, and how does ZYPLC support long-term maintenance planning?
ZYPLC’s 12-Month Warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. In the event of a warranty claim, ZYPLC provides direct technical support and unit replacement coordination to minimize system downtime. For long-term maintenance planning, ZYPLC maintains ongoing inventory of the 22A-B8P0N104 and related PowerFlex 4 series components, enabling customers to establish spare-parts programs aligned with their preventive maintenance schedules. Our technical team can assist with drive parameter backup, firmware version compatibility assessment, and system-level troubleshooting to support the full lifecycle of your automation investment.
