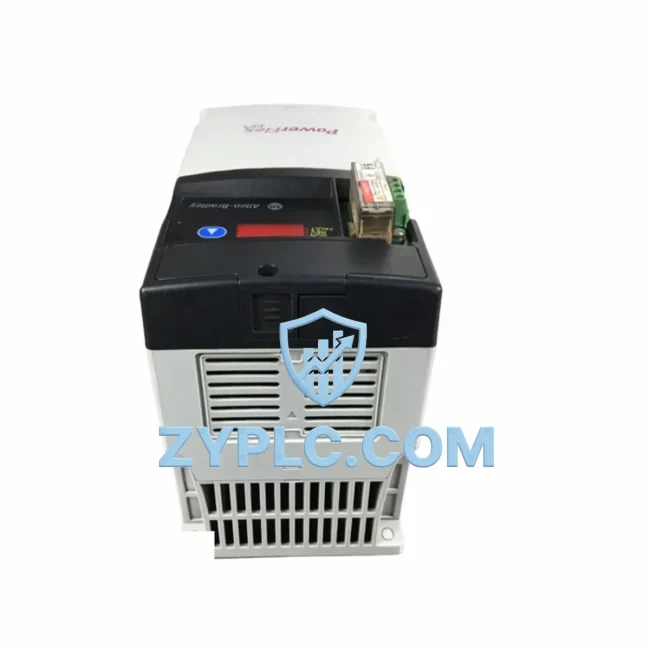

Allen-Bradley 22A-D8P7N104 Energy-Saving AC Drive PowerFlex 4: Precision Motor Control for Optimized Production Lines

The Allen-Bradley 22A-D8P7N104 is a compact, high-efficiency variable frequency drive (VFD) from Rockwell Automation’s PowerFlex 4 series, engineered to deliver precise motor speed regulation while significantly reducing energy consumption in demanding industrial environments. Rated at 4.0 kW / 5 HP for 480V three-phase input with an output current of 8.7 A, this drive is purpose-built for applications where energy efficiency, production continuity, and low total cost of ownership are non-negotiable priorities.

At ZYPLC, every 22A-D8P7N104 unit is sourced from verified supply channels, subjected to full functional testing prior to shipment, and backed by a 12-month warranty. Stock is available for immediate dispatch, supporting your maintenance, retrofit, and new-installation timelines without delay.

Efficiency Performance Table

Energy-Aware Automation Architecture

The 22A-D8P7N104 does not operate in isolation — its true efficiency value emerges when integrated into a well-designed automation architecture. In a typical Rockwell Automation environment, this drive interfaces directly with a CompactLogix L33ER or ControlLogix L71 programmable logic controller via the DSI port or an optional 22-COMM-E EtherNet/IP adapter, enabling real-time speed reference commands, fault diagnostics, and energy data feedback over a unified network.

On the I/O layer, a 1769-IQ16 digital input module or 1769-IF4 analog input module feeds process variables — such as pressure transducer signals or flow meter readings — directly into the PLC, which then adjusts the drive’s output frequency to match actual load demand. This closed-loop approach eliminates the energy waste inherent in throttling valves or mechanical dampers on fixed-speed motors.

For operator visibility, a PanelView Plus 7 (2711P-T7C22D9P) HMI provides real-time display of drive status, motor speed, output current, and accumulated run hours. When paired with a PowerMonitor 5000 energy meter installed at the MCC panel, plant engineers gain granular insight into per-drive energy consumption, enabling data-driven decisions on load scheduling and shift-based power management.

In multi-axis conveyor or pump station applications, the 22A-D8P7N104 is frequently deployed alongside other PowerFlex 4 variants — such as the 22A-D4P0N104 (2.2 kW) and 22A-D017N104 (7.5 kW) — to create a scalable, standardized drive platform across different motor sizes. This uniformity reduces spare-parts inventory complexity and simplifies technician training. For servo-driven positioning axes on the same production line, a Kinetix 5500 servo drive (2198-H008-ERS) handles precision motion while the PowerFlex 4 manages auxiliary conveyor and feed motors, keeping the entire system under a single Studio 5000 Logix Designer project.

Communication integrity across the plant floor is maintained through a Stratix 5700 managed Ethernet switch, which segments drive traffic from HMI and historian traffic, reducing latency and ensuring deterministic control response. For legacy installations using DeviceNet, the optional 22-COMM-D DeviceNet adapter allows the 22A-D8P7N104 to participate in existing scanner-based networks without rewiring.

Power Optimization in Real Production Lines

In a food and beverage bottling facility, replacing a direct-on-line (DOL) starter on a 4 kW conveyor motor with the 22A-D8P7N104 immediately eliminates the high inrush current spike at startup — typically 6–8× full-load current — that stresses both the motor windings and the upstream distribution transformer. By ramping the motor from 0 to operating speed over a configurable acceleration ramp (0.0–3600 seconds), the drive reduces mechanical shock on couplings and belts, extending mean time between failures (MTBF) and cutting unplanned downtime.

In pump and fan applications governed by affinity laws, reducing motor speed by just 20% cuts power consumption by approximately 49% (power ∝ speed³). A facility running three 4 kW pump motors at 80% speed instead of 100% can recover the drive’s capital cost within months through electricity savings alone — a calculation that becomes even more compelling when multiplied across a large pump station or HVAC system.

The drive’s built-in Sleep/Wake function further reduces idle energy consumption: when a process sensor signals that demand has dropped below a threshold (e.g., tank level reached, line pressure satisfied), the drive automatically ramps the motor to a minimum speed or stops it entirely, then restarts smoothly when demand resumes. This eliminates the energy waste of motors running at full speed against closed valves or empty conveyors — a common source of hidden energy loss in older facilities.

For predictive maintenance, the drive logs fault history, cumulative kWh, and motor thermal model data accessible via the 22A-D8P7N104‘s parameter table (P031–P099). When integrated with a FactoryTalk View SE SCADA system, these parameters feed into trend analysis dashboards that flag abnormal current draw — an early indicator of bearing wear, coupling misalignment, or impeller fouling — before a failure occurs. This shifts maintenance from reactive to condition-based, reducing both parts cost and production loss.

Every unit shipped from ZYPLC undergoes a pre-shipment functional test covering power-up self-diagnostics, output voltage balance across all three phases, and parameter retention verification. Combined with the 12-month warranty, this ensures that the drive arrives ready to install and perform from day one, with no hidden commissioning surprises.

Energy Optimization FAQ

Q1: How much energy can the 22A-D8P7N104 save compared to a fixed-speed starter on a pump or fan application?
In variable-torque loads such as centrifugal pumps and fans, energy savings of 30–50% are typical when the motor operates at 80–90% of rated speed. The cubic relationship between speed and power (affinity law) means even modest speed reductions yield significant energy reductions. Actual savings depend on load profile, duty cycle, and baseline operating speed.

Q2: Is the 22A-D8P7N104 compatible with my existing Rockwell Automation PLC and network?
Yes. The drive’s native DSI port supports direct connection to Rockwell Automation PLCs via the 22-SCM-232 serial converter. For EtherNet/IP integration with ControlLogix or CompactLogix systems, add the 22-COMM-E adapter. DeviceNet compatibility is available via the 22-COMM-D adapter. The drive is fully configurable through Studio 5000 Logix Designer Add-On Profiles (AOPs) for seamless tag-based programming.

Q3: Can this drive replace an older PowerFlex 4 or PowerFlex 40 unit without rewiring?
The 22A-D8P7N104 is a direct form-fit-function replacement for other PowerFlex 4 drives of the same frame size and power rating. Terminal layout and mounting dimensions are consistent within the PowerFlex 4 family. When replacing a PowerFlex 40 (22B series), verify input voltage, current rating, and frame size compatibility, as the two series share similar but not identical footprints. ZYPLC’s technical team can assist with cross-reference verification prior to purchase.

Q4: What does the 12-month warranty cover, and what is the testing process before shipment?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. Prior to dispatch, each 22A-D8P7N104 unit is tested for: power-on self-diagnostics (no fault codes), three-phase output voltage symmetry, parameter memory integrity, and communication port functionality. A test report is available upon request. Warranty claims are processed directly through ZYPLC with replacement or repair turnaround coordinated to minimize your downtime.
