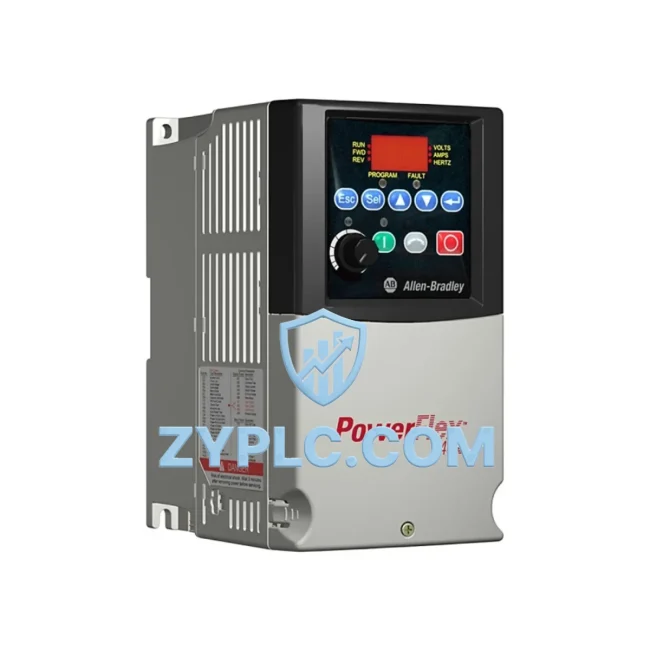

Allen-Bradley 22B-D010N104 Energy-Saving AC Drive PowerFlex 40

Allen-Bradley 22B-D010N104 Energy-Saving AC Drive for Optimized PowerFlex 40 Automation

The Allen-Bradley 22B-D010N104 is a PowerFlex 40 series AC variable frequency drive engineered to deliver precise motor speed control and measurable energy savings across demanding industrial production environments. Rated at 4.0 kW (5 HP) for 480V three-phase input, this drive is purpose-built for applications where reducing unnecessary motor energy consumption directly translates to lower operating costs and improved production line throughput. Whether deployed in conveyor systems, pump stations, compressor banks, or packaging machinery, the 22B-D010N104 enables plant engineers to match motor output exactly to process demand — eliminating the energy waste inherent in across-the-line motor starting and fixed-speed operation.

In modern industrial facilities, uncontrolled motor starts represent one of the largest sources of avoidable energy loss. The 22B-D010N104 addresses this by providing smooth, programmable acceleration and deceleration ramps that reduce mechanical stress on connected equipment while simultaneously cutting peak inrush current draw. This directly improves equipment utilization rates, extends motor and gearbox service life, and reduces the frequency of unplanned maintenance interventions — all of which contribute to a lower total cost of ownership over the drive’s operational lifespan.

Efficiency Performance Table

Energy-Aware Automation Architecture

The 22B-D010N104 is designed to integrate seamlessly within a broader Allen-Bradley automation ecosystem, where coordinated energy management across multiple system layers delivers the greatest efficiency gains. In a typical production cell, the drive operates under the command of a CompactLogix L30ER or MicroLogix 1400 programmable controller, which issues speed reference signals and monitors drive status via the DSI (Drive Serial Interface) or an optional 22-COMM-D DeviceNet communication adapter. This tight integration allows the PLC to dynamically adjust motor speed in response to real-time process feedback — for example, slowing a conveyor during low-demand periods or ramping a pump to match actual flow requirements rather than running at fixed maximum speed.

For facilities implementing energy monitoring at the panel level, the 22B-D010N104 pairs effectively with PowerMonitor 500 or PowerMonitor 1000 energy meters, which capture kWh consumption data and feed it back to the control system for trend analysis and demand management. When combined with a PanelView Plus 7 HMI terminal, operators gain a real-time dashboard of drive operating parameters — output frequency, motor current, DC bus voltage, and fault history — enabling rapid response to process deviations before they escalate into costly downtime events.

On the I/O side, the drive’s onboard digital and analog inputs allow direct connection to process sensors, pressure transducers, and flow meters without requiring an intermediate I/O module. However, in larger systems where the 22B-D010N104 operates alongside additional PowerFlex 40 or PowerFlex 400 drives on a shared DeviceNet network, a 1756-DNB DeviceNet scanner module in the ControlLogix backplane provides centralized drive management, enabling coordinated multi-axis speed profiling and synchronized production line pacing. This architecture is particularly effective in bottling, assembly, and material handling lines where multiple motor-driven axes must operate in precise timing relationships to maintain throughput targets.

For servo-level positioning tasks adjacent to the VFD application, Kinetix 5500 servo drives on the same EtherNet/IP network can handle high-precision axes while the 22B-D010N104 manages the variable-speed process drives — creating a unified motion and energy control architecture under a single ControlLogix or CompactLogix platform. The 22-XCOMM-DC-BASE external communications kit further extends connectivity options, supporting integration with PROFIBUS DP or EtherNet/IP networks for facilities standardized on those protocols.

Power Optimization in Real Production Lines

In real-world production environments, the energy savings delivered by the 22B-D010N104 are most pronounced in applications with variable load profiles — where process demand fluctuates significantly throughout the production shift. Fan and pump applications following the affinity laws see cubic reductions in power consumption relative to speed reduction: a motor running at 80% of full speed consumes only approximately 51% of the energy required at full speed. The 22B-D010N104 enables plant engineers to implement precisely this kind of demand-matched speed control, replacing throttling valves, dampers, and bypass circuits that waste energy through mechanical restriction.

Beyond energy savings, the drive’s built-in fault diagnostics and programmable protective functions — including overcurrent, overvoltage, undervoltage, and motor overtemperature protection — support a predictive maintenance strategy by providing early warning of developing motor or mechanical issues. Maintenance teams can monitor drive fault logs via the integral LCD keypad or remotely through the connected PLC, scheduling corrective action during planned downtime windows rather than responding reactively to unexpected failures. This shift from reactive to predictive maintenance directly improves overall equipment effectiveness (OEE) and reduces the hidden costs of emergency repair, expedited parts procurement, and lost production time.

Each 22B-D010N104 unit supplied by ZYPLC is drawn from verified inventory stock, subjected to functional power-on testing prior to shipment, and covered by a 12-month warranty. This ensures that replacement or expansion units arrive ready for immediate installation, minimizing commissioning time and supporting rapid production line recovery after a drive replacement event.

Energy Optimization FAQ

Q1: How much energy can the 22B-D010N104 save compared to a direct-on-line motor starter?
In variable-torque applications such as fans and pumps, energy savings of 30–50% are commonly achieved by matching motor speed to actual process demand. Fixed-speed motors running against throttling devices waste energy as heat and mechanical loss; the 22B-D010N104 eliminates this waste by controlling speed electronically.

Q2: Is the 22B-D010N104 compatible with existing Allen-Bradley PLC systems?
Yes. The drive supports DSI (Drive Serial Interface) for direct connection to MicroLogix and SLC 500 controllers, and with the optional 22-COMM-D or 22-COMM-E adapter, it integrates with DeviceNet or EtherNet/IP networks managed by CompactLogix and ControlLogix platforms. It is also compatible with third-party controllers via analog (0–10V / 4–20mA) speed reference inputs.

Q3: What is the recommended replacement or upgrade path if the original drive is no longer available?
The 22B-D010N104 is a direct replacement for earlier PowerFlex 40 units of the same power rating. For applications requiring enhanced features, the PowerFlex 400 or PowerFlex 525 series offers expanded communication options and higher power ranges while maintaining backward compatibility with existing wiring and parameter structures.

Q4: What testing is performed before shipment, and what does the 12-month warranty cover?
Every unit undergoes functional power-on testing to verify drive operation, output waveform integrity, and control interface response before dispatch. The 12-month warranty covers manufacturing defects and operational failures under normal use conditions, with direct support available through ZYPLC’s technical team.
