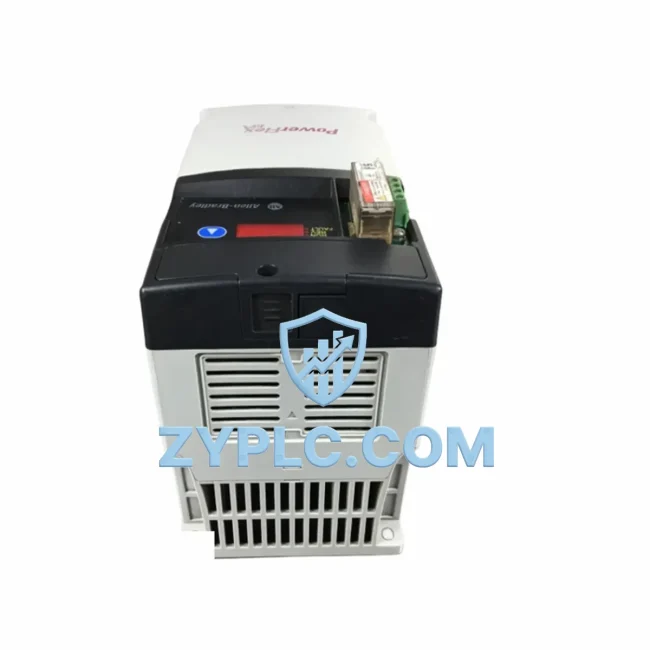

Allen-Bradley 22D-D010N104 System-Ready Drive PowerFlex 40

Allen-Bradley 22D-D010N104 System-Ready Drive PowerFlex 40: Control System Architecture and Upstream–Downstream Coordination

The Allen-Bradley 22D-D010N104 is a PowerFlex 40 series AC variable frequency drive engineered for seamless integration within multi-layer industrial control architectures. Rather than functioning as a standalone component, this drive is designed to operate as a coordinated node within a complete automation system — receiving command signals from upper-level controllers, managing motor output with precision, and reporting operational status back through the communication fabric of the plant. In modern manufacturing, power, and process environments, the value of a drive is measured not only by its standalone performance but by how effectively it participates in the broader control hierarchy. The 22D-D010N104 excels in both dimensions.

Rated for 480V AC three-phase input with a 10A output current capacity, this drive is suited for motor loads in the range of 4 kW to 5.5 kW (5–7.5 HP), making it applicable across a wide range of conveyor, pump, fan, and compressor applications. Its compact frame and DIN-rail or panel-mount compatibility allow it to be installed within standard control cabinets alongside other Rockwell Automation components, maintaining a consistent hardware ecosystem from the power layer through to the field device layer.

Architecture Specification Table

Coordinated Control System Design

The 22D-D010N104 is most effectively deployed as part of a coordinated Rockwell Automation control platform. At the controller layer, it typically receives speed references and enable commands from a CompactLogix L3x or L2x series PLC, which manages the overall machine sequence logic. In larger installations, a ControlLogix 1756 chassis with a 1756-L7x processor may serve as the primary controller, coordinating multiple drives across a production line through a structured EtherNet/IP network.

Communication between the PLC and the 22D-D010N104 is facilitated through the 22-COMM-E EtherNet/IP adapter or the 22-COMM-D DeviceNet adapter, both of which mount directly to the drive’s DSI port. This adapter-based architecture allows the same drive hardware to be deployed across different network topologies without requiring a hardware change — a significant advantage in multi-site or multi-protocol environments. For installations using PROFIBUS DP, the 22-COMM-P PROFIBUS adapter provides equivalent integration capability.

At the I/O layer, the drive interfaces with field sensors and actuators through its onboard digital and analog I/O. In applications where additional I/O density is required, 1734 POINT I/O modules mounted on a local adapter can extend the system’s sensing and actuation capability without adding a separate controller. The drive’s analog input channels accept 0–10V or 4–20mA signals, enabling direct connection to pressure transmitters, flow meters, and position sensors commonly found in process control environments.

Power distribution to the 22D-D010N104 is typically managed through a 1606-XLP power supply for control circuit power, while the main drive input is protected by a coordinated 140M motor protection circuit breaker or a 1492-SPM series supplementary protector. Upstream harmonic mitigation may be provided by a 1321-3R line reactor, which also reduces voltage transients and extends drive service life in environments with poor power quality.

For human-machine interface requirements, the drive can be monitored and configured through a PanelView Plus 7 HMI terminal connected via EtherNet/IP, providing operators with real-time speed, current, fault status, and energy consumption data. In simpler applications, the 22-HIM-A3 remote keypad provides local parameter access and manual speed control without requiring a full HMI installation.

Where system redundancy is a design requirement, the 22D-D010N104 can be installed in a hot-standby configuration using a 1732DS-IB8XOBV4 ArmorBlock dual-port I/O module to maintain field connectivity during controller switchover events. This architecture is particularly relevant in continuous process applications where unplanned downtime carries significant operational cost.

Application in Layered Automation Systems

The Allen-Bradley 22D-D010N104 finds application across a broad range of industrial sectors where precise motor speed control and system-level integration are essential design requirements.

In manufacturing and packaging lines, the drive controls conveyor belt speeds, indexing tables, and filling station motors, synchronizing with upstream and downstream equipment through the PLC’s coordinated motion logic. Speed references are dynamically adjusted based on product flow rates, ensuring consistent throughput without mechanical shock or product damage.

In water and wastewater treatment facilities, the 22D-D010N104 manages pump and blower motor speeds in response to process variable feedback — flow rate, pressure, or dissolved oxygen level — received through the analog input channels. This closed-loop control reduces energy consumption compared to fixed-speed operation and extends pump mechanical life by eliminating hard starts.

In power generation and electrical distribution substations, the drive is used to control auxiliary equipment such as cooling fans, oil pumps, and ventilation systems. Its wide ambient temperature tolerance and robust enclosure options make it suitable for installation in outdoor switchgear rooms and prefabricated substation buildings.

In petrochemical and oil & gas processing, the drive operates compressor and agitator motors in hazardous area adjacent control rooms, with the drive itself installed in a purged and pressurized enclosure or a safe-area control cabinet. The DSI communication interface allows remote parameter monitoring without requiring personnel to enter restricted zones.

In mining and metallurgical processing, the 22D-D010N104 controls ore conveyor drives, crusher feed motors, and flotation cell agitators. The sensorless vector control mode provides high starting torque at low speeds, which is critical for loaded conveyor start-up sequences in inclined belt applications.

Architecture Engineering FAQ

Q1: Is the 22D-D010N104 compatible with existing ControlLogix and CompactLogix architectures, and what communication adapters are required?
Yes. The 22D-D010N104 is fully compatible with both ControlLogix and CompactLogix platforms via the DSI communication port. To integrate the drive into an EtherNet/IP network — the most common topology in current Rockwell Automation installations — the 22-COMM-E adapter is required. For DeviceNet-based systems, the 22-COMM-D adapter is used. Once the adapter is installed and the drive is configured with an appropriate IP address or node number, it appears as a standard drive object in Studio 5000 Logix Designer, enabling full parameter read/write and fault diagnostic access from the controller. No additional licensing or hardware is required beyond the adapter module itself.

Q2: What installation and commissioning considerations apply when deploying this drive in a multi-drive control cabinet?
When installing multiple 22D-D010N104 units in a shared enclosure, thermal management is the primary engineering consideration. Each drive must have adequate clearance above and below for convective airflow, and the cabinet must be sized to dissipate the combined heat load of all installed drives at full load. A 1321-3R line reactor should be installed on the input of each drive in systems with long cable runs or weak supply impedance. During commissioning, each drive should be individually parameterized using the 22-HIM-A3 keypad or DriveExecutive software before network integration, verifying motor nameplate data entry, acceleration/deceleration ramp settings, and overload protection thresholds. Fault log review after initial run-up confirms correct system integration before handover.

Q3: What does the 12-Month Warranty cover, and how does ZYPLC support long-term maintenance and spare parts availability?
ZYPLC provides a 12-Month Warranty on the 22D-D010N104 covering manufacturing defects, component failure under normal operating conditions, and firmware integrity. The warranty period begins from the date of shipment. In the event of a warranty claim, ZYPLC’s technical team conducts a remote diagnostic assessment before initiating a replacement or repair process, minimizing system downtime. Beyond the warranty period, ZYPLC maintains inventory of PowerFlex 40 series drives and associated accessories — including communication adapters, remote keypads, and line reactors — to support long-term spare parts programs for facilities with extended maintenance cycles. Contact our technical sales team at [email protected] or +86 19859288691 for spare parts availability and volume pricing.
