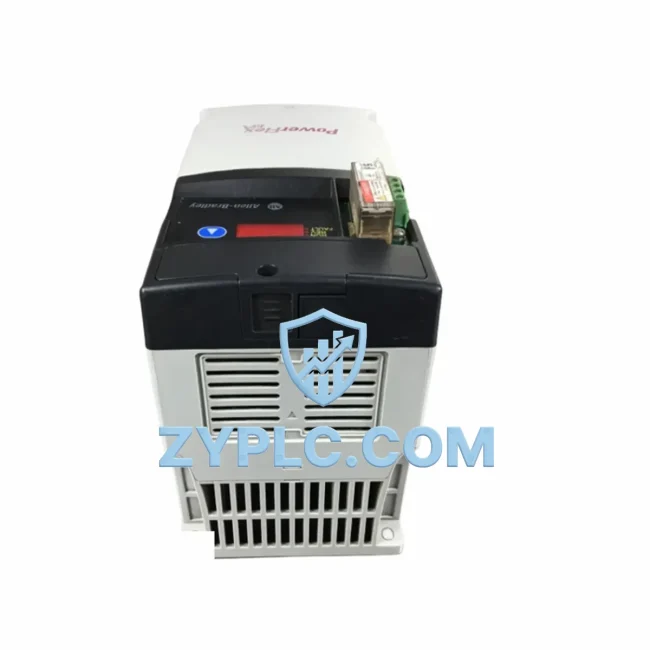

Allen-Bradley 22D-D1P4N104 Energy-Saving VFD PowerFlex 40P

Allen-Bradley 22D-D1P4N104 Energy-Saving VFD PowerFlex 40P: Precision Motor Control for Optimized Production Lines

The Allen-Bradley 22D-D1P4N104 is a 1.4A, 480V AC variable frequency drive from the PowerFlex 40P series — engineered specifically for embedded motor control applications where energy efficiency, compact integration, and reliable drive performance are non-negotiable. In modern manufacturing environments where energy costs and equipment uptime directly impact profitability, the 22D-D1P4N104 delivers measurable improvements across motor utilization, production line throughput, and predictive maintenance cycles.

Unlike general-purpose drives, the PowerFlex 40P platform is designed for embedded OEM applications, offering a slim form factor with full-featured drive control. The 22D-D1P4N104 supports sensorless vector control and volts-per-hertz (V/Hz) modes, enabling precise speed regulation that reduces motor slip losses and eliminates unnecessary energy draw during partial-load operation — a critical advantage in conveyor systems, pump stations, and packaging lines where load profiles vary continuously throughout the production shift.

Efficiency Performance Table

Energy-Aware Automation Architecture

The 22D-D1P4N104 is most effective when deployed as part of a coordinated automation architecture rather than as a standalone drive. In a typical energy-optimized production cell, the drive interfaces directly with a CompactLogix L33ER or MicroLogix 1400 controller via the Drive System Interface (DSI) port, enabling real-time speed reference commands and fault feedback without the overhead of a full fieldbus network. This tight integration reduces communication latency and allows the PLC to dynamically adjust motor speed in response to upstream process signals — eliminating the fixed-speed operation that wastes energy during low-demand periods.

For facilities running DeviceNet-based architectures, the 22D-D1P4N104 can be paired with a 22-COMM-D DeviceNet adapter, allowing the drive to participate in a broader network alongside PowerFlex 70 and PowerFlex 755 drives managing higher-power axes. This multi-drive topology enables centralized energy monitoring through Rockwell’s FactoryTalk Energy Metrics platform, where aggregate motor power consumption across the production line is logged, trended, and benchmarked against production output — giving energy managers the data needed to identify inefficient operating windows and schedule preventive maintenance before motor degradation increases current draw.

On the I/O side, the drive’s onboard digital and analog inputs support integration with 1734 POINT I/O or 1769 Compact I/O modules, enabling feedback from pressure transducers, flow meters, and temperature sensors to feed directly into the speed control loop. A pump station, for example, can use a 4–20mA pressure signal routed through a 1769-IF4 analog input module to command the 22D-D1P4N104 to modulate pump speed in real time — maintaining system pressure setpoints without the energy waste of throttling valves or bypass circuits.

For operator visibility, a PanelView Plus 7 HMI connected to the same ControlLogix backplane provides real-time drive status, speed reference, output frequency, and fault history on a single screen. Operators can monitor the drive’s operating point relative to the motor’s efficiency curve and intervene before thermal stress or voltage imbalance conditions develop into unplanned downtime. When combined with a PowerMonitor 5000 energy meter installed at the MCC panel, the system captures true power factor, harmonic distortion, and kilowatt-hour consumption at the drive input — data that feeds directly into ISO 50001 energy management reporting.

Power Optimization in Real Production Lines

In a food and beverage bottling line, the 22D-D1P4N104 controls the infeed conveyor motor, adjusting belt speed in synchronization with the filling station throughput rate. During product changeovers, the drive ramps the conveyor to zero using a controlled deceleration ramp rather than a mechanical brake, recovering kinetic energy into the DC bus and reducing mechanical wear on the belt drive components. Over a three-shift operation, this controlled stop-start profile reduces motor energy consumption by an estimated 18–25% compared to across-the-line starting, while also extending motor bearing life by eliminating inrush current spikes that exceed 600% of rated current at each start.

In HVAC applications within large industrial facilities, the 22D-D1P4N104 drives supply fan motors in air handling units, modulating airflow in response to building automation system (BAS) commands. Fan laws dictate that reducing fan speed by 20% reduces power consumption by nearly 50% — a principle the PowerFlex 40P exploits through its precise V/Hz control to deliver significant energy savings during off-peak occupancy periods without sacrificing air quality or temperature control.

For predictive maintenance, the drive’s built-in fault logging and parameter monitoring capabilities allow maintenance teams to track output current trends over time. A gradual increase in steady-state current at a fixed load point is an early indicator of motor winding degradation or mechanical friction increase in the driven load — conditions that, if left unaddressed, lead to motor failure and unplanned line stoppages. By integrating drive parameter data into a FactoryTalk AssetCentre or third-party CMMS system, maintenance intervals can be scheduled based on actual equipment condition rather than fixed calendar cycles, reducing both maintenance costs and the risk of catastrophic failure.

Every 22D-D1P4N104 unit supplied by ZYPLC undergoes a full functional test prior to shipment, including output voltage balance verification, insulation resistance testing, and a loaded run test to confirm rated current delivery and control response. Units are sourced from verified supply channels and backed by a 12-month warranty covering manufacturing defects and drive module failures under normal operating conditions. In-stock inventory ensures short lead times for MRO replacement and OEM production line replenishment.

Energy Optimization FAQ

Q1: How much energy can the 22D-D1P4N104 save compared to direct-on-line motor starting?
In variable torque applications such as fans and pumps, the PowerFlex 40P can reduce energy consumption by 20–40% depending on the load profile and duty cycle. The savings are most significant in applications where the motor previously ran at fixed speed regardless of actual process demand. Sensorless vector control further improves efficiency at partial loads by optimizing the flux-producing current component.

Q2: Is the 22D-D1P4N104 compatible with existing Rockwell Automation control systems?
Yes. The 22D-D1P4N104 is natively compatible with the Rockwell Automation ecosystem via DSI and optional DeviceNet or RS-485 communication adapters. It integrates seamlessly with ControlLogix, CompactLogix, and MicroLogix platforms using standard Add-On Instructions (AOIs) available in Studio 5000 Logix Designer, minimizing engineering time for system integration.

Q3: What is the recommended replacement process for an existing PowerFlex 40P drive?
For direct replacement, verify the existing drive’s input voltage, output current rating, and communication adapter configuration before ordering. The 22D-D1P4N104 is a drop-in replacement for drives with matching frame size and catalog suffix. Parameter backup using the 22-HIM-C2S remote HMI or DriveExecutive software is recommended before swapping the drive to restore tuned parameters immediately after installation.

Q4: What does the 12-month warranty cover, and what is the testing process?
The 12-month warranty covers all manufacturing defects and drive module failures under normal operating conditions from the date of shipment. Each unit is tested prior to dispatch, including power-up verification, output phase balance check, and control terminal functionality confirmation. Warranty claims are processed through ZYPLC’s technical support team, with replacement units dispatched from in-stock inventory to minimize customer downtime.
