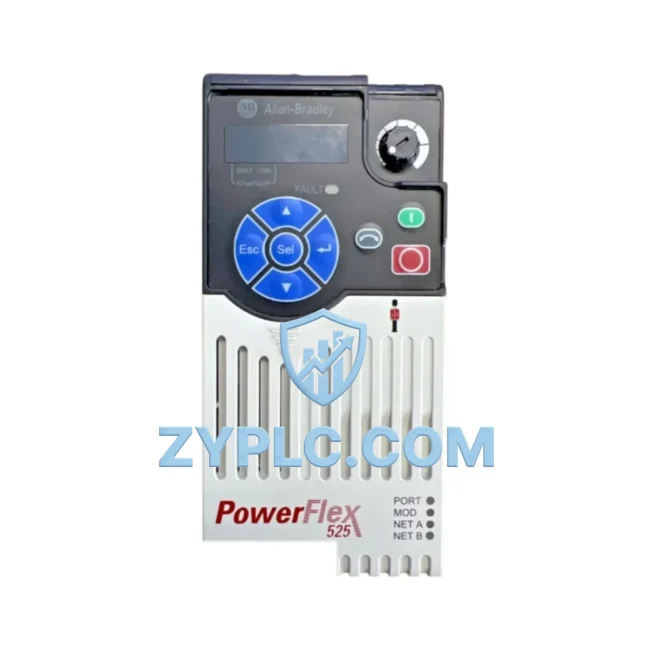

Allen-Bradley 25B-D6P0N104 Energy-Saving AC Drive PowerFlex 525

Allen-Bradley 25B-D6P0N104 Energy-Saving AC Drive PowerFlex 525: Precision Motor Control for Optimized Production Lines

The Allen-Bradley 25B-D6P0N104 is a high-performance AC variable frequency drive from Rockwell Automation’s PowerFlex 525 series, engineered to deliver measurable energy savings and superior motor control in demanding industrial environments. Rated at 6.0A output current for 200–240V AC applications, this drive is purpose-built for factories seeking to reduce energy waste, improve equipment utilization, and lower total cost of ownership across automated production lines.

Unlike conventional fixed-speed motor starters, the 25B-D6P0N104 continuously adjusts output frequency and voltage to match actual load demand. This dynamic regulation eliminates the energy penalty of running motors at full speed during partial-load cycles — a primary source of avoidable energy consumption in conveyor systems, pump stations, compressor banks, and HVAC-integrated manufacturing environments. In real-world deployments, variable frequency control of this type routinely delivers 20–50% reductions in motor energy consumption compared to direct-on-line starting methods.

Efficiency Performance Table

Energy-Aware Automation Architecture

The 25B-D6P0N104 is designed to integrate seamlessly into a layered industrial automation architecture where energy efficiency is a system-level objective, not an afterthought. At the control layer, it pairs directly with Allen-Bradley CompactLogix L33ER and ControlLogix L71 PLCs via EtherNet/IP, enabling closed-loop speed and torque regulation with sub-millisecond response times. This tight integration allows the PLC to dynamically adjust drive setpoints based on real-time production throughput data, eliminating unnecessary motor run-time during idle or low-demand intervals.

For energy monitoring, the drive works alongside PowerMonitor 5000 power quality meters to provide granular visibility into per-drive energy consumption, power factor, and harmonic distortion. When combined with a Stratix 5700 managed Ethernet switch, energy data from multiple drives can be aggregated at the network level and fed into FactoryTalk View SE HMI dashboards for real-time energy KPI tracking across the entire production floor.

On the I/O side, the 25B-D6P0N104 supports integration with Point I/O 1734-AENT adapter modules, allowing distributed sensor inputs — including temperature, vibration, and current feedback — to inform drive control decisions without routing all signals back to a central panel. This distributed architecture reduces wiring complexity and improves response latency for energy-critical control loops.

For servo-coordinated applications where the PowerFlex 525 handles auxiliary axis motion while a Kinetix 5500 servo drive manages precision positioning, the two systems can share a common DC bus configuration to recover regenerative braking energy — further reducing net energy draw from the supply grid. The 25B-D6P0N104 also supports the PowerFlex 525 DSI peripheral interface, enabling connection to 20-HIM-A6 human interface modules for local parameter configuration and energy diagnostics without requiring a laptop or programming terminal on the production floor.

Power Optimization in Real Production Lines

In a typical packaging line scenario, the 25B-D6P0N104 controls the infeed conveyor motor, modulating belt speed in direct response to upstream product flow signals from the PLC. During product gaps or changeover periods, the drive automatically ramps down to a minimum speed setpoint rather than maintaining full motor torque — a behavior that directly reduces energy consumption and mechanical wear on belts, bearings, and gearboxes. Over a three-shift production day, this dynamic speed management can reduce conveyor motor energy use by 30% or more compared to fixed-speed operation.

In pump and fan applications — common in food processing, water treatment, and HVAC-integrated manufacturing — the affinity laws of fluid dynamics mean that even a 20% reduction in motor speed produces a 49% reduction in power demand. The 25B-D6P0N104’s precise frequency control exploits this relationship fully, allowing process engineers to dial in exact flow rates without throttling valves or bypass circuits that waste energy through pressure drop.

Predictive maintenance is another area where this drive delivers operational value beyond energy savings. The drive’s built-in diagnostics continuously monitor output current waveform quality, DC bus voltage stability, and thermal status. Anomalies that indicate bearing wear, winding degradation, or mechanical imbalance are flagged before they escalate into unplanned downtime events. When integrated with FactoryTalk AssetCentre, these diagnostic logs are automatically archived and correlated with maintenance records, enabling data-driven maintenance scheduling that minimizes both downtime and unnecessary preventive maintenance labor.

All units supplied by ZYPLC are sourced from verified supply channels, subjected to pre-shipment functional testing under load conditions, and covered by a 12-month warranty. Stock is maintained for rapid dispatch to minimize production line downtime for customers requiring urgent replacement or expansion units.

Energy Optimization FAQ

Q1: How much energy can the 25B-D6P0N104 save compared to a direct-on-line motor starter?
In variable torque applications such as pumps and fans, energy savings of 20–50% are typical. In constant torque applications like conveyors, savings depend on the duty cycle and load profile, but 15–30% reductions are commonly achieved through speed optimization and elimination of full-voltage starting losses.

Q2: Is the 25B-D6P0N104 compatible with existing Rockwell Automation PLC systems?
Yes. The drive supports EtherNet/IP and DeviceNet communication protocols, making it fully compatible with CompactLogix, ControlLogix, and MicroLogix PLC platforms. It can be configured and monitored through Studio 5000 Logix Designer or Connected Components Workbench without additional gateway hardware.

Q3: Can this drive replace an older PowerFlex 40 or PowerFlex 4M unit?
In most cases, yes. The PowerFlex 525 series is the designated successor to the PowerFlex 40 family. Electrical ratings, mounting dimensions, and control wiring are largely compatible, though parameter migration should be verified using the Rockwell Automation migration guide. ZYPLC technical support can assist with cross-reference confirmation prior to purchase.

Q4: What does the 12-month warranty cover, and what is the testing process before shipment?
Every 25B-D6P0N104 unit shipped by ZYPLC undergoes pre-shipment functional testing including power-on verification, output current measurement, and communication port validation. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Warranty claims are processed directly through ZYPLC with replacement or repair turnaround prioritized to minimize customer downtime.
