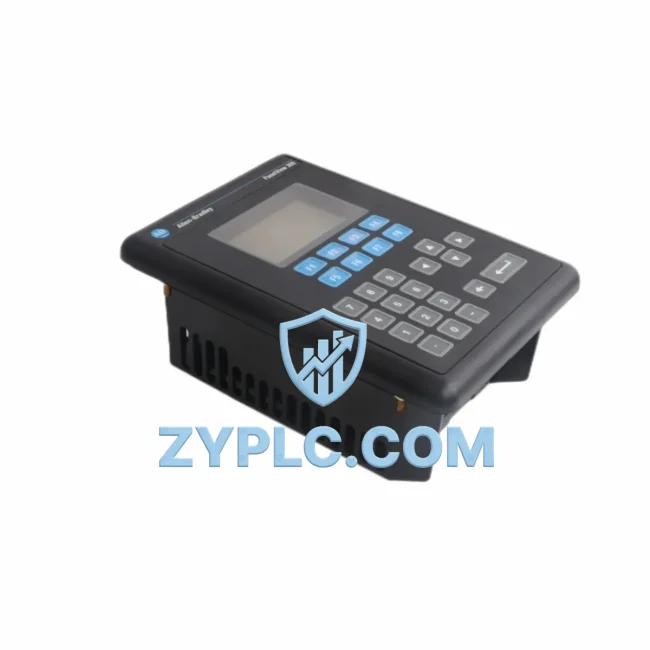

Allen-Bradley 2711-K3A2L1 Energy-Saving HMI PanelView 300

Allen-Bradley 2711-K3A2L1 Energy-Saving HMI PanelView 300: Precision Energy Control for Industrial Automation

The Allen-Bradley 2711-K3A2L1 is a compact yet powerful HMI terminal from the PanelView 300 series, engineered to deliver real-time operator visibility into machine states, energy consumption patterns, and drive performance across demanding industrial environments. In modern manufacturing, where energy costs and equipment utilization directly impact profitability, the 2711-K3A2L1 serves as a critical interface node — translating control system data into actionable operator decisions that reduce idle energy draw, prevent unnecessary motor cycling, and optimize production line throughput.

Sourced from verified surplus inventory, fully tested prior to shipment, and backed by a 12-month warranty, the 2711-K3A2L1 available through ZYPLC represents a cost-effective path to sustaining or upgrading existing Rockwell Automation control architectures without the lead times associated with new procurement channels.

Efficiency Performance Table

Energy-Aware Automation Architecture

The 2711-K3A2L1 is most effective when deployed as part of a tightly integrated control and monitoring architecture. In a typical energy-optimized production cell, the terminal interfaces directly with an SLC 5/03 or SLC 5/04 processor over DH-485, providing operators with live feedback on motor run states, fault conditions, and process setpoints — all of which directly influence energy consumption decisions at the machine level.

When paired with a PowerFlex 40 or PowerFlex 400 variable frequency drive, the 2711-K3A2L1 allows operators to monitor drive output frequency and load percentage in real time. This visibility is essential for identifying motors running at unnecessary speeds during low-demand production windows — a common source of avoidable energy waste in conveyor, pump, and fan applications. The operator can adjust speed references or trigger drive sleep modes directly from the panel, reducing kilowatt-hour consumption without requiring PLC program changes.

In lines where a CompactLogix L32E or L35E controller manages multi-axis motion, the 2711-K3A2L1 can be integrated via a DH-485 to EtherNet/IP gateway module such as the 1761-NET-ENI, extending its reach into Logix-based architectures. This allows the terminal to surface energy-relevant tags — such as servo amplifier bus voltage, regenerative braking status from a Kinetix 6000 drive system, and axis utilization percentages — giving maintenance teams the data needed to schedule preventive interventions before efficiency-degrading faults occur.

For facilities running distributed I/O across 1734 POINT I/O or 1746 SLC I/O racks, the 2711-K3A2L1 provides a localized operator station that reduces the need for centralized SCADA interaction during routine adjustments. This decentralization shortens response time to process deviations, which in turn reduces the duration of off-spec production runs that consume energy without generating usable output. Complementary components such as the 1747-L542 SLC 5/04 CPU and 1746-OB16 digital output modules work in concert with the terminal to execute energy-saving interlocks — for example, automatically de-energizing non-critical loads during scheduled downtime windows triggered by operator input at the 2711-K3A2L1.

Power quality monitoring is another dimension where the terminal adds value. When connected to a system that includes an Allen-Bradley 1420 PowerMonitor or a third-party power meter feeding data into the SLC backplane via analog input modules like the 1746-NI4, operators can view real-time kW, kVAR, and power factor readings at the machine level. This granular visibility supports demand management strategies that prevent peak-demand charges — a significant component of industrial electricity costs.

Power Optimization in Real Production Lines

In automotive stamping and assembly environments, the 2711-K3A2L1 has been deployed at press line operator stations to provide cycle time feedback and fault history displays. By giving line operators immediate visibility into press cycle counts and motor thermal status, facilities have reduced unplanned downtime events that previously resulted in extended motor restarts — each of which draws 6–8× rated current and contributes to peak demand spikes on the facility’s electrical meter.

In food and beverage processing, where conveyor and pump systems run continuously across multiple shifts, the terminal’s configurable alarm pages allow operators to set energy-relevant thresholds — such as alerting when a pump motor’s run hours exceed a maintenance interval or when a conveyor drive’s output current exceeds a baseline that indicates mechanical drag. Catching these conditions early prevents the gradual efficiency degradation that occurs when worn bearings or misaligned belts force drives to compensate with higher current draw over time.

For water treatment and HVAC applications, the 2711-K3A2L1 paired with a MicroLogix 1400 controller enables time-of-day scheduling displays, allowing operators to verify that pump and fan systems are following optimized run schedules aligned with utility off-peak rate windows. The terminal’s recipe management capability — even in its compact form — supports storing multiple setpoint profiles that correspond to different production modes, each optimized for a different energy-cost scenario.

From a maintenance cost perspective, the 2711-K3A2L1’s fault log display capability reduces mean time to repair (MTTR) by giving technicians immediate access to the last fault code and timestamp without requiring a laptop connection to the PLC. Faster fault diagnosis means shorter unplanned downtime, which directly translates to less energy wasted on restarting thermal processes, re-priming fluid systems, or re-homing servo axes after an uncontrolled stop.

All units supplied by ZYPLC undergo functional testing that validates display operation, keypad response, communication port integrity, and power supply performance prior to shipment. In-stock availability means no extended lead times, and the 12-month warranty provides assurance that the unit will perform reliably in your production environment from day one.

Energy Optimization FAQ

Q1: How does the 2711-K3A2L1 contribute to measurable energy savings on the production line?
The terminal itself consumes less than 8W, but its primary energy contribution is indirect: by giving operators real-time visibility into drive states, motor run conditions, and process alarms, it enables faster human response to energy-wasting conditions such as motors running unloaded, drives operating at inefficient speeds, or equipment left energized during breaks. Facilities that deploy operator terminals at machine level consistently report reductions in idle energy consumption compared to centralized-only monitoring approaches.

Q2: Is the 2711-K3A2L1 compatible with newer Rockwell Automation control platforms?
The 2711-K3A2L1 communicates natively over DH-485, which is the native protocol for SLC 500 and MicroLogix platforms. Integration with CompactLogix or ControlLogix systems is achievable via protocol conversion modules such as the 1761-NET-ENI or third-party DH-485 to EtherNet/IP gateways. For applications requiring native EtherNet/IP HMI connectivity, Allen-Bradley’s PanelView Plus 600 or PanelView Plus 7 series would be the recommended upgrade path.

Q3: What is the recommended replacement or upgrade path if the 2711-K3A2L1 is end-of-life in my system?
For direct functional replacement within DH-485 networks, the 2711-K3A5L1 (larger display variant) or 2711-B5A2 PanelView 550 offer expanded screen real estate while maintaining protocol compatibility. For systems being migrated to EtherNet/IP architectures, the PanelView Plus 7 Standard 600 (2711P-T6C22D8S) provides a modern touchscreen interface with significantly expanded data display and logging capabilities. ZYPLC maintains stock of multiple PanelView series terminals to support both like-for-like replacement and upgrade scenarios.

Q4: What does the 12-month warranty cover, and what is the testing process before shipment?
Every 2711-K3A2L1 unit shipped by ZYPLC is tested for display functionality, keypad input response, DH-485 communication port operation, and DC power supply performance. The 12-month warranty covers component failure under normal operating conditions and includes technical support for integration questions. Units that fail any test parameter are quarantined and not offered for sale. Customers receive a tested, shipment-ready unit with documentation of the test outcome upon request.
