Allen Bradley 2711-K6C8 System-Ready Keypad HMI for PanelView 600 Architecture

Allen Bradley 2711-K6C8 System-Ready Keypad HMI for PanelView 600 Architecture

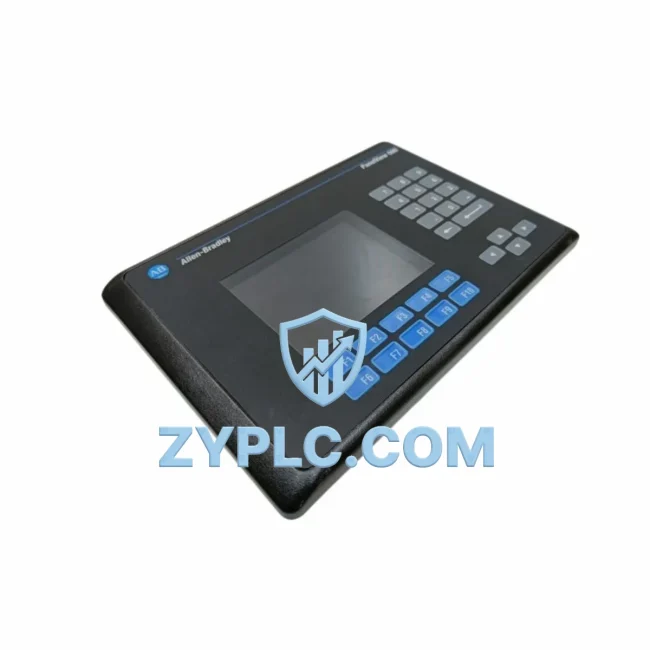

The Allen-Bradley 2711-K6C8 is a 6-inch monochrome keypad operator terminal from Rockwell Automation’s PanelView 600 series, engineered to serve as the human-machine interface layer within layered industrial control architectures. Unlike standalone display units, the 2711-K6C8 is designed to function as a tightly integrated node within a broader control system — communicating upstream with programmable logic controllers, receiving real-time process data, and presenting operators with actionable status information across manufacturing, utilities, and process industries. Its role in the system is not merely visual; it is a critical interface point that bridges the operator environment with the control and I/O layers beneath it.

In a complete automation architecture, the 2711-K6C8 occupies the human-machine interface layer, positioned above the control execution layer and below the supervisory or SCADA tier. It connects directly to Allen-Bradley controllers — including the MicroLogix 1000, MicroLogix 1500, SLC 500 series, and ControlLogix platforms — via DH-485, DH+, or RS-232 DF1 communication links. This communication flexibility allows the terminal to be deployed across legacy and modern control environments without requiring protocol conversion hardware, reducing system complexity and improving long-term maintainability.

The 2711-K6C8 supports application development through RSView ME (Machine Edition) software, enabling engineers to configure screens, alarms, data logging, and operator prompts that reflect the actual process being controlled. When paired with a 1747-L553 SLC 5/05 CPU or a 1756-L63 ControlLogix processor, the terminal provides real-time tag-based communication, allowing operators to monitor analog inputs, discrete outputs, and system fault states without leaving the control panel. This tight integration reduces the need for separate indicator lights, selector switches, and manual readout instruments — consolidating the operator interface into a single, programmable terminal.

From a system architecture perspective, the 2711-K6C8 contributes to control panel standardization. When multiple panels across a facility use the same HMI platform, maintenance technicians can transfer skills directly between stations, reducing training overhead and accelerating fault diagnosis. Spare parts management is also simplified: a single terminal model covers multiple panel positions, reducing the number of unique components held in inventory. This is particularly valuable in industries such as water treatment, food and beverage processing, and discrete manufacturing, where panel standardization directly impacts uptime and maintenance cost.

Power supply compatibility is an important consideration in any HMI deployment. The 2711-K6C8 operates on 24VDC, making it compatible with standard 1606-XLP or 1606-XLS series power supplies commonly used in Allen-Bradley control cabinets. This eliminates the need for dedicated HMI power circuits and allows the terminal to share the panel’s existing DC bus, provided load calculations confirm adequate capacity. In redundant power architectures, the terminal can be fed through a diode OR-ing module to ensure continued operation during primary supply failure.

The keypad interface of the 2711-K6C8 is particularly well-suited to environments where touchscreen operation is impractical — such as applications involving gloves, high-vibration machinery, or dusty conditions. The physical keypad provides tactile confirmation of operator input, reducing the risk of accidental activation and improving reliability in harsh environments. This makes the terminal a preferred choice for mining equipment panels, aggregate processing lines, and outdoor utility control stations where environmental conditions limit the use of capacitive touch displays.

For system integrators working with Allen-Bradley architectures, the 2711-K6C8 fits naturally alongside components such as the 1746-OB16 discrete output module, 1746-NI4 analog input module, 1747-SDN DeviceNet scanner, and 1756-EN2T EtherNet/IP communication module. These components collectively form the I/O and network layers that the HMI terminal monitors and controls. The terminal’s ability to display real-time values from these modules — without requiring a separate SCADA workstation — makes it an efficient solution for mid-scale automation systems where cost and panel space are constrained.

Long-term availability of the 2711-K6C8 is a practical concern for facilities that have standardized on PanelView 600 platforms. ZYPLC maintains verified stock of this terminal to support ongoing maintenance, panel replacement, and system expansion projects. All units are supplied with a 12-Month Warranty covering manufacturing defects and functional performance, providing procurement teams and maintenance engineers with confidence in the reliability of replacement components. Units are tested prior to shipment and packaged to meet international freight standards for safe delivery to global destinations.

Architecture Specification Table

Coordinated Control System Design

The 2711-K6C8 achieves its full value when deployed as part of a coordinated Allen-Bradley control system rather than as an isolated display unit. In a typical SLC 500-based panel, the terminal connects to a 1747-L553 SLC 5/05 CPU via DH-485, receiving tag data from 1746-IB16 discrete input modules and 1746-NI4 analog input modules mounted in the same chassis. The operator can monitor process values, acknowledge alarms, and initiate control sequences directly from the keypad — actions that are executed by the CPU and reflected in the I/O layer without any intermediate processing step.

In ControlLogix-based architectures, the 2711-K6C8 can be integrated via a 1747-AIC isolated link coupler or through a 1761-NET-AIC network interface converter, bridging the terminal’s DH-485 port to the broader control network. This allows the HMI to coexist with 1756-EN2T EtherNet/IP modules and 1756-DNB DeviceNet bridge modules in the same system, providing operators with a unified view of distributed I/O and networked devices. The 1606-XLP72E power supply provides stable 24VDC to both the terminal and the I/O chassis, ensuring consistent operation across the panel.

For applications requiring remote I/O expansion, the 2711-K6C8 can display data sourced from 1794-AENT FLEX I/O EtherNet/IP adapter modules located in remote enclosures, with the CPU aggregating all data before presenting it to the HMI layer. This architecture supports geographically distributed control panels — such as those found in water treatment lift stations or substation automation systems — while maintaining a single operator interface at the primary control panel. The terminal’s alarm management capability ensures that faults detected at remote I/O nodes are surfaced to the operator immediately, supporting rapid fault response and minimizing process downtime.

Application in Layered Automation Systems

In municipal water treatment facilities, the 2711-K6C8 is commonly deployed at pump station control panels, where operators monitor flow rates, tank levels, and pump run status. The terminal’s keypad interface is well-suited to outdoor and semi-outdoor enclosures where glove use is standard, and its NEMA 4-rated front face provides protection against water ingress during panel cleaning or inclement weather.

In discrete manufacturing environments — including automotive assembly, packaging lines, and material handling systems — the terminal serves as the primary operator interface for machine-level control panels. Operators use the keypad to initiate production cycles, reset faults, and adjust setpoints without requiring access to the engineering workstation. This separation of operator and engineering access improves process security and reduces the risk of unintended parameter changes during production.

In power distribution and substation applications, the 2711-K6C8 provides local operator visibility into breaker status, relay outputs, and protection system states. When integrated with an SLC 500 or MicroLogix controller monitoring protection relay digital outputs, the terminal displays real-time electrical system status and logs alarm events for post-incident analysis. Its low power consumption and wide operating temperature range make it suitable for substation environments where HVAC control may be limited.

In mining and aggregate processing operations, the terminal is used at crusher control panels, conveyor drive stations, and dust suppression system panels. The physical keypad is preferred over touchscreen alternatives in these environments due to the presence of dust, vibration, and operator glove use. The terminal’s compatibility with MicroLogix and SLC 500 controllers — which are widely deployed in legacy mining control systems — allows it to be integrated into existing architectures without requiring controller replacement.

Architecture Engineering FAQ

Q1: Is the 2711-K6C8 compatible with ControlLogix and CompactLogix controllers, and what communication hardware is required?
The 2711-K6C8 communicates natively via DH-485 and DH+ protocols. For integration with ControlLogix or CompactLogix systems, a 1761-NET-AIC or 1747-AIC link coupler is required to bridge the terminal’s serial port to the controller’s communication network. Once bridged, the terminal communicates with the controller using DF1 or DH-485 protocol, and RSView ME software is used to map controller tags to HMI screen objects. This configuration is well-established in the field and is supported by Rockwell Automation’s published integration guides.

Q2: What are the panel cutout dimensions and environmental ratings for the 2711-K6C8, and can it be installed in existing PanelView 600 cutouts?
The 2711-K6C8 uses the standard PanelView 600 panel cutout dimensions, making it a direct mechanical replacement for other PanelView 600 series terminals. The front face carries a NEMA 4/4X rating, providing protection against dust and water ingress. This allows the terminal to be installed in existing enclosures without modification, significantly reducing panel retrofit time and cost. Engineers should verify that the enclosure depth accommodates the terminal’s rear projection before installation.

Q3: What does the 12-Month Warranty cover, and what is the process for warranty claims on the 2711-K6C8?
All 2711-K6C8 units supplied by ZYPLC are covered by a 12-Month Warranty from the date of shipment, covering manufacturing defects and functional performance failures under normal operating conditions. Units are tested prior to dispatch to verify display function, keypad response, and communication port integrity. In the event of a warranty claim, customers contact ZYPLC directly at plc.sales@zyplc.com or +86 19859288691 to initiate the return and replacement process. Warranty coverage supports procurement teams in justifying the use of verified aftermarket supply channels for maintenance and spare parts programs.
