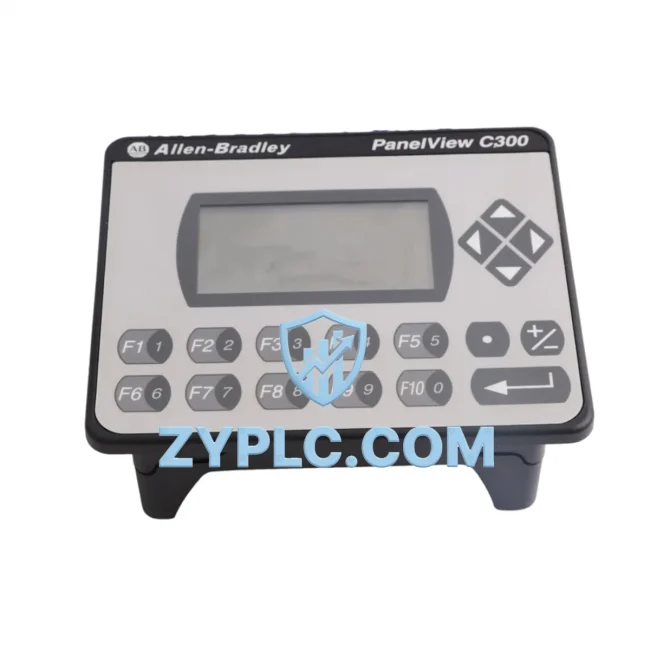

Allen-Bradley 2711C-K3M Energy-Saving HMI PanelView C300

Allen-Bradley 2711C-K3M Energy-Saving HMI PanelView C300: Precision Control for Optimized Production Line Automation

The Allen-Bradley 2711C-K3M is a compact, high-efficiency Human-Machine Interface (HMI) from Rockwell Automation’s PanelView C300 series, purpose-built for energy-conscious industrial environments. Designed to integrate seamlessly into modern automation architectures, the 2711C-K3M delivers real-time process visibility, precise operator control, and measurable reductions in energy waste across manufacturing, packaging, water treatment, and material handling applications.

In today’s industrial landscape, energy efficiency is not a feature — it is a competitive requirement. The 2711C-K3M addresses this by providing operators with a clear, responsive interface that minimizes idle machine time, reduces unnecessary actuator cycles, and enables faster fault response. When operators can see exactly what is happening on the production line in real time, they make better decisions — and better decisions mean less wasted energy.

Efficiency Performance Table

Energy-Aware Automation Architecture

The 2711C-K3M is most effective when deployed as part of a coordinated automation system. In a typical energy-optimized production cell, the HMI serves as the operator’s window into the entire control loop. It connects directly to MicroLogix 1400 or MicroLogix 1100 programmable logic controllers via DH-485, enabling real-time display of motor run states, cycle counts, and fault conditions without requiring a PC or SCADA workstation at every station.

When paired with a PowerFlex 40 or PowerFlex 525 variable frequency drive, the 2711C-K3M allows operators to monitor drive output frequency, motor load percentage, and energy consumption directly from the panel. This eliminates the need for separate energy meters at each drive cabinet and reduces the instrumentation overhead on the control panel. Operators can adjust setpoints, acknowledge faults, and initiate controlled shutdowns — all from the 2711C-K3M keypad interface — reducing the time motors run at full load unnecessarily.

For I/O-intensive applications, the 2711C-K3M integrates with 1762-IQ8 and 1762-OW8 MicroLogix expansion I/O modules, allowing the controller to manage discrete inputs from sensors, limit switches, and proximity detectors while the HMI displays aggregated status. This architecture supports demand-based motor sequencing — a proven method for reducing peak energy draw on production lines with multiple conveyor or pump motors.

In facilities using SLC 5/03 or SLC 5/04 processors, the 2711C-K3M connects via DF1 protocol, providing a cost-effective operator interface upgrade without replacing the existing control infrastructure. This extends the productive life of legacy systems while adding modern energy monitoring display capabilities.

For power quality monitoring, the 2711C-K3M can display data sourced from PowerMonitor 500 or PowerMonitor 1000 energy meters integrated into the MicroLogix network, giving operators visibility into kWh consumption, power factor, and demand peaks — directly at the machine level. This granular visibility is the foundation of any effective energy reduction program.

Communication flexibility is further extended through 1761-NET-AIC Advanced Interface Converters, which allow the 2711C-K3M to bridge between DH-485 and RS-232 networks, enabling integration with legacy equipment and third-party sensors without additional gateways.

Power Optimization in Real Production Lines

In real manufacturing environments, energy waste rarely comes from a single source. It accumulates through thousands of small inefficiencies: motors running at full speed when partial load is sufficient, machines idling between batches, faults going unacknowledged for minutes while operators walk to a central control room. The Allen-Bradley 2711C-K3M directly addresses each of these scenarios.

By placing a responsive operator interface at the point of operation, the 2711C-K3M reduces the time between fault occurrence and fault acknowledgment. Faster fault response means shorter unplanned downtime, which in turn means less energy consumed during recovery cycles — restarting a cold machine or re-priming a pump system consumes significantly more energy than maintaining a controlled, warm standby state.

In packaging lines, the 2711C-K3M enables operators to adjust conveyor speed setpoints in response to upstream feed rates, preventing the common inefficiency of conveyors running at maximum speed while waiting for product. When integrated with a PowerFlex 40 drive controlling the conveyor motor, even a 20% reduction in average operating speed can yield energy savings of 50% or more on that drive, due to the cubic relationship between motor speed and power consumption.

For pump and fan applications in water treatment or HVAC systems, the 2711C-K3M provides the operator interface layer for demand-based flow control. Operators can set target pressure or flow setpoints, and the connected MicroLogix 1400 PLC adjusts the PowerFlex 525 drive output accordingly — maintaining process targets with minimum energy input rather than running at fixed speed regardless of demand.

Predictive maintenance is another area where the 2711C-K3M contributes to energy efficiency. By displaying motor run-hour counters, fault history logs, and cycle counts, the HMI gives maintenance teams the data they need to schedule preventive maintenance before a motor or drive fails. A well-maintained motor operates closer to its nameplate efficiency rating, consuming less energy per unit of output than a motor with worn bearings or degraded insulation.

All units supplied by ZYPLC are tested prior to shipment, with a 12-month warranty covering operational defects. Stock is maintained for rapid dispatch, supporting production line continuity and minimizing the energy cost of extended downtime.

Energy Optimization FAQ

Q1: How does the 2711C-K3M contribute to energy savings on a production line?
The 2711C-K3M reduces energy waste by giving operators real-time visibility into machine states, enabling faster fault response, and supporting demand-based control of drives and motors. When operators can see and respond to process conditions immediately, machines spend less time running unnecessarily at full load.

Q2: Which controllers and drives is the 2711C-K3M compatible with?
The 2711C-K3M is compatible with the MicroLogix family (1000, 1100, 1200, 1400) and SLC 500 series processors via DH-485 and DF1 protocols. It is commonly deployed alongside PowerFlex 40 and PowerFlex 525 variable frequency drives for motor speed control applications.

Q3: Can the 2711C-K3M replace an existing PanelView or operator terminal without rewiring?
In most cases, yes. The 2711C-K3M uses standard DH-485 and RS-232 communication interfaces common to legacy Allen-Bradley HMI installations. Panel cutout dimensions should be verified against existing installations, but communication and programming compatibility with MicroLogix and SLC 500 systems is maintained.

Q4: What testing and warranty coverage does ZYPLC provide for the 2711C-K3M?
Every 2711C-K3M unit supplied by ZYPLC undergoes functional testing before shipment to verify display operation, keypad response, and communication interface integrity. All units are covered by a 12-month warranty against operational defects. For replacement inquiries or technical support, contact ZYPLC directly.
