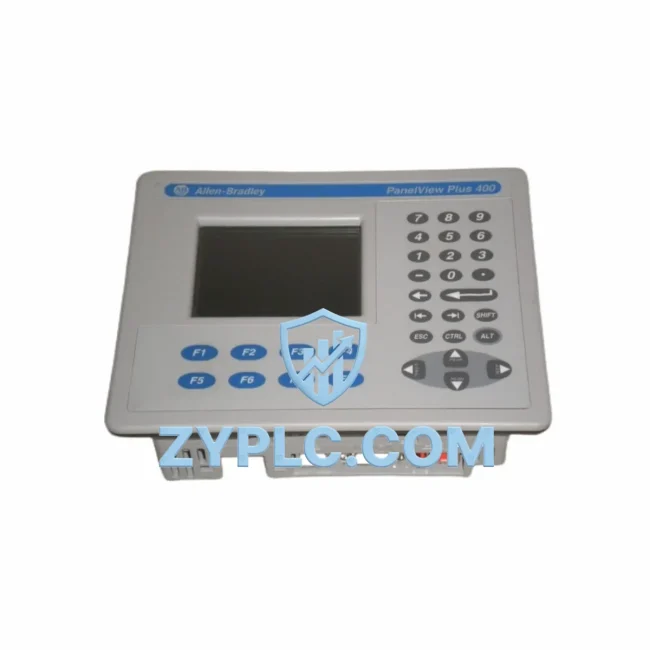

Allen-Bradley 2711P-K4M20D System-Ready HMI for PanelView Plus Architecture

Allen-Bradley 2711P-K4M20D System-Ready HMI for PanelView Plus Control Architecture

The Allen-Bradley 2711P-K4M20D is a compact yet capable human-machine interface terminal within the PanelView Plus 400 series, engineered to serve as the operator-facing layer in structured industrial control architectures. Rather than functioning as a standalone display device, the 2711P-K4M20D is designed to integrate seamlessly into layered automation systems where the control layer, I/O layer, network layer, power layer, HMI layer, and execution layer must operate in coordinated harmony. Its role is to translate real-time process data from the controller into actionable operator displays, while simultaneously accepting operator commands that propagate back through the control hierarchy to field devices and actuators.

In a typical ControlLogix or CompactLogix-based architecture, the 2711P-K4M20D connects to the control processor via EtherNet/IP or DH-485, receiving tag-based data directly from the Logix platform. This tight integration with Allen-Bradley’s Logix family — including processors such as the 1756-L71 ControlLogix CPU and the 1769-L30ER CompactLogix controller — ensures that the HMI display reflects live PLC states without latency-inducing protocol translation. The result is a system where operator visibility and control response are synchronized with the underlying automation logic.

From an I/O coordination perspective, the 2711P-K4M20D does not directly interface with field signals, but its display logic is tightly coupled to the I/O modules that do — including 1756-IB16 digital input modules, 1756-OF8 analog output modules, and 1769-IF4 compact analog input cards. When a field sensor triggers a change in an I/O module, the updated tag value propagates to the Logix controller, which then pushes the updated data to the HMI terminal for operator visualization. This signal flow architecture ensures that the 2711P-K4M20D always reflects the true state of the physical process, making it an indispensable component in closed-loop control environments.

Network layer integration is equally important. The 2711P-K4M20D supports EtherNet/IP communication, allowing it to participate in the same managed switch infrastructure used by other network-layer components such as the Stratix 5700 managed Ethernet switch. This shared network topology simplifies cabinet wiring, reduces the number of communication interfaces required, and enables centralized network diagnostics. In facilities where DeviceNet or ControlNet backbones are already deployed, the 2711P-K4M20D can coexist within the broader network hierarchy through appropriate gateway modules, preserving investment in legacy communication infrastructure.

Power supply compatibility is a critical consideration in any panel design. The 2711P-K4M20D operates on 24VDC, making it directly compatible with Allen-Bradley 1606-XLP power supplies commonly used in the same control cabinets. This shared power architecture simplifies panel design, reduces the number of power conversion stages, and supports centralized power monitoring. In redundant power configurations, dual 1606-XLP units can be deployed in parallel to ensure uninterrupted HMI operation even during a single power supply failure — a requirement in continuous process industries such as petrochemical refining and water treatment.

At the execution layer, the 2711P-K4M20D provides the operator interface through which commands are issued to variable frequency drives, servo controllers, and relay output modules. Operators can initiate start/stop sequences, adjust setpoints, and acknowledge alarms — all of which translate into discrete or analog outputs at the field level. This bidirectional command flow, from operator through HMI to controller to field device, is the fundamental value proposition of the 2711P-K4M20D in a complete automation architecture.

Architecture Specification Table

Coordinated Control System Design

The 2711P-K4M20D achieves its full potential when deployed as part of a coordinated Allen-Bradley control system rather than as an isolated terminal. In a typical panel layout, the HMI terminal shares the control cabinet with a 1756-L71 ControlLogix processor mounted on a 1756-A10 chassis backplane, alongside 1756-EN2T EtherNet/IP communication modules that bridge the controller to the plant network. The 2711P-K4M20D connects to this same EtherNet/IP segment, enabling direct tag-based communication without requiring a dedicated HMI communication card.

For smaller machine-level applications, the 2711P-K4M20D pairs naturally with the 1769-L30ER CompactLogix controller and its associated 1769-ECR right-end cap, forming a compact but complete control node. Analog signal conditioning is handled by 1769-IF4 input modules, while discrete outputs are managed through 1769-OB16 digital output modules — all of which feed their status data to the controller and ultimately to the HMI display. Terminal block modules such as the 1492-CABLE series simplify field wiring connections and reduce installation time during commissioning.

In process control environments requiring redundancy, the 2711P-K4M20D can be deployed alongside a redundant ControlLogix chassis pair, where the primary and secondary 1756-L7x processors synchronize state data continuously. The HMI terminal connects to the active controller at all times, with automatic failover handled transparently at the network layer. This architecture ensures that operator visibility is maintained even during a controller switchover event, which is essential in industries such as oil and gas, power generation, and chemical processing where unplanned downtime carries significant operational and safety consequences.

Application in Layered Automation Systems

The 2711P-K4M20D is deployed across a wide range of industrial sectors where compact, reliable HMI terminals are required at the machine or skid level. In discrete manufacturing environments — including automotive assembly, electronics production, and packaging lines — the terminal provides operators with real-time production counts, fault diagnostics, and recipe management interfaces. Its NEMA 4/4X front panel rating makes it suitable for washdown environments in food and beverage processing facilities, where hygiene requirements demand sealed enclosures.

In the power and utilities sector, the 2711P-K4M20D is used in substation automation panels and motor control centers (MCCs) to provide local operator control of switchgear, transformer monitoring systems, and generator control panels. Its DH-485 communication capability allows integration with legacy SLC 500 controllers still in service at many utility installations, extending the operational life of existing infrastructure without requiring full system replacement.

Water and wastewater treatment facilities rely on the 2711P-K4M20D for pump station control panels, chemical dosing skids, and filtration system interfaces. The terminal’s ability to display real-time flow rates, tank levels, and alarm states — sourced directly from CompactLogix or MicroLogix controllers — gives operators the situational awareness needed to manage distributed treatment processes from local control points. In mining and mineral processing applications, the terminal is mounted in field junction boxes and local control stations, providing operators with direct access to conveyor control, crusher monitoring, and ventilation system management without requiring a trip to the central control room.

Architecture Engineering FAQ

Q1: Is the 2711P-K4M20D compatible with both ControlLogix and CompactLogix platforms, and does it require any special configuration for EtherNet/IP communication?
The 2711P-K4M20D is fully compatible with both ControlLogix and CompactLogix processors via EtherNet/IP. Configuration is performed using FactoryTalk View Studio ME software, where the communication driver is set to EtherNet/IP and the controller’s IP address is specified. No additional hardware adapters are required for EtherNet/IP connectivity. For DH-485 communication with MicroLogix or SLC 500 controllers, a 1761-NET-AIC Advanced Interface Converter may be required depending on the specific controller model and network topology.

Q2: Can the 2711P-K4M20D be used in a redundant control architecture, and how does it handle controller failover?
Yes. When connected to a redundant ControlLogix system via EtherNet/IP, the 2711P-K4M20D communicates with the active controller at all times. During a failover event, the network layer handles the transition transparently, and the HMI terminal reconnects to the newly active controller within the configured communication timeout period — typically less than one second in well-designed networks. No special HMI configuration is required to support redundancy; the terminal simply re-establishes its EtherNet/IP connection to the same IP address, which is managed by the redundancy module on the controller chassis.

Q3: What does the 12-Month Warranty cover, and what is the process for warranty claims through ZYPLC?
The 12-Month Warranty provided by ZYPLC covers verified hardware defects in the 2711P-K4M20D terminal, including display failures, communication port malfunctions, and power input circuit faults that arise under normal operating conditions. The warranty period begins from the date of shipment. To initiate a warranty claim, contact ZYPLC at [email protected] or call +86 19859288691 with your order reference and a description of the fault. ZYPLC will provide return authorization and, upon verification of the defect, will repair or replace the unit at no additional cost. Physical damage, incorrect wiring, or operation outside specified voltage and temperature ranges are not covered under the warranty terms.
