Allen-Bradley 2711P-RDK7C System-Ready HMI Display for PanelView Plus 6 Architecture

Allen-Bradley 2711P-RDK7C System-Ready HMI Display: Control Architecture and Contextual Integration

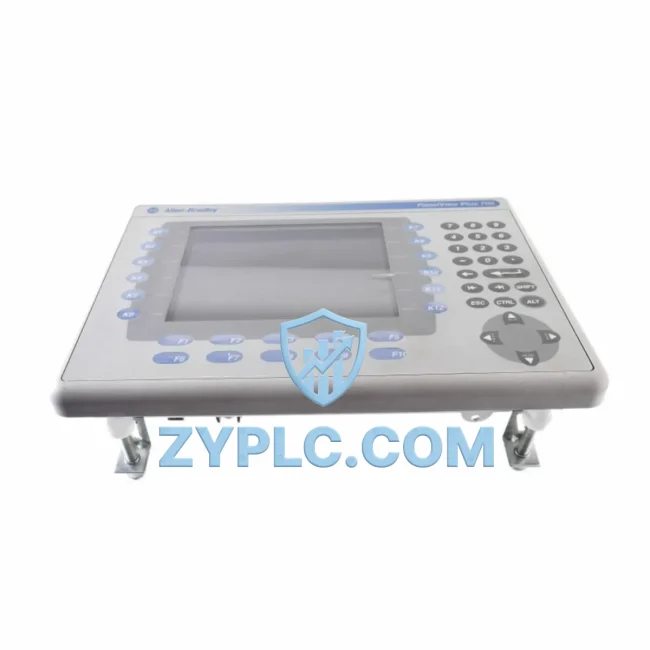

The Allen-Bradley 2711P-RDK7C is a 7-inch keypad display module engineered for the PanelView Plus 6 700 series, designed to serve as the human-machine interface layer within a fully integrated Rockwell Automation control architecture. Rather than functioning as a standalone terminal, the 2711P-RDK7C is purpose-built to operate in contextual coordination with the broader control system — bridging operator interaction with the underlying logic, I/O, and network layers that define modern industrial automation.

In layered automation architectures, the HMI layer is not merely a display device — it is the operational window into the entire control system. The 2711P-RDK7C connects directly to the control network, receiving real-time data from the ControlLogix or CompactLogix processor, reflecting live I/O states, alarm conditions, and process variables. Its integration with the Studio 5000 Logix Designer environment ensures that tag-based communication is consistent across the entire architecture, eliminating the need for redundant data mapping and reducing the risk of configuration drift during system expansion or maintenance cycles.

From a system architecture perspective, the 2711P-RDK7C occupies the HMI layer and communicates upstream to the control layer via EtherNet/IP, the same deterministic protocol used by the 1756-L85E ControlLogix controller and the 1769-L33ER CompactLogix processor. This protocol consistency ensures that the HMI terminal participates in the same network topology as the I/O modules, communication gateways, and remote adapter modules — enabling unified diagnostics and simplified network commissioning. The 2711P-RDK7C supports both standalone and redundant network configurations, making it suitable for applications where continuous uptime is a design requirement.

Architecture Specification Table

Coordinated Control System Design

The 2711P-RDK7C achieves its full architectural value when deployed as part of a coordinated Rockwell Automation system. At the control layer, it interfaces with processors such as the 1756-L85E ControlLogix or the 1769-L33ER CompactLogix, receiving tag data directly over EtherNet/IP without requiring intermediate protocol conversion. This direct tag-based communication ensures that operator displays reflect actual controller states with minimal latency — a critical requirement in process control and high-speed manufacturing environments.

At the I/O layer, the HMI terminal visualizes data sourced from modules such as the 1756-IB16 digital input module and the 1756-OF8 analog output module, presenting field-level signals in operator-readable formats. When the system includes remote I/O nodes connected via 1734 POINT I/O adapters or 1794 FLEX I/O assemblies, the 2711P-RDK7C can display distributed I/O states across the entire machine or process line — providing operators with a unified view of geographically distributed control points.

At the network layer, the 2711P-RDK7C participates in the same EtherNet/IP topology as the 1783-BMS10CGP Stratix managed switch, enabling VLAN segmentation, port mirroring, and network diagnostics from a single infrastructure. For legacy integration, the terminal supports communication through 1761-NET-AIC or similar protocol converters, allowing the PanelView Plus 6 to interface with older SLC 500 or MicroLogix controllers without requiring a full system replacement.

At the power layer, the 2711P-RDK7C is typically powered alongside the control cabinet infrastructure using a 1606-XLP72E or equivalent 24V DC power supply, ensuring stable voltage delivery even under variable load conditions. Proper power architecture — including surge protection and UPS integration — directly supports the long-term reliability of the HMI terminal and reduces unplanned downtime caused by power transients.

For redundant architectures, the 2711P-RDK7C can be paired with a secondary HMI terminal or integrated into a system that uses 1756-RM2 ControlLogix redundancy modules, ensuring that operator access to the control system remains available even during controller switchover events. This redundancy design is particularly relevant in continuous process industries where loss of operator visibility during a failover event is operationally unacceptable.

Application in Layered Automation Systems

In manufacturing and discrete assembly environments, the 2711P-RDK7C serves as the primary operator interface on machine control panels, providing real-time feedback on cycle counts, fault conditions, and production rates. Its keypad-based input method is well-suited for environments where touchscreen operation is impractical due to gloves, vibration, or contamination.

In power generation and electrical distribution facilities, the terminal is deployed in motor control centers and switchgear panels, where operators require reliable access to protection relay status, breaker positions, and load monitoring data. The NEMA 4/4X front panel rating ensures suitability for environments with washdown or moisture exposure.

In oil, gas, and petrochemical processing plants, the 2711P-RDK7C is integrated into skid-mounted control systems, providing local operator control of pump stations, compressor packages, and separator units. Its compatibility with FactoryTalk View ME allows alarm management and trend display to be configured in alignment with ISA-18.2 alarm management standards.

In water and wastewater treatment facilities, the terminal is used in lift station panels, chemical dosing systems, and filtration control cabinets. Its ability to communicate over EtherNet/IP to remote CompactLogix controllers enables centralized SCADA integration while maintaining local operator control capability at each process unit.

In mining, metals, and minerals processing applications, the 2711P-RDK7C is deployed in conveyor control panels, crusher stations, and flotation cell control systems. The robust enclosure rating and wide operating temperature range support reliable operation in harsh industrial environments with dust, vibration, and temperature extremes.

In packaging and material handling lines, the terminal provides operators with line speed control, format changeover guidance, and fault reset capability — reducing the skill level required for routine operator interventions and improving overall equipment effectiveness (OEE).

Architecture Engineering FAQ

Q1: Is the 2711P-RDK7C compatible with both ControlLogix and CompactLogix control platforms?
Yes. The 2711P-RDK7C communicates via EtherNet/IP and is fully compatible with both the ControlLogix (1756 series) and CompactLogix (1769 series) processor families. Application development is performed using FactoryTalk View ME Studio, which supports tag-based communication with both platforms. The terminal can also communicate with MicroLogix and SLC 500 controllers via DF1 or DH+ protocols, providing broad architectural flexibility for mixed-generation control systems.

Q2: Can the 2711P-RDK7C be installed in an existing PanelView Plus 6 enclosure cutout, and what are the key installation considerations?
Yes. The 2711P-RDK7C uses the standard PanelView Plus 6 700 panel cutout dimensions, allowing direct replacement of existing terminals without panel modification. Key installation considerations include verifying the power supply voltage compatibility (24V DC or AC input depending on the power supply module used), confirming EtherNet/IP network addressing does not conflict with existing devices, and ensuring the FactoryTalk View ME application version is compatible with the replacement terminal’s firmware. Commissioning should include a full functional test of all configured screens, alarms, and tag communications before returning the system to production.

Q3: What does the 12-Month Warranty cover, and how does it support long-term maintenance planning?
The 12-Month Warranty covers the 2711P-RDK7C against defects in materials and workmanship under normal operating conditions. Each unit is tested and verified prior to shipment, ensuring that the terminal arrives in fully operational condition. For maintenance planning purposes, the 12-month coverage period provides a defined baseline for spare parts budgeting and lifecycle management. In architectures where HMI availability is critical, maintaining a tested spare unit with an active warranty is a recommended practice to minimize mean time to repair (MTTR) during unplanned failures.
