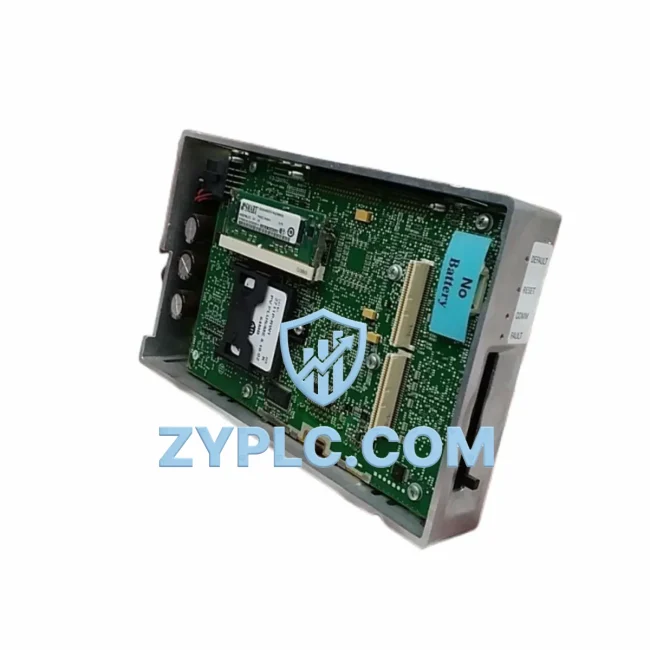

Allen-Bradley 2711P-RP1EX Energy-Saving HMI PanelView Plus

Allen-Bradley 2711P-RP1EX Energy-Saving HMI Module for PanelView Plus Automation

The Allen-Bradley 2711P-RP1EX is a high-performance HMI Logic Module designed for the PanelView Plus terminal series, engineered to deliver precise operator interface control while minimizing panel-level energy consumption. In modern manufacturing environments where every watt counts, the 2711P-RP1EX serves as the computational core of the PanelView Plus 6 and PanelView Plus 7 operator terminals, enabling real-time visualization, process feedback, and energy-aware machine control across a wide range of industrial automation architectures.

Unlike passive display modules, the 2711P-RP1EX integrates directly with the Rockwell Automation control ecosystem, allowing plant engineers to monitor drive states, track motor load curves, and respond to energy anomalies without additional gateway hardware. When paired with a CompactLogix L33ER or ControlLogix L71 controller, the module enables closed-loop feedback between the HMI layer and the control layer, reducing unnecessary actuator cycling and idle-state energy draw on connected equipment.

Efficiency Performance Table

Energy-Aware Automation Architecture

The 2711P-RP1EX is most effective when deployed as part of a tightly integrated energy management architecture. In a typical energy-optimized production cell, the module operates alongside a PowerFlex 525 AC drive or PowerFlex 755 variable frequency drive, receiving real-time speed reference and torque feedback data via EtherNet/IP. This allows operators to visualize motor efficiency curves directly on the PanelView Plus terminal, identifying operating points where the drive is consuming excess energy relative to the mechanical load.

At the control layer, a CompactLogix L33ER or ControlLogix L71 PLC executes the energy management logic — adjusting setpoints, enabling sleep modes during low-demand periods, and triggering alarms when power consumption deviates from baseline. The 2711P-RP1EX communicates these controller states to the operator in real time, reducing the response lag between an energy anomaly and corrective action.

For facilities using distributed I/O, the module integrates seamlessly with POINT I/O 1734-AENT or Flex I/O 1794-AENT adapters, enabling granular monitoring of individual machine zones. Energy data from each zone can be aggregated through a 1756-EN2T EtherNet/IP communication module and displayed on the HMI as a live energy dashboard, giving maintenance teams the visibility they need to identify underperforming equipment before it becomes a reliability issue.

In applications requiring power quality monitoring, the 2711P-RP1EX can be configured to display data from a PowerMonitor 5000 energy meter, providing operators with real-time kWh consumption, power factor readings, and demand trend graphs — all without leaving the machine interface. This eliminates the need for separate energy monitoring terminals and reduces the total panel footprint.

For servo-driven axes, the module pairs effectively with Kinetix 5500 or Kinetix 6500 servo drives, where regenerative braking energy can be monitored and the HMI can alert operators when regen thresholds are exceeded. This is particularly valuable in high-cycle applications such as press lines, packaging machines, and palletizers, where motor braking events are frequent and energy recovery opportunities are significant.

Power Optimization in Real Production Lines

On the production floor, the Allen-Bradley 2711P-RP1EX delivers measurable energy efficiency gains by shortening the feedback loop between machine state and operator response. In a bottling line, for example, the module can display conveyor drive load in real time, allowing operators to reduce belt speed during low-throughput periods rather than running at full capacity continuously. This single adjustment, enabled by clear HMI visualization, can reduce conveyor motor energy consumption by 15–30% during off-peak production windows.

In injection molding applications, the 2711P-RP1EX supports recipe-based setpoint management, where energy-optimized process parameters are stored and recalled for each mold. When a new job is loaded, the HMI automatically pushes the correct hydraulic pressure, clamp force, and cycle time parameters to the CompactLogix controller, eliminating the manual tuning that often results in over-pressurized, energy-wasteful operation.

Predictive maintenance is another area where the module contributes to energy efficiency. By trending motor current draw, drive temperature, and cycle time data over weeks and months, maintenance teams can identify equipment that is consuming more energy than expected — a reliable early indicator of mechanical wear, bearing degradation, or misalignment. Catching these issues early reduces both unplanned downtime and the energy penalty associated with running degraded equipment.

The 2711P-RP1EX also supports shift-based energy reporting, where total kWh consumed per shift is logged and displayed on the HMI. This gives production supervisors a simple, actionable metric for comparing energy performance across shifts and identifying operational patterns that drive excess consumption.

Every 2711P-RP1EX unit supplied by ZYPLC is sourced from verified inventory channels, subjected to functional testing prior to shipment, and covered by a 12-month warranty. In-stock units are available for fast dispatch, minimizing production downtime for facilities requiring urgent replacement of a failed logic module.

Energy Optimization FAQ

Q1: How does the 2711P-RP1EX contribute to reducing factory energy consumption?
The 2711P-RP1EX enables real-time visualization of drive states, motor load, and process parameters, allowing operators to make informed adjustments that reduce idle-state energy draw and eliminate over-cycling of motors and actuators. When integrated with PowerFlex drives and a CompactLogix controller, it forms a closed-loop energy management interface at the machine level.

Q2: Is the 2711P-RP1EX compatible with my existing PanelView Plus terminal?
The 2711P-RP1EX is designed for PanelView Plus 6 and PanelView Plus 7 terminals. It is not cross-compatible with PanelView Plus CE or older PanelView 550/900 series terminals. If you are unsure of compatibility, please contact our technical team with your terminal catalog number before ordering.

Q3: What is the replacement and testing process for a failed 2711P-RP1EX?
Each unit supplied by ZYPLC undergoes functional testing before shipment, including power-on verification and communication interface checks. Replacement is straightforward — the logic module slides into the rear of the PanelView Plus terminal without tools. Application files stored on the terminal’s CompactFlash card are retained during module replacement, minimizing reconfiguration time.

Q4: What warranty coverage is included with the 2711P-RP1EX?
All 2711P-RP1EX units supplied by ZYPLC are covered by a 12-month warranty from the date of shipment. This covers functional failures under normal operating conditions. Our team provides pre-sales technical support and post-sales warranty assistance to ensure your production line stays operational.
