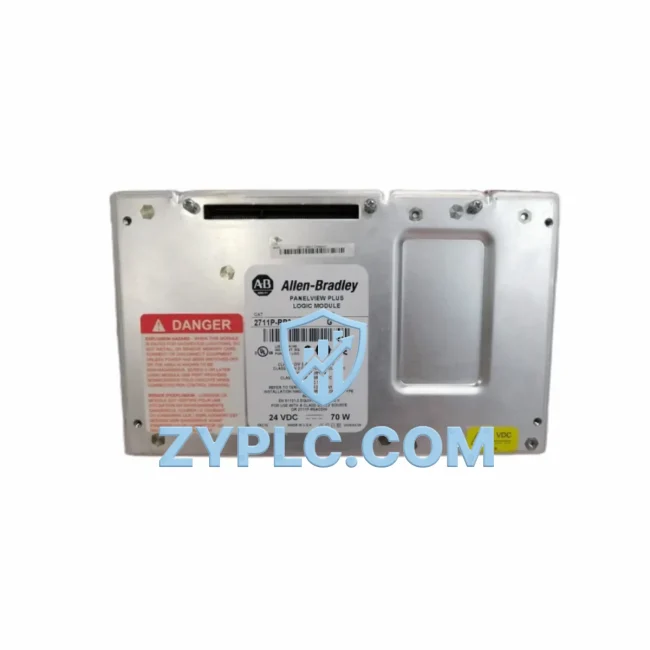

Allen-Bradley 2711P-RP3 System-Ready Logic Module for PanelView Plus Architecture

Allen-Bradley 2711P-RP3 System-Ready Logic Module for PanelView Plus Architecture

The Allen-Bradley 2711P-RP3 is a high-performance replacement logic module engineered specifically for the PanelView Plus 6 and PanelView Plus 7 HMI terminal family within Rockwell Automation’s integrated control architecture. Rather than functioning as a standalone component, the 2711P-RP3 occupies a critical position in the human-machine interface layer of a layered automation system — serving as the computational core that bridges operator visualization with real-time control logic delivered from upstream PLCs and PACs. Its 256MB Flash memory and onboard processing capability ensure that graphical runtime applications, alarm management routines, and communication stacks execute reliably even in demanding industrial environments including marine-certified installations.

In a complete Rockwell Automation control architecture, the 2711P-RP3 does not operate in isolation. It is designed to work in concert with ControlLogix and CompactLogix controllers — such as the 1756-L73 or 1769-L33ER — which handle the deterministic execution of ladder logic, function block diagrams, and sequential function charts at the control layer. The HMI terminal housing the 2711P-RP3 communicates with these controllers via EtherNet/IP, the backbone protocol of the Integrated Architecture, ensuring low-latency tag-based data exchange between the visualization layer and the control layer. This tight integration allows operators to monitor live process values, acknowledge alarms, and initiate control sequences directly from the PanelView Plus terminal without introducing communication bottlenecks.

At the I/O layer, the 2711P-RP3-equipped terminal reflects real-time data sourced from 1756 ControlLogix I/O modules or 1734 POINT I/O distributed blocks connected to the same EtherNet/IP network. Engineers configuring the system in Studio 5000 Logix Designer can map controller tags directly to HMI display objects, creating a unified data model that eliminates redundant tag databases and reduces configuration errors. This contextual integration between the HMI layer and the I/O layer is a defining characteristic of Rockwell’s Integrated Architecture approach, and the 2711P-RP3 is purpose-built to support it.

Network layer stability is equally important. The 2711P-RP3 supports dual EtherNet/IP ports on compatible PanelView Plus 7 terminals, enabling Device Level Ring (DLR) topology for network-level redundancy. In applications where continuous uptime is non-negotiable — such as power distribution substations, water treatment SCADA systems, or continuous process lines — DLR ensures that a single cable fault does not interrupt HMI communication. This capability complements the redundancy features available in 1756 ControlLogix redundancy chassis pairs using 1756-RM2 redundancy modules, creating a system architecture where both the control layer and the visualization layer maintain availability during fault conditions.

Power layer considerations are also integral to system design. PanelView Plus terminals housing the 2711P-RP3 are typically powered from 24VDC panel power supplies such as the 1606-XLP series, which provide regulated, noise-filtered DC power suitable for sensitive HMI electronics. Proper power architecture — including surge protection and UPS backup — ensures that the logic module retains its runtime application and configuration data across power interruptions, protecting operator workflows and alarm histories.

For system commissioning and long-term maintenance, the 2711P-RP3 is fully compatible with FactoryTalk View ME software, which provides the development environment for creating, downloading, and updating HMI applications. Replacement of a failed logic module in the field is a structured procedure: the new 2711P-RP3 is installed into the existing PanelView Plus terminal chassis, the application is restored from a backup ME file, and communication parameters are re-established — a process that minimizes unplanned downtime and does not require replacement of the entire terminal assembly. This modularity is a key advantage in long-lifecycle industrial installations where terminal hardware may remain in service for ten or more years.

All 2711P-RP3 units supplied by ZYPLC are covered by a 12-Month Warranty and undergo functional verification prior to shipment, ensuring that each module meets Allen-Bradley’s original performance specifications upon arrival at your facility.

Architecture Specification Table

Coordinated Control System Design

The 2711P-RP3 achieves its full value when deployed within a coordinated Rockwell Automation control system. At the control layer, a 1756-L73 ControlLogix CPU or 1769-L33ER CompactLogix controller executes the primary control program and publishes process tags over EtherNet/IP. The 2711P-RP3-equipped PanelView Plus terminal subscribes to these tags, rendering live process data on operator screens with scan-cycle accuracy. For applications requiring high availability, a 1756-RM2 ControlLogix Redundancy Module paired with a secondary chassis ensures seamless controller failover without disrupting HMI communication sessions.

At the I/O layer, 1756 ControlLogix analog and digital I/O modules — such as the 1756-IF16 analog input or 1756-OB16I digital output — feed real-time field signals into the controller tag database, which the HMI reflects without additional configuration. In distributed architectures, 1734 POINT I/O adapter modules extend I/O capacity to remote panels while maintaining a single EtherNet/IP network segment. The 1783-ETAP EtherNet/IP Tap supports DLR ring topology, providing the network-level redundancy that protects HMI communication continuity.

Power infrastructure for the control cabinet typically includes a 1606-XLP power supply providing clean 24VDC to both the PanelView Plus terminal and distributed I/O nodes. Terminal block assemblies using 1492-J series feed-through terminal blocks organize field wiring systematically, supporting efficient commissioning and future maintenance access. Together, these components form a cohesive, validated system architecture in which the 2711P-RP3 serves as the operator’s window into the entire control hierarchy.

Application in Layered Automation Systems

The 2711P-RP3 is deployed across a wide range of industrial sectors where PanelView Plus terminals form the standard HMI platform. In discrete manufacturing — including automotive assembly, packaging lines, and material handling systems — the module supports high-speed screen refresh rates and alarm management for multi-station production cells. In power generation and distribution facilities, its marine certification and wide operating temperature range make it suitable for switchgear control rooms and offshore platform control systems where environmental conditions are demanding.

In water and wastewater treatment plants, the 2711P-RP3 enables operators to monitor pump station status, valve positions, and flow totals from a centralized HMI terminal integrated with a ControlLogix SCADA architecture. Oil and gas processing facilities use PanelView Plus terminals with 2711P-RP3 modules at wellhead control panels and pipeline monitoring stations, where the module’s EtherNet/IP connectivity supports integration with safety instrumented systems. In mining and metallurgical operations, the module’s robust design withstands vibration and dust-laden environments typical of crusher control rooms and conveyor management systems. Chemical and petrochemical process plants rely on the module’s stable runtime execution for continuous process monitoring, where HMI downtime directly impacts production throughput and safety compliance.

Architecture Engineering FAQ

Q1: Is the 2711P-RP3 compatible with all PanelView Plus terminal sizes, and does it require any firmware alignment with the connected ControlLogix controller?
The 2711P-RP3 is compatible with PanelView Plus 6 terminals across the 6-inch to 15-inch display range (2711P-B6 through 2711P-B15) and with PanelView Plus 7 Standard terminals. Firmware compatibility between the FactoryTalk View ME runtime on the HMI and the Studio 5000 project version on the ControlLogix controller should be verified prior to deployment; Rockwell Automation’s compatibility matrix provides version-specific guidance. ZYPLC supplies modules with firmware verified against common runtime versions and can advise on alignment requirements for your specific architecture.

Q2: How does replacing the 2711P-RP3 affect the existing HMI application and communication configuration?
The 2711P-RP3 is a field-replaceable module. Upon installation of a new module, the FactoryTalk View ME application must be restored from a backup .MER file using a USB transfer or network download. Communication parameters — including the EtherNet/IP controller path and terminal IP address — are reconfigured via the terminal’s configuration menu. No modifications to the ControlLogix controller program are required, making the replacement process straightforward for maintenance engineers familiar with the Rockwell ecosystem. ZYPLC recommends maintaining a current application backup as part of standard maintenance practice.

Q3: What does the 12-Month Warranty cover, and what is the process for a warranty claim?
ZYPLC’s 12-Month Warranty covers manufacturing defects and functional failures under normal operating conditions for the 2711P-RP3 module. Each unit is tested prior to shipment to verify core functionality. In the event of a warranty claim, ZYPLC’s technical team initiates a fault assessment process; confirmed defective units are replaced or repaired at no additional cost within the warranty period. For warranty inquiries or technical support, contact ZYPLC at +86 19859288691 or plc.sales@zyplc.com.
