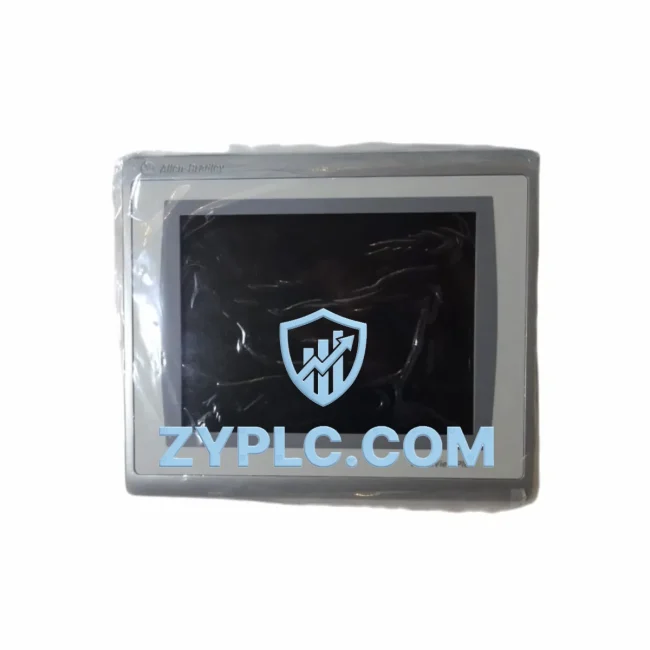

Allen-Bradley 2711P-T10C22D9P Energy-Saving HMI PanelView Plus 7

Allen-Bradley 2711P-T10C22D9P Energy-Saving HMI for Optimized PanelView Plus 7 Automation

The Allen-Bradley 2711P-T10C22D9P is a 10.4-inch color touch-screen HMI from the PanelView Plus 7 series, engineered to deliver precision operator control while minimizing energy draw across continuous industrial production environments. As factories face mounting pressure to reduce operational energy costs and improve equipment utilization rates, the 2711P-T10C22D9P stands out as a control interface that actively contributes to leaner, more responsive automation architectures.

Unlike passive display terminals, the PanelView Plus 7 platform integrates tightly with Rockwell Automation’s Logix control ecosystem, enabling real-time data exchange with ControlLogix and CompactLogix PLCs. This tight coupling allows operators to monitor drive status, energy consumption metrics, and production throughput from a single interface — reducing the need for redundant instrumentation and lowering the overall system footprint.

Efficiency Performance Table

Energy-Aware Automation Architecture

In a well-designed energy-aware production line, the 2711P-T10C22D9P serves as the human-machine interface layer that bridges operator intent with machine execution. When paired with a PowerFlex 755 variable frequency drive, operators can visualize motor speed, torque output, and energy consumption in real time — enabling immediate corrective action when drive efficiency drops below threshold. The HMI’s EtherNet/IP connectivity allows it to pull live data from a 1756-L85E ControlLogix controller, which coordinates multi-axis motion, I/O sequencing, and safety interlocks across the production cell.

For energy metering at the panel level, the 2711P-T10C22D9P can display data sourced from a PowerMonitor 5000 unit, giving maintenance teams visibility into kWh consumption per shift, demand peaks, and power factor trends — all without leaving the operator station. This eliminates the need for separate energy dashboards and reduces the cognitive load on floor personnel.

On the I/O side, the system typically integrates with 1734 POINT I/O modules distributed across the machine frame, feeding discrete and analog signals back to the controller. The HMI renders this data as process trend screens, alarm histories, and equipment status pages — allowing operators to identify inefficient cycles, idle equipment, and abnormal energy draws before they escalate into unplanned downtime.

For servo-driven axes, the 2711P-T10C22D9P works alongside Kinetix 5700 servo drives, displaying axis position, velocity feedback, and regenerative energy recovery status. In applications where multiple servo axes decelerate simultaneously — such as gantry systems or multi-axis assembly cells — the regenerative energy captured by the Kinetix 5700 can be redistributed across the DC bus, and the HMI provides the operator interface to monitor this energy flow in real time.

Communication integrity is maintained through a Stratix 5700 managed Ethernet switch, which segments HMI traffic from controller-to-drive communications, ensuring deterministic data delivery and reducing network-induced latency that could otherwise distort energy readings or delay alarm responses. Where legacy equipment is present, a 1761-NET-AIC protocol converter bridges older DF1 serial devices into the EtherNet/IP network, extending the energy monitoring architecture without requiring full equipment replacement.

Power Optimization in Real Production Lines

In automotive body welding lines, the 2711P-T10C22D9P has been deployed to monitor weld cycle energy consumption per station. By displaying real-time weld energy (joules per cycle) alongside production count, line supervisors can identify stations consuming disproportionate energy relative to output — a leading indicator of electrode wear or transformer degradation. Early detection through the HMI interface has been shown to reduce unplanned downtime by enabling scheduled maintenance before failure occurs.

In food and beverage packaging lines, the terminal’s recipe management capability allows operators to switch between product formats while automatically adjusting conveyor speed setpoints sent to PowerFlex 525 drives. This eliminates manual speed adjustments that often result in over-driving motors during format changeovers — a common source of unnecessary energy consumption and mechanical wear.

In water treatment facilities, the 2711P-T10C22D9P displays pump station data including flow rate, pressure differential, and motor amperage. When integrated with a CompactLogix L33ERM controller running pump sequencing logic, the HMI enables operators to balance pump loading across multiple units — preventing single-pump overload while maintaining system efficiency at varying demand levels.

Across all these applications, the 2711P-T10C22D9P contributes to measurable reductions in energy waste by giving operators the real-time visibility and control authority needed to make informed decisions at the machine level. Combined with predictive maintenance data surfaced through FactoryTalk View ME software running on the terminal, maintenance teams can track motor run hours, drive fault histories, and thermal trends — scheduling interventions during planned downtime windows rather than reacting to failures.

Every 2711P-T10C22D9P unit supplied by ZYPLC undergoes pre-shipment functional testing, including display verification, communication port validation, and power-on self-test confirmation. Units are shipped with a 12-month warranty covering manufacturing defects and operational failures under normal industrial use conditions. Stock is maintained for prompt dispatch, supporting both urgent replacement requirements and planned project deployments.

Energy Optimization FAQ

Q1: How does the 2711P-T10C22D9P contribute to energy savings on the production line?
The 2711P-T10C22D9P provides operators with real-time visibility into drive performance, motor energy consumption, and process efficiency metrics. By surfacing this data at the operator level, it enables faster identification of energy waste — such as motors running at full speed during low-demand periods — and supports corrective action through direct setpoint adjustment or alarm-triggered responses.

Q2: Which control systems and drives is the 2711P-T10C22D9P compatible with?
The terminal is fully compatible with Rockwell Automation’s Logix family of controllers, including ControlLogix, CompactLogix, and GuardLogix platforms, communicating via EtherNet/IP. It also supports legacy protocols including DH-485 and DF1, making it suitable for integration into both modern and mixed-generation automation environments. It is commonly deployed alongside PowerFlex 525, PowerFlex 755, and Kinetix 5700 drive systems.

Q3: Can the 2711P-T10C22D9P replace an existing PanelView Plus 6 terminal?
In most cases, yes. The PanelView Plus 7 platform maintains application compatibility with PanelView Plus 6 projects through FactoryTalk View ME, allowing existing screen configurations to be migrated with minimal rework. Physical mounting dimensions should be verified against the existing panel cutout before installation. ZYPLC can advise on compatibility based on your existing terminal model and application version.

Q4: What does the 12-month warranty cover, and what is the testing process before shipment?
The 12-month warranty covers manufacturing defects and operational failures arising under normal industrial operating conditions. Prior to shipment, each unit undergoes a structured pre-shipment test protocol including power-on verification, touchscreen calibration check, communication port functionality test, and visual inspection for physical integrity. Test records are available upon request. For warranty claims or technical support, contact ZYPLC directly.
