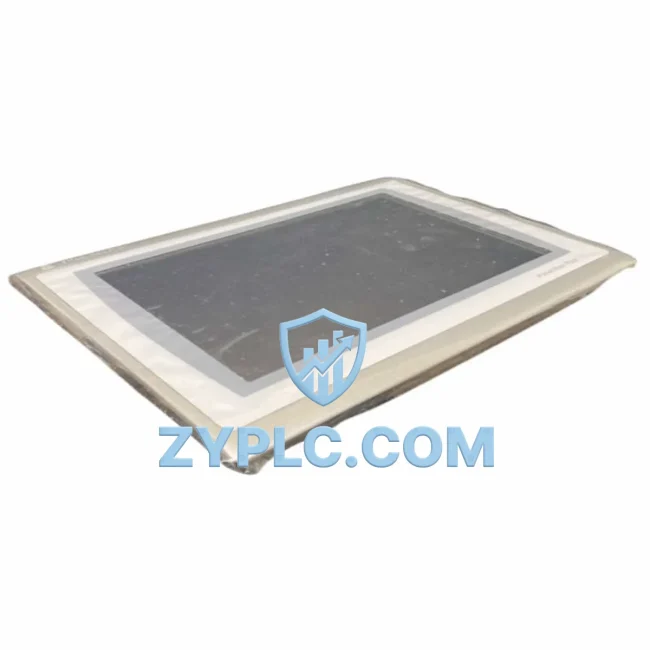

Allen-Bradley 2711P-T12W22D9P System-Ready HMI Terminal for PanelView Plus 7 Architecture

Allen-Bradley 2711P-T12W22D9P System-Ready HMI Terminal for PanelView Plus 7 Architecture

In a fully integrated industrial automation environment, the human-machine interface layer serves as the critical bridge between operator intent and machine execution. The Allen-Bradley 2711P-T12W22D9P is a 12-inch widescreen HMI terminal from Rockwell Automation’s PanelView Plus 7 series, engineered to operate as a native visualization node within ControlLogix and CompactLogix control architectures. Rather than functioning as a standalone display device, this terminal is designed from the ground up to participate in a layered automation system — communicating upstream with the control layer, downstream with I/O and drive subsystems, and laterally with network infrastructure and historian platforms.

Within a typical Rockwell Automation architecture, the 2711P-T12W22D9P connects via EtherNet/IP to a ControlLogix L7x or L8x series controller, such as the 1756-L73 or 1756-L83E, which serves as the central processing node managing all logic execution, tag databases, and inter-module communication. The HMI terminal reads and writes directly to controller tags, enabling real-time visualization of process variables, alarm states, and production metrics without requiring intermediate data translation layers. This tight integration reduces latency in operator response loops and ensures that the visualization layer remains synchronized with the actual state of the control system at all times.

At the I/O layer, the 2711P-T12W22D9P works in coordination with 1756 ControlLogix I/O modules — including analog input modules such as the 1756-IF16 and digital output modules such as the 1756-OB16E — to display real-time field signal data. Operators can monitor valve positions, motor run states, pressure transmitter readings, and flow meter outputs directly from the HMI screen, with alarm thresholds configured to trigger visual and audible alerts when process variables deviate from setpoints. This signal visibility across the I/O layer is essential for rapid fault diagnosis and process optimization in continuous manufacturing environments.

The network layer supporting the 2711P-T12W22D9P typically includes a managed industrial Ethernet switch, such as those in the Stratix 5700 series, which provides the backbone for EtherNet/IP communication between the HMI, the controller, remote I/O adapters, and variable frequency drives. The terminal’s dual Ethernet ports support device-level ring (DLR) topology, enabling network redundancy without requiring a separate managed switch for ring closure. This architecture ensures that a single cable fault does not interrupt HMI communication, which is particularly important in high-availability process control applications such as water treatment, power generation, and chemical processing.

At the power layer, the 2711P-T12W22D9P operates on 24VDC supplied through a dedicated panel power supply, typically a 1606-XLP series power supply from Allen-Bradley, which provides regulated, filtered DC power with built-in overload protection. Proper power architecture ensures that HMI operation remains stable during motor starts, contactor switching, and other transient load events that can introduce voltage fluctuations on shared power rails. In redundant panel designs, dual power feeds with diode ORing modules are used to ensure continuous HMI availability even during a primary power supply failure.

The execution layer — comprising variable frequency drives, servo drives, and motor control centers — is monitored and commanded through the HMI via the controller’s tag database. Drives such as the PowerFlex 525 or PowerFlex 755 communicate their speed references, fault codes, and energy consumption data back to the controller, which the 2711P-T12W22D9P then presents to operators in real time. This closed-loop visibility from the HMI through the controller to the drive layer enables operators to make informed decisions about production speed adjustments, maintenance scheduling, and energy optimization without requiring direct access to drive parameter menus.

For system architects designing redundant control environments, the 2711P-T12W22D9P can be deployed alongside a ControlLogix redundancy chassis pair — using 1756-RM2 redundancy modules — to ensure that HMI visualization remains uninterrupted during controller switchover events. The terminal’s FactoryTalk View ME runtime software manages the switchover transparently, reconnecting to the new primary controller within seconds and resuming all active displays and alarm monitoring without operator intervention. This capability is essential in applications where process continuity is critical, such as oil and gas separation trains, pharmaceutical batch reactors, and continuous casting lines in steel mills.

From an engineering and commissioning perspective, the 2711P-T12W22D9P supports FactoryTalk View Studio ME for application development, allowing engineers to build graphic displays, configure alarm setpoints, define trend pens, and set up user security levels from a single development environment. Application files can be transferred to the terminal via USB or Ethernet, and the terminal supports remote monitoring through FactoryTalk ViewPoint for web-based HMI access. This reduces the need for physical panel access during routine monitoring and supports remote troubleshooting by engineering teams across multiple sites.

Long-term maintenance of the 2711P-T12W22D9P is supported by its fanless design, which eliminates the most common mechanical failure point in industrial computing equipment. The terminal’s solid-state storage and sealed front panel meet NEMA 4/4X and IP66 ingress protection ratings, making it suitable for washdown environments in food and beverage processing, as well as dusty environments in mining and cement production. Replacement parts, including touch screen assemblies and backlight modules, are available through authorized distributors, and ZYPLC maintains verified stock of this terminal to support urgent replacement requirements in production-critical applications.

Every 2711P-T12W22D9P supplied by ZYPLC is covered by a 12-Month Warranty, with pre-shipment functional testing to verify display operation, touch input response, Ethernet communication, and USB port functionality. Our technical team provides Contextual Integration support to assist engineers with network configuration, FactoryTalk View ME application loading, and controller tag binding during commissioning.

Architecture Specification Table

Coordinated Control System Design

The 2711P-T12W22D9P achieves its full architectural value when deployed as part of a coordinated Rockwell Automation control system. In a typical ControlLogix-based architecture, the HMI terminal communicates with a 1756-L73 ControlLogix controller mounted in a 1756-A10 chassis, sharing the EtherNet/IP network with a 1756-EN2T Ethernet communication module that manages all network traffic between the controller, HMI, and remote I/O. The 1756-PA75 power supply provides stable backplane power to the controller chassis, while the HMI itself draws 24VDC from a dedicated 1606-XLP95E power supply mounted in the control panel.

At the I/O layer, the HMI displays data sourced from 1756-IF16 analog input modules monitoring process variables such as temperature, pressure, and flow, as well as 1756-OB16E digital output modules controlling solenoid valves, motor starters, and indicator lights. For distributed I/O architectures, a 1734 POINT I/O adapter connected via EtherNet/IP extends the I/O layer to remote field panels, with all data aggregated at the controller and presented through the HMI display. Variable frequency drives such as the PowerFlex 755 report speed, torque, and fault status back to the controller via EtherNet/IP, enabling the HMI to display drive performance data in real time. In safety-integrated architectures, a 1791DS GuardLogix safety I/O module provides safety-rated digital inputs from emergency stop circuits and light curtains, with safety state information visible on the HMI for operator awareness.

Application in Layered Automation Systems

The Allen-Bradley 2711P-T12W22D9P is deployed across a wide range of industrial sectors where reliable operator visualization is essential to process integrity. In automotive manufacturing, the terminal serves as the primary operator interface on assembly line control panels, displaying conveyor speed, robot cycle counts, torque wrench results, and quality inspection data in real time. In water and wastewater treatment facilities, the HMI provides operators with a graphical overview of pump station status, chemical dosing rates, tank levels, and alarm histories, enabling remote monitoring of distributed pump stations from a central control room. In oil and gas processing, the 2711P-T12W22D9P is installed in explosion-proof enclosures or purged panels to provide visualization of separator pressures, compressor suction and discharge conditions, and emergency shutdown valve positions. In pharmaceutical batch manufacturing, the terminal supports recipe management and batch reporting through FactoryTalk Batch integration, ensuring that all process steps are documented and traceable for regulatory compliance. In mining and mineral processing, the HMI is used to monitor crusher throughput, conveyor belt load, and flotation cell chemistry, providing operators with the situational awareness needed to optimize recovery rates and minimize unplanned downtime.

Architecture Engineering FAQ

Q1: Is the 2711P-T12W22D9P compatible with both ControlLogix and CompactLogix controllers?
Yes. The 2711P-T12W22D9P communicates via EtherNet/IP and is fully compatible with ControlLogix (1756 series), CompactLogix (1769 series), and MicroLogix controllers that support EtherNet/IP communication. The FactoryTalk View ME runtime manages controller connections through RSLinx Enterprise, which handles tag browsing and online data exchange. No hardware adapters are required for EtherNet/IP-based controller connections.

Q2: Can this HMI terminal be used in a ControlLogix redundancy architecture?
Yes. The 2711P-T12W22D9P supports ControlLogix redundancy configurations using 1756-RM2 redundancy modules. During a controller switchover event, the FactoryTalk View ME runtime automatically reconnects to the new primary controller, typically within 2–5 seconds, without requiring operator intervention. This makes the terminal suitable for high-availability applications in power generation, chemical processing, and continuous manufacturing where process interruption is not acceptable.

Q3: What does the 12-Month Warranty from ZYPLC cover, and what integration support is available?
Every 2711P-T12W22D9P supplied by ZYPLC is covered by a 12-Month Warranty against manufacturing defects and functional failures, including display, touch input, Ethernet communication, and USB port operation. Pre-shipment testing is performed on all units before dispatch. ZYPLC also provides Contextual Integration support, assisting engineers with FactoryTalk View ME application loading, controller tag binding, EtherNet/IP network configuration, and commissioning verification. Contact our technical team at plc.sales@zyplc.com or +86 19859288691 for pre-sales compatibility assessment and post-sales commissioning support.
