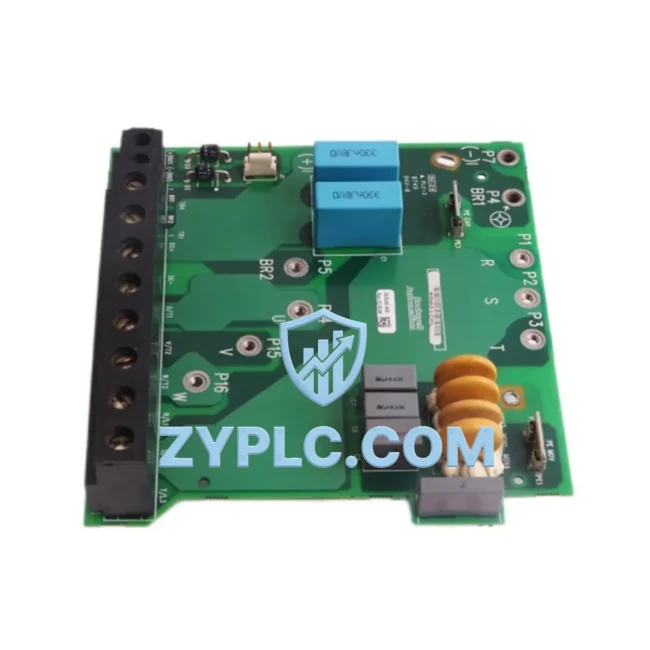

Allen-Bradley 315116-A05 Energy-Saving Drive Control for PowerFlex 700

Allen-Bradley 315116-A05 Energy-Saving Drive Control for PowerFlex 700 Automation

The Allen-Bradley 315116-A05 is a high-performance drive control board engineered for the PowerFlex 700 AC drive series — one of Rockwell Automation’s most widely deployed variable frequency drive platforms in industrial manufacturing. Designed to govern the core switching logic, gate firing sequences, and closed-loop feedback processing of the PowerFlex 700 drive, the 315116-A05 directly influences how efficiently electrical energy is converted into mechanical motion across motors, conveyors, pumps, fans, and compressors on the production floor.

In energy-intensive manufacturing environments, the drive control board is not a passive component — it is the intelligence layer that determines whether a motor runs at optimal efficiency or wastes kilowatts through unnecessary full-speed operation. The 315116-A05 enables precise PWM (Pulse Width Modulation) output regulation, allowing the PowerFlex 700 drive to match motor speed exactly to process demand, eliminating the energy penalty of throttled valve control or mechanical braking. For facilities running multiple drive axes simultaneously, this translates into measurable reductions in peak demand charges and overall kWh consumption per production cycle.

Efficiency Performance Table

Energy-Aware Automation Architecture

The 315116-A05 control board does not operate in isolation — its energy optimization value is fully realized when integrated within a coordinated automation architecture. In a typical Rockwell Automation environment, the PowerFlex 700 drive governed by this board receives speed and torque references from an upstream Allen-Bradley ControlLogix L7x series PLC or a CompactLogix L3x controller via EtherNet/IP. The PLC executes the motion profile logic, while the 315116-A05 translates those commands into precise gate signals for the IGBT power stage — ensuring the motor accelerates and decelerates along energy-efficient ramp curves rather than abrupt full-voltage switching.

For multi-axis systems, the 315116-A05-equipped PowerFlex 700 can be coordinated alongside PowerFlex 755 drives on a common DC bus architecture, enabling regenerative energy sharing between motoring and braking axes. This common bus topology, managed through a PowerFlex 755 Active Front End (AFE) module, can recover braking energy that would otherwise be dissipated as heat — directly reducing net energy consumption across the drive system.

On the I/O and sensing side, the control board interfaces with Allen-Bradley 1756-IB16 digital input modules for process interlocks and with 1756-OF8 analog output modules for speed reference signals. Energy monitoring is typically handled by Allen-Bradley PowerMonitor 5000 units installed at the MCC (Motor Control Center) level, providing real-time kW, kVAR, and power factor data that operators use to validate the efficiency gains delivered by the 315116-A05-controlled drive.

HMI visibility into drive performance is provided through Allen-Bradley PanelView Plus 7 terminals running FactoryTalk View ME, where operators can monitor drive output frequency, motor current draw, and fault history. For predictive maintenance workflows, the drive’s diagnostic data — including thermal model estimates and run-hour counters — is surfaced through FactoryTalk AssetCentre or forwarded to a FactoryTalk Analytics platform for trend analysis. Communication between the 315116-A05-based drive and the plant network is handled via an Allen-Bradley 20-COMM-E EtherNet/IP communication adapter, enabling seamless integration into the plant’s SCADA or MES layer without additional protocol conversion hardware.

Power Optimization in Real Production Lines

In real-world production environments, the 315116-A05 drive control board delivers energy savings through several interconnected mechanisms. On conveyor and material handling lines, the board enables the PowerFlex 700 to implement S-curve acceleration profiles, reducing inrush current spikes that inflate peak demand charges on utility bills. A single conveyor system running 16 hours per day can see 15–25% reduction in motor energy consumption when transitioning from direct-on-line starting to VFD-controlled operation with a properly functioning 315116-A05 board.

For pump and fan applications — which represent the largest share of industrial motor energy use globally — the 315116-A05 enables affinity law-based speed reduction. Reducing a pump motor from 100% to 80% speed cuts power consumption by approximately 50%, a saving that compounds across multiple pump stations in water treatment, HVAC, and process cooling applications. The control board’s closed-loop vector mode maintains precise flow control without the pressure drop losses associated with throttle valves, further improving system efficiency.

From a maintenance and uptime perspective, the 315116-A05 contributes to predictive maintenance readiness by supporting the PowerFlex 700’s built-in motor thermal model and ground fault detection. Early fault detection prevents unplanned downtime events that disrupt production line takt time and force energy-intensive restart sequences. Facilities that maintain a spare 315116-A05 board in inventory report significantly shorter mean-time-to-repair (MTTR) for drive faults, keeping OEE (Overall Equipment Effectiveness) metrics on target.

All units supplied by ZYPLC undergo functional load testing and output waveform verification prior to shipment, ensuring the board’s PWM gate signals meet Allen-Bradley factory specifications. This pre-shipment testing protocol eliminates the risk of installing a non-functional board into a live production drive — a scenario that can cause motor damage and extended line stoppages. With a 12-month warranty covering functional performance, procurement teams can source the 315116-A05 with confidence in both quality and supply continuity.

Energy Optimization FAQ

Q1: How much energy can I save by replacing a faulty 315116-A05 control board versus running the PowerFlex 700 in bypass mode?
Running a PowerFlex 700 drive in bypass mode (direct-on-line) eliminates all variable speed control, causing the motor to run at full speed regardless of process demand. For variable torque loads like pumps and fans, this can increase energy consumption by 30–60% compared to VFD-controlled operation. Restoring the 315116-A05 control board returns the drive to full variable speed capability, recovering those energy savings immediately.

Q2: Is the 315116-A05 compatible with all PowerFlex 700 frame sizes and voltage ratings?
The 315116-A05 is designed for specific frame configurations within the PowerFlex 700 series. Compatibility depends on the drive’s firmware revision, frame size, and voltage class. ZYPLC recommends verifying your drive’s catalog number and firmware version before ordering. Our technical team can assist with cross-referencing to confirm fitment for your specific unit.

Q3: What is the recommended replacement procedure to minimize production downtime?
For fastest changeover, power down the drive following Rockwell Automation’s lockout/tagout procedure, discharge the DC bus capacitors (minimum 5 minutes), and swap the 315116-A05 board. After installation, perform a drive auto-tune sequence to recalibrate motor parameters for optimal efficiency. Having a pre-tested spare board from ZYPLC’s inventory allows this procedure to be completed within a single maintenance window, minimizing line stoppage impact.

Q4: What does the 12-month warranty cover, and what is the testing process before shipment?
ZYPLC’s 12-month warranty covers functional performance of the 315116-A05 control board under normal operating conditions. Prior to shipment, each board undergoes functional load testing including PWM output verification, communication interface checks, and fault response validation. Units that do not meet Allen-Bradley performance specifications are quarantined and not shipped. Warranty claims are processed with priority support to minimize any impact on your production schedule.
