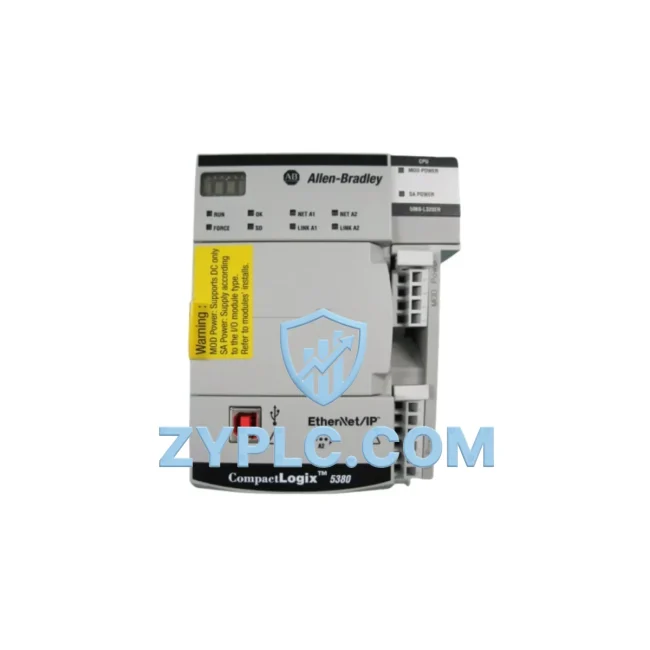

Allen-Bradley 5069-L320ER Energy-Saving PLC CompactLogix 5380

Allen-Bradley 5069-L320ER Energy-Saving PLC for Optimized CompactLogix 5380 Automation

The Allen-Bradley 5069-L320ER is a high-performance CompactLogix 5380 series programmable logic controller engineered for industrial environments where energy efficiency, precise motor control, and production line optimization are mission-critical. Designed to reduce unnecessary power consumption across multi-axis drive systems and distributed I/O architectures, the 5069-L320ER delivers deterministic control with minimal overhead — enabling factories to achieve measurable reductions in energy cost per production cycle.

At its core, the 5069-L320ER leverages dual-core processing and EtherNet/IP-native communication to synchronize control tasks across the production floor without sacrificing scan time performance. When integrated with PowerFlex 525 and PowerFlex 755 variable frequency drives, the controller enables dynamic speed regulation of induction and permanent magnet motors, eliminating the fixed-speed energy waste that accounts for a significant share of industrial electricity consumption. The result is a tightly governed drive system where motor output is matched precisely to load demand — reducing reactive power draw and improving overall power factor.

In distributed automation architectures, the 5069-L320ER coordinates seamlessly with 5069-IB16 digital input modules and 5069-OB16 digital output modules to manage discrete control signals with sub-millisecond response. Analog process variables — such as pressure, flow, and temperature — are captured through 5069-IF8 analog input modules, feeding real-time data into the controller’s closed-loop algorithms. This tight integration between sensing and actuation reduces process variability, shortens settling time, and prevents the energy-intensive overcorrection cycles common in loosely coupled systems.

Efficiency Performance Table

Energy-Aware Automation Architecture

A complete energy-optimized automation cell built around the 5069-L320ER typically spans multiple control layers. At the field level, 1734-IB8 and 1734-OB8 POINT I/O modules — connected via the 1734-AENT EtherNet/IP adapter — extend the controller’s reach to remote equipment clusters without adding dedicated controller hardware, reducing both capital cost and standby power consumption at satellite panels.

For motion-intensive applications such as conveyor indexing, robotic pick-and-place, or precision winding, the 5069-L320ER integrates with Kinetix 5500 servo drives over the CIP Motion protocol. The Kinetix 5500 supports regenerative braking energy recovery, feeding deceleration energy back into the DC bus rather than dissipating it as heat — a direct contribution to system-level energy efficiency. Axis tuning parameters managed through Studio 5000 Logix Designer allow engineers to minimize overshoot and reduce unnecessary motor torque during steady-state operation.

Power quality monitoring is handled upstream by the PowerMonitor 5000, which provides harmonic analysis, power factor measurement, and demand trending data accessible via EtherNet/IP. When this data is surfaced through a PanelView Plus 7 HMI, operators gain real-time visibility into energy consumption by zone, enabling informed decisions about load scheduling and shift-based power management. The 5069-L320ER acts as the integration hub, correlating production throughput data with energy consumption metrics to support continuous improvement initiatives.

For facilities running mixed-protocol environments, the 5069-L320ER supports PROFINET bridging and Modbus TCP via third-party gateways, allowing legacy energy meters and drives to participate in the unified data model without full system replacement. The 5069-FPD field potential distributor further simplifies field wiring by consolidating power distribution to I/O modules, reducing installation complexity and the risk of wiring-related faults that cause unplanned downtime.

Power Optimization in Real Production Lines

In a typical discrete manufacturing environment, the 5069-L320ER contributes to energy reduction across three operational phases: startup, steady-state production, and idle management.

During startup, the controller sequences motor energization through coordinated PowerFlex 525 ramp profiles, preventing inrush current spikes that stress power infrastructure and inflate demand charges. Soft-start profiles are stored in the controller’s non-volatile memory and applied automatically based on production recipe selection — eliminating manual drive parameter adjustments between product changeovers.

During steady-state production, the 5069-L320ER continuously evaluates process feedback from 5069-IF8 analog modules and adjusts drive speed references in real time. On a packaging line, for example, this means the conveyor motor runs at precisely the speed required to maintain line balance — not at a fixed maximum speed with mechanical throttling. The energy savings from this approach compound across multiple drive axes, often yielding 15–30% reductions in motor energy consumption compared to fixed-speed operation.

During idle periods — shift changes, scheduled breaks, or upstream stoppages — the controller executes programmatic output de-energization sequences, placing non-critical actuators and drives into low-power standby modes. Predictive maintenance routines, triggered by vibration and temperature thresholds monitored through connected sensors, allow maintenance teams to schedule interventions during planned downtime rather than responding to failures — reducing both emergency energy consumption and production loss.

All units supplied by ZYPLC undergo pre-shipment functional testing, including I/O verification, communication link validation, and firmware version confirmation. Each 5069-L320ER is backed by a 12-month warranty covering manufacturing defects and operational failures under normal industrial use conditions.

Energy Optimization FAQ

Q1: How does the 5069-L320ER contribute to measurable energy savings on a production line?
The 5069-L320ER enables closed-loop speed control of connected PowerFlex variable frequency drives, matching motor output to actual load demand rather than running at fixed speed. Combined with programmatic idle-state management and soft-start sequencing, facilities typically report 15–30% reductions in motor-related energy consumption after deployment.

Q2: Is the 5069-L320ER compatible with existing CompactLogix 5370 infrastructure?
The CompactLogix 5380 series uses a different backplane and I/O module form factor than the 5370 series. However, Studio 5000 Logix Designer projects can be migrated with appropriate revision updates. 5069-series I/O modules (IB16, OB16, IF8) are required for local expansion, while existing 1734 POINT I/O can be retained via EtherNet/IP adapters such as the 1734-AENT.

Q3: What is the recommended replacement path for aging CompactLogix 5370 controllers?
Rockwell Automation recommends migrating to the CompactLogix 5380 platform for improved processing speed, larger memory capacity, and enhanced EtherNet/IP performance. The 5069-L320ER is a suitable replacement for mid-range 5370 controllers. ZYPLC can assist with compatibility assessment and sourcing of associated 5069-series I/O modules.

Q4: What does the 12-month warranty cover, and what is the testing process before shipment?
Every 5069-L320ER supplied by ZYPLC is tested prior to shipment, including power-on verification, I/O channel functionality checks, EtherNet/IP communication validation, and firmware version confirmation. The 12-month warranty covers manufacturing defects and component failures under normal operating conditions. Warranty claims are processed directly through ZYPLC with replacement or repair turnaround within agreed service timelines.
