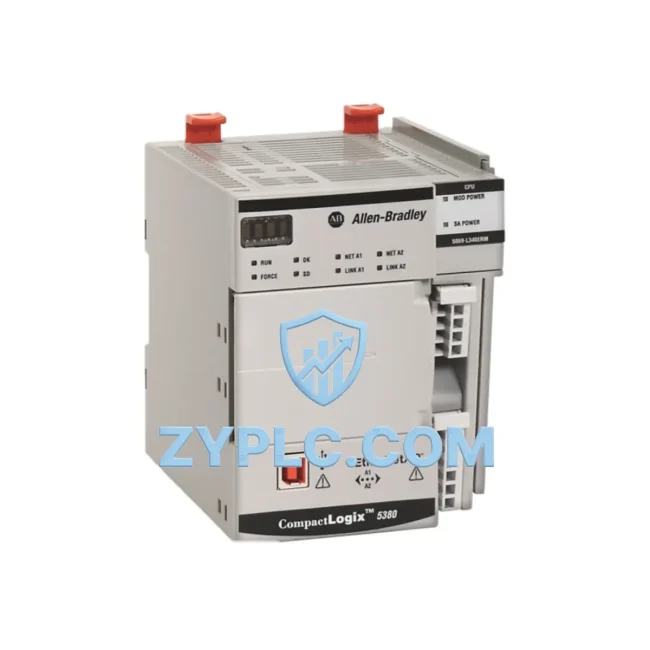

Allen-Bradley 5069-L380ERM Energy-Saving Motion Controller

Allen-Bradley 5069-L380ERM Energy-Saving Motion Controller: Precision Control for Optimized CompactLogix 5380 Automation

The Allen-Bradley 5069-L380ERM is a high-performance EtherNet/IP motion controller from the CompactLogix 5380 series, engineered to deliver measurable energy savings and operational efficiency across demanding industrial automation environments. Designed for manufacturers seeking to reduce power consumption, minimize unplanned downtime, and maximize equipment utilization, the 5069-L380ERM integrates seamlessly into modern energy-aware production architectures — from discrete manufacturing to continuous process control.

With support for up to 31 axes of coordinated motion, the 5069-L380ERM enables precise servo drive management, reducing overcurrent events and eliminating unnecessary motor run time. Its deterministic EtherNet/IP communication backbone ensures real-time data exchange with field devices, drives, and monitoring systems — a critical requirement for closed-loop energy optimization strategies.

Efficiency Performance Table

Energy-Aware Automation Architecture

Achieving meaningful energy reduction in industrial facilities requires more than a single controller — it demands a coordinated system where every component contributes to efficiency. The 5069-L380ERM serves as the motion intelligence hub within a broader energy-aware architecture, working in concert with a range of complementary components.

At the drive layer, the Kinetix 5700 servo drive pairs directly with the 5069-L380ERM via CIP Motion over EtherNet/IP, enabling synchronized multi-axis control with regenerative braking capability — feeding recovered energy back into the DC bus rather than dissipating it as heat. For variable-speed applications such as conveyor systems and pump control, the PowerFlex 755 variable frequency drive integrates seamlessly, allowing the controller to dynamically adjust motor speed based on real-time production demand rather than running at fixed full speed.

On the I/O side, the 5069-IB16 and 5069-OB16 Compact 5000 I/O modules provide high-density digital input/output expansion, enabling the 5069-L380ERM to monitor machine states, detect idle conditions, and trigger energy-saving modes automatically. For analog signal acquisition — such as current transducers and power factor sensors — the 5069-IF8 analog input module delivers 8-channel high-resolution data directly to the controller’s energy management logic.

At the HMI layer, a PanelView Plus 7 operator terminal provides real-time visualization of energy consumption trends, axis utilization rates, and drive efficiency metrics — empowering operators to identify waste and act immediately. The FactoryTalk View SE SCADA platform extends this visibility across the entire plant floor, aggregating data from multiple 5069-L380ERM controllers and associated drives into unified energy dashboards.

For power quality monitoring, the PowerMonitor 5000 energy meter integrates via EtherNet/IP to provide per-circuit power measurement, harmonic analysis, and demand forecasting — giving the control system the data it needs to make intelligent load-shedding decisions. Communication between the 5069-L380ERM and enterprise MES or ERP systems is facilitated through the FactoryTalk Logix Echo software environment and standard CIP data exchange, ensuring that energy KPIs flow seamlessly from the machine level to the business intelligence layer.

Rounding out the architecture, the Stratix 5700 managed Ethernet switch provides deterministic network segmentation, ensuring that time-sensitive CIP Motion traffic is prioritized over standard data traffic — preventing communication jitter that could cause unnecessary axis re-homing cycles and associated energy waste.

Power Optimization in Real Production Lines

In real-world production environments, energy waste rarely comes from a single source. It accumulates through idle motors left running between production cycles, poorly tuned servo axes that overshoot and correct repeatedly, drives operating at fixed speed regardless of load, and unplanned stoppages that force full system restarts. The Allen-Bradley 5069-L380ERM addresses each of these inefficiencies through its coordinated motion control architecture.

Reducing idle energy consumption: The 5069-L380ERM supports programmatic axis hold and safe torque-off sequencing, allowing servo axes to enter low-power standby states during scheduled production gaps — such as shift changes, material replenishment pauses, or recipe changeovers. When integrated with the Kinetix 5700 drive’s safe speed monitoring function, this capability eliminates the need to fully de-energize and re-home axes between cycles, saving both energy and cycle time.

Optimizing production line throughput: Through coordinated multi-axis motion profiles, the 5069-L380ERM eliminates mechanical conflicts and unnecessary deceleration events that waste kinetic energy. Electronic camming and gearing functions allow the controller to synchronize upstream and downstream axes dynamically, maintaining optimal line speed without the energy penalties of mechanical clutches or fixed-ratio gearboxes.

Predictive maintenance and uptime: The controller’s integration with FactoryTalk Analytics and the PowerMonitor 5000 enables continuous monitoring of drive current signatures, axis load profiles, and thermal trends. Deviations from baseline — such as increasing motor current draw indicating bearing wear — trigger maintenance alerts before catastrophic failure occurs. This predictive approach reduces unplanned downtime by up to 30–40% in typical deployments, eliminating the energy-intensive restart sequences associated with emergency repairs.

Inventory and supply assurance: Every 5069-L380ERM unit offered by ZYPLC undergoes pre-shipment functional testing, including communication verification, axis configuration validation, and firmware integrity checks. Units are held in climate-controlled storage to preserve component integrity, and each controller ships with a 12-month warranty covering manufacturing defects and operational failures — giving procurement teams the confidence to plan long-term automation upgrades without spare-parts risk.

Energy Optimization FAQ

Q1: How does the 5069-L380ERM contribute to measurable energy savings on a production line?
The 5069-L380ERM reduces energy consumption through coordinated motion scheduling that minimizes idle axis run time, dynamic speed adjustment via integrated VFD control (e.g., PowerFlex 755), and regenerative energy recovery through compatible Kinetix 5700 servo drives. In multi-axis applications, optimized motion profiles can reduce peak power demand by 15–25% compared to uncoordinated fixed-speed systems.

Q2: Is the 5069-L380ERM compatible with existing CompactLogix 5380 infrastructure?
Yes. The 5069-L380ERM is fully compatible with the CompactLogix 5380 chassis ecosystem, including 5069-series Compact 5000 I/O modules, 5069-PA/PB power supplies, and existing Studio 5000 Logix Designer projects. Migration from a non-ERM CompactLogix 5380 controller typically requires only firmware updates and EtherNet/IP axis configuration — no hardware chassis changes are needed.

Q3: What is the recommended replacement or upgrade path for aging motion controllers?
For facilities running legacy CompactLogix L3x or L4x motion controllers, the 5069-L380ERM offers a direct upgrade path with expanded axis count, higher memory capacity, and dual-port EtherNet/IP for Device Level Ring (DLR) topology — improving network resilience and reducing rewiring costs. ZYPLC’s technical team can assist with compatibility assessments and migration planning.

Q4: What does the 12-month warranty cover, and what is the testing process before shipment?
Every 5069-L380ERM shipped by ZYPLC is covered by a 12-month warranty against manufacturing defects and operational failures under normal use conditions. Prior to shipment, each unit undergoes a multi-point inspection including power-on verification, EtherNet/IP communication testing, firmware version confirmation, and physical condition assessment. Units that do not pass all test criteria are quarantined and not offered for sale.
