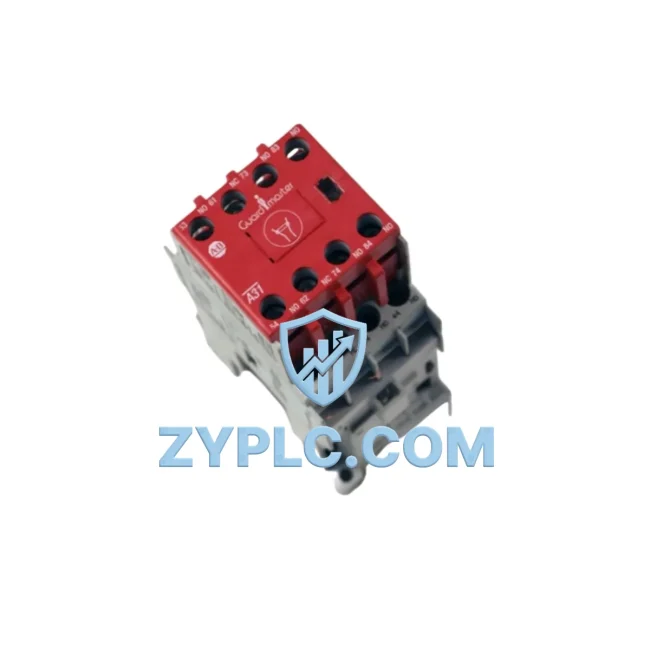

Allen-Bradley 700S-CF620DJC Energy-Saving Safety Relay

Allen-Bradley 700S-CF620DJC Energy-Saving Safety Control Relay: Precision Efficiency Control for Optimized 700S Automation

The Allen-Bradley 700S-CF620DJC is a high-performance safety control relay engineered for demanding industrial environments where energy efficiency, machine uptime, and precise motor control are non-negotiable. As part of Rockwell Automation’s proven 700S series, this relay delivers reliable switching performance that directly contributes to reducing unnecessary energy consumption across production lines — from motor start/stop cycles to safety-critical shutdown sequences that protect both personnel and equipment.

In modern manufacturing, every unnecessary relay actuation, every unplanned stop, and every inefficient motor restart cycle translates into wasted kilowatt-hours and increased operational cost. The 700S-CF620DJC addresses this by providing consistent, low-bounce contact switching that minimizes electrical arcing, extends contact life, and reduces the thermal losses associated with repeated switching under load. When integrated into a well-designed safety circuit, this relay helps production engineers achieve tighter control over machine energy states — ensuring motors and drives are de-energized only when necessary and re-energized with minimal inrush impact.

Efficiency Performance Table

Energy-Aware Automation Architecture

The 700S-CF620DJC does not operate in isolation — its true efficiency value emerges when it is deployed as part of a coordinated automation architecture. In a typical energy-optimized production cell, this relay works alongside a GuardLogix 5580 safety PLC that manages the overall safety state of the machine. The PLC continuously monitors safety inputs and commands the 700S-CF620DJC to open or close circuits based on real-time production logic, ensuring that motors and actuators are only energized when the process demands it.

On the drive side, a PowerFlex 525 AC drive or PowerFlex 755 variable frequency drive is commonly paired with this relay in motor control applications. The relay provides the hardwired safety layer that the drive’s Safe Torque Off (STO) function depends on, allowing the drive to coast motors to a stop without full power disconnection — a technique that significantly reduces mechanical wear and the energy spike associated with full motor restarts. When the 700S-CF620DJC confirms a safe state, the PowerFlex drive can resume operation with a controlled ramp-up, avoiding the high inrush current that wastes energy and stresses the power distribution network.

For energy monitoring at the circuit level, a PowerMonitor 5000 or PowerMonitor 1000 unit installed upstream of the motor control center provides real-time power quality data — voltage, current, power factor, and harmonic distortion — that engineers use to identify inefficient operating conditions. When the 700S-CF620DJC is part of a safety interlock that frequently trips, the PowerMonitor data helps maintenance teams diagnose whether the root cause is a process issue or an electrical anomaly, reducing unnecessary energy waste from repeated fault-and-restart cycles.

I/O expansion is handled through 1734 POINT I/O modules connected to the GuardLogix controller via EtherNet/IP. These modules collect feedback signals from the 700S-CF620DJC’s auxiliary contacts, confirming relay state to the control system and enabling the PLC to log switching events for predictive maintenance analysis. Over time, this data reveals patterns — such as increased switching frequency during certain production shifts — that indicate process inefficiencies or equipment degradation before they cause unplanned downtime.

On the operator interface side, a PanelView Plus 7 HMI displays real-time safety relay status, energy consumption trends, and maintenance alerts. Operators can see at a glance whether the 700S-CF620DJC is in a healthy state, how many switching cycles it has accumulated, and whether any safety zone is consuming more energy than the baseline — enabling proactive intervention rather than reactive repair.

Communication across the system is unified through EtherNet/IP, with the Stratix 5700 managed switch providing the network backbone. This allows the GuardLogix PLC, PowerFlex drives, PowerMonitor units, and POINT I/O modules to share data on a single network, eliminating the latency and data silos that prevent effective energy optimization. The 700S-CF620DJC, as the hardwired safety element, anchors this digital architecture with a physical reliability layer that software alone cannot provide.

Power Optimization in Real Production Lines

Consider a packaging line running three-shift operations. Without a properly integrated safety relay, every emergency stop event results in an uncontrolled motor coast-down followed by a full-voltage restart — a sequence that generates significant inrush current, mechanical shock, and thermal stress on motor windings. By deploying the 700S-CF620DJC in the safety circuit, the line’s safety system can execute controlled stop sequences that allow the PowerFlex drive to perform a decelerated stop before the relay opens the circuit. This single change can reduce per-stop energy consumption by a measurable margin across hundreds of daily stop-start cycles.

In conveyor and material handling applications, the 700S-CF620DJC enables zone-based safety control — where only the affected section of a conveyor is stopped during a safety event, rather than the entire line. This zone isolation approach, coordinated through the GuardLogix safety PLC, keeps productive zones running and reduces the energy cost of restarting a full line from rest. The result is higher equipment utilization, lower energy consumption per unit produced, and a shorter mean time to resume production after a safety event.

Predictive maintenance integration further amplifies these gains. By tracking the switching cycle count of the 700S-CF620DJC through the auxiliary contact feedback logged by the 1734 POINT I/O system, maintenance teams can schedule relay replacement before contact degradation causes nuisance trips. Nuisance trips are among the most energy-wasteful events in a production environment — they halt production, trigger full restart sequences, and often go unanalyzed. Eliminating them through data-driven maintenance scheduling directly improves the energy efficiency of the production line.

Every unit of the 700S-CF620DJC supplied by ZYPLC is tested prior to shipment under simulated load conditions to verify contact resistance, coil pull-in voltage, and release characteristics. This pre-shipment testing ensures that the relay performs to specification from the first switching cycle, avoiding the hidden energy costs of early-life failures and warranty replacements. Stock is maintained for prompt delivery, supporting lean inventory strategies and minimizing production disruption.

Energy Optimization FAQ

Q1: How does the 700S-CF620DJC contribute to energy savings compared to a standard relay?
The 700S-CF620DJC is designed for safety-rated switching with low coil power consumption and minimal contact bounce. In motor control applications, its reliable switching enables controlled stop-start sequences via paired PowerFlex drives, reducing inrush current and thermal losses associated with uncontrolled restarts. Over a full production shift with multiple stop-start cycles, this translates into measurable reductions in energy consumption per unit produced.

Q2: Is the 700S-CF620DJC compatible with existing Rockwell Automation safety systems?
Yes. The 700S-CF620DJC is fully compatible with GuardLogix and CompactLogix safety PLC platforms, SmartGuard 600 controllers, and standard safety circuit architectures. It integrates with 1734 POINT I/O modules for auxiliary contact monitoring and works within EtherNet/IP-based control networks. If you are upgrading from an older 700S variant, contact ZYPLC to confirm cross-reference compatibility with your existing panel design.

Q3: What is the recommended replacement or upgrade path for aging safety relays on my production line?
For lines currently using older Allen-Bradley 700 series or third-party safety relays, the 700S-CF620DJC offers a direct upgrade path with improved contact ratings and safety certification. ZYPLC recommends auditing switching cycle counts and contact resistance on existing relays annually. Relays showing increased contact resistance or nuisance trip frequency should be replaced proactively. Our team can assist with cross-referencing legacy part numbers to current 700S series equivalents.

Q4: What does the 12-month warranty cover, and what is the testing process before shipment?
Every 700S-CF620DJC supplied by ZYPLC carries a 12-month warranty covering manufacturing defects and performance failures under normal operating conditions. Prior to shipment, each unit undergoes functional testing including coil energization verification, contact continuity checks, and release characteristic confirmation. Test records are maintained for traceability. In the event of a warranty claim, ZYPLC provides replacement or credit based on failure analysis. Contact our team at plc.sales@zyplc.com or +86 19859288691 to initiate a warranty inquiry.
