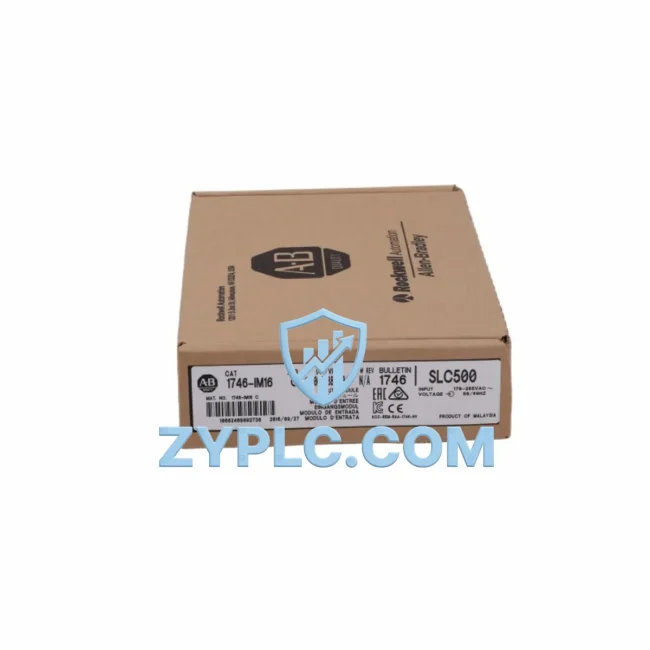

Allen-Bradley AIM16 System-Ready Analog Input Module for SLC 500 Architecture

Allen-Bradley AIM16 System-Ready Analog Input Module for SLC 500 Architecture

In a fully integrated SLC 500 control system, every layer of the architecture depends on precise, reliable signal acquisition. The Allen-Bradley AIM16 Analog Input Module is engineered to fulfill this role at the I/O layer, delivering 16 channels of high-resolution analog input that feed directly into the control logic executed by the SLC 5/04 or SLC 5/05 processor. Rather than functioning as a standalone component, the AIM16 is designed as a contextual element within a broader automation hierarchy — one that connects field instrumentation to the control layer with minimal latency and maximum signal fidelity.

The AIM16 occupies a standard slot in the 1746 modular chassis, sharing the backplane with other I/O modules such as the 1746-OB16 digital output module and the 1746-NI4 analog input module. This co-location on a common backplane ensures that all modules operate under a unified scan cycle managed by the SLC processor, maintaining synchronization across analog and digital signal domains. In process-intensive applications, this synchronization is critical: a temperature transmitter feeding the AIM16 must be read in the same scan window as a flow control output, ensuring that the PID loop executing in the SLC 5/04 CPU responds to real-time process conditions without inter-module timing drift.

At the network layer, the SLC 500 platform communicates via Data Highway Plus (DH+) or EtherNet/IP when paired with a 1761-NET-ENI Ethernet interface or a 1747-SCNR ScanPort adapter. This connectivity allows the AIM16’s channel data to be accessed remotely by SCADA systems, historian servers, or supervisory controllers without interrupting local scan execution. In distributed architectures, the AIM16 can also be deployed in a remote I/O rack connected via the 1747-SN Remote I/O Scanner, extending analog acquisition capability to field panels located far from the main control cabinet.

Power integrity is foundational to analog accuracy. The AIM16 draws its logic power from the 1746-P4 or 1746-P2 power supply module seated in the same chassis, while field-side transmitter power is typically sourced from a dedicated 24 VDC rail. Separating logic and field power prevents ground loops and reduces common-mode noise — a design discipline that becomes especially important when the AIM16 is reading millivolt-level thermocouple signals or 4–20 mA current loops from pressure transmitters in electrically noisy environments such as motor control centers or variable frequency drive (VFD) cabinets.

From a redundancy perspective, the AIM16 supports hot-standby architectures when paired with a redundant SLC 5/05 processor configuration. In such designs, the primary and secondary CPUs continuously synchronize their data tables, ensuring that if the primary processor faults, the secondary assumes control without loss of the analog input values last read by the AIM16. This capability is particularly valued in water treatment, power distribution, and chemical processing applications where process continuity is non-negotiable.

Engineering teams commissioning SLC 500 systems with the AIM16 benefit from its compatibility with RSLogix 500 programming software, which provides channel-level scaling, filter configuration, and diagnostic status bits accessible directly in the ladder logic program. Maintenance personnel can monitor channel health, detect open-wire faults, and verify signal ranges without removing the module from service — a significant advantage in 24/7 production environments where unplanned downtime carries substantial cost.

Long-term inventory availability of the AIM16 is a strategic consideration for facilities operating legacy SLC 500 architectures. ZYPLC maintains tested, verified stock of the AIM16 alongside complementary modules including the 1746-NI8, 1746-NO4I, and 1746-IB16, ensuring that system expansions, spare parts replenishment, and emergency replacements can be fulfilled without extended lead times. All units are covered by a 12-Month Warranty, providing procurement teams and maintenance engineers with confidence in both product quality and post-sale support.

Architecture Specification Table

Coordinated Control System Design

The AIM16 achieves its full value when integrated within a coordinated SLC 500 system architecture. At the control layer, the SLC 5/04 processor (1747-L541) or SLC 5/05 processor (1747-L551) executes the PID and analog scaling routines that consume the AIM16’s channel data. These processors manage the scan cycle that determines how frequently the AIM16’s input registers are updated, making processor selection a direct factor in analog loop response time.

On the same chassis backplane, the 1746-OB16 digital output module handles discrete actuator commands derived from analog setpoint comparisons, while the 1746-NO4I analog output module closes the loop by driving 4–20 mA signals to control valves, variable speed drives, or positioners. The 1746-NI8 thermocouple/RTD input module complements the AIM16 in temperature-intensive applications, providing direct sensor interface for Pt100 RTDs and Type K thermocouples without external signal conditioning.

At the network layer, the 1747-SCNR Remote I/O Scanner enables the AIM16 to be deployed in remote chassis configurations, while the 1761-NET-ENI Ethernet interface bridges the SLC 500 platform to modern EtherNet/IP supervisory networks. For human-machine interface, the PanelView 550 (2711-B5A8) or PanelView Plus 600 terminals connect via DH+ to display real-time analog values read by the AIM16, providing operators with process visibility at the HMI layer. The 1746-P4 power supply anchors the entire chassis, delivering regulated backplane power to the AIM16 and all co-resident modules with sufficient headroom for full I/O loading.

Application in Layered Automation Systems

The AIM16 is deployed across a wide range of industrial sectors where multi-channel analog acquisition is central to process control. In water and wastewater treatment facilities, the AIM16 reads flow, pressure, pH, and turbidity transmitters distributed across pump stations and filtration banks, feeding the SLC 5/04 processor with the real-time data needed to maintain dosing accuracy and regulatory compliance. In oil and gas processing and petrochemical plants, the module’s channel isolation and noise immunity make it suitable for reading pressure and temperature transmitters in hazardous area junction boxes, where signal integrity directly affects safety interlock reliability.

In power generation and distribution substations, the AIM16 monitors transformer temperatures, bus voltages, and load currents, providing the SLC 500 controller with the analog data needed to execute load-shedding and protection logic. Mining and mineral processing operations use the AIM16 in conveyor tension monitoring, crusher load measurement, and flotation cell level control — applications where the module’s 16-channel density reduces cabinet footprint and wiring complexity compared to single-channel alternatives. In food and beverage packaging lines and pharmaceutical manufacturing, the AIM16 supports recipe-driven analog setpoint management, where precise control of fill weights, temperatures, and pressures is essential to product quality and batch traceability.

Architecture Engineering FAQ

Q1: Is the AIM16 compatible with both 1746 fixed and modular SLC 500 chassis configurations?
The AIM16 is designed for the 1746 modular chassis family and occupies a standard I/O slot. It is not compatible with fixed SLC 500 controllers (SLC 5/01 fixed units). For modular chassis configurations using the 1746-A4, 1746-A7, 1746-A10, or 1746-A13 chassis, the AIM16 can be installed in any available slot without restriction, provided the chassis power supply (1746-P2 or 1746-P4) has sufficient current capacity to support the module’s backplane draw alongside all co-resident modules.

Q2: How does the AIM16 behave in a redundant SLC 5/05 processor architecture, and will analog data be preserved during a failover event?
In a hot-standby redundant SLC 5/05 configuration, the primary and secondary processors continuously synchronize their data files, including the input image table populated by the AIM16. During a failover, the secondary processor assumes control with the last synchronized analog values intact, preventing process upsets caused by stale or zeroed input data. Engineers should verify that the redundancy module firmware version supports the AIM16’s channel count and update rate to ensure synchronization latency remains within the process loop’s acceptable response window.

Q3: What does the 12-Month Warranty cover, and how does ZYPLC support long-term spare parts availability for legacy SLC 500 systems?
All AIM16 units supplied by ZYPLC are tested, verified, and covered by a 12-Month Warranty against manufacturing defects and functional failures under normal operating conditions. ZYPLC maintains ongoing inventory of the AIM16 and complementary SLC 500 modules to support facilities operating legacy architectures beyond the original manufacturer’s active production period. For procurement teams managing multi-year maintenance contracts, ZYPLC offers volume reservation and priority fulfillment arrangements. Contact our technical sales team to discuss spare parts planning, warranty terms, and Contextual Integration support for your specific SLC 500 system configuration.
