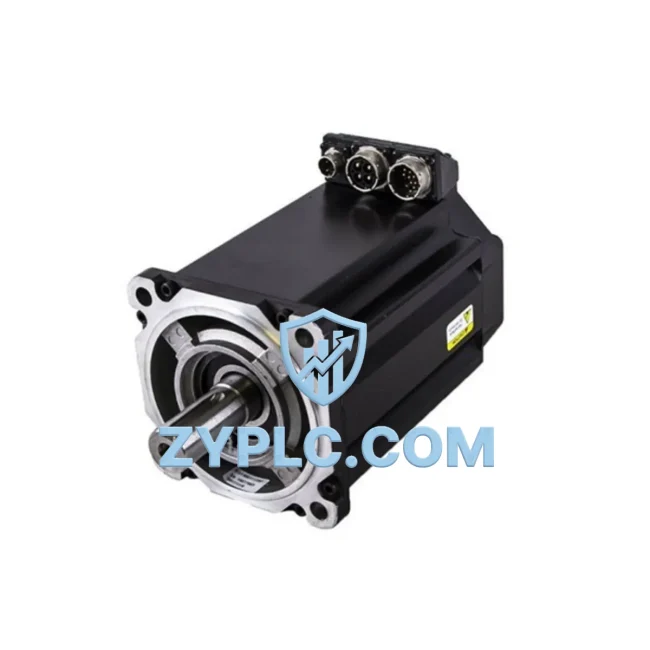

Allen-Bradley MPL-B230P-EJ44AA System-Ready Servo Motor for Kinetix Architecture
In modern layered automation systems, every component must perform a defined role within a coherent control hierarchy. The Allen-Bradley MPL-B230P-EJ44AA servo motor is engineered to fulfill that role with precision — serving as the mechanical execution layer in Rockwell Automation’s Kinetix motion control architecture. Whether deployed in a standalone machine cell or integrated into a plant-wide control network, this MPL-Series servo motor delivers the torque density, feedback resolution, and system compatibility that demanding industrial applications require.
The MPL-B230P-EJ44AA belongs to the Allen-Bradley MPL (Medium Power Low Inertia) servo motor family, designed specifically for use with Kinetix servo drives such as the Kinetix 5700, Kinetix 6500, and Kinetix 350 platforms. Its 230V AC input rating, high-resolution encoder feedback, and stainless-steel shaft option make it a preferred choice for precision motion tasks in packaging, assembly, material handling, and process control environments.
Architecture Specification Table
| Parameter |
Specification |
| System Role |
Servo Execution Layer — Mechanical Output in Kinetix Motion Architecture |
| SKU / Part Number |
MPL-B230P-EJ44AA |
| Brand / Manufacturer |
Allen-Bradley (Rockwell Automation) |
| Series |
MPL — Medium Power Low Inertia Servo Motor |
| Voltage Rating |
230V AC |
| Feedback Type |
High-Resolution Encoder (Multi-turn Absolute) |
| Shaft Configuration |
Stainless Steel, Keyed |
| Mounting Style |
Flange Mount (IEC/NEMA Compatible) |
| Communication / Interface |
Compatible with Kinetix SERCOS, EtherNet/IP Motion Bus |
| Protection Rating |
IP65 (Shaft Seal Option Available) |
| Operating Temperature |
0°C to +40°C Ambient |
| Compatible Drives |
Kinetix 5700, Kinetix 6500, Kinetix 350, Kinetix 2000 |
| Warranty |
12-Month Warranty — Tested & Verified Before Shipment |
| Availability |
In Stock — Ready to Ship |
Coordinated Control System Design
The MPL-B230P-EJ44AA does not operate in isolation — it is the terminal execution point of a carefully coordinated control architecture. At the top of the hierarchy, a ControlLogix L7x or CompactLogix L3x CPU manages motion tasks through Rockwell’s Logix Designer environment, issuing coordinated motion commands via the EtherNet/IP motion bus or SERCOS fiber ring. These commands flow downstream to a Kinetix 5700 multi-axis servo drive, which interprets the trajectory profile and delivers precisely regulated current to the MPL-B230P-EJ44AA motor windings.
The motor’s high-resolution multi-turn absolute encoder feeds real-time position and velocity data back to the drive, closing the servo loop at microsecond intervals. This feedback chain is critical for applications requiring sub-millimeter repeatability — such as pick-and-place robotics, label applicators, or servo-driven cam mechanisms. The Kinetix 5700 drive communicates axis status, fault codes, and thermal data back to the ControlLogix CPU, which in turn surfaces this information on a PanelView Plus 7 HMI for operator visibility.
On the power distribution side, the system relies on an Allen-Bradley 2198-P031 bus power supply to provide the shared DC bus voltage that feeds multiple Kinetix 5700 drive modules simultaneously — reducing cabinet footprint and enabling regenerative energy sharing between axes. Upstream, a 1606-XLP power supply conditions 24VDC logic power for the control backplane, I/O modules, and safety relays. Point I/O modules such as the 1734-IB8 and 1734-OB8 handle discrete signal interfacing for limit switches, proximity sensors, and pneumatic valve outputs that coordinate with the servo motion sequence.
For safety-critical applications, the MPL-B230P-EJ44AA integrates with Allen-Bradley GuardLogix safety controllers and 2198-D032-ERS3 safe-speed monitoring drives, enabling SIL 2 / PLd safe torque-off (STO) and safe limited speed (SLS) functions without external safety relays. This architecture is increasingly common in collaborative robot cells, press brake systems, and automated guided vehicle (AGV) docking stations.
Application in Layered Automation Systems
Across industries, the MPL-B230P-EJ44AA has proven its value in layered automation deployments where system consistency and long-term maintainability are paramount.
In packaging and bottling lines, this servo motor drives indexing conveyors, rotary fillers, and capping heads — where precise angular positioning and rapid cycle times are non-negotiable. Paired with a Kinetix 5700 drive and a ControlLogix L73 CPU, it enables electronic line shafting that replaces mechanical gearboxes with virtual cam profiles, dramatically reducing changeover time.
In automotive body assembly, MPL-B230P-EJ44AA motors power servo weld guns, part transfer units, and vision-guided pick stations. The motor’s low inertia ratio allows aggressive acceleration profiles without compromising positional accuracy, while the IP65 rating protects against weld spatter and coolant mist.
In petrochemical and process control environments, the motor is deployed in metering pump drives and valve actuator systems where explosion-proof enclosures and SIL-rated safety functions are required. Integration with PlantPAx DCS via EtherNet/IP allows the servo axis to participate in process interlocks and batch sequencing managed at the SCADA level.
In water treatment and utilities, the MPL-B230P-EJ44AA drives chemical dosing pumps and filter backwash mechanisms, with remote diagnostics accessible through FactoryTalk View SE SCADA. Predictive maintenance data — including motor temperature trends and encoder health — is logged to FactoryTalk Historian for long-term asset management.
In mining and mineral processing, the motor’s robust construction and wide operating temperature range support conveyor positioning systems and ore sampling mechanisms in harsh, dusty environments where reliability between maintenance intervals is critical.
All units supplied by ZYPLC are sourced from verified channels, subjected to pre-shipment functional testing, and covered by a 12-Month Warranty. Stock is maintained for rapid dispatch to minimize production downtime.
Architecture Engineering FAQ
Q1: Is the MPL-B230P-EJ44AA compatible with both Kinetix 5700 and older Kinetix 6500 drive platforms?
Yes. The MPL-B230P-EJ44AA is compatible with multiple generations of Allen-Bradley Kinetix servo drives, including the Kinetix 5700 (2198-Dxxx), Kinetix 6500 (2094-BCxx), Kinetix 350 (2097-Vxxx), and Kinetix 2000 series. The motor’s feedback connector and cable pinout must match the drive’s feedback port specification — ZYPLC can advise on the correct feedback cable assembly (e.g., 2090-XXNFMF-Sxx) for your specific drive revision.
Q2: How does this motor integrate into a redundant or safety-rated control architecture?
The MPL-B230P-EJ44AA supports Safe Torque Off (STO) when paired with SIL 2-rated Kinetix drives such as the 2198-D032-ERS3. For full redundancy at the controller level, it operates seamlessly under a GuardLogix 5580 safety controller, which manages both standard motion tasks and safety-rated axis monitoring within a single Logix project. No additional safety relays are required for STO implementation, simplifying cabinet design and reducing wiring complexity.
Q3: What pre-shipment testing is performed, and what does the 12-Month Warranty cover?
Every MPL-B230P-EJ44AA unit dispatched by ZYPLC undergoes electrical insulation testing, encoder signal verification, and rotational run-in testing prior to shipment. The 12-Month Warranty covers manufacturing defects, encoder failure, winding faults, and bearing degradation under normal operating conditions. Warranty claims are supported with direct technical assistance and expedited replacement to minimize your system downtime. Contact our team at plc.sales@zyplc.com or +86 19859288691 for warranty registration and support.
