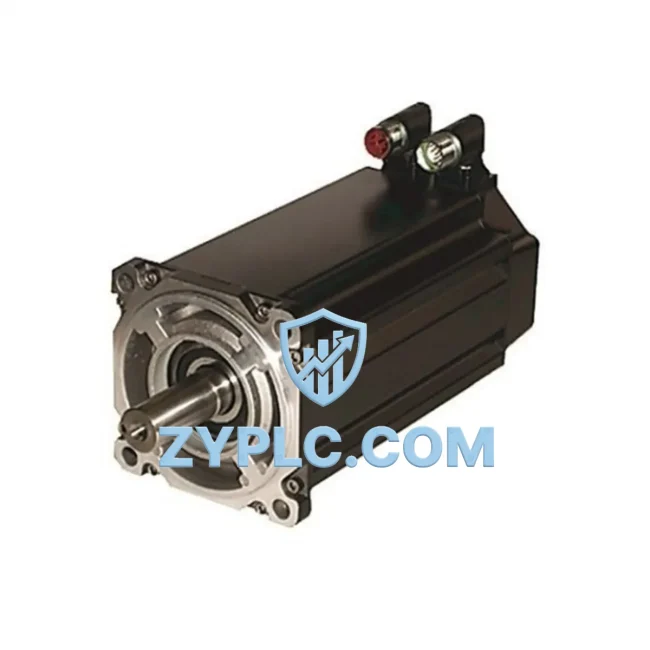

Allen-Bradley MPL-B310P-MJ74AA Energy-Saving Servo Motor

Allen-Bradley MPL-B310P-MJ74AA Energy-Saving Servo Motor: Precision Energy Control for Optimized MPL Series Automation

The Allen-Bradley MPL-B310P-MJ74AA is a high-efficiency, permanent-magnet servo motor from Rockwell Automation’s MPL (Medium Power Low-inertia) Series, engineered to deliver precise torque control, minimal energy waste, and reliable continuous-duty performance in demanding industrial automation environments. Designed to integrate seamlessly with the Kinetix 5700 and Kinetix 6500 servo drive platforms, this motor enables manufacturers to achieve measurable reductions in energy consumption while maintaining tight control over production line throughput and cycle time.

In modern manufacturing, energy efficiency is not a secondary consideration — it is a core operational metric. The MPL-B310P-MJ74AA addresses this directly through its low-inertia rotor design, which reduces the energy required to accelerate and decelerate loads during high-cycle-rate operations. This translates to lower peak current draw, reduced heat generation, and extended drive and motor service life — all of which contribute to lower total cost of ownership across the production lifecycle.

Efficiency Performance Table

Energy-Aware Automation Architecture

The MPL-B310P-MJ74AA does not operate in isolation — its energy efficiency is fully realized when integrated within a coordinated automation architecture. In a typical Kinetix-based motion control system, the motor is paired with a Kinetix 5700 dual-axis servo drive, which manages regenerative energy recovery during deceleration phases. Rather than dissipating braking energy as heat through a resistor, the Kinetix 5700 shared DC bus topology returns this energy to the bus, where it can be consumed by other axes accelerating simultaneously — a critical advantage in multi-axis gantry, pick-and-place, and conveyor indexing applications.

At the control layer, a CompactLogix 5380 or ControlLogix 5580 PLC coordinates motion profiles through the Integrated Motion on EtherNet/IP architecture. This eliminates the need for a separate motion network, reducing wiring complexity and enabling deterministic, synchronized axis control with sub-millisecond update rates. The EtherNet/IP backbone also carries real-time diagnostic data — motor temperature, encoder position, drive bus voltage, and fault codes — directly to the controller and upstream SCADA or MES systems without additional hardware.

For energy monitoring at the machine and line level, a PowerMonitor 5000 or PowerMonitor 1000 power quality meter can be integrated on the same EtherNet/IP network. These devices capture true power factor, harmonic distortion, and per-phase energy consumption, providing the granular data needed to identify inefficiencies in motor loading, identify oversized drive configurations, and validate the energy savings achieved by switching to low-inertia servo technology.

On the I/O side, a 1734 POINT I/O or 1756 ControlLogix I/O module handles discrete and analog signals from proximity sensors, load cells, and temperature transducers mounted on the driven mechanism. This data feeds back into the motion program, enabling adaptive speed and torque profiles that respond to actual load conditions rather than fixed worst-case parameters — a key strategy for reducing unnecessary energy consumption during partial-load cycles.

For operator interaction and energy KPI visualization, a PanelView Plus 7 HMI displays real-time motor efficiency, cycle counts, energy consumption per part, and alarm status. Operators can adjust speed references and torque limits directly from the HMI, enabling line-level energy optimization without engineering intervention. When combined with a Stratix 5700 managed Ethernet switch for network segmentation and a 1606-XLP power supply for 24VDC control circuit reliability, the complete system forms a robust, energy-aware automation cell built around the MPL-B310P-MJ74AA as its primary motion element.

Power Optimization in Real Production Lines

In high-cycle packaging and assembly lines, the MPL-B310P-MJ74AA’s low-inertia rotor enables faster settling times at target positions, which directly reduces the dwell time between motion segments. Shorter dwell times mean higher throughput at the same or lower energy input per cycle — a compounding efficiency gain that becomes significant at production volumes of thousands of cycles per shift.

In applications where the driven load varies significantly — such as cam-follower mechanisms, eccentric press drives, or variable-pitch conveyor systems — the motor’s high-resolution multi-turn encoder provides the position feedback accuracy needed for the Kinetix drive to apply precise torque compensation. This prevents the over-torquing that commonly occurs with open-loop or low-resolution feedback systems, where drives apply excess current to guarantee position accuracy under worst-case load assumptions. Eliminating this over-torquing margin directly reduces RMS current draw and motor heating, extending bearing and winding life.

Predictive maintenance integration is another key energy optimization lever. By monitoring motor winding temperature via the drive’s thermal model and comparing actual vs. commanded torque over time, the Kinetix 5700 can detect developing mechanical faults — bearing wear, coupling misalignment, or load imbalance — before they cause unplanned downtime. Unplanned stops are among the highest energy-cost events in a production line, as they require full system restart cycles, purge sequences, and quality inspection holds that consume energy without producing output. Early fault detection through the MPL-B310P-MJ74AA’s integrated diagnostics directly reduces this hidden energy cost.

All units supplied by ZYPLC are sourced from verified supply channels, subjected to functional load testing prior to shipment, and covered by a 12-month warranty. In-stock availability ensures that replacement or expansion units can be dispatched immediately, minimizing the production downtime associated with motor replacement events.

Energy Optimization FAQ

Q1: How much energy can the MPL-B310P-MJ74AA save compared to a standard induction motor in the same application?
In servo-controlled applications with frequent start-stop cycles, the MPL-B310P-MJ74AA’s low-inertia design and permanent magnet construction typically deliver 20–40% lower energy consumption compared to equivalently rated induction motors operating under VFD control. The exact saving depends on cycle rate, load profile, and the degree to which regenerative energy recovery is implemented via the Kinetix shared DC bus.

Q2: Is the MPL-B310P-MJ74AA compatible with existing Kinetix 6000 installations, or does it require a Kinetix 5700 drive?
The MPL-B310P-MJ74AA is compatible with Kinetix 6000, Kinetix 6500, and Kinetix 5700 servo drives, provided the drive’s continuous and peak current ratings match the motor’s requirements. The motor uses a standard Kinetix feedback connector (MJ74 suffix = 2090-series feedback cable), making it a direct replacement in most existing MPL-series installations without cable or drive parameter changes beyond motor model selection in the Logix Designer software.

Q3: What is the recommended replacement and testing procedure when substituting the MPL-B310P-MJ74AA into a running production line?
ZYPLC recommends a three-step process: (1) verify drive firmware compatibility and update if required; (2) perform a motor autotune sequence in the Kinetix drive to establish accurate inertia and friction compensation parameters for the new motor; (3) run a reduced-speed commissioning cycle to validate position accuracy and thermal performance before returning to full production speed. All ZYPLC-supplied units are pre-tested at rated load, so incoming inspection can be limited to visual and connector checks.

Q4: What does the 12-month warranty cover, and what is the process for warranty claims?
The 12-month warranty covers defects in materials and workmanship under normal operating conditions, including encoder failure, winding insulation breakdown, and bearing failure not attributable to installation error or external contamination. To initiate a warranty claim, contact ZYPLC at [email protected] or +86 19859288691 with the unit serial number, fault description, and application details. Replacement units are dispatched from stock to minimize production impact.
