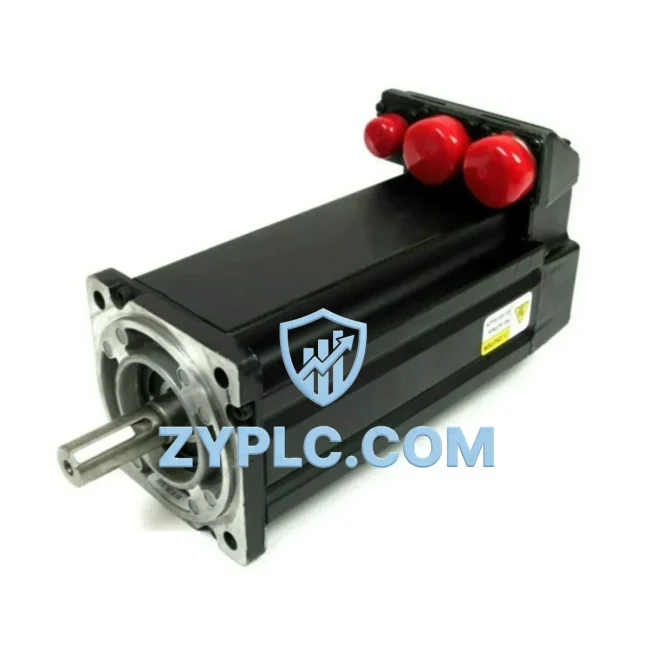

Allen-Bradley MPL-B330P-SJ24AA Energy-Saving Servo Motor

Allen-Bradley MPL-B330P-SJ24AA Energy-Saving Servo Motor for Optimized Kinetix Automation

The Allen-Bradley MPL-B330P-SJ24AA is a high-efficiency, permanent-magnet servo motor engineered for demanding industrial automation environments where energy performance, precision motor control, and production line throughput are mission-critical. Designed as a core component within the Kinetix servo drive ecosystem, this motor delivers exceptional torque density and low-loss operation, enabling factories to reduce idle energy consumption, minimize heat generation, and extend mean time between maintenance intervals. Whether deployed in packaging machinery, CNC machining centers, material handling conveyors, or robotic assembly cells, the MPL-B330P-SJ24AA consistently supports energy-aware automation architecture without compromising dynamic response or positional accuracy.

Efficiency Performance Table

Energy-Aware Automation Architecture

The MPL-B330P-SJ24AA is purpose-built to integrate seamlessly into a layered, energy-aware automation architecture. At the drive level, it pairs directly with the Kinetix 5500 servo drive or the multi-axis Kinetix 5700 drive system, both of which support shared DC bus topology. This shared bus architecture allows regenerative energy from decelerating axes — such as a vertical load lowering on a pick-and-place arm — to be redistributed to accelerating axes on the same bus, dramatically reducing net energy draw from the utility supply. When combined with a PowerFlex 755 variable frequency drive managing auxiliary conveyor motors on the same production cell, the overall system energy footprint is measurably reduced.

At the controller level, the MPL-B330P-SJ24AA operates under coordinated motion profiles programmed in Studio 5000 Logix Designer running on a ControlLogix L8x or CompactLogix 5380 PLC. These controllers execute Integrated Motion on EtherNet/IP (IMC), enabling sub-millisecond position loop closure and adaptive velocity feedforward that eliminates unnecessary motor hunting — a common source of wasted electrical energy in poorly tuned servo systems. The EtherNet/IP backbone also carries real-time diagnostic data from the motor’s absolute encoder back to the controller, where it feeds into predictive maintenance logic without requiring additional wiring or dedicated sensor networks.

For energy monitoring at the panel level, the system benefits from integration with a PowerMonitor 5000 power quality meter, which tracks per-phase current, power factor, harmonic distortion, and kilowatt-hour consumption at the drive input. This data is surfaced through a PanelView Plus 7 HMI, giving operators and energy managers a live view of motor loading efficiency and enabling them to identify underloaded axes that represent opportunities for motion profile optimization. When the MPL-B330P-SJ24AA is operating below 40% of its continuous stall torque rating for extended periods, the HMI dashboard can flag this condition, prompting engineers to re-evaluate gearing ratios or load balancing across the production cell.

On the I/O side, a 1734 POINT I/O module cluster handles discrete feedback from proximity sensors, safety interlocks, and thermal switches mounted near the motor. This distributed I/O architecture keeps field wiring short and reduces voltage drop losses across long cable runs — a detail that matters in large-footprint facilities where servo axes may be located 50 meters or more from the main control panel. The 1734-AENTR EtherNet/IP adapter bridges these I/O nodes back to the ControlLogix system with deterministic scan times, ensuring that energy-saving idle states and sleep modes are triggered and released with precise timing relative to upstream and downstream process events.

Power Optimization in Real Production Lines

In a typical high-speed packaging line running three shifts, servo motors account for a significant share of total electrical consumption. The MPL-B330P-SJ24AA addresses this through several complementary mechanisms. First, its low-inertia rotor design reduces the energy required to accelerate and decelerate between pick cycles, directly shortening cycle time while lowering per-cycle energy cost. A line running 120 picks per minute with a 15% reduction in acceleration energy translates to measurable kilowatt-hour savings over a production year.

Second, the motor’s high-resolution absolute encoder eliminates the need for homing routines at startup. In facilities where power interruptions are common, traditional incremental encoder systems require full homing sequences after every restart — sequences that consume time, wear mechanical hard stops, and delay production resumption. The MPL-B330P-SJ24AA retains absolute position through power loss, allowing the Kinetix 5500 drive to resume motion immediately upon power restoration, reducing unplanned downtime and the associated energy cost of restarting cold equipment.

Third, the motor’s thermal management characteristics support predictive maintenance scheduling. Because the MPL-B330P-SJ24AA runs cooler under equivalent load conditions compared to older induction motor alternatives, bearing lubricant degradation is slower, winding insulation aging is reduced, and the intervals between planned maintenance events can be extended. Maintenance teams using FactoryTalk Analytics or a third-party SCADA system can trend motor temperature data over weeks and months, identifying gradual efficiency degradation before it results in unplanned failure and emergency production stops — the most energy-intensive and costly events in any manufacturing operation.

Every unit of the MPL-B330P-SJ24AA supplied by ZYPLC undergoes a full outgoing functional test prior to shipment, verifying encoder integrity, winding resistance balance, insulation resistance, and no-load current draw. This pre-shipment validation ensures that the motor arrives at the customer’s facility ready for immediate commissioning, eliminating the energy and labor cost of troubleshooting a defective unit after installation. All units are covered by a 12-month warranty from the date of shipment, with in-stock availability supporting rapid delivery to minimize production line downtime.

Energy Optimization FAQ

Q1: How does the MPL-B330P-SJ24AA contribute to measurable energy savings compared to a standard induction motor?
The MPL-B330P-SJ24AA uses a permanent magnet rotor that eliminates rotor copper losses present in induction motors. Combined with the Kinetix drive’s regenerative braking capability and precise velocity control, total system energy consumption can be reduced by 20–40% in variable-speed applications compared to fixed-speed induction motor alternatives. Actual savings depend on duty cycle, load profile, and system configuration.

Q2: Which Kinetix drives and PLC platforms are compatible with this motor?
The MPL-B330P-SJ24AA is compatible with the Kinetix 5500, Kinetix 5700, and Kinetix 6500 servo drives. It operates under Integrated Motion on EtherNet/IP when controlled by a ControlLogix or CompactLogix PLC running Studio 5000 Logix Designer. Motor configuration data (motor feedback type, inertia, torque constants) is stored in the drive and auto-configured via the Rockwell Automation motor catalog database.

Q3: Can this motor replace an older MPL-series or TL-series servo motor without major system redesign?
In most cases, yes. The MPL-B330P-SJ24AA follows standard Kinetix mounting and feedback interface conventions. If replacing an older MPL-series motor of equivalent frame size and torque rating, the mechanical interface, feedback cable, and power cable connectors are typically compatible. Drive parameters may require re-tuning via the Kinetix drive’s auto-tune function. ZYPLC recommends verifying the replacement motor’s inertia ratio against the existing load before commissioning.

Q4: What does the 12-month warranty cover, and what is the pre-shipment test process?
The 12-month warranty covers defects in materials and workmanship under normal operating conditions. Prior to shipment, every MPL-B330P-SJ24AA unit undergoes a full outgoing inspection including encoder signal verification, winding resistance measurement, insulation resistance testing (Megger test), and no-load run test. A test report is available upon request. Warranty claims are processed through ZYPLC’s technical support team at [email protected].
