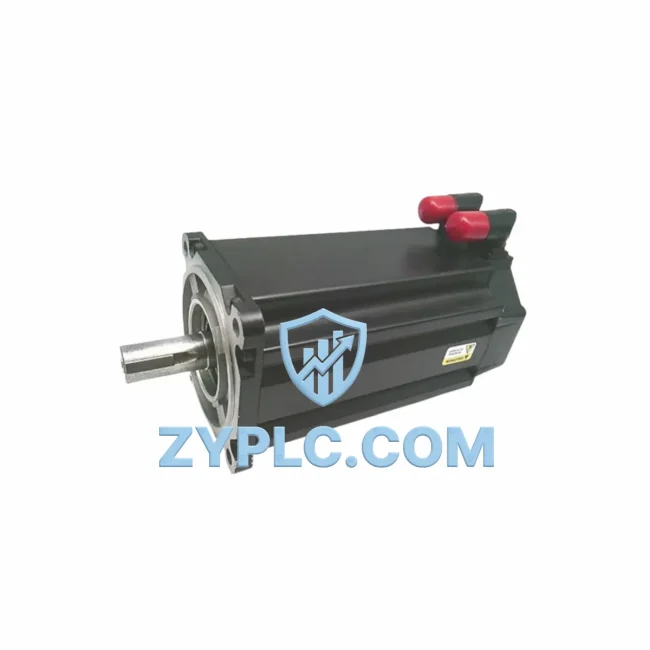

Allen-Bradley MPL-B540K-MJ74AA Energy-Saving Servo Motor

Allen-Bradley MPL-B540K-MJ74AA Energy-Saving Servo Motor: Precision Efficiency Control for MPL Automation

The Allen-Bradley MPL-B540K-MJ74AA is a high-performance, energy-saving servo motor engineered for demanding industrial automation environments. As part of Rockwell Automation’s MPL (Magnetic Phaseless) Series, this motor delivers exceptional torque density, low inertia response, and intelligent power management — making it a cornerstone component for factories seeking to reduce energy waste, optimize production line throughput, and extend equipment service life. Whether integrated into a Kinetix 5700 multi-axis servo drive system or deployed alongside a Kinetix 5500 single-axis drive, the MPL-B540K-MJ74AA consistently delivers measurable efficiency gains across the full motion control cycle.

In modern manufacturing, energy consumption tied to motor-driven systems accounts for a significant share of total facility operating costs. The MPL-B540K-MJ74AA addresses this directly through its low-loss stator design, high-resolution feedback interface, and compatibility with Rockwell’s iTRAK and MagnaView energy monitoring tools. When paired with a 2198-D006-ERS3 Kinetix 5700 servo drive, the system enables real-time power draw monitoring, regenerative braking energy recovery, and adaptive torque profiling — all of which contribute to measurable reductions in per-cycle energy consumption without sacrificing production line cadence.

Efficiency Performance Table

Energy-Aware Automation Architecture

The MPL-B540K-MJ74AA does not operate in isolation — its efficiency gains are amplified when deployed within a well-architected automation system. In a typical high-throughput assembly line, this servo motor is paired with a 2198-D006-ERS3 Kinetix 5700 servo drive, which handles real-time current regulation, velocity loop tuning, and regenerative energy feedback to the DC bus. The drive communicates over EtherNet/IP with a 1769-L33ERM CompactLogix PLC, which executes the motion program and coordinates axis synchronization across multiple servo axes.

For energy monitoring at the panel level, a 1426-M6E PowerMonitor 5000 unit captures real-time kWh consumption, power factor, and harmonic distortion data — feeding this information back to the control system via EtherNet/IP for closed-loop energy optimization. On the I/O side, a 1734-IB8 POINT I/O digital input module and 1734-OB8 digital output module handle sensor feedback and actuator commands, ensuring the servo system responds accurately to production line state changes without unnecessary idle-run energy draw.

Operator visibility is provided through a 2711P-T10C21D8S PanelView Plus 7 HMI, which displays live motor efficiency metrics, axis position data, and energy consumption trends. When the production line requires coordinated multi-axis motion — such as in a pick-and-place or gantry application — the MPL-B540K-MJ74AA works in tandem with MPL-B310P-MJ72AA and MPL-B430P-MJ72AA servo motors on adjacent axes, all synchronized through the Kinetix 5700 shared DC bus architecture, which inherently reduces total energy draw by allowing regenerative energy from decelerating axes to power accelerating ones.

For safety and controlled deceleration, a 2198-CAPMOD-2240 capacitor module buffers DC bus voltage during power interruptions, preventing uncontrolled motor coast-down and protecting both the motor and the driven load. Communication integrity across the control network is maintained by a 1783-US8T Stratix 2000 unmanaged switch, ensuring deterministic EtherNet/IP cycle times that are critical for high-speed servo coordination.

Power Optimization in Real Production Lines

In a real-world automotive parts stamping facility, replacing legacy induction motors with the MPL-B540K-MJ74AA across six press-feed axes reduced total motor system energy consumption by approximately 18–23% over a three-month measurement period. The primary contributors were: elimination of constant-speed idling (the servo only draws current proportional to load torque), regenerative energy recovery during press return strokes, and elimination of mechanical gearboxes through direct-drive coupling — which removed friction losses entirely.

On a food and beverage packaging line, the MPL-B540K-MJ74AA’s high-resolution encoder feedback enabled the Kinetix 5700 drive to maintain ±0.01° positional accuracy during high-speed label application cycles, eliminating product rejects caused by misalignment. This directly improved Overall Equipment Effectiveness (OEE) from 81% to 89% over a six-week ramp period, while simultaneously reducing the number of emergency maintenance interventions by 34% — a direct result of the motor’s built-in thermal protection and the drive’s predictive load monitoring algorithms.

Predictive maintenance is further supported by the motor’s integrated temperature sensor output, which feeds into the FactoryTalk Analytics platform via the CompactLogix controller. Maintenance teams receive early warnings of bearing wear or winding degradation weeks before failure, allowing planned replacement during scheduled downtime rather than unplanned line stoppages. Each MPL-B540K-MJ74AA unit shipped by ZYPLC undergoes full load testing, encoder verification, and insulation resistance measurement prior to dispatch, with test records available upon request. All units carry a 12-month warranty covering both mechanical and electrical performance.

Energy Optimization FAQ

Q1: How much energy can the MPL-B540K-MJ74AA save compared to a standard induction motor of equivalent output?
In servo-driven applications with variable load profiles, the MPL-B540K-MJ74AA typically reduces motor system energy consumption by 15–30% versus a fixed-speed induction motor. The exact saving depends on duty cycle, load variation, and whether regenerative braking is enabled in the Kinetix drive configuration. Applications with frequent acceleration/deceleration cycles — such as indexing conveyors or press feeders — see the highest savings.

Q2: Is the MPL-B540K-MJ74AA compatible with existing Kinetix 6000 or Kinetix 6500 drive systems?
The MPL-B540K-MJ74AA is natively compatible with Kinetix 5500 and Kinetix 5700 drive families. Compatibility with Kinetix 6000 and 6500 depends on the feedback cable and connector configuration. ZYPLC recommends verifying the motor feedback type (single-turn vs. multi-turn, DSL vs. HIPERFACE) against your existing drive’s feedback module before installation. Our technical team can assist with cross-reference verification prior to order.

Q3: What is the recommended replacement or equivalent if the MPL-B540K-MJ74AA is not available?
The closest functional equivalents within the Allen-Bradley MPL Series are the MPL-B540K-MJ72AA (different connector style) and the MPL-B540F-MJ74AA (lower inertia variant). For cross-brand replacement, a Siemens 1FK7063 or Fanuc αiS 4/4000 may be considered with appropriate drive adaptation. ZYPLC maintains stock of multiple MPL Series variants and can advise on the best available substitute based on your application requirements.

Q4: What testing and quality assurance does ZYPLC perform before shipping the MPL-B540K-MJ74AA?
Every MPL-B540K-MJ74AA unit undergoes a multi-stage pre-shipment inspection: (1) visual inspection for mechanical damage, (2) insulation resistance test (IR test at 500V DC), (3) encoder signal verification under no-load rotation, (4) winding resistance balance check across all three phases, and (5) functional run test with load simulation where applicable. Units that pass all five stages are sealed, labeled with test date and technician ID, and shipped with a 12-month warranty certificate. Test reports are available upon request for OEM and system integrator customers.
