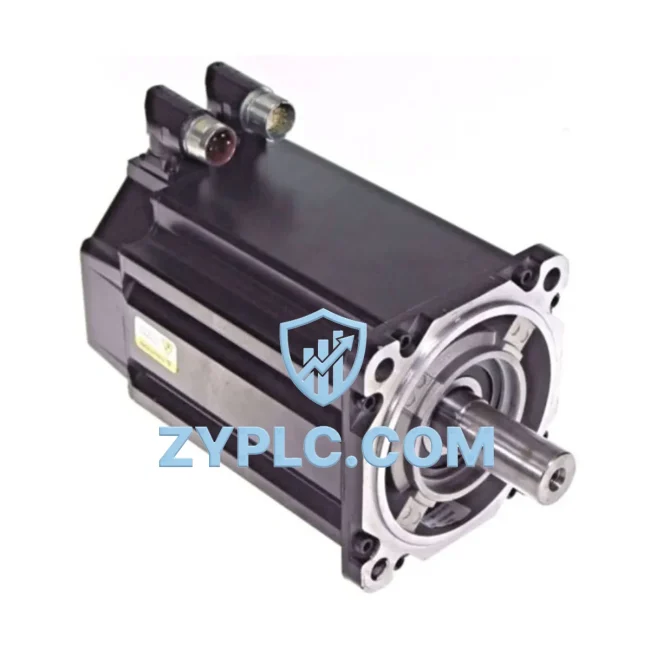

Allen-Bradley MPL-B540K-MK72AA System-Ready Servo Motor for Kinetix Architecture

Allen-Bradley MPL-B540K-MK72AA System-Ready Servo Motor for Kinetix Control Architecture

The Allen-Bradley MPL-B540K-MK72AA is a medium-frame, brushless servo motor engineered for seamless integration within Rockwell Automation’s Kinetix servo drive platform. Rather than functioning as a standalone component, this motor is designed to operate as a precision actuator within a fully coordinated motion control architecture — one that spans the control layer, I/O layer, drive layer, network layer, and human-machine interface. Understanding its role within this layered system is essential for engineers specifying components for manufacturing lines, packaging systems, material handling conveyors, or process automation cells.

In a typical Kinetix-based motion system, the MPL-B540K-MK72AA connects directly to a Kinetix 5700 or Kinetix 5500 servo drive via a single-cable feedback interface, eliminating the need for separate encoder wiring and reducing cabinet complexity. The drive receives motion commands from a Logix 5000 controller — such as the ControlLogix 5580 or CompactLogix 5380 — over the EtherNet/IP network using the Integrated Motion on EtherNet/IP (IMC) protocol. This tight integration between the controller, drive, and motor ensures deterministic motion execution, synchronized multi-axis coordination, and real-time fault diagnostics across the entire drive train.

Architecture Specification Table

Coordinated Control System Design

The MPL-B540K-MK72AA achieves its full performance potential only when properly matched within a coordinated Kinetix system architecture. At the controller level, a ControlLogix 5580 (1756-L85E) or CompactLogix 5380 (5069-L340ERM) running Studio 5000 Logix Designer provides the motion program, cam profiles, and coordinated axis groups. The controller communicates over a managed EtherNet/IP network — typically using a Stratix 5700 or Stratix 5400 managed switch — to maintain deterministic cycle times essential for multi-axis synchronization.

At the drive layer, the Kinetix 5700 (2198-Dxxx-ERS3) dual-axis drive module mounts on a 2198-Pxxx DC bus power supply, sharing a common DC bus with adjacent drive modules to enable regenerative energy exchange between axes. This bus-sharing architecture reduces overall energy consumption and simplifies cabinet wiring. The MPL-B540K-MK72AA connects to the drive’s motor power and feedback port via a 2090-series single-cable assembly, which carries both motor power and high-resolution encoder signals in a single shielded cable — reducing installation time and improving signal integrity in electrically noisy environments.

For I/O integration, a 1734 POINT I/O or 1756 ControlLogix I/O module handles discrete and analog signals from proximity sensors, limit switches, and pressure transducers associated with the motion axis. These I/O modules communicate back to the Logix controller over EtherNet/IP or DeviceNet, depending on the plant network topology. At the HMI layer, a PanelView Plus 7 (2711P series) or FactoryTalk View SE station provides operators with real-time axis position, velocity feedback, fault status, and production counters — all sourced directly from the Logix tag database without additional data mapping.

For applications requiring high availability, the MPL-B540K-MK72AA can be deployed in a redundant drive architecture using a Kinetix 5700 redundant power supply configuration, ensuring that a single power supply failure does not interrupt production. Terminal block assemblies such as the 1492-AIFM series simplify field wiring at the cabinet level, while 700-series relay modules handle safety interlocks and motor contactor control. This complete, layered architecture — from the Logix controller through the Kinetix drive to the MPL motor — ensures system consistency, scalability, and long-term maintainability.

Application in Layered Automation Systems

The MPL-B540K-MK72AA is widely deployed across industries where precise, high-speed motion control is critical to product quality and throughput. In automotive manufacturing, this motor drives robotic welding positioners, press transfer systems, and assembly line conveyors where sub-millimeter positioning accuracy is required at cycle rates exceeding 60 parts per minute. The motor’s low-inertia rotor design enables rapid acceleration and deceleration profiles without excessive drive current demand, reducing thermal stress on both the motor and the Kinetix drive module.

In packaging and bottling lines, the MPL-B540K-MK72AA is used in servo-driven filling heads, label applicators, and case erectors where electronic line shafting replaces mechanical gearboxes. The Kinetix IMC protocol allows the Logix controller to synchronize multiple MPL motors on a single EtherNet/IP network segment, enabling electronic cam profiles that adapt in real-time to product changeovers without mechanical adjustment. This flexibility is particularly valuable in food and beverage facilities where frequent SKU changes demand rapid format switching.

In power generation and utilities, the motor is applied in valve actuator test stands, turbine blade inspection systems, and generator alignment rigs where torque repeatability and position holding under load are paramount. The IP66 enclosure rating and Class F insulation make the MPL-B540K-MK72AA suitable for wash-down environments in water treatment facilities and chemical processing plants. In mining and mineral processing, the motor drives conveyor indexing systems, crusher feed gates, and flotation cell agitators where continuous duty operation and resistance to vibration and dust ingress are essential.

Architecture Engineering FAQ

Q1: Is the MPL-B540K-MK72AA compatible with both Kinetix 5500 and Kinetix 5700 drive platforms, and what cable assembly is required?
Yes. The MPL-B540K-MK72AA is compatible with both the Kinetix 5500 (2198-Hxxx-ERS) and Kinetix 5700 (2198-Dxxx-ERS3) drive families. Both platforms support the single-cable feedback interface using 2090-CFBM7DF-CDAFxx motor cables, which carry motor power, brake control, and high-resolution encoder signals in a single assembly. Verify the cable length suffix (e.g., -CDAF03 for 3 meters) against your cabinet-to-machine distance. For Kinetix 6500 compatibility, a separate power and feedback cable set is required. ZYPLC supplies matched cable assemblies alongside the motor to ensure plug-and-play system readiness.

Q2: How does the 12-Month Warranty apply, and what does Contextual Integration support cover?
Every MPL-B540K-MK72AA supplied by ZYPLC carries a 12-Month Warranty covering manufacturing defects, encoder failure, winding insulation breakdown, and bearing wear under normal operating conditions. The warranty period begins from the date of shipment. Contextual Integration support means ZYPLC’s engineering team provides pre-sale architecture review — confirming drive sizing, cable selection, bus power capacity, and Logix axis configuration parameters — so the motor arrives ready to commission within your existing Kinetix system. Post-sale support includes fault code interpretation, drive parameter guidance, and replacement coordination within the warranty period.

Q3: What are the long-term maintenance considerations for the MPL-B540K-MK72AA in continuous-duty industrial applications?
The MPL-B540K-MK72AA uses sealed, permanently lubricated bearings rated for L10 bearing life exceeding 20,000 hours at rated load and speed, minimizing scheduled maintenance intervals. The single-cable feedback interface eliminates the encoder connector as a common failure point, improving long-term reliability in high-vibration environments. Preventive maintenance should include periodic inspection of the motor cable connector seating, verification of drive thermal management (heatsink airflow or liquid cooling), and annual review of Logix axis tuning parameters as mechanical load characteristics evolve. ZYPLC maintains stock of MPL-B540K-MK72AA units and compatible Kinetix drive modules to support rapid replacement under the 12-Month Warranty or as part of a planned spare parts program.
