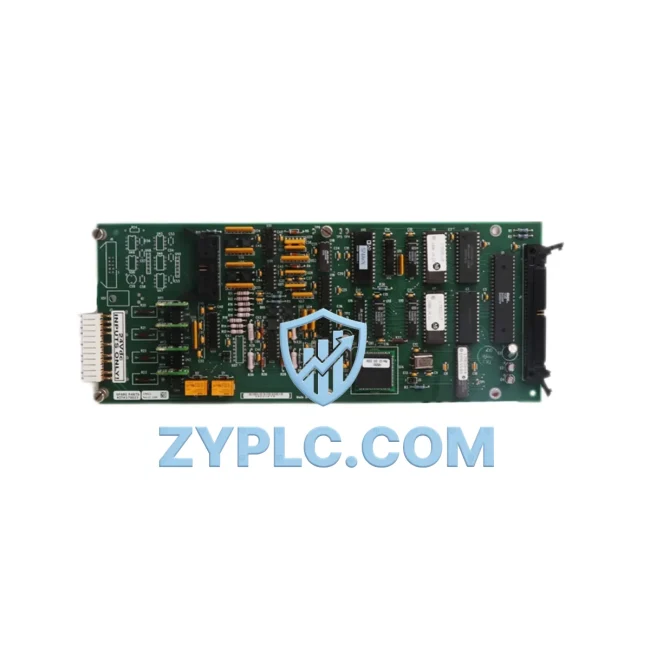

Allen-Bradley SP-170023 Energy-Saving PC Board for PLC-5

Allen-Bradley SP-170023 Energy-Saving PC Board for Optimized PLC-5 Automation

The Allen-Bradley SP-170023 (also referenced as 170013 / 170016-01) is a high-efficiency processor and communication PC board engineered for the Allen-Bradley PLC-5 programmable controller family. In modern industrial environments where energy costs and equipment uptime directly impact profitability, this board plays a critical role in maintaining lean, low-waste control architectures. Whether you are retrofitting an aging PLC-5 rack or maintaining a validated production line, the SP-170023 delivers stable, low-power logic execution that reduces thermal load, minimizes unnecessary power cycling, and supports continuous, uninterrupted process control.

Efficiency Performance Table

Energy-Aware Automation Architecture

The SP-170023 board is the logical heart of the PLC-5 rack, coordinating data exchange between field devices and the control program with minimal overhead. In a well-designed energy-aware automation architecture, this board works in concert with a range of system components to eliminate wasted electrical capacity and reduce idle-state power draw across the entire control panel.

On the I/O side, the board interfaces directly with Allen-Bradley 1771-OBD discrete output modules and 1771-IBD input modules, enabling tight scan-cycle management that prevents unnecessary relay switching — a common source of reactive power loss in older control systems. When paired with the 1771-ASB adapter for remote I/O racks, the SP-170023 supports distributed I/O topologies that reduce cable runs and associated resistive losses across long production floors.

For drive-level energy control, the PLC-5 platform running on the SP-170023 board is commonly integrated with Allen-Bradley PowerFlex 700 and PowerFlex 40 variable frequency drives via Remote I/O or DH+ communication. These drives regulate motor speed in response to real-time process demand, cutting energy consumption during partial-load conditions by 20–50% compared to fixed-speed operation. The SP-170023 ensures that the PLC-5 scan cycle remains fast and deterministic, so drive speed references are updated promptly and motor ramp profiles are executed without lag.

On the network layer, the board supports Data Highway Plus (DH+) communication, allowing it to exchange production and energy data with Allen-Bradley SLC 500 controllers, MicroLogix 1100 units, and upstream ControlLogix systems acting as supervisory controllers. This cross-platform visibility enables energy managers to correlate PLC-5 output states with facility-level power consumption data collected by Allen-Bradley PowerMonitor 500 or PowerMonitor 1000 energy meters — providing the granular, per-machine energy data needed for ISO 50001 compliance and continuous improvement programs.

HMI integration is equally important. When the SP-170023-based PLC-5 is connected to a PanelView 550 or PanelView 900 operator terminal, production staff gain real-time visibility into cycle counts, fault states, and energy-related alarms without requiring a separate SCADA layer. This reduces the response time to energy anomalies — such as a motor running at full speed during a scheduled idle period — from hours to seconds.

For power supply integrity, the SP-170023 board depends on a stable backplane voltage delivered by the 1771-P4S or 1771-P7 power supply modules. Maintaining clean, regulated DC power to the processor board is essential for preventing spurious program faults that force unnecessary machine restarts — each of which carries a measurable energy and productivity cost.

Power Optimization in Real Production Lines

In real-world manufacturing environments, the SP-170023 contributes to energy optimization in several concrete ways. First, its stable program execution eliminates the micro-faults and watchdog resets that plague worn or counterfeit boards — each unplanned restart of a PLC-5-controlled machine typically wastes 3–8 minutes of production time and triggers a full motor acceleration cycle, consuming peak inrush current that inflates demand charges on the facility’s electricity bill.

Second, the board’s efficient scan cycle management allows engineers to implement demand-based I/O polling — scanning high-priority inputs (safety interlocks, drive fault bits) at fast rates while reducing the scan frequency of low-priority status inputs during steady-state production. This technique reduces average CPU load and allows the PLC-5 to respond faster to energy-relevant events such as conveyor jams, pump cavitation, or compressor overloads.

Third, when the SP-170023 is used as part of a planned maintenance strategy — replacing boards on a scheduled cycle before failure occurs — facilities report measurable reductions in unplanned downtime. Predictive replacement of aging PC boards, combined with outgoing functional testing and burn-in verification, ensures that the replacement unit performs identically to the original specification. Every unit supplied by ZYPLC undergoes full functional testing prior to shipment, with results documented and available upon request.

Fourth, the board supports energy baseline logging when integrated with upstream data collection systems. By tagging PLC-5 output states with timestamps and transmitting them via DH+ to a data historian, energy engineers can build accurate per-product energy consumption profiles — identifying which SKUs or batch sizes consume disproportionate energy and where process adjustments can reduce waste without affecting throughput.

ZYPLC maintains ready stock of the SP-170023 / 170013 / 170016-01 to support both emergency replacement and planned maintenance programs. All units are shipped with full functional test documentation and are covered by a 12-month warranty from the date of shipment.

Energy Optimization FAQ

Q1: How does replacing a faulty SP-170023 board reduce energy consumption?
A faulty processor board causes frequent program faults, watchdog resets, and unplanned machine restarts. Each restart triggers a full motor acceleration sequence with high inrush current. Replacing the board with a tested SP-170023 eliminates these events, reducing peak demand charges and improving overall equipment effectiveness (OEE).

Q2: Is the SP-170023 compatible with all PLC-5 rack configurations?
The SP-170023 (170013 / 170016-01) is compatible with the full range of Allen-Bradley PLC-5 processors including the PLC-5/10, 5/15, 5/20, 5/30, 5/40, 5/60, and 5/80. It supports both local and remote I/O configurations and is compatible with DH+ and Remote I/O network topologies.

Q3: What testing process does ZYPLC use before shipping the SP-170023?
Every SP-170023 unit undergoes a multi-stage inspection and functional test process: visual inspection for physical damage, power-on verification, program load and execution test, I/O communication check, and a burn-in period under load. Test results are documented and can be provided with the shipment upon request.

Q4: What does the 12-month warranty cover?
The 12-month warranty covers defects in materials and workmanship under normal operating conditions. If the SP-170023 fails within 12 months of the shipment date due to a covered defect, ZYPLC will provide a replacement unit at no additional charge. The warranty does not cover damage caused by incorrect installation, overvoltage events, or physical mishandling.
