Applied Materials 15000400 5069-001-PV System-Ready Servo Amplifier for Ion Implant Architecture

Applied Materials 15000400 5069-001-PV System-Ready Servo Amplifier for Ion Implant Architecture

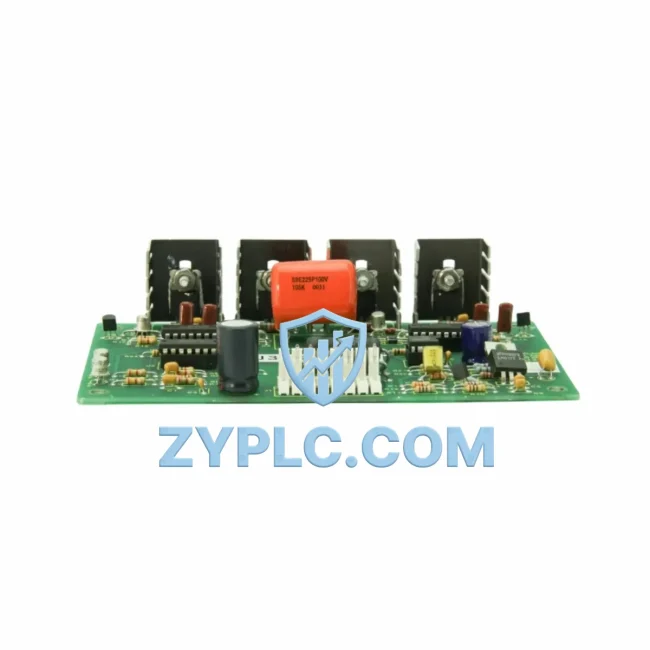

The Applied Materials 15000400 5069-001-PV (P/N 0150-21692) Servo Amplifier PCB is a precision motion control module engineered for integration within Applied Materials ion implant and semiconductor process equipment platforms. Rather than functioning as a standalone component, this servo amplifier occupies a critical position within the layered control architecture of high-throughput wafer processing systems — bridging the command signals from the central process controller down to the mechanical actuators and drive mechanisms that govern beam scanning, wafer handling, and end-station positioning.

In a fully realized ion implant control system, signal integrity and closed-loop response accuracy are non-negotiable. The 15000400 5069-001-PV module receives velocity and position commands from the upper-level process controller — typically an Applied Materials VME-based or proprietary embedded controller — and translates those commands into precise analog drive outputs for servo motors governing critical mechanical axes. Its PCB-level design ensures low-latency signal processing, stable gain characteristics across the operating temperature range, and compatibility with the system’s existing feedback encoder interfaces.

From a system architecture perspective, this servo amplifier module sits at the intersection of the control layer and the execution layer. Above it, the process controller and motion coordinator issue trajectory commands; below it, servo motors, linear actuators, and mechanical stages respond to its output. The module’s role in maintaining positional accuracy directly affects beam uniformity, dose consistency, and wafer throughput — making it a high-criticality component in any preventive maintenance or corrective replacement strategy.

System engineers integrating or replacing this module should consider its upstream and downstream dependencies carefully. On the power layer, the module requires a stable, low-ripple DC supply consistent with Applied Materials’ internal bus specifications — typically sourced from the system’s dedicated servo power supply assembly. On the feedback layer, resolver or encoder signals from the motor must be correctly routed and terminated to ensure the amplifier’s control loop remains stable under dynamic load conditions.

Within the broader Applied Materials equipment ecosystem, the 15000400 5069-001-PV servo amplifier is commonly found alongside components such as the Applied Materials 0100-09016 VME controller board, the 0190-09187 servo power supply module, the 0150-09071 I/O interface PCB, and the 0100-35007 motion control backplane. In multi-axis configurations, multiple servo amplifier channels may be coordinated through a shared motion controller, with each axis — including the beam scanner drive, the wafer handler arm, and the end-station rotation stage — relying on a dedicated amplifier channel for independent closed-loop control.

For facilities managing a fleet of Applied Materials implanters — such as the Quantum series, the VIISta platform, or legacy Precision 9500 systems — maintaining a verified spare of the 15000400 5069-001-PV in the on-site critical spares inventory is a recognized best practice. Unplanned servo amplifier failures can result in immediate tool downtime, and the lead time for OEM-sourced replacements often extends beyond acceptable production loss thresholds. Having a tested, warranty-backed spare on hand enables rapid swap-out and return to process within a single maintenance window.

This module is supplied with a 12-Month Warranty covering functional performance under normal operating conditions. Prior to shipment, each unit undergoes functional verification to confirm output linearity, gain stability, and signal response characteristics consistent with the original Applied Materials specification. Full Contextual Integration support is available, meaning our technical team can assist with system-level installation guidance, parameter verification, and compatibility confirmation for your specific equipment configuration.

Whether you are executing a scheduled preventive maintenance cycle, responding to an unplanned fault condition, or building out a strategic spare parts program for your semiconductor fab, the Applied Materials 15000400 5069-001-PV Servo Amplifier PCB represents a reliable, cost-effective solution backed by documented quality assurance and responsive technical support.

Architecture Specification Table

Coordinated Control System Design

The 15000400 5069-001-PV does not operate in isolation — its performance is inseparable from the quality and compatibility of the surrounding system architecture. In a typical Applied Materials ion implant platform, the servo amplifier works in concert with a suite of coordinated modules across multiple system layers.

At the control layer, the Applied Materials VME-based process controller (such as the 0100-09016 controller board) issues motion commands through the system backplane. The 0100-35007 motion control backplane distributes these commands to individual servo amplifier channels, including the 15000400 5069-001-PV, which handles one or more dedicated motion axes. At the I/O layer, the 0150-09071 I/O interface PCB manages digital and analog signal routing between the process controller and peripheral devices, including limit switches, home sensors, and interlock circuits that protect the servo axes from over-travel or fault conditions.

The power layer is equally critical. The 0190-09187 servo power supply module provides the regulated DC bus voltage required by the servo amplifier. Voltage ripple, transient response, and current capacity of this supply directly affect the amplifier’s ability to maintain stable closed-loop control under dynamic load changes — particularly during high-acceleration beam scanner moves or rapid wafer handler arm transitions.

At the network and communication layer, system-level diagnostics and parameter monitoring may be routed through an Applied Materials proprietary communication gateway or a standard industrial Ethernet interface, enabling remote fault logging and performance trending. At the human-machine interface layer, the system operator console — whether a dedicated Applied Materials HMI panel or a PC-based SCADA interface — displays real-time axis status, fault codes, and servo performance metrics that depend on accurate signal feedback from the 15000400 5069-001-PV amplifier channel.

Finally, at the execution layer, servo motors driving the beam scanner, wafer handler, and end-station rotation stage receive their drive current directly from the amplifier output. The mechanical precision of these axes — and ultimately the dose uniformity and wafer yield of the implant process — depends on the amplifier’s gain stability, bandwidth, and thermal performance over extended production runs.

Application in Layered Automation Systems

The Applied Materials 15000400 5069-001-PV Servo Amplifier PCB finds its primary application in semiconductor manufacturing environments where ion implantation is used to modify the electrical properties of silicon wafers. In these facilities, the module supports the precise motion control required for beam scanning uniformity, wafer tilt and rotation positioning, and end-station mechanical alignment — all of which directly influence device yield and process repeatability.

Beyond semiconductor fabs, servo amplifier modules of this class are analogous in function to those used in other high-precision process control industries. In flat panel display manufacturing, similar servo drive architectures govern substrate handling and deposition stage positioning. In advanced packaging and lithography systems, closed-loop servo control is essential for maintaining sub-micron positional accuracy across extended production cycles. In precision metrology and inspection equipment, servo amplifier reliability directly determines measurement repeatability and system uptime.

For equipment maintenance engineers and fab process engineers responsible for sustaining ion implant tool availability, the 15000400 5069-001-PV represents a high-value spare that protects against unplanned downtime. Its compatibility with Applied Materials’ established control architecture means that replacement and re-commissioning can be completed within a standard maintenance window, minimizing production impact and supporting long-term equipment lifecycle management.

Architecture Engineering FAQ

Q1: Is the 15000400 5069-001-PV compatible with all Applied Materials ion implant platforms, and how do I confirm compatibility for my specific system?
The 15000400 5069-001-PV is designed for use within Applied Materials ion implant and semiconductor process equipment platforms that utilize this specific servo amplifier architecture. Compatibility depends on your system’s backplane configuration, servo bus voltage specification, and motion controller interface. We recommend confirming the part number against your system’s bill of materials or engineering drawing set. Our technical team can assist with compatibility verification as part of our Contextual Integration support service — contact us with your equipment model and system serial number for a definitive confirmation before ordering.

Q2: What installation and commissioning steps are required when replacing this servo amplifier PCB in a live production system?
Replacement of the 15000400 5069-001-PV should be performed by a qualified equipment engineer following Applied Materials’ standard PCB replacement and servo commissioning procedures. Key steps include: powering down the servo bus and verifying zero-energy state before removal; documenting and preserving any gain or parameter settings from the existing amplifier if accessible; installing the replacement module and verifying correct seating and connector engagement; restoring power and performing a servo axis functional check including limit switch verification, home cycle, and dynamic response test. Our team can provide application-specific commissioning guidance as part of the 12-Month Warranty support package.

Q3: What does the 12-Month Warranty cover, and what support is available for long-term spare parts management?
The 12-Month Warranty covers functional performance of the 15000400 5069-001-PV under normal operating conditions consistent with the original Applied Materials specification. If the module fails to perform as specified within the warranty period under normal use, we will provide a replacement or repair at no additional cost. For long-term spare parts management, we offer inventory reservation, multi-unit pricing, and Contextual Integration support to help your engineering team maintain system availability across your equipment fleet. Contact us to discuss a strategic spares agreement tailored to your production environment.
