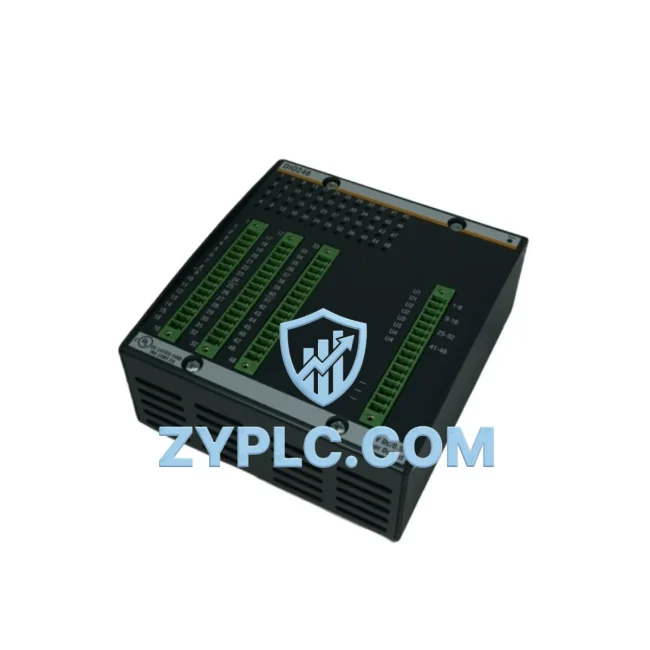

Bachmann 200150-05-05 System-Ready Digital I/O for M200 Architecture

Bachmann 200150-05-05 System-Ready Digital I/O for M200 Control Architecture

The Bachmann DIO248 (part number 200150-05-05) is a high-density digital input/output module purpose-built for deployment within the Bachmann M200 modular PLC platform. Rather than functioning as a standalone component, this module is engineered to operate as an integral node within a layered industrial control architecture — coordinating signal acquisition, logic execution, and field-level actuation across the full automation stack. Its role spans the I/O layer, bridging the gap between field instrumentation and the central processing unit, while maintaining deterministic communication timing essential for real-time control applications in demanding industrial environments.

In a complete M200-based control system, the DIO248 module is typically installed on the M200 backplane alongside the CPU module — such as the Bachmann MPC240 or MPC265 — which handles the primary control logic and coordinates all rack-resident modules via the internal high-speed system bus. The backplane architecture ensures low-latency data exchange between the DIO248 and the CPU, enabling scan-cycle-accurate digital signal processing. This tight integration is fundamental to applications where input response time and output switching precision directly affect process safety and product quality.

From a system architecture perspective, the DIO248 contributes 24 digital inputs and 8 digital outputs (or equivalent mixed-channel configuration depending on firmware variant), supporting 24 VDC field signals compatible with standard IEC 61131-2 Type 1 and Type 3 input specifications. Each input channel incorporates hardware debounce filtering and galvanic isolation, protecting the control system from field-side transients and ground loops — a critical requirement in power generation, petrochemical, and heavy manufacturing environments where electrical noise is prevalent.

The module’s output channels are designed for direct interface with relay coils, solenoid valves, motor starter contactors, and indicator lamps. In coordinated system designs, the DIO248 output channels are often paired with Bachmann AIO288 analog output modules and MBM204 communication gateway modules to create a unified I/O subsystem capable of handling both discrete and continuous process variables within the same rack. This co-location reduces wiring complexity, simplifies cabinet layout, and shortens commissioning time — all of which translate directly into lower engineering costs and faster project delivery.

Network and communication integration is managed at the CPU level, with the M200 platform supporting PROFIBUS DP, CANopen, Modbus TCP/IP, and EtherCAT depending on the installed communication modules. The DIO248 itself communicates exclusively over the internal system bus, but its data is made available to higher-level SCADA systems, DCS platforms, and HMI terminals — such as the Bachmann CPC210 operator panel — through the CPU’s network interfaces. This architecture ensures that digital field signals captured by the DIO248 are available in real time to supervisory systems without introducing additional latency or protocol conversion overhead.

Power supply integrity is a foundational concern in any M200 rack deployment. The DIO248 draws its logic power from the rack’s internal power bus, supplied by a dedicated Bachmann PSU module such as the PS204 or PS205 series. Field-side output power is typically sourced from a separate 24 VDC supply rail, isolated from the logic supply to prevent cross-contamination of noise between the control and field circuits. In redundant power configurations — common in water treatment, oil and gas, and utility substations — dual PSU modules are installed with automatic switchover, ensuring that a single power supply failure does not interrupt I/O module operation or cause unplanned process shutdowns.

Redundancy design extends beyond power supply architecture. In high-availability M200 systems, the DIO248 may be deployed in a mirrored rack configuration alongside a standby CPU and redundant I/O modules, with the system controller managing automatic failover in the event of a primary module fault. This architecture is particularly relevant in continuous process industries — such as chemical production, pulp and paper, and power generation — where unplanned downtime carries significant financial and safety consequences. The DIO248’s deterministic behavior and hardware fault detection capabilities make it a reliable participant in such redundant architectures.

From a maintenance and lifecycle management perspective, the DIO248 supports hot-swap capability within compatible M200 rack configurations, allowing field engineers to replace a faulty module without powering down the entire rack. This feature significantly reduces mean time to repair (MTTR) and supports the maintenance strategies of facilities operating under continuous production schedules. Combined with the module’s onboard LED diagnostics — which provide channel-level status indication for both input and output states — field technicians can rapidly identify and isolate faults without requiring specialized diagnostic tools or laptop connections.

Engineering teams integrating the DIO248 into new or retrofit M200 systems will find that the module is fully supported within the Bachmann SolutionCenter programming environment, which provides IEC 61131-3 compliant development tools including Ladder Diagram, Function Block Diagram, Structured Text, and Sequential Function Chart editors. Module configuration, I/O mapping, and diagnostic parameter assignment are all performed within this unified engineering environment, eliminating the need for separate configuration utilities and reducing the risk of configuration errors during commissioning.

ZYPLC maintains verified stock of the Bachmann 200150-05-05 DIO248 module, sourced from authorized supply channels and subject to pre-shipment functional testing. Every unit is covered by a 12-Month Warranty and is supported by Contextual Integration advisory services, ensuring that your procurement team receives not just the hardware, but the application knowledge required to deploy it correctly within your specific M200 control architecture. Our technical team can assist with rack configuration planning, module compatibility verification, and spare parts strategy for long-term system support.

Architecture Specification Table

Coordinated Control System Design

The Bachmann 200150-05-05 DIO248 achieves its full operational value when deployed as part of a coordinated M200 control system rather than as an isolated component. A typical M200 rack assembly begins with the Bachmann MPC240 or MPC265 CPU module, which serves as the system controller, executing the IEC 61131-3 application program and managing all rack-resident I/O modules via the internal system bus. The DIO248 occupies one or more I/O slots on the M200 backplane, sharing the rack with complementary modules such as the Bachmann AIO288 analog input/output module for continuous process variable acquisition, and the Bachmann CNT204 counter module for high-speed pulse counting applications in flow measurement or encoder feedback systems.

Communication with higher-level systems is handled through dedicated gateway modules installed in the same rack. The Bachmann MBM204 PROFIBUS DP master module enables the M200 system to communicate with distributed I/O stations, variable frequency drives, and intelligent field devices across a PROFIBUS network segment. For Ethernet-based architectures, the Bachmann ETH201 or ETH202 communication module provides Modbus TCP/IP and EtherCAT connectivity, linking the M200 rack to SCADA servers, historian databases, and remote engineering workstations. The DIO248’s digital signal data flows through the CPU and out via these communication modules, making field-level discrete states visible across the entire automation network.

At the human-machine interface layer, the Bachmann CPC210 operator panel or compatible third-party HMI terminals connect to the M200 system via Ethernet or serial interfaces, providing operators with real-time visibility into digital I/O states, alarm conditions, and process status. Terminal block modules — such as the Bachmann TM2xx series terminal modules — are used at the field wiring interface to provide organized, labeled connection points for the DIO248’s input and output channels, simplifying installation and reducing wiring errors during commissioning. In relay output applications, the DIO248 output channels interface directly with Bachmann or third-party relay modules to provide the current capacity and electrical isolation required for motor starter and solenoid valve control circuits.

Application in Layered Automation Systems

The Bachmann DIO248 (200150-05-05) is deployed across a broad range of industrial automation sectors where the M200 platform is the established control standard. In power generation and utility substation applications, the module handles digital status inputs from circuit breakers, disconnect switches, and protection relays, while its output channels drive trip coils, alarm annunciators, and auxiliary relay circuits. The module’s galvanic isolation and noise immunity characteristics are essential in high-voltage substation environments where electromagnetic interference levels are significant.

In oil and gas processing and petrochemical plant applications, the DIO248 is integrated into safety-related control systems for wellhead control panels, compressor station automation, and pipeline monitoring systems. Its deterministic I/O response time supports the fast-acting logic required for emergency shutdown (ESD) and process safety management (PSM) applications. For water and wastewater treatment facilities, the module manages pump start/stop commands, valve position feedback, level switch inputs, and flow control outputs across distributed pump stations and treatment process trains.

Manufacturing and discrete production line applications leverage the DIO248 for conveyor control, machine interlocking, part presence detection, and end-of-line testing systems. In mining and mineral processing environments, the module’s robust operating temperature range and vibration tolerance support deployment in crusher control panels, conveyor drive systems, and ore processing plant automation. Metallurgical and steel plant applications use the DIO248 within rolling mill control systems, furnace automation panels, and ladle handling crane control architectures, where reliable digital I/O performance is critical to both production efficiency and personnel safety.

Architecture Engineering FAQ

Q1: Is the Bachmann 200150-05-05 DIO248 compatible with all M200 backplane configurations, and can it be mixed with other I/O module types in the same rack?
Yes. The DIO248 is designed for full compatibility with the standard M200 backplane and can be installed in any available I/O slot within the rack. It coexists with analog I/O modules (AIO series), counter modules (CNT series), and communication modules (MBM, ETH series) without configuration conflicts. The M200 CPU automatically detects and maps all installed modules during system startup, and the SolutionCenter engineering tool provides a graphical rack configuration view for verifying module assignments and I/O address mapping prior to commissioning.

Q2: What are the key considerations for integrating the DIO248 into a redundant M200 control architecture, and does ZYPLC provide technical support for redundancy configuration?
In redundant M200 architectures, the DIO248 is typically deployed in mirrored rack configurations with synchronized CPU modules managing automatic failover. Key considerations include ensuring that both primary and standby racks are supplied from independent power sources, that I/O module firmware versions are matched across both racks, and that the application program includes appropriate redundancy management function blocks. ZYPLC’s Contextual Integration advisory service covers redundancy architecture planning, module compatibility verification, and commissioning support. Our technical team can review your system architecture and provide configuration recommendations specific to your application requirements.

Q3: What does the 12-Month Warranty cover for the Bachmann 200150-05-05, and what is the process for warranty claims or module replacement?
ZYPLC’s 12-Month Warranty covers manufacturing defects, component failures, and functional performance issues that arise under normal operating conditions within the specified environmental parameters. The warranty period begins from the date of shipment. In the event of a warranty claim, ZYPLC provides advance replacement service to minimize system downtime — a replacement unit is dispatched upon receipt of the fault report, and the defective module is returned for technical evaluation. All warranty units undergo the same pre-shipment functional testing as standard stock. For warranty inquiries or to initiate a claim, contact ZYPLC at plc.sales@zyplc.com or +86 19859288691.
