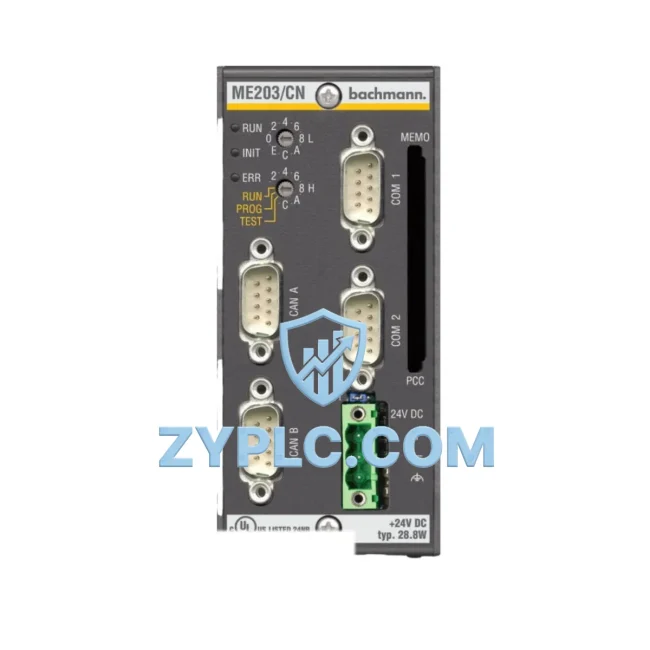

Bachmann ME203/CN System-Ready Processor for ME200 Architecture

Bachmann ME203/CN System-Ready Processor for ME200 Architecture: Control System Architecture and Upstream-Downstream Coordination

The Bachmann ME203/CN is a high-performance processor module engineered for deployment within the Bachmann ME200 Series programmable logic controller platform. Rather than functioning as a standalone computing unit, the ME203/CN is designed from the ground up to serve as the central intelligence layer within a fully coordinated industrial control system architecture. Its role spans signal acquisition, real-time program execution, inter-module communication, and deterministic output control — making it an indispensable component in applications where system consistency, scalability, and long-term maintainability are non-negotiable requirements.

In modern industrial automation, the processor module does not operate in isolation. It sits at the apex of a layered control hierarchy, receiving structured data from distributed I/O modules, issuing commands to field devices, synchronizing with peer controllers over industrial networks, and reporting operational status to supervisory systems. The ME203/CN fulfills all of these roles within the Bachmann ME200 ecosystem, providing the computational backbone that ties together every layer of the control architecture — from the field instrument level up to the SCADA and MES integration layer.

Architecture Specification Table

Coordinated Control System Design

The ME203/CN processor module achieves its full potential when integrated within a complete Bachmann ME200 Series control cabinet. A typical system architecture built around this CPU includes the following coordinated layers and components:

Power Supply Layer: The ME200 platform relies on dedicated Bachmann PS200 series power supply modules to deliver stable, regulated DC voltage to the backplane. The ME203/CN processor draws its operating power directly from the backplane bus, making power supply selection and redundancy planning a critical upstream consideration. In high-availability applications, dual PS200 power modules are deployed in parallel to eliminate single points of failure at the power layer.

I/O Module Layer: The ME203/CN communicates with a range of Bachmann ME200-compatible digital and analog I/O modules — including DI210, DO210, AI210, and AO210 series cards — mounted on the same backplane chassis. These modules handle signal conditioning, analog-to-digital conversion, and digital output switching, feeding structured process data directly to the ME203/CN for real-time program execution. The processor’s scan cycle manages all I/O updates deterministically, ensuring that field signals are processed within defined latency windows.

Communication and Network Layer: The ME203/CN supports CANopen as a native fieldbus protocol, enabling integration with distributed I/O nodes, drives, and intelligent field devices across the plant floor. For higher-level network connectivity, the ME200 platform supports Ethernet-based communication modules that allow the ME203/CN to exchange data with SCADA systems, OPC-UA servers, and remote engineering workstations. This multi-layer communication architecture supports both real-time control traffic and supervisory data reporting on separate network segments.

Redundancy Architecture: In process-critical applications — such as power generation, petrochemical processing, or water treatment — the ME203/CN can be deployed in a hot-standby redundancy configuration alongside a secondary ME200 CPU. Bachmann’s redundancy framework ensures bumpless transfer between primary and standby processors, maintaining continuous output to field devices without process interruption. The redundancy synchronization occurs over a dedicated inter-CPU link, keeping both processors in lockstep at all times.

HMI and Operator Interface Layer: Operator interaction with the ME203/CN-controlled system is typically managed through Bachmann-compatible HMI panels or third-party SCADA workstations connected via Ethernet. The processor exposes process variables, alarm states, and diagnostic data through standard communication interfaces, enabling operators to monitor system health, acknowledge alarms, and issue setpoint changes without interrupting the control program execution cycle.

Terminal and Wiring Layer: Field wiring connects to the I/O modules through Bachmann-compatible terminal blocks and front connectors. Proper cable management, shielding, and grounding at the terminal layer directly affects the signal integrity that the ME203/CN relies upon for accurate process control. Engineering teams typically specify terminal modules with integrated surge protection for analog signal inputs in electrically noisy environments such as motor control centers or high-voltage switchgear rooms.

Application in Layered Automation Systems

Manufacturing and Discrete Production Lines: In automotive assembly, electronics manufacturing, and precision machining environments, the ME203/CN serves as the primary controller for multi-axis sequencing, conveyor synchronization, and quality inspection interlocks. Its deterministic scan cycle and IEC 61131-3 programming environment allow engineers to implement complex state machine logic, motion coordination routines, and safety interlock sequences within a single unified programming environment.

Power Generation and Electrical Utilities: The ME203/CN is well-suited for turbine control auxiliaries, transformer protection relay coordination, and substation automation applications. Its ability to interface with CANopen-based protection relays and Ethernet-connected SCADA systems makes it a versatile controller for both generation-side and distribution-side electrical infrastructure. The 12-Month Warranty provided by LinkPLC ensures that replacement units are available without extended lead times, supporting the maintenance schedules of utility operators.

Petrochemical and Refinery Process Control: In continuous process environments — including crude distillation, catalytic cracking, and gas compression — the ME203/CN provides the real-time control execution required for PID loop management, cascade control, and feedforward compensation. Its integration with analog I/O modules enables precise control of flow, pressure, temperature, and level loops across the process unit. Redundant CPU configurations are standard practice in these environments to meet process safety and uptime requirements.

Water and Wastewater Treatment: Municipal water treatment facilities and industrial effluent treatment plants deploy the ME203/CN for pump sequencing, chemical dosing control, filtration cycle management, and SCADA data reporting. The processor’s Ethernet communication capability allows remote monitoring of plant operations from centralized control rooms, reducing the need for on-site operator presence during routine operations.

Mining, Metallurgy, and Heavy Industry: In ore processing, smelting, and rolling mill applications, the ME203/CN handles high-cycle I/O processing for conveyor drives, crusher controls, and furnace temperature regulation. Its robust industrial design and wide operating temperature range make it suitable for deployment in control rooms adjacent to high-vibration and high-temperature process equipment.

Architecture Engineering FAQ

Q1: Is the ME203/CN compatible with existing ME200 Series backplane chassis and I/O modules already installed in my control cabinet?
The ME203/CN is designed as a native ME200 platform processor and is fully compatible with the ME200 backplane chassis and the range of ME200-series I/O modules, including digital input, digital output, analog input, and analog output cards. When replacing an existing ME200 CPU, engineers should verify firmware version compatibility between the processor and the installed I/O modules, and confirm that the application program compiled for the original CPU is compatible with the ME203/CN’s instruction set and memory architecture. LinkPLC recommends performing a full system functional test after processor replacement before returning the system to production service.

Q2: Can the ME203/CN be used in a redundant CPU architecture, and what additional components are required?
Yes, the ME203/CN supports hot-standby redundancy configurations within the Bachmann ME200 platform. A redundant system requires two ME203/CN processor modules, a dedicated redundancy synchronization link, and compatible backplane chassis that support dual-CPU installation. The Bachmann redundancy framework manages automatic failover, program state synchronization, and bumpless transfer between primary and standby CPUs. Engineering teams should consult Bachmann’s system architecture documentation to confirm the specific redundancy module and cabling requirements for their target application. LinkPLC can supply matched pairs of ME203/CN units with verified firmware versions to simplify redundant system commissioning.

Q3: What does the 12-Month Warranty cover, and how does LinkPLC support long-term maintenance and spare parts availability for the ME203/CN?
LinkPLC’s 12-Month Warranty covers the ME203/CN against manufacturing defects and functional failures under normal operating conditions. Each unit is tested and inspected prior to shipment to verify core processor functions, communication interfaces, and backplane connectivity. For long-term maintenance planning, LinkPLC maintains stock of ME203/CN units and compatible ME200-series components to support scheduled maintenance cycles, emergency replacements, and system expansion projects. Customers can contact LinkPLC at +86 19859288691 or plc.sales@zyplc.com to discuss spare parts planning, bulk procurement, and technical support arrangements tailored to their operational requirements.
