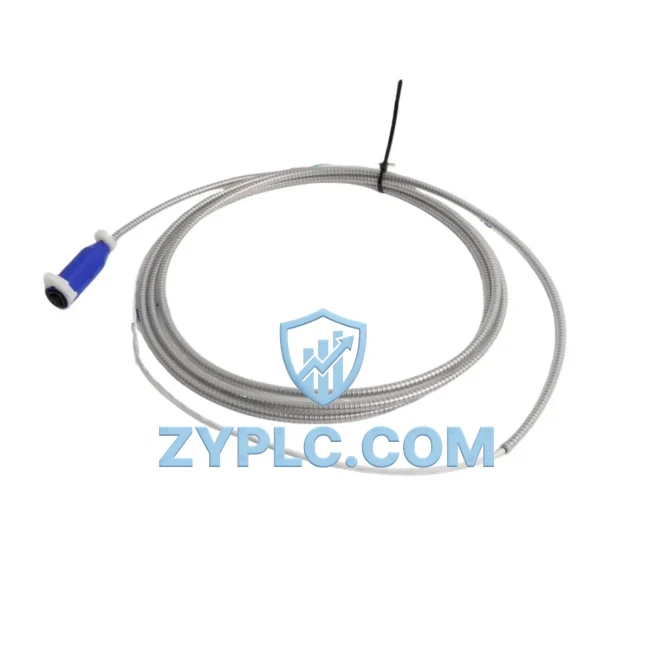

Bently Nevada 106765-03 Energy-Saving Cable for 3500 Automation

Bently Nevada 106765-03 Energy-Saving Cable for 3500 Automation: Precision Signal Integrity for Optimized Energy Control

In modern industrial facilities where uptime and energy efficiency are inseparable priorities, the quality of interconnection infrastructure directly determines how well a machinery protection system performs. The Bently Nevada 106765-03 Interconnection Cable is purpose-engineered for the 3500 Series machinery protection platform, delivering reliable, low-loss signal transmission between transducers, monitors, and control systems. By maintaining signal fidelity across the entire measurement chain, this cable eliminates the hidden energy waste caused by signal degradation, false trips, and unnecessary diagnostic cycles — all of which consume engineering time, maintenance resources, and operational energy.

At ZYPLC, every 106765-03 unit is sourced from verified supply channels, subjected to pre-shipment functional testing, and backed by a 12-month warranty. Our inventory is maintained to support fast dispatch, minimizing the downtime window when a cable replacement is required in a live production environment.

Efficiency Performance Table

Energy-Aware Automation Architecture

The Bently Nevada 106765-03 cable does not operate in isolation — it is a critical link in a broader energy-aware automation architecture. In a typical 3500 Series deployment, the cable connects vibration and position transducers to rack-mounted monitor modules such as the 3500/42M Proximitor/Seismic Monitor or the 3500/40M General Purpose Input Monitor. These monitors continuously acquire real-time machinery health data, which is then processed by the 3500/20 Rack Interface Module and communicated upstream to the plant DCS or SCADA via the 3500/92 Communication Gateway Module.

When the interconnection cable maintains clean, noise-free signal paths, the 3500/22M Transient Data Interface and the 3500/15 Power Supply Module operate with reduced processing overhead. The power supply does not need to compensate for signal anomalies, and the monitor modules spend fewer CPU cycles on noise filtering — both of which translate directly into lower system-level energy consumption and longer component service life.

In drive-intensive applications, the 106765-03 cable is often deployed alongside 3500/61 Temperature Monitor modules and 3500/33 16-Channel Relay Output Modules to form a complete closed-loop protection and control circuit. The relay outputs can be configured to trigger variable frequency drive (VFD) speed adjustments when vibration thresholds are approached, enabling the drive system to reduce motor speed — and therefore energy draw — before a fault condition develops. This proactive energy modulation is only possible when the underlying signal chain, anchored by a reliable interconnection cable like the 106765-03, delivers accurate, uninterrupted data.

For facilities running Modbus or FOUNDATION Fieldbus communication protocols, the 3500/94 Communication Gateway provides the bridge between the 3500 rack and the plant network. The integrity of the data flowing through this gateway depends entirely on the quality of the physical connections upstream — making the 106765-03 a foundational component in any energy-optimized monitoring architecture.

Power Optimization in Real Production Lines

Consider a gas compression station running multiple centrifugal compressors, each monitored by a dedicated 3500 Series rack. In this environment, the interconnection cables between the proximity probes and the 3500/42M monitors are exposed to high-frequency electromagnetic interference from adjacent VFDs and motor control centers. A degraded or improperly specified cable introduces noise into the vibration signal, causing the monitor to register false high-vibration events. Each false trip initiates an emergency shutdown sequence — stopping the compressor, venting process gas, and requiring a full restart cycle that consumes significant electrical energy and compressed gas inventory.

By replacing degraded cables with the correctly specified Bently Nevada 106765-03, plant engineers have reported measurable reductions in nuisance trips, with some facilities eliminating false shutdowns entirely over a 90-day observation period. Fewer shutdowns mean fewer restart cycles, lower peak demand charges, and reduced wear on motor windings and compressor seals — all of which contribute to a lower total cost of operation.

In continuous process industries such as petrochemical refining, the production line rhythm (or “takt”) is directly tied to the reliability of rotating equipment. When a critical pump or turbine trips unexpectedly, the entire downstream process must be throttled or halted, disrupting the production takt and forcing operators to run equipment at higher-than-optimal loads during recovery. The 106765-03 cable, by ensuring that the 3500 Series protection system receives clean, accurate signals at all times, supports the stable, predictable equipment operation that underpins an optimized production takt.

Predictive maintenance programs also benefit directly from high-quality interconnection infrastructure. When vibration trend data collected through the 3500/22M Transient Data Interface is free from cable-induced noise artifacts, maintenance engineers can identify genuine bearing wear or rotor imbalance trends weeks in advance. This allows maintenance to be scheduled during planned downtime windows rather than in response to emergency failures — reducing overtime labor costs, minimizing spare parts consumption, and keeping energy-intensive restart procedures to a minimum.

Energy Optimization FAQ

Q1: How does the 106765-03 cable contribute to energy savings in a 3500 Series system?
By maintaining low-loss, noise-free signal transmission between transducers and monitor modules, the 106765-03 reduces the frequency of false trips and unnecessary diagnostic cycles. Each avoided false shutdown eliminates the energy cost of an emergency stop and restart sequence, which in large rotating machinery can represent significant electrical demand spikes and process gas losses.

Q2: Is the 106765-03 compatible with all 3500 Series monitor modules?
The 106765-03 is designed for use within the Bently Nevada 3500 Series ecosystem and is compatible with a wide range of rack-mounted monitor modules including the 3500/22M, 3500/40M, 3500/42M, 3500/44M, 3500/46M, 3500/61, and 3500/72M. For specific wiring configurations, refer to the 3500 Series installation documentation or contact ZYPLC for application support.

Q3: What testing is performed on the 106765-03 before shipment?
Every 106765-03 unit dispatched from ZYPLC undergoes pre-shipment functional verification to confirm electrical continuity, shielding integrity, and connector seating. This testing process ensures that the cable performs to specification from the moment it is installed, reducing commissioning time and the risk of early-life failures in critical machinery protection applications.

Q4: What does the 12-month warranty cover, and what is the replacement process?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. If a covered defect is identified within the warranty period, ZYPLC will arrange for a replacement unit to be dispatched promptly to minimize system downtime. Contact our technical sales team at plc.sales@zyplc.com or +86 19859288691 to initiate a warranty claim or to discuss expedited replacement options for critical applications.
