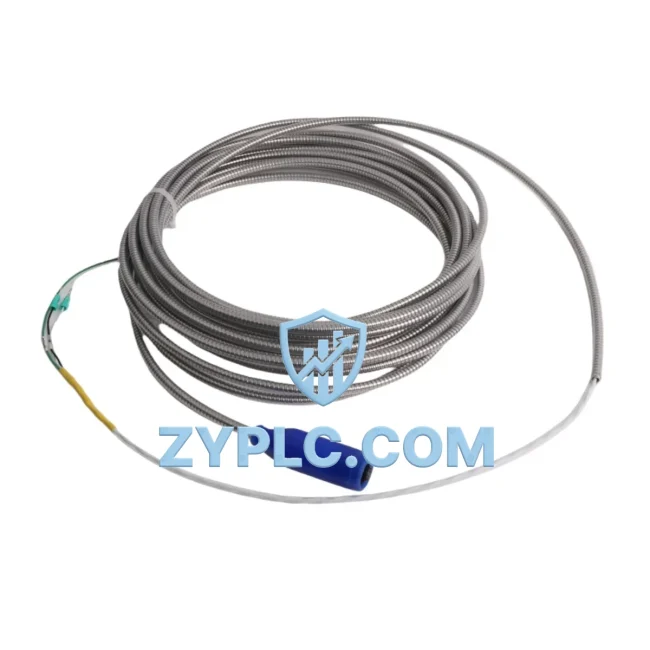

Bently Nevada 106765-15 System-Ready Interconnection Cable for 3500 Architecture

Bently Nevada 106765-15 System-Ready Interconnection Cable for 3500 Architecture: Control System Architecture and Upstream-Downstream Coordination

The Bently Nevada 106765-15 is a precision-engineered interconnection cable purpose-built for deployment within the Bently Nevada 3500 Series machinery protection and condition monitoring platform. In modern industrial automation environments — spanning power generation, petrochemical processing, offshore platforms, and rotating equipment facilities — the integrity of signal transmission between monitoring modules and field-mounted transducers is not a peripheral concern. It is a foundational requirement of the entire control architecture. The 106765-15 addresses this requirement directly, serving as the physical and electrical bridge that enables the 3500 system to perform its core function: continuous, high-fidelity acquisition of vibration, position, speed, and process data from critical rotating machinery.

Within a fully integrated 3500 rack architecture, the 106765-15 cable connects field-side transducers — including proximity probes, velocity sensors, and accelerometers — to the corresponding input modules housed in the 3500 rack. This connection is not merely mechanical. The cable’s shielding characteristics, conductor geometry, and connector termination design are all specified to preserve signal integrity across the frequency ranges relevant to machinery diagnostics, from sub-synchronous instability detection through high-frequency bearing defect analysis. Any degradation in this signal path — whether from impedance mismatch, shield discontinuity, or connector wear — propagates directly into measurement uncertainty at the module level, undermining the reliability of the entire protection system.

The 3500 platform is a modular, rack-based system. A typical installation includes the 3500/15 Power Supply Module, which provides regulated DC power to all cards in the rack; the 3500/22M Transient Data Interface, which captures high-resolution waveform data for machinery diagnostics; and a range of monitor modules such as the 3500/40M Proximitor/Seismic Monitor and the 3500/42M Proximitor/Seismic Monitor, which process signals from eddy-current proximity probes and seismic transducers respectively. The 3500/50 Tachometer Module handles speed and phase reference signals, while the 3500/60 Temperature Monitor extends the system’s capability to thermal parameters. All of these modules depend on reliable signal delivery from the field, and the 106765-15 interconnection cable is the component that makes this delivery possible in installations where the standard cable configuration applies.

From a system architecture perspective, the 106765-15 occupies the I/O layer — the stratum between the physical process and the signal processing layer. Its role is to ensure that what the transducer measures in the field is what the monitor module receives in the rack, without distortion, noise injection, or ground loop interference. This is particularly critical in environments with high electromagnetic interference, such as those found near large motors, variable frequency drives, or high-voltage switchgear. The cable’s construction — typically featuring individually shielded twisted pairs and an overall drain wire — is designed to reject common-mode noise while preserving the differential signal that carries the actual measurement data.

In redundant architecture designs, where dual-redundant racks or hot-standby configurations are employed to meet SIL 2 or SIL 3 integrity requirements, the consistency of the interconnection cable specification across both primary and backup signal paths is essential. Using matched cable assemblies — identical in length, construction, and termination — ensures that both paths present the same electrical characteristics to their respective monitor modules, eliminating asymmetry that could cause spurious trip differentials or mask genuine machinery faults. The 106765-15 supports this requirement by providing a standardized, repeatable cable assembly that can be specified uniformly across all channels in a redundant installation.

The 3500 system communicates with higher-level control and data acquisition layers through the 3500/92 Communication Gateway Module, which supports Modbus, Ethernet, and other industrial protocols. This gateway aggregates alarm states, measured values, and diagnostic data from all monitor modules in the rack and makes them available to the plant DCS, SCADA, or asset management system. The quality of the data presented at this gateway is a direct function of the quality of the signal acquisition chain — and the 106765-15 is a critical link in that chain. Facilities using System 1 Evolution software for online machinery diagnostics and trending will find that the accuracy of the diagnostic outputs is contingent on the integrity of the field wiring, including the interconnection cables.

For engineering teams responsible for commissioning new installations or maintaining existing ones, the 106765-15 offers a significant practical advantage: it is a factory-assembled, tested cable assembly with defined electrical characteristics. This eliminates the variability associated with field-fabricated cables, where conductor preparation, shield termination, and connector assembly quality can vary between technicians and between sites. Using the specified Bently Nevada cable assembly ensures that the installation meets the electrical requirements defined in the 3500 system documentation, simplifying the commissioning process and reducing the risk of measurement errors that can be difficult to diagnose after the system is in service.

Long-term maintenance planning for 3500-based protection systems should include the 106765-15 as a stocked spare. Cable assemblies in industrial environments are subject to mechanical stress from vibration, thermal cycling, and occasional physical contact during maintenance activities. A degraded cable may not cause an immediate system fault but can introduce measurement drift or increased noise floor that gradually erodes the system’s ability to detect early-stage machinery faults. Maintaining a stock of replacement cables — supported by ZYPLC’s 12-Month Warranty and reliable supply chain — ensures that maintenance teams can respond quickly to cable-related issues without extended lead times that could compromise machinery protection coverage.

Architecture Specification Table

Coordinated Control System Design

The 106765-15 does not operate in isolation. Its value is realized only in the context of a complete, coordinated 3500 system architecture. A typical protection system built around this cable assembly will include the 3500/15 Power Supply Module providing stable rack power, one or more 3500/40M Proximitor/Seismic Monitor cards processing eddy-current probe signals for radial vibration and shaft position measurement, and the 3500/50 Tachometer Module delivering speed and keyphasor reference signals essential for synchronous analysis. The 3500/22M Transient Data Interface captures startup and shutdown transient waveforms, while the 3500/60 Temperature Monitor extends protection to bearing and process temperatures. At the rack level, the 3500/05 Rack Interface Module manages inter-module communication and system configuration. Field-side, the cable interfaces with 3300 XL 8mm Proximity Transducer Systems — the standard eddy-current probe series for 3500 applications — as well as 330400 Series proximity probes for general-purpose shaft monitoring. For facilities integrating the 3500 system with plant-wide asset management, the 3500/92 Communication Gateway Module provides the protocol bridge to DCS and SCADA layers. Each of these components depends on the 106765-15 to deliver clean, accurate signals from the field, making the cable a system-critical component rather than a commodity item.

Application in Layered Automation Systems

The Bently Nevada 106765-15 finds application across a broad range of industries where rotating machinery protection is a safety and operational priority. In power generation facilities — including gas turbine plants, steam turbine stations, and combined-cycle facilities — the 3500 system protects turbine-generator sets where undetected vibration anomalies can result in catastrophic equipment failure and extended outages. The 106765-15 supports the high-channel-count installations typical of these applications, where dozens of proximity probes monitor multiple bearing planes on a single machine train.

In petrochemical and refining environments, the cable is deployed on compressor trains, pumps, and agitators in hazardous area classifications, where the reliability of the protection system is directly linked to process safety. Offshore oil and gas platforms present particularly demanding conditions — high humidity, salt atmosphere, and mechanical vibration from the platform structure itself — where the cable’s construction quality is critical to long-term signal integrity.

Water and wastewater treatment facilities use 3500-based systems on large pumping stations and blower installations, where continuous operation is essential and maintenance windows are limited. In mining and minerals processing, the cable supports protection of large grinding mills, conveyors, and hoisting equipment. Metallurgical plants deploy 3500 systems on rolling mill drives and furnace blowers, where thermal and mechanical stress on field wiring is severe. Across all these applications, the 106765-15 provides the consistent, specified signal path that the 3500 system requires to deliver reliable machinery protection.

Architecture Engineering FAQ

Q1: Is the Bently Nevada 106765-15 compatible with all monitor modules in the 3500 Series rack?
The 106765-15 is designed for use with specific 3500 Series monitor modules as defined in the Bently Nevada system documentation. Compatibility depends on the monitor card type and the transducer interface configuration. Engineering teams should verify the cable part number against the specific module and transducer combination in their application using the 3500 Series installation and operations manual. ZYPLC’s technical team can assist with compatibility verification for your specific architecture.

Q2: Can the 106765-15 be used in dual-redundant 3500 rack configurations, and are there any special installation requirements?
Yes. In dual-redundant configurations, it is recommended to use matched cable assemblies — identical part numbers and lengths — for both the primary and backup signal paths. This ensures electrical symmetry between the two paths, which is important for consistent alarm threshold behavior and for avoiding false differentials during switchover events. Cable routing should keep primary and secondary paths physically separated where possible to protect against common-cause failures from mechanical damage or localized environmental events.

Q3: What does the 12-Month Warranty cover, and how does ZYPLC support long-term maintenance planning for 3500 interconnection cables?
ZYPLC’s 12-Month Warranty covers the 106765-15 against defects in materials and workmanship from the date of shipment. For long-term maintenance planning, ZYPLC recommends maintaining a minimum stock of replacement cables proportional to the number of installed channels, particularly for critical machinery where protection coverage must be restored quickly following a cable fault. ZYPLC maintains inventory of 3500 Series components including interconnection cables, and our supply chain team can support scheduled maintenance programs with planned delivery of replacement assemblies. Contact us at plc.sales@zyplc.com or +86 19859288691 to discuss your maintenance inventory requirements.
