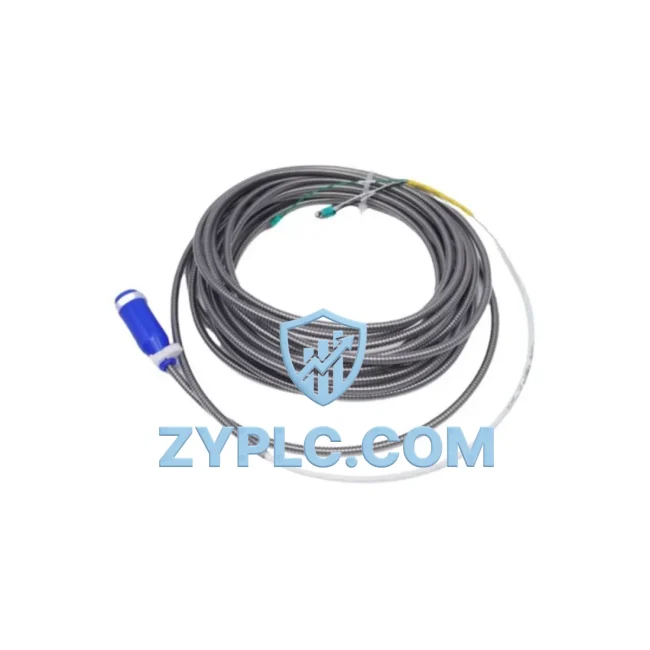

Bently Nevada 106765-20 System-Ready Interconnect Cable for 3500 Series Architecture

Bently Nevada 106765-20 System-Ready Interconnect Cable for 3500 Series Architecture

The Bently Nevada 106765-20 Interconnect Cable is a precision-engineered signal transmission component designed to serve as a critical link within the Bently Nevada 3500 Series machinery protection and condition monitoring architecture. In modern industrial automation environments — spanning power generation, petrochemical processing, oil and gas, mining, and heavy manufacturing — the integrity of signal pathways between transducers and monitoring rack modules is not a peripheral concern but a foundational requirement for system reliability. The 106765-20 addresses this requirement directly, providing a shielded, length-specified cable assembly that ensures low-noise, high-fidelity signal transmission from field-mounted proximity probes or velocity transducers to the 3500 rack-mounted monitor modules.

Within the layered architecture of a 3500 Series system, the 106765-20 occupies the I/O signal layer — the physical interface between the sensing layer and the processing layer. The sensing layer typically consists of proximity probes such as the Bently Nevada 330101 or 330130 series, which detect shaft displacement and vibration in rotating machinery. These probes connect via the 106765-20 interconnect cable to driver modules or directly to monitor cards housed within the 3500/22M or 3500/42M rack-mounted monitor modules. The cable’s shielded construction is essential for maintaining signal integrity in electrically noisy plant environments where variable frequency drives, high-voltage switchgear, and large motor loads generate significant electromagnetic interference.

The 3500 Series rack system itself is a modular, scalable platform. A typical deployment includes the 3500/05 Power Supply Module, which provides conditioned DC power to all rack-resident modules, and the 3500/15 or 3500/20 Rack Interface Module, which manages communication between the rack and plant-level control systems via protocols such as Modbus RTU, Modbus TCP/IP, or OPC-DA/UA. The 106765-20 cable ensures that the analog signals generated at the transducer level reach the monitor modules without degradation, enabling accurate measurement of parameters such as shaft radial vibration, axial position, differential expansion, and eccentricity. These measurements feed directly into the 3500/40M or 3500/42M monitor modules, which perform real-time signal processing, alarm evaluation, and trip logic execution.

From a system architecture perspective, the 106765-20 also plays a role in supporting redundancy design. In critical machinery protection applications — such as turbine-generator sets, large centrifugal compressors, or boiler feed pumps — dual-channel or dual-voting architectures are commonly implemented. In these configurations, redundant proximity probe pairs are installed at each measurement plane, with each probe connected via its own 106765-20 cable to separate monitor channels. This physical separation of signal paths ensures that a single cable fault does not compromise the protection function, maintaining the integrity of the overall safety instrumented system. The 3500/22M Transient Data Interface module can also be integrated into such architectures to capture high-resolution waveform data for diagnostic analysis, further extending the system’s condition monitoring capability.

For engineering teams responsible for system commissioning and long-term maintenance, the 106765-20 offers significant practical advantages. Its standardized connector interface ensures compatibility with the full range of 3500 Series monitor modules and associated junction boxes, including the 3500/92 and 3500/93 series terminal boards. This compatibility simplifies cable management, reduces the risk of wiring errors during installation, and accelerates commissioning timelines. During periodic maintenance cycles, the cable can be inspected, tested, and replaced without disturbing adjacent wiring or requiring specialized tooling, minimizing planned downtime. For facilities maintaining spare parts inventories, stocking the 106765-20 alongside other critical consumables — such as proximity probe tips, extension cables, and rack power supply modules — ensures rapid response to unplanned failures.

The 106765-20 is also relevant in the context of system upgrades and migrations. Many industrial facilities operating legacy Bently Nevada 7200 or 3300 Series systems are transitioning to the 3500 Series platform to take advantage of its enhanced diagnostic capabilities, improved communication interfaces, and broader integration with plant-level SCADA and DCS systems. In these migration projects, the 106765-20 interconnect cable is often specified as part of the new signal wiring infrastructure, replacing older cable assemblies that may not meet the shielding or connector specifications required by the 3500 Series monitor modules. Proper cable selection at this stage is critical to ensuring that the upgraded system delivers the measurement accuracy and reliability that justifies the capital investment.

ZYPLC supplies the Bently Nevada 106765-20 with a 12-Month Warranty, supporting procurement teams and maintenance engineers who require both product availability and post-sale assurance. Our inventory management approach ensures consistent stock availability for both project-phase procurement and emergency replacement scenarios, reducing lead time risk for critical plant assets.

Architecture Specification Table

Coordinated Control System Design

The 106765-20 functions as an integral component within a coordinated 3500 Series system architecture. A complete machinery protection deployment typically begins at the power layer with the Bently Nevada 3500/05 Power Supply Module, which delivers regulated DC power to all rack-resident cards. The rack backbone — typically a 3500/01 Rack or 3500/03 Rack — houses the monitor modules and provides the backplane communication bus that links all installed cards.

At the sensing layer, Bently Nevada 330101 Proximity Probes and 330130 Series Proximity Probes are mounted at the machinery measurement planes. These probes connect via the 106765-20 interconnect cable to the rack-mounted monitor modules, with the cable routing typically passing through field junction boxes and cable trays. In systems requiring extended cable runs, Bently Nevada 330180 Extension Cables may be used in series with the 106765-20 to bridge the distance between the probe and the rack.

Within the rack, the 3500/15 Rack Interface Module or 3500/20 Rack Interface Module manages the communication interface between the 3500 rack and the plant DCS or SCADA system. Monitor modules such as the 3500/22M Transient Data Interface provide high-resolution waveform capture capability, enabling detailed diagnostic analysis of machinery vibration signatures. The 3500/42M Proximitor/Seismic Monitor performs real-time alarm and trip logic based on the signals delivered through the 106765-20 cable. In redundant architectures, dual probe pairs and dual cable runs — each using a dedicated 106765-20 — feed separate monitor channels, ensuring that the protection function remains active even in the event of a single cable or probe failure.

At the human-machine interface layer, operator workstations running Bently Nevada System 1 Software receive processed data from the 3500 rack via the network communication interface, providing real-time trending, alarm management, and historical data analysis. This end-to-end signal chain — from proximity probe through the 106765-20 interconnect cable to the monitor module and ultimately to the operator interface — represents the complete contextual integration that defines a well-engineered machinery protection system.

Application in Layered Automation Systems

The Bently Nevada 106765-20 Interconnect Cable finds application across a broad range of industrial sectors where rotating machinery protection is a critical operational requirement. In power generation facilities — including gas turbine plants, steam turbine-generator sets, and hydroelectric installations — the 106765-20 is used to connect proximity probes monitoring turbine shaft vibration and axial position to the 3500 Series rack system. Accurate, uninterrupted signal transmission is essential in these applications, where machinery trips caused by signal degradation can result in significant generation losses and equipment damage.

In petrochemical and oil and gas processing plants, the 106765-20 is deployed in compressor trains, pump systems, and agitator drives where continuous machinery health monitoring is mandated by process safety requirements and regulatory standards. The cable’s shielded construction provides reliable performance in environments characterized by high levels of electrical noise from variable frequency drives and large motor loads.

In mining and metallurgical operations, the 106765-20 supports condition monitoring of large grinding mills, conveyor drives, and hoisting machinery. In water and wastewater treatment facilities, it is used in pump and blower monitoring systems. In packaging and manufacturing production lines, the cable supports vibration monitoring of high-speed rotating equipment where early fault detection directly impacts production uptime and product quality. Across all these applications, the 106765-20 contributes to a consistent, reliable signal infrastructure that underpins the machinery protection system’s ability to detect developing faults, trigger protective actions, and support long-term condition-based maintenance programs.

Architecture Engineering FAQ

Q1: Is the Bently Nevada 106765-20 compatible with all 3500 Series monitor modules and terminal boards?
The 106765-20 is designed for use within the Bently Nevada 3500 Series architecture and is compatible with the standard range of 3500 Series monitor modules, including the 3500/22M, 3500/40M, 3500/42M, and 3500/45, as well as the 3500/92 and 3500/93 series terminal boards. For specific compatibility confirmation with a particular rack configuration or monitor card revision, we recommend verifying against the Bently Nevada 3500 Series system documentation or contacting ZYPLC’s technical team for application support.

Q2: Can the 106765-20 be used in redundant dual-channel machinery protection architectures?
Yes. In redundant protection architectures, separate 106765-20 cables are used for each probe channel, maintaining physical separation of the signal paths between the redundant probe pair and the corresponding monitor module channels. This approach ensures that a single cable fault does not compromise the protection function, which is a fundamental requirement for safety-critical machinery protection applications in power generation, oil and gas, and petrochemical industries.

Q3: What warranty and supply assurance does ZYPLC provide for the 106765-20?
ZYPLC supplies the Bently Nevada 106765-20 with a 12-Month Warranty covering product quality and functionality. Our inventory management approach is designed to support both planned project procurement and emergency replacement requirements, minimizing lead time risk for critical plant assets. For volume procurement, long-term supply agreements, or urgent replacement needs, please contact our sales team directly at plc.sales@zyplc.com or +86 19859288691.
