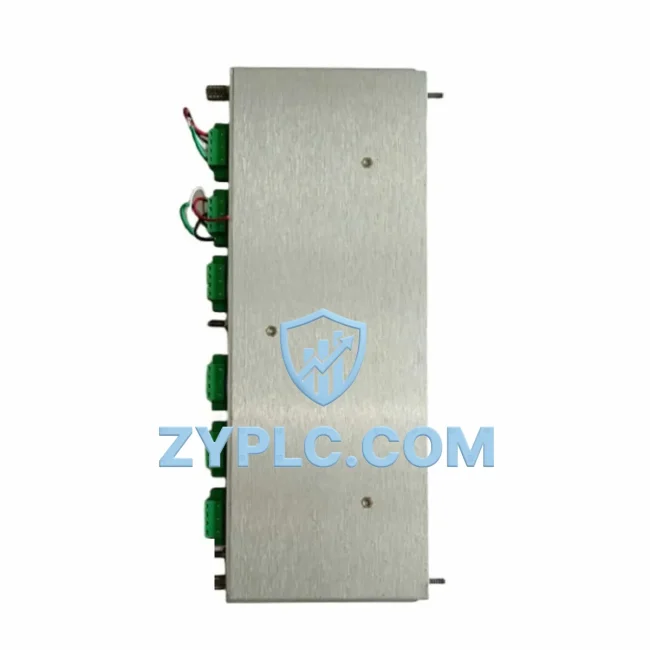

Bently Nevada 125800-01 System-Ready Vibration Monitor for 3500 Architecture

Bently Nevada 125800-01 System-Ready Vibration Monitor for 3500 Architecture: Control System Architecture and Upstream-Downstream Coordination

The Bently Nevada 125800-01 is a precision vibration monitoring module purpose-built for integration within the 3500 Series Machinery Protection System. Rather than functioning as a standalone instrument, this module is engineered to operate as a critical node within a layered industrial control architecture — coordinating seamlessly across the control layer, I/O layer, network layer, power layer, human-machine interface layer, and field execution layer to deliver continuous, real-time machinery health data to the broader automation ecosystem.

In modern process industries — including oil and gas, petrochemical refining, power generation, and heavy manufacturing — rotating machinery protection is not a peripheral concern but a foundational pillar of system reliability. The 125800-01 addresses this requirement by providing high-resolution vibration signal acquisition, on-module signal conditioning, and direct integration with the 3500 rack-based architecture. Its role within the system is to translate raw mechanical vibration data into actionable diagnostic signals that feed upward into the control and supervisory layers, enabling operators and engineers to make informed decisions before machinery faults escalate into unplanned downtime.

From an architecture standpoint, the 125800-01 occupies the I/O and condition monitoring layer of the 3500 system. It interfaces directly with proximity probes, velocity transducers, or accelerometers installed on rotating equipment such as compressors, turbines, pumps, and fans. The module processes these raw signals and communicates processed vibration data — including overall vibration levels, gap voltage, and alarm status — to the 3500 rack’s backplane, where the 3500/20 Rack Interface Module (RIM) aggregates data from all installed monitoring modules and transmits it upstream via Modbus, Ethernet/IP, or other supported communication protocols to the plant DCS or SCADA system.

Architecture Specification Table

Coordinated Control System Design

The 125800-01 achieves its full operational value only when considered within the complete 3500 system architecture. At the rack level, it is installed alongside complementary modules that together form a comprehensive machinery protection platform. The 3500/15 Power Supply Module provides stable, conditioned DC power to all modules within the rack, ensuring that vibration signal acquisition is never compromised by power fluctuations — a critical requirement in high-vibration industrial environments. The 3500/20 Rack Interface Module (RIM) serves as the communication gateway, collecting processed data from the 125800-01 and other installed modules and transmitting aggregated machinery health data to the plant network via Modbus TCP/IP or Ethernet/IP.

For applications requiring speed and phase reference — essential for vector-based vibration analysis and balancing — the 3500/25 Enhanced Keyphasor Module provides the tachometer reference signal that the 125800-01 uses to calculate 1X and 2X vibration vectors. This coordination between the Keyphasor module and the vibration monitor is fundamental to advanced rotor dynamics analysis and is a defining feature of the 3500 architecture’s diagnostic capability.

At the supervisory layer, the Bently Nevada System 1 Software platform connects to the 3500 rack via the RIM’s network interface, providing real-time trending, historical data storage, alarm management, and machinery diagnostic tools. The 125800-01’s data streams directly into System 1’s asset health dashboards, enabling condition-based maintenance strategies that reduce unplanned outages and extend equipment life cycles.

For plants operating redundant control architectures, the 3500 system supports dual-rack configurations where a secondary rack — equipped with an identical set of monitoring modules including the 125800-01 — operates in hot-standby mode. This redundancy architecture ensures that machinery protection is maintained even during primary rack maintenance or failure events, a requirement commonly mandated in API 670-compliant installations.

At the field level, the 125800-01 interfaces with Bently Nevada 3300 XL 8mm Proximity Transducer Systems or 3300 XL 11mm Proximity Transducer Systems, which provide the raw eddy-current displacement signals that the module conditions and processes. Proper transducer selection, cable routing, and extension cable matching are critical to achieving the measurement accuracy that the 125800-01 is designed to deliver. For velocity-based monitoring applications, Bently Nevada 9000 Series Velocity Transducers provide compatible input signals for seismic vibration measurement on bearing housings and structural components.

Integration with plant-level HMI systems — including Rockwell Automation PanelView terminals, Siemens SIMATIC HMI panels, or Wonderware InTouch SCADA — is achieved through the 3500/20 RIM’s Modbus or OPC-DA/UA data interfaces, allowing operators to monitor vibration alarm states and trend data from centralized control room workstations without requiring dedicated Bently Nevada operator terminals at every monitoring point.

Application in Layered Automation Systems

The 125800-01 finds its most demanding applications in industries where rotating machinery reliability is directly linked to production continuity and safety compliance. In power generation facilities — including gas turbine plants, steam turbine generators, and hydroelectric installations — the module provides continuous shaft vibration monitoring that feeds into the plant’s turbine control system, enabling automatic trip functions when vibration levels exceed API 670 danger setpoints. The module’s fast response time ensures that machinery protection actions are initiated within milliseconds of a fault condition, preventing catastrophic bearing failures and rotor damage.

In petrochemical and refining applications, the 125800-01 is deployed on critical rotating equipment including centrifugal compressors, reciprocating compressors, and large process pumps. These machines operate continuously in hazardous area classifications, making the module’s FM and CSA Class I, Division 2 certifications essential for regulatory compliance. The module’s integration with the plant DCS — typically a Honeywell Experion PKS, Emerson DeltaV, or ABB 800xA system — allows vibration alarm states to be incorporated into the plant’s safety instrumented system (SIS) logic, providing an additional layer of process protection beyond the 3500 rack’s local trip functions.

In mining and mineral processing operations, the 125800-01 monitors large grinding mills, conveyor drive motors, and slurry pumps operating in high-dust, high-vibration environments. The module’s robust signal conditioning and configurable alarm setpoints allow maintenance teams to establish baseline vibration signatures for each machine and detect early-stage bearing wear, imbalance, or misalignment before these conditions progress to failure. This predictive maintenance capability directly reduces unplanned downtime costs and extends the service intervals of critical production equipment.

For water and wastewater treatment infrastructure, the 125800-01 provides continuous monitoring of large centrifugal pumps and blower units that operate around the clock with minimal operator supervision. Integration with SCADA systems via the 3500/20 RIM’s Modbus interface allows remote monitoring of vibration health across geographically distributed pump stations from a central operations center, reducing the need for frequent on-site inspection visits and enabling condition-based maintenance scheduling.

Architecture Engineering FAQ

Q1: Is the 125800-01 compatible with all 3500 Series rack configurations, and can it be mixed with other 3500 monitoring modules in the same rack?
Yes. The 125800-01 is designed for installation in any standard 3500 Series rack, including the 3500/05 Rack (4-slot), 3500/15 Rack (14-slot), and 3500/22M Rack (with integrated monitor). It can be installed in any available module slot alongside other 3500 Series monitoring modules — including temperature monitors, axial position monitors, and speed monitors — without compatibility conflicts. The 3500/20 RIM communicates with all installed modules via the rack backplane, aggregating their data for transmission to the plant network. Slot assignment is configured via the 3500 Rack Configuration Software, which also manages alarm setpoints, transducer types, and communication parameters for each installed module.

Q2: What communication protocols does the 125800-01 support for integration with plant DCS or SCADA systems, and are there any network architecture requirements?
The 125800-01 itself communicates via the 3500 rack backplane to the 3500/20 RIM, which serves as the network gateway for the entire rack. The RIM supports Modbus RTU (RS-485), Modbus TCP/IP (Ethernet), and — depending on the RIM variant — Ethernet/IP and OPC-DA/UA protocols. For DCS integration, a dedicated Ethernet segment is recommended to isolate machinery protection network traffic from general plant IT traffic, reducing latency and improving alarm response reliability. Firewall rules and VLAN segmentation should be configured in accordance with IEC 62443 industrial cybersecurity guidelines to protect the 3500 system from unauthorized network access.

Q3: What does the 12-Month Warranty cover for the 125800-01, and what support is available for installation, commissioning, and long-term maintenance?
All 125800-01 modules supplied by ZYPLC are covered by a 12-Month Warranty against manufacturing defects and functional failures under normal operating conditions. The warranty covers module replacement or repair at no additional cost within the warranty period. ZYPLC’s technical support team is available to assist with rack configuration, transducer wiring verification, alarm setpoint commissioning, and System 1 software integration. For long-term maintenance planning, ZYPLC maintains inventory of 125800-01 modules and compatible 3500 Series components to support rapid replacement requirements, minimizing machinery protection system downtime during module servicing or upgrade activities. Contact our engineering team at [email protected] or +86 19859288691 for pre-sales technical consultation and post-sales support.
