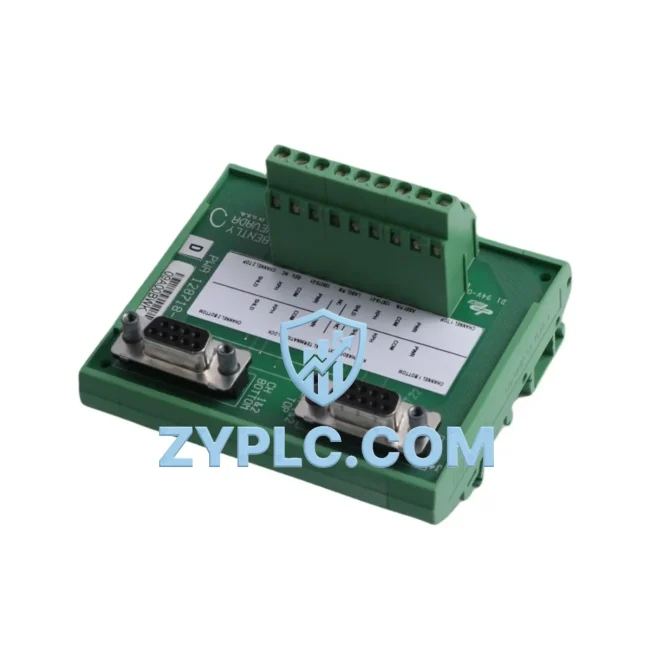

Bently Nevada 128710-01 System-Ready ET Block for 3500 Architecture

Bently Nevada 128710-01 System-Ready ET Block for 3500 Architecture: Control System Architecture and Upstream-Downstream Coordination

The Bently Nevada 128710-01 External Termination Block (ET Block) is a precision-engineered field wiring interface component designed for seamless integration within the Bently Nevada 3500 Series machinery protection and condition monitoring platform. Rather than functioning as a standalone accessory, the 128710-01 occupies a critical position in the overall control system architecture — serving as the structured bridge between field-installed transducers and the rack-mounted monitoring modules that form the backbone of rotating machinery protection systems across heavy industry.

In a fully realized 3500 Series architecture, the 128710-01 ET Block connects directly to the rear of compatible I/O modules, enabling field wiring to be terminated externally from the rack. This design philosophy dramatically simplifies maintenance workflows: technicians can disconnect, inspect, and reconnect field cables without disturbing the rack assembly or interrupting adjacent monitoring channels. For facilities operating continuous-process equipment — turbines, compressors, pumps, and generators — this capability translates directly into reduced mean time to repair (MTTR) and improved system availability.

The 128710-01 is engineered to work in close coordination with the broader 3500 Series ecosystem. Within a typical rack configuration, it interfaces with modules such as the 3500/40M Proximitor/Seismic Monitor, the 3500/42M Proximitor/Seismic Monitor, and the 3500/45 Position Monitor, all of which rely on clean, stable field terminations to deliver accurate vibration, position, and phase reference data to the 3500/20 Rack Interface Module. The Rack Interface Module, in turn, manages communication between the monitoring rack and plant-level control systems via supported protocols including Modbus RTU, Modbus TCP/IP, and Ethernet/IP — ensuring that the signal integrity established at the 128710-01 termination point propagates reliably through every layer of the automation hierarchy.

From a system architecture perspective, the 128710-01 supports the layered automation model that characterizes modern industrial facilities. At the field layer, Bently Nevada proximity probes, accelerometers, and velocity transducers feed raw vibration and position signals into the termination block. At the I/O layer, the ET Block routes these signals with minimal impedance variation into the corresponding monitor modules. At the control layer, processed data is transmitted to distributed control systems (DCS) or safety instrumented systems (SIS) — such as those built on platforms like the Emerson DeltaV or Honeywell Experion — where it informs protective relay logic, alarm management, and predictive maintenance scheduling. The 128710-01 thus functions as a foundational element of signal fidelity across all system layers.

Redundancy design is another area where the 128710-01 contributes meaningfully to system resilience. In dual-voting or triple modular redundancy (TMR) configurations — common in API 670-compliant machinery protection systems — multiple ET Blocks may be deployed in parallel termination arrangements to ensure that no single wiring fault can compromise the protective function of the monitoring rack. This approach aligns with the fail-safe design principles required in critical rotating equipment applications, including steam turbines, gas compressors, and large motor-driven pumps in petrochemical and power generation facilities.

Installation and commissioning of the 128710-01 follow Bently Nevada’s standardized rack architecture guidelines. The block mounts to the rear panel of the 3500 rack enclosure and connects to the corresponding monitor module via a dedicated cable assembly. Field wiring is terminated using screw-type or spring-clamp connectors, depending on the specific variant, and cable routing is managed through the rack’s integrated cable management system. During commissioning, engineers verify termination integrity using loop checks referenced against the 3500 Series system documentation, confirming that each channel’s signal path — from transducer through ET Block to monitor module — meets the specified accuracy and noise immunity requirements.

Long-term maintenance planning benefits significantly from the 128710-01’s modular termination architecture. In facilities where the 3500 rack serves as the primary machinery protection platform for multiple critical assets, maintaining a spare inventory of ET Blocks alongside compatible monitor modules — such as the 3500/50 Tachometer Module and 3500/60 Temperature Monitor — ensures that any field wiring fault can be resolved rapidly without extended equipment downtime. ZYPLC maintains verified stock of the 128710-01 with full traceability documentation, supporting both planned maintenance cycles and emergency replacement scenarios.

All 128710-01 units supplied by ZYPLC are covered by a 12-Month Warranty and have undergone functional verification prior to shipment. Each unit supports Contextual Integration within existing 3500 Series rack assemblies, meaning it can be deployed directly into operational systems without requiring rack reconfiguration or software parameter changes. This plug-compatible characteristic is particularly valuable in brownfield installations where minimizing system disruption during component replacement is a primary engineering constraint.

Architecture Specification Table

Coordinated Control System Design

The 128710-01 ET Block achieves its full value when evaluated within the context of a complete 3500 Series rack assembly. A representative system architecture for a critical rotating machine — such as a centrifugal compressor train — would typically include the 3500/05 Rack Power Supply providing regulated DC power to all rack-mounted modules, the 3500/20 Rack Interface Module (RIM) managing all inter-module communication and plant network connectivity, and multiple channel-specific monitor modules including the 3500/40M Proximitor/Seismic Monitor for radial vibration measurement, the 3500/45 Position Monitor for axial thrust and differential expansion, and the 3500/50 Tachometer Module for speed and phase reference signals.

Each of these monitor modules connects to its corresponding ET Block — including the 128710-01 — at the rear of the rack, where field cables from proximity probes, accelerometers, and other transducers are terminated. The 3500/15 Power Supply Input Module provides additional power conditioning, while the 3500/22 Transient Data Interface (TDI) captures high-resolution waveform data for advanced diagnostics. At the human-machine interface layer, operator workstations running Bently Nevada System 1 software aggregate data from the RIM and present real-time vibration trends, alarm states, and historical waveforms to maintenance engineers. In larger installations, the 3500 rack communicates upstream to DCS platforms via the 3500/92 Communication Gateway Module, enabling integration with plant-wide SCADA and historian systems. The 128710-01 sits at the foundation of this entire signal chain, and its reliable termination performance is a prerequisite for the accuracy of every measurement and protective function above it.

Application in Layered Automation Systems

The Bently Nevada 128710-01 ET Block finds application across a wide range of industries where rotating machinery protection is a safety and operational priority. In power generation facilities — including gas turbine plants, steam turbine generators, and combined-cycle power stations — the 3500 Series platform with 128710-01 termination blocks provides the continuous vibration monitoring required by API 670 and plant insurance standards. In petrochemical and refining operations, the ET Block supports the protection of critical compressors, pumps, and agitators in hazardous-area installations, where reliable field wiring termination is essential for both safety and regulatory compliance.

In water and wastewater treatment plants, the 128710-01 enables condition monitoring of large pump motors and blowers, supporting predictive maintenance programs that reduce unplanned outages. In mining and minerals processing, the ET Block is deployed in SAG mill and ball mill drive monitoring systems, where high vibration environments demand robust termination integrity. In metallurgical and steel production facilities, the 3500 Series architecture — anchored by components like the 128710-01 — monitors rolling mill drives, continuous casters, and furnace blower systems. Across all these applications, the common requirement is a termination interface that maintains signal integrity under demanding electrical and environmental conditions, supports rapid field maintenance, and integrates without friction into the existing control system architecture.

Architecture Engineering FAQ

Q1: Is the 128710-01 compatible with all 3500 Series monitor modules, and does installation require any rack reconfiguration?
The 128710-01 is designed for use with specific 3500 Series monitor modules — compatibility depends on the module type and the corresponding ET Block variant specified in the Bently Nevada system documentation. In most brownfield replacement scenarios, the 128710-01 is a direct plug-compatible substitute that requires no rack reconfiguration, software parameter changes, or channel recalibration, making it suitable for Contextual Integration into existing operational systems. Engineers should verify the specific module-to-ET Block pairing using the 3500 Series hardware manual before installation.

Q2: How does the 128710-01 support long-term maintenance efficiency in a multi-rack machinery protection system?
The external termination architecture of the 128710-01 allows field wiring to be disconnected and reconnected at the termination block without removing the monitor module from the rack or interrupting adjacent monitoring channels. This significantly reduces the time and risk associated with field wiring maintenance, calibration checks, and transducer replacement. For facilities managing multiple 3500 racks across several critical machines, maintaining a spare inventory of 128710-01 ET Blocks — alongside compatible monitor modules and power supply units — is a recommended practice for minimizing corrective maintenance lead times.

Q3: What does the 12-Month Warranty cover, and what is the process for warranty claims on ZYPLC-supplied units?
All 128710-01 units supplied by ZYPLC are covered by a 12-Month Warranty from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. Each unit is functionally verified prior to dispatch and supplied with traceability documentation. In the event of a warranty claim, customers should contact ZYPLC directly via the details below to initiate the return and replacement process. ZYPLC maintains stock of verified replacement units to support rapid turnaround for both warranty and non-warranty replacement requirements.
