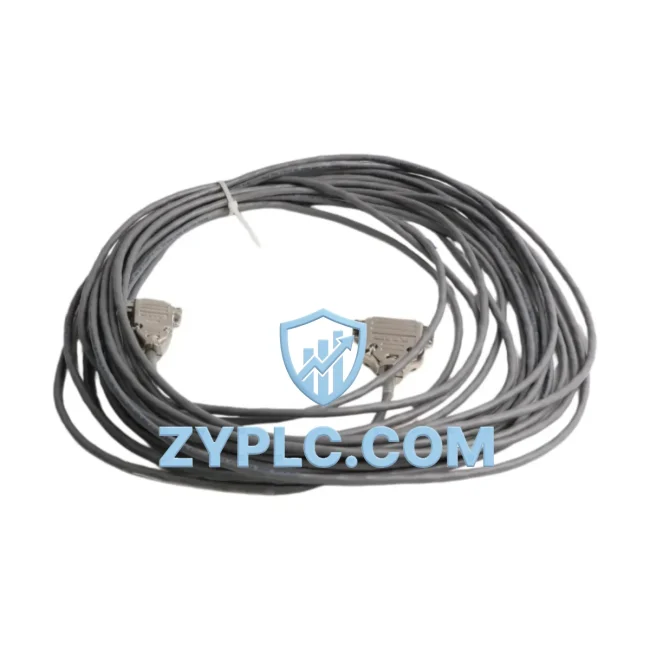

Bently Nevada 130539-20 System-Ready Interconnect Cable for 3500 Architecture

Bently Nevada 130539-20 System-Ready Interconnect Cable for 3500 Control Architecture

The Bently Nevada 130539-20 is a precision-engineered interconnect cable purpose-built for deployment within the Bently Nevada 3500 Series Machinery Protection System architecture. Rather than functioning as a standalone accessory, this cable serves as a critical signal-path component that binds the control layer, I/O layer, and sensor layer into a coherent, high-integrity monitoring system. In rotating machinery protection environments — including turbines, compressors, pumps, and generators — signal fidelity between field-mounted transducers and rack-mounted monitoring modules is non-negotiable. The 130539-20 is engineered to meet that requirement with consistent electrical performance across the full operating lifecycle of the system.

Within the 3500 rack architecture, the 130539-20 interconnect cable provides the physical and electrical bridge between proximity probe transducers and the corresponding 3500/40M, 3500/42M, or 3500/45 monitor modules installed in the 3500/05 or 3500/15 rack chassis. Its shielded construction suppresses electromagnetic interference from adjacent power conductors, variable frequency drives, and high-current switching equipment — all common sources of noise in industrial control cabinets. This shielding is essential when the cable runs alongside power supply modules such as the 3500/15 Power Supply or near communication gateway modules like the 3500/92 Communication Gateway, which handles Modbus, Profibus, or Ethernet/IP data exchange with the plant DCS or SCADA layer.

Architecture Specification Table

Coordinated Control System Design

The 130539-20 interconnect cable is most effectively understood within the context of a fully coordinated 3500 Series system architecture. At the sensor layer, Bently Nevada 3300 XL 8mm or 3300 XL 11mm proximity probe systems — including the probe, extension cable, and Proximitor sensor — generate the raw vibration, position, and speed signals that feed into the monitoring rack. The 130539-20 provides the final, rack-side connection that delivers these signals to the appropriate monitor module with minimal signal degradation.

At the monitor module layer, the 130539-20 interfaces directly with modules such as the 3500/40M Proximitor/Seismic Monitor, the 3500/42M Proximitor/Seismic Monitor, and the 3500/45 Position Monitor. These modules process the incoming signals and generate both analog 4–20 mA outputs for DCS integration and relay contact outputs for machinery trip logic. The relay outputs connect downstream to the plant’s safety instrumented system or directly to turbine trip solenoids and compressor shutdown valves, completing the protective action chain.

At the rack infrastructure layer, the 3500/20 Rack Interface Module and the 3500/22M Transient Data Interface Module manage internal rack communication and data buffering. The 3500/92 Communication Gateway bridges the rack to plant-level networks, enabling real-time data exchange with historian servers, condition monitoring software platforms, and operator HMI stations. Maintaining clean signal paths through components like the 130539-20 is essential to ensuring that the data reaching these higher-level systems accurately reflects actual machinery behavior.

Power integrity across the rack is maintained by the 3500/15 Power Supply module, which provides regulated DC power to all installed monitor modules. Redundant power supply configurations — using dual 3500/15 modules — are common in critical machinery protection applications, and the signal quality delivered by properly installed interconnect cables like the 130539-20 is a prerequisite for reliable redundant system operation. Terminal blocks and field wiring termination panels, such as the 3500 I/O Module terminal blocks, complete the field-side wiring infrastructure and must be compatible with the cable’s connector and gauge specifications.

Application in Layered Automation Systems

The Bently Nevada 130539-20 interconnect cable finds application across a broad range of heavy industrial sectors where rotating machinery protection is a safety and operational priority.

In power generation facilities — including gas turbine, steam turbine, and hydro turbine plants — the 3500 Series system is the industry-standard platform for shaft vibration, axial position, and differential expansion monitoring. The 130539-20 ensures that proximity probe signals from turbine bearing housings reach the 3500 rack with the fidelity required for accurate alarm and trip setpoint evaluation. In combined-cycle plants, where multiple turbine trains share a common DCS infrastructure, consistent cable quality across all monitoring points is essential for system-wide data integrity.

In petrochemical and refinery environments, the 130539-20 is deployed on centrifugal compressor trains, reactor charge pumps, and main air blowers — all of which operate continuously and cannot tolerate unplanned shutdowns. The cable’s shielded construction is particularly valuable in these environments, where variable frequency drives, large motor starters, and high-voltage switchgear generate significant electromagnetic interference that can corrupt unshielded signal cables.

In mining and mineral processing operations, the 3500 Series protects large grinding mills, slurry pumps, and conveyor drive systems. The 130539-20 must perform reliably in environments with high levels of vibration, dust, and temperature variation. Proper cable routing, secure termination, and periodic inspection — supported by the 12-Month Warranty coverage — are standard maintenance practices in these demanding applications.

In water and wastewater treatment plants, the 3500 system monitors large vertical turbine pumps and blower units. The 130539-20 interconnect cable supports the signal integrity requirements of these lower-speed, high-consequence applications, where early detection of bearing wear or shaft misalignment can prevent costly pump failures and service interruptions.

Architecture Engineering FAQ

Q1: Is the 130539-20 compatible with all 3500 Series monitor modules, and does it support both radial vibration and axial position monitoring applications?
The 130539-20 is designed for use within the Bently Nevada 3500 Series architecture and is compatible with the primary proximity probe-based monitor modules, including the 3500/40M, 3500/42M, and 3500/45. It supports both radial vibration and axial position monitoring applications, as the cable’s function is to convey the raw Proximitor output signal to the monitor module input — the module itself determines the measurement type based on its configuration. Always verify connector type and cable length against your specific rack layout and field wiring distance before installation.

Q2: How does the 130539-20 contribute to system redundancy and long-term maintenance efficiency in critical machinery protection architectures?
In redundant 3500 rack configurations, maintaining identical cable specifications across primary and redundant signal paths is essential for ensuring that both paths deliver equivalent signal quality. The 130539-20 supports this requirement by providing consistent electrical characteristics across units. From a maintenance perspective, using standardized, OEM-specified interconnect cables simplifies spare parts management, reduces troubleshooting time during fault diagnosis, and ensures that replacement cables meet the original system design intent. The 12-Month Warranty provides additional assurance of component quality and supports lifecycle cost planning for long-term plant maintenance programs.

Q3: What installation and commissioning best practices apply to the 130539-20 in high-EMI industrial control cabinet environments, and how does Contextual Integration with adjacent rack modules affect cable routing decisions?
In high-EMI environments, the 130539-20 should be routed away from high-current power conductors, VFD output cables, and relay coil wiring. Maintaining physical separation — or using dedicated cable trays for signal cables — minimizes induced noise on the proximity probe signal. The cable shield should be terminated at one end only (typically the rack end) to prevent ground loop currents that can introduce low-frequency noise into the signal path. Contextual Integration with adjacent 3500 rack modules — including the 3500/20 Rack Interface Module and 3500/92 Communication Gateway — requires that all signal cables entering the rack maintain consistent shielding and termination practices to preserve the overall system noise floor. During commissioning, signal verification using a Bently Nevada 3500 rack configuration tool or a calibrated signal simulator confirms correct cable installation before machinery startup.
