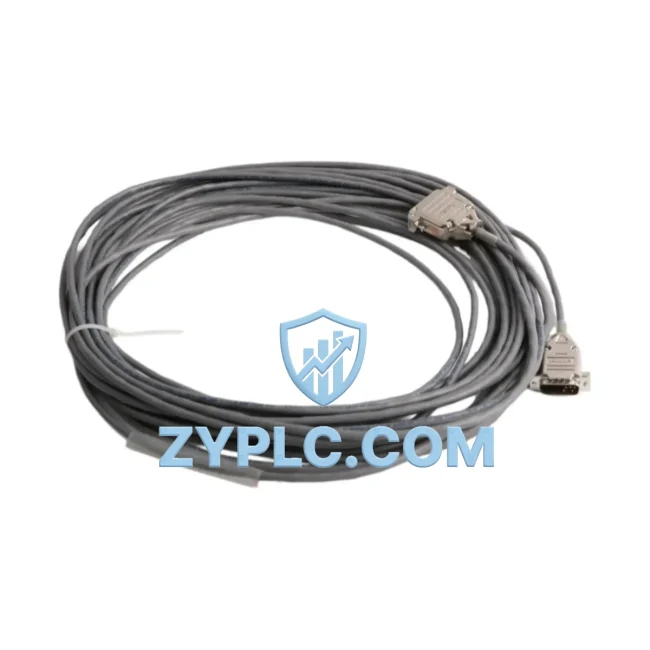

Bently Nevada 130539-50 Energy-Saving Cable for 3500 Automation

Bently Nevada 130539-50 Energy-Saving Interconnect Cable for Optimized 3500 Series Automation

The Bently Nevada 130539-50 is a precision-engineered Interconnect Cable designed for the 3500 Series vibration monitoring and machinery protection platform. In modern industrial facilities where energy efficiency and equipment uptime are inseparable goals, this cable plays a foundational role in closing the loop between rotating machinery, condition monitoring hardware, and the control systems that govern plant-wide energy consumption. By ensuring low-loss, high-integrity signal transmission between transducers and the 3500 rack modules, the 130539-50 directly supports the accuracy of vibration data that drives predictive maintenance decisions — reducing unnecessary shutdowns, eliminating reactive energy waste, and enabling tighter motor control across critical production assets.

Industrial plants running continuous processes — from petrochemical compressors to power generation turbines — depend on the 3500 Series platform to monitor shaft displacement, velocity, and acceleration in real time. The 130539-50 Interconnect Cable is the physical link that makes this monitoring possible. A degraded or incorrect cable introduces signal noise, false alarms, and missed fault detection, all of which translate directly into energy inefficiency: motors running at suboptimal loads, drives responding to inaccurate feedback, and maintenance teams dispatched on unnecessary interventions. The 130539-50 eliminates these failure modes with a verified, OEM-specification connection that preserves signal fidelity from sensor to rack.

Efficiency Performance Table

Energy-Aware Automation Architecture

The 130539-50 Interconnect Cable operates within a tightly integrated automation architecture where every component contributes to the plant’s overall energy profile. At the sensing layer, Bently Nevada 3300 XL 8mm proximity probes and 3300 XL NSv transducers capture shaft displacement data with micron-level resolution. This raw signal travels through the 130539-50 cable to the 3500/42M four-channel general purpose input module, where it is conditioned, digitized, and passed to the 3500 rack backplane.

Within the same rack, the 3500/20 rack interface module manages communication between the monitoring system and the plant’s DCS or SCADA layer — typically a Rockwell Automation ControlLogix L7x controller or a Siemens S7-400 PLC — via Modbus TCP or OPC-UA. This integration allows the control system to receive real-time vibration health data and adjust drive setpoints accordingly. When the 3500/92 communication gateway module forwards alarm states to the drive layer, a Rockwell PowerFlex 755 variable frequency drive or ABB ACS880 industrial drive can reduce motor speed proactively, cutting energy draw before a fault escalates to a trip event.

On the power monitoring side, the 3500 platform interfaces with Bently Nevada System 1 software, which aggregates vibration, temperature, and process data into a unified energy and condition dashboard. Operators can correlate motor current draw — measured by a Schneider Electric PowerLogic ION7650 power meter — with vibration trends to identify inefficient operating points. The 3500/45 position monitor module and 3500/50 tachometer module provide speed and position references that further refine drive control loops, ensuring motors operate at their highest efficiency point on the torque-speed curve.

At the I/O layer, Bently Nevada 3500/93 TMR relay output modules provide hardwired trip signals to motor control centers, ensuring that energy-wasting fault conditions are isolated within milliseconds. The entire architecture — from the 130539-50 cable at the transducer end to the relay output at the MCC — forms a closed-loop energy optimization system where signal integrity at every node is non-negotiable.

Power Optimization in Real Production Lines

In a typical centrifugal compressor train, the 130539-50 Interconnect Cable connects proximity probes monitoring journal bearing clearance to the 3500 rack mounted in the local equipment room. When bearing wear begins to develop, the 3500/42M module detects the characteristic sub-synchronous vibration signature and transmits an alert to the control system. Rather than waiting for a full trip — which would require an emergency shutdown, a cold restart consuming significant electrical energy, and potential mechanical damage — the operator can reduce compressor load incrementally via the variable frequency drive, allowing the machine to continue operating at a reduced, energy-efficient setpoint while maintenance is scheduled.

On paper machine drives and extruder lines, where production rhythm directly determines specific energy consumption per unit of output, the 130539-50 supports the vibration monitoring of gearboxes and motor bearings that would otherwise cause unplanned stops. Each unplanned stop on a high-inertia production line wastes the kinetic energy stored in the rotating mass, requires a full-power restart cycle, and disrupts the thermal equilibrium of the process — all of which inflate the plant’s energy intensity per unit produced. By maintaining continuous, accurate vibration data through a reliable interconnect cable, the 3500 platform enables the predictive maintenance strategy that keeps these lines running at their designed energy efficiency point.

For facilities operating under ISO 50001 energy management systems, the data quality provided by the 130539-50 and the 3500 Series platform directly supports the measurement and verification requirements of the standard. Accurate, continuous vibration data feeds into energy performance indicator (EnPI) calculations, helping energy managers demonstrate that motor-driven systems are operating within their designed efficiency envelope and identify deviations before they become reportable losses.

Energy Optimization FAQ

Q1: How does the 130539-50 Interconnect Cable contribute to energy savings in a 3500 Series installation?
The 130539-50 ensures that vibration signals from proximity probes reach the 3500 rack modules without attenuation or noise corruption. Accurate vibration data is the foundation of predictive maintenance decisions that prevent energy-wasting unplanned shutdowns, unnecessary motor restarts, and suboptimal drive operating points. A faulty or incorrect cable degrades this data quality and undermines the entire energy optimization strategy built on the 3500 platform.

Q2: Is the 130539-50 compatible with all 3500 Series input modules?
The 130539-50 is designed for use with the Bently Nevada 3500 Series platform and is compatible with standard transducer input modules including the 3500/42M, 3500/44M, 3500/45, and 3500/50. For specific wiring configurations and connector compatibility, refer to the Bently Nevada 3500 Series installation manual or contact our technical team for application support.

Q3: What is the recommended replacement process for an existing interconnect cable in a live installation?
For live installations, the recommended approach is to schedule cable replacement during a planned maintenance window to avoid introducing signal interruptions to the protection system. Before replacement, verify the new 130539-50 against the existing cable’s routing and connector orientation. After installation, perform a static calibration check on the affected channel using the 3500 rack’s built-in self-test function to confirm signal integrity before returning the channel to protection service. All units supplied by ZYPLC are pre-tested prior to shipment.

Q4: What warranty and testing standards apply to the 130539-50 supplied by ZYPLC?
Every 130539-50 Interconnect Cable supplied by ZYPLC is covered by a 12-month warranty against defects in materials and workmanship. Units undergo functional testing prior to shipment to verify electrical continuity, shielding integrity, and connector seating. ZYPLC maintains in-stock inventory of the 130539-50 to support urgent replacement requirements, with same-day shipping available for orders confirmed before the daily cutoff.
