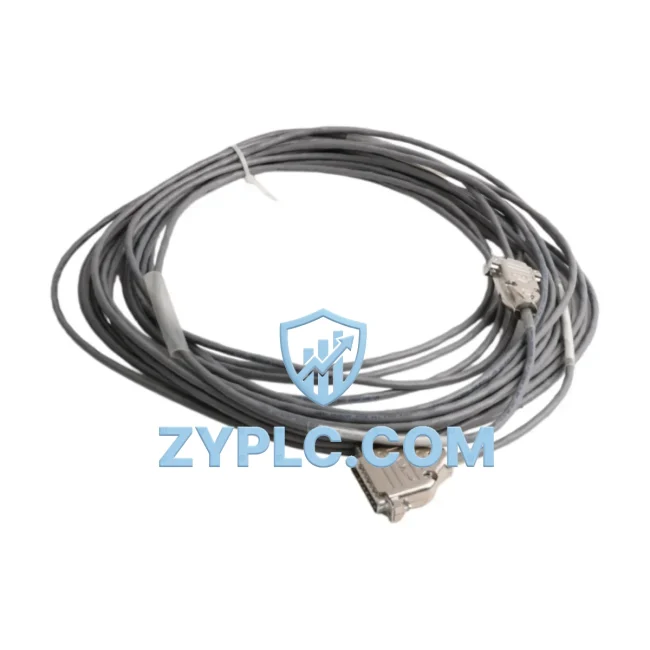

Bently Nevada 130539-72 System-Ready Interconnect Cable for 3500 Architecture

Bently Nevada 130539-72 System-Ready Interconnect Cable for 3500 Architecture: Control System Architecture and Upstream-Downstream Coordination

The Bently Nevada 130539-72 Interconnect Cable is a precision-engineered signal transmission component purpose-built for the Bently Nevada 3500 Series Machinery Protection System. Within a layered industrial automation architecture, this cable serves as the critical physical link between field-mounted transducers and the 3500 rack-based monitoring modules, ensuring signal fidelity, system consistency, and long-term operational reliability across demanding process environments. Rather than functioning as a standalone accessory, the 130539-72 is an integral element of a coordinated control system design — one that spans the control layer, I/O layer, network layer, power layer, human-machine interface layer, and execution layer simultaneously.

In modern industrial facilities — including power generation plants, petrochemical refineries, water treatment stations, mining operations, metallurgical processing lines, and continuous manufacturing environments — the integrity of the signal path between rotating machinery and the protection system is non-negotiable. The 130539-72 Interconnect Cable provides a shielded, low-noise transmission path that preserves the accuracy of vibration, position, and speed signals as they travel from proximity probes and velocity transducers into the 3500 rack. Any degradation in this signal path can compromise the entire protection architecture, leading to false trips, missed alarms, or undetected machinery faults. The 130539-72 eliminates this risk through its robust construction and compatibility with the full 3500 ecosystem.

System engineers integrating the 130539-72 into a 3500-based protection architecture benefit from its plug-and-play compatibility with the 3500/42M Proximitor/Seismic Monitor, the 3500/40M Proximitor/Seismic Monitor, and the 3500/22M Transient Data Interface. The cable’s connector geometry and shielding specification are matched to the input requirements of these modules, reducing installation time and eliminating field-wiring errors that can introduce ground loops or signal noise. When paired with the 3500/15 Power Supply module and the 3500/05 Rack Interface Module, the complete rack assembly achieves the electrical isolation and signal conditioning performance required for API 670-compliant machinery protection.

From a system architecture perspective, the 130539-72 operates at the boundary between the field instrumentation layer and the I/O acquisition layer. Upstream, it interfaces with Bently Nevada proximity probe systems — including the 3300 XL 8mm Proximity Transducer System — which convert mechanical displacement into proportional voltage signals. Downstream, those signals feed into the 3500 monitor modules, which apply alarm setpoints, trip logic, and buffered output signals to the control layer. The control layer — typically a DCS or safety PLC — receives these processed signals via the 3500/20 Rack Interface Module or through Modbus/TCP and FOUNDATION Fieldbus communication gateways, enabling plant-wide integration and historian data capture.

Redundancy is a core design consideration in any critical machinery protection system. The 130539-72 supports dual-channel wiring configurations where redundant transducer inputs are required, ensuring that a single cable or connector failure does not result in a loss of protection coverage. This capability is particularly valuable in applications where the 3500 rack is configured in a redundant architecture alongside a 3500/92 Communication Gateway Module, allowing seamless failover without interrupting the monitoring function. The cable’s mechanical durability — including its resistance to vibration, moisture ingress, and chemical exposure — further supports long-term system availability in harsh industrial environments.

Maintenance engineers and reliability teams benefit from the 130539-72’s standardized form factor, which simplifies spare parts management and reduces mean time to repair (MTTR). Because the cable is a defined catalog component within the Bently Nevada 3500 ecosystem, replacement units can be sourced, verified, and installed without requiring custom fabrication or field modification. This standardization supports predictive maintenance programs and aligns with the inventory management strategies of facilities operating multiple 3500 racks across different machinery trains. Combined with our 12-Month Warranty coverage, the 130539-72 provides procurement teams with the confidence to maintain lean safety stock without compromising system uptime.

Architecture Specification Table

Coordinated Control System Design

The 130539-72 Interconnect Cable achieves its full value when evaluated within the context of a complete Bently Nevada 3500 rack assembly. A typical coordinated protection system for a critical rotating machine — such as a gas turbine, centrifugal compressor, or boiler feed pump — integrates the following components in a unified architecture:

• 3500/05 Rack Interface Module — Provides the backplane communication bus and rack-level configuration interface for all installed monitor modules.
• 3500/15 Power Supply Module — Delivers regulated DC power to all rack modules, with optional redundant power supply configuration for continuous availability.
• 3500/40M Proximitor/Seismic Monitor — Processes radial vibration and seismic signals from proximity probes connected via the 130539-72 cable.
• 3500/42M Proximitor/Seismic Monitor — Handles dual-channel radial vibration inputs with independent alarm and trip relay outputs.
• 3500/22M Transient Data Interface — Captures high-resolution transient waveform data during startup, shutdown, and trip events for post-event analysis.
• 3500/92 Communication Gateway Module — Enables Modbus/TCP, FOUNDATION Fieldbus, or Profibus DP communication between the 3500 rack and the plant DCS or historian.
• 3300 XL 8mm Proximity Transducer System — Field-mounted proximity probe system that generates the raw displacement signal transmitted through the 130539-72 to the monitor module.
• 3500/20 Rack Interface Module — Provides relay output contacts for trip and alarm signals to the plant safety interlock system or ESD controller.
• Bently Nevada TK-3 Extension Cable — Used in conjunction with the 130539-72 where extended cable runs between the junction box and the rack are required.
• 3500/25 Enhanced Keyphasor Module — Provides shaft speed and phase reference signals that synchronize vibration data across all monitor channels in the rack.

Together, these components form a tightly integrated protection architecture in which the 130539-72 Interconnect Cable plays a foundational role — ensuring that every signal generated at the machine train arrives at the monitoring system with full accuracy and without electromagnetic interference.

Application in Layered Automation Systems

The Bently Nevada 130539-72 Interconnect Cable is deployed across a wide range of industrial sectors where rotating machinery protection is critical to process continuity and personnel safety.

In power generation facilities — including gas turbine plants, steam turbine stations, and combined-cycle power plants — the 130539-72 connects proximity probes mounted on turbine shafts and bearing housings to the 3500 rack, enabling real-time monitoring of shaft displacement, bearing vibration, and differential expansion. Any deviation from normal operating parameters triggers alarm and trip responses that protect multi-million-dollar assets from catastrophic failure.

In petrochemical and refinery applications, the cable operates in environments characterized by high ambient temperatures, hydrocarbon vapors, and aggressive chemical atmospheres. Its shielded construction and robust connector design maintain signal integrity under these conditions, supporting continuous operation of compressors, pumps, and agitators that are central to process throughput.

In water treatment and municipal utility plants, the 130539-72 supports the protection of large centrifugal pumps and blowers, where unplanned downtime has direct consequences for public service delivery. The cable’s compatibility with the 3500 rack’s Contextual Integration architecture allows plant operators to correlate machinery health data with process variables in a unified SCADA or DCS environment.

In mining and metallurgical operations, where machinery operates under extreme mechanical loads and dusty, high-humidity conditions, the 130539-72 provides the reliable signal path needed to protect ball mills, crushers, and conveyor drive systems. Its standardized form factor simplifies maintenance in remote locations where specialized cable fabrication is not practical.

In packaging and discrete manufacturing lines, the cable supports condition monitoring programs that use the 3500 system’s transient data capture capability to detect early-stage bearing defects and rotor imbalance before they escalate into production-stopping failures.

Architecture Engineering FAQ

Q1: Is the Bently Nevada 130539-72 compatible with all 3500 Series monitor modules?
The 130539-72 Interconnect Cable is designed for use with the Bently Nevada 3500 Series rack system and is compatible with the 3500/40M, 3500/42M, 3500/22M, and 3500/25 monitor modules, among others. Compatibility depends on the specific connector configuration and cable length required for your installation. We recommend verifying the monitor module’s input connector specification against the 130539-72 datasheet before installation. Our technical team can assist with compatibility confirmation for your specific rack configuration.

Q2: Can the 130539-72 be used in a redundant transducer wiring architecture?
Yes. The 130539-72 supports dual-channel wiring configurations where redundant proximity probe inputs are required by the protection system design. In redundant architectures, two cables are routed from independent transducers to separate input channels on the monitor module, ensuring that a single cable failure does not result in loss of protection. This configuration is fully supported within the 3500 rack’s Contextual Integration framework and is consistent with API 670 redundancy requirements for critical machinery protection systems.

Q3: What does the 12-Month Warranty cover, and what support is available for long-term maintenance?
All Bently Nevada 130539-72 Interconnect Cables supplied by ZYPLC are covered by a 12-Month Warranty against manufacturing defects and functional failures under normal operating conditions. The warranty covers replacement of defective units and technical support for installation and commissioning issues. For long-term maintenance programs, we maintain in-stock inventory of the 130539-72 and related 3500 Series components, enabling rapid replenishment to support planned maintenance shutdowns and unplanned repair events. Contact our engineering team at plc.sales@zyplc.com or +86 19859288691 for warranty claims and spare parts planning support.
