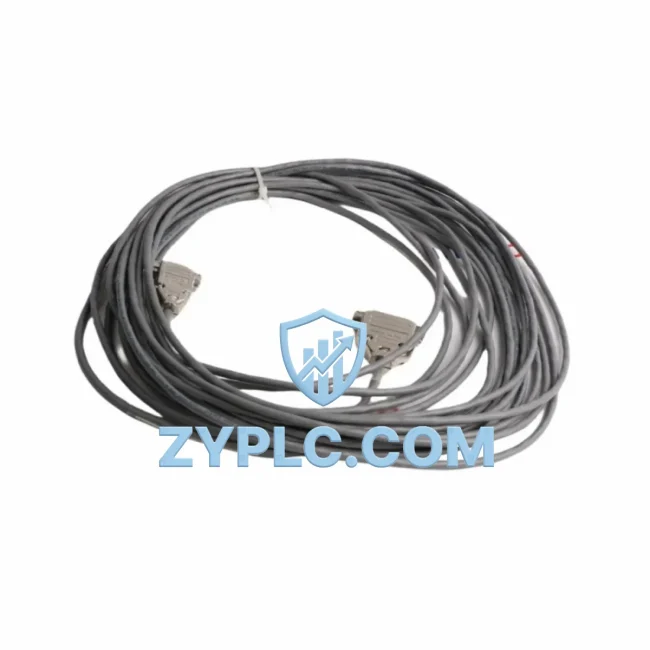

Bently Nevada 130539-99 System-Ready Interconnect Cable for 3500 Architecture

Bently Nevada 130539-99 System-Ready Interconnect Cable for 3500 Architecture: Control System Coordination and Contextual Integration

The Bently Nevada 130539-99 Interconnect Cable is a precision-engineered signal transmission component purpose-built for the Bently Nevada 3500 Series Machinery Protection System. Within a layered industrial automation architecture, this cable serves as the critical physical link between field-mounted transducers and the 3500 rack-based monitoring modules, ensuring that vibration, position, and process data flows with integrity from the sensor layer through to the control and decision layer. Its role is not merely passive — it is a foundational element of system consistency, enabling reliable contextual integration across the entire condition monitoring infrastructure.

In modern industrial facilities — whether in power generation, petrochemical processing, water treatment, mining, metallurgy, or rotating equipment-intensive manufacturing — the reliability of a machinery protection system depends not only on the intelligence of its processors and I/O modules, but equally on the signal fidelity maintained throughout the wiring layer. The 130539-99 cable is designed to meet the demanding electrical and mechanical requirements of the 3500 platform, supporting low-noise signal transmission that is essential for accurate vibration amplitude measurement, phase reference detection, and axial position monitoring.

Architecture Specification Table

Coordinated Control System Design

The 130539-99 Interconnect Cable operates within a tightly coordinated system architecture where every layer — from the sensor to the supervisory control system — must function as a unified whole. At the field level, proximity probes such as the Bently Nevada 330180-91-00 or 330130-080-01-00 are mounted adjacent to rotating shafts to detect radial vibration and axial displacement. These probes connect through the 130539-99 cable to the 3500 rack, where dedicated monitor modules such as the 3500/42M Four-Channel Proximitor/Seismic Monitor or the 3500/46M Hydro Monitor process the incoming analog signals.

Within the 3500 rack itself, the 3500/20 Rack Interface Module (RIM) manages communication between the individual monitor cards and the plant-level control network, while the 3500/15 Power Supply Module ensures stable, conditioned power delivery to all installed cards. The 130539-99 cable’s role is to guarantee that the signal arriving at the monitor module is a true, low-noise representation of the mechanical condition at the machine — any degradation in this cable layer directly compromises the accuracy of the entire protection system.

For facilities operating redundant protection architectures, the 130539-99 cable is equally critical. In dual-voting or 2oo3 (two-out-of-three) protection configurations, multiple signal paths must maintain identical signal quality. The cable’s shielding and termination design supports this requirement, ensuring that redundant monitor channels — such as those provided by the 3500/22M Transient Data Interface — receive consistent input. This consistency is what allows the system to distinguish genuine machine faults from instrumentation anomalies, reducing nuisance trips while maintaining protection integrity.

At the network and integration layer, the 3500 rack communicates with distributed control systems (DCS) and SCADA platforms via the 3500/92 Communication Gateway Module, which supports Modbus RTU, Modbus TCP, and OPC protocols. The data quality delivered through this gateway is directly dependent on the signal fidelity established at the cable level. Similarly, operator interface stations running System 1 Evolution software rely on clean, continuous data streams to generate accurate trend plots, alarm histories, and predictive maintenance recommendations. The 130539-99 cable is the first link in this data chain — and its reliability determines the quality of every downstream decision.

For engineering teams managing large rotating equipment fleets — gas turbines, steam turbines, compressors, pumps, and fans — the ability to standardize on a single, proven interconnect cable across multiple machines and multiple racks significantly reduces spare parts complexity and maintenance training requirements. Stocking the 130539-99 as a standard spare ensures that cable replacement during scheduled outages or emergency repairs can be completed quickly, without waiting for custom-length fabrication or non-standard connectors.

Application in Layered Automation Systems

Power Generation: In gas turbine and steam turbine protection systems, the 130539-99 cable connects shaft proximity probes to the 3500 rack, enabling continuous monitoring of rotor vibration, differential expansion, and eccentricity. Accurate signal transmission through this cable is essential for turbine runup and coast-down analysis, as well as for trip system validation during commissioning and periodic proof tests.

Petrochemical and Refining: Centrifugal compressors and process pumps in refinery environments operate under API 670 machinery protection requirements. The 130539-99 cable supports compliance with these standards by providing the reliable signal path required for continuous vibration monitoring, with the 3500 system’s monitor modules providing the alarm and trip outputs that protect critical process equipment.

Water and Wastewater Treatment: Large pumping stations and blower installations benefit from the 3500 system’s ability to detect early-stage bearing wear and imbalance. The 130539-99 cable’s durability in humid, chemically active environments makes it suitable for these installations, where cable integrity must be maintained over long service intervals between maintenance windows.

Mining and Minerals Processing: Ball mills, SAG mills, and large conveyor drive systems present extreme vibration environments. The 130539-99 cable’s robust construction supports reliable signal transmission even in high-vibration, high-dust conditions, ensuring that the 3500 system can provide continuous protection for these high-value assets.

Metallurgy and Steel Production: Rolling mills and continuous casting machines require precise axial position monitoring to maintain product quality and prevent equipment damage. The 130539-99 cable supports the high-accuracy position signals required by the 3500/45 Position Monitor, enabling tight integration between the machinery protection system and the process control system.

Architecture Engineering FAQ

Q1: Is the 130539-99 Interconnect Cable compatible with all 3500 Series monitor modules, and can it be used in both new installations and retrofit projects?
The 130539-99 is designed specifically for the Bently Nevada 3500 Series platform and is compatible with the full range of 3500 monitor modules, including the 3500/42M, 3500/44M, 3500/46M, and 3500/50M. It is equally suitable for new rack installations and for retrofit projects where aging cables are being replaced to restore signal integrity. When retrofitting, it is recommended to replace cables in matched sets to ensure consistent signal quality across all channels in a given rack slot.

Q2: How does the 130539-99 cable support long-term maintenance efficiency and system uptime in critical rotating equipment applications?
By standardizing on the 130539-99 as the interconnect cable throughout a facility’s 3500-based protection systems, maintenance teams can maintain a single spare part that covers multiple machine types and rack configurations. This reduces spare parts inventory complexity and ensures that cable replacement can be completed rapidly during planned outages or unplanned shutdowns. The cable’s precision terminations eliminate the need for field re-termination, reducing the risk of installation errors that could compromise signal quality. Combined with the 12-Month Warranty, this makes the 130539-99 a low-risk, high-reliability choice for long-term asset management programs.

Q3: What quality assurance steps are taken before shipment, and what does the 12-Month Warranty cover?
Every 130539-99 Interconnect Cable is tested prior to shipment to verify connector integrity, shield continuity, and conductor resistance. The 12-Month Warranty covers manufacturing defects and signal integrity performance under normal industrial operating conditions. In the event of a warranty claim, replacement units are dispatched promptly to minimize system downtime. For facilities operating under continuous protection requirements, it is recommended to maintain at least one spare cable per rack as part of the site’s critical spare parts program.
